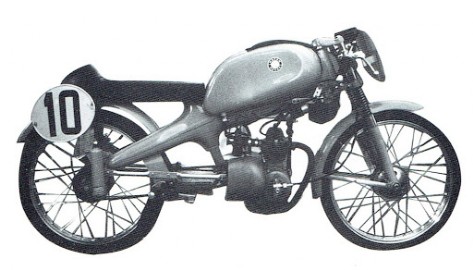

A real Motom racer had a special tank, it was longer than the Sport tank used on the production road bikes.
To make something special I tried to find a tank that had the similar shape, a Mival tank has some similar roundings so started from there.
![](images/unnamed-1-.jpg)

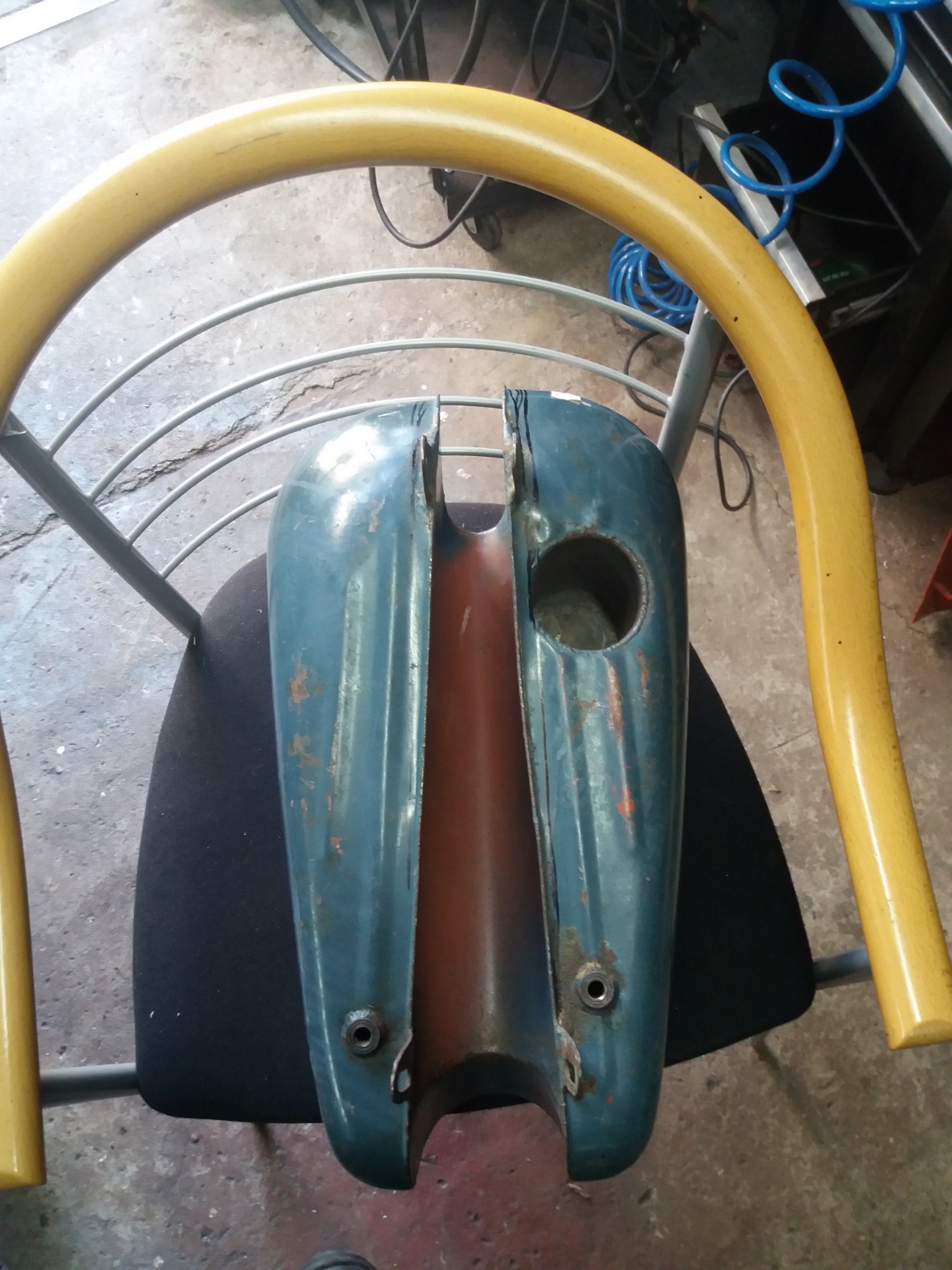

The tank is too small at the front so had to open here up
![](images/20200424_123025.jpg)

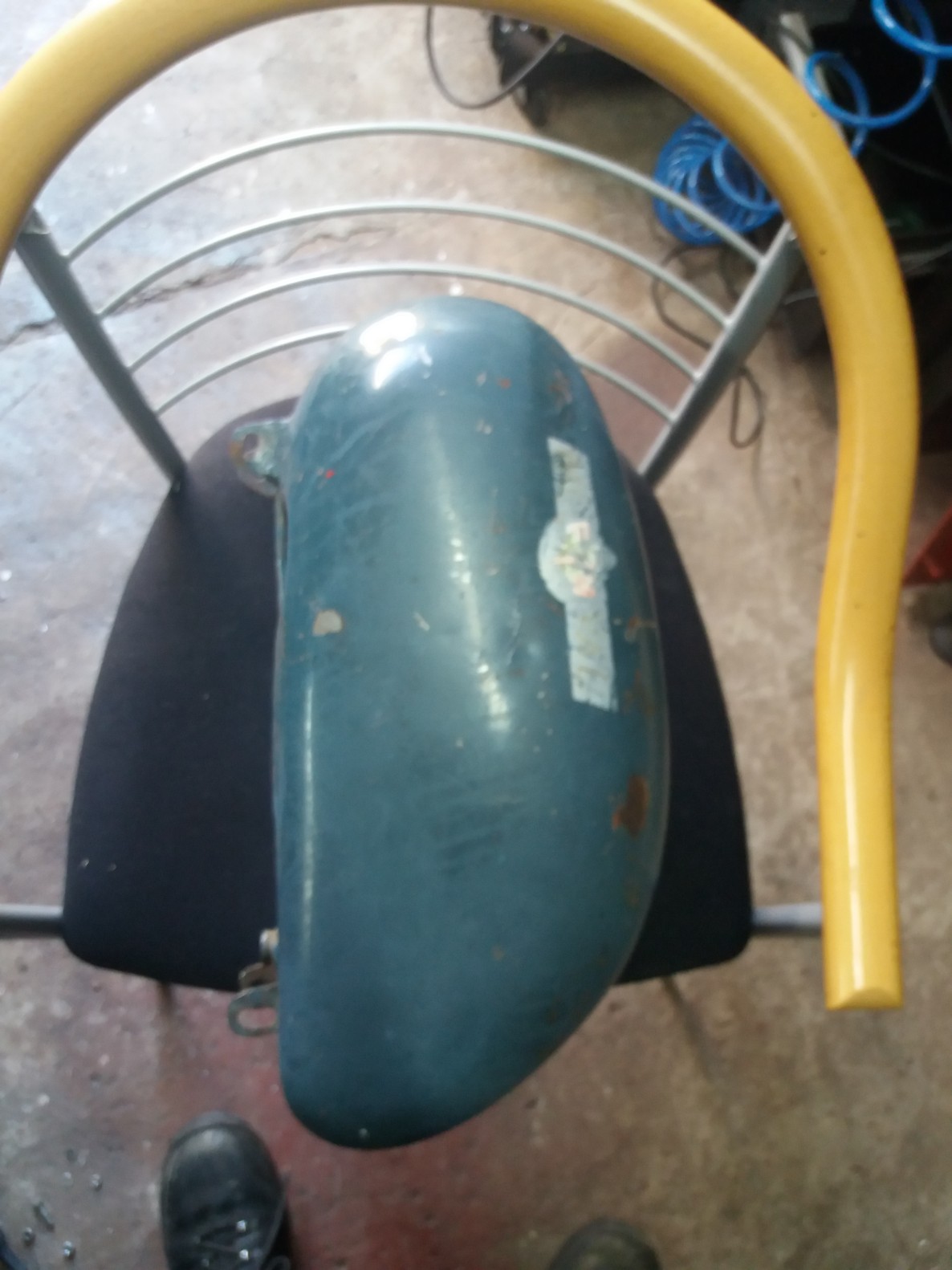

You see something off the drup shape in it.
![](images/20200424_123031.jpg)

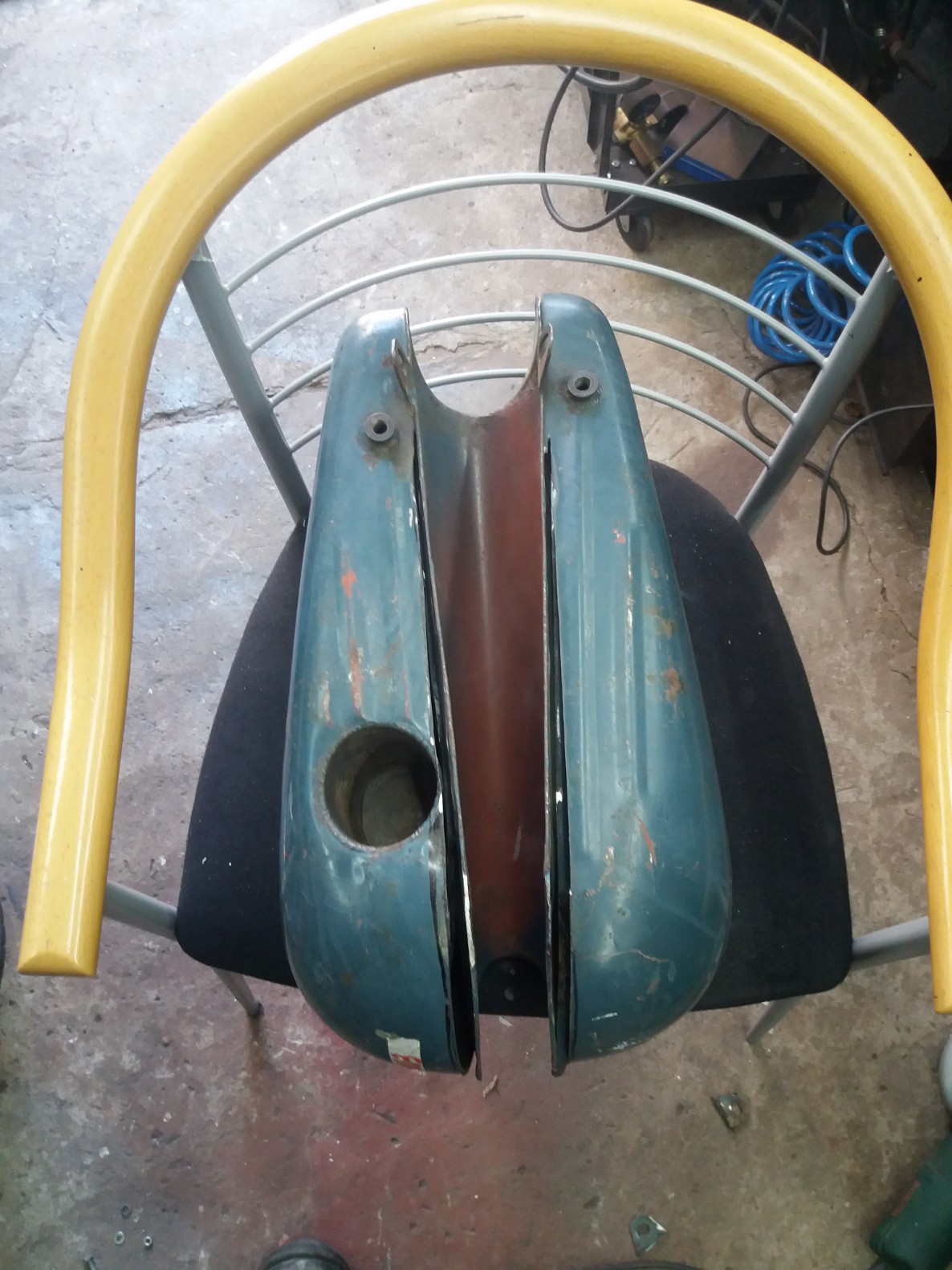

Well, first cuts are made.
![](images/20200424_123824.jpg)

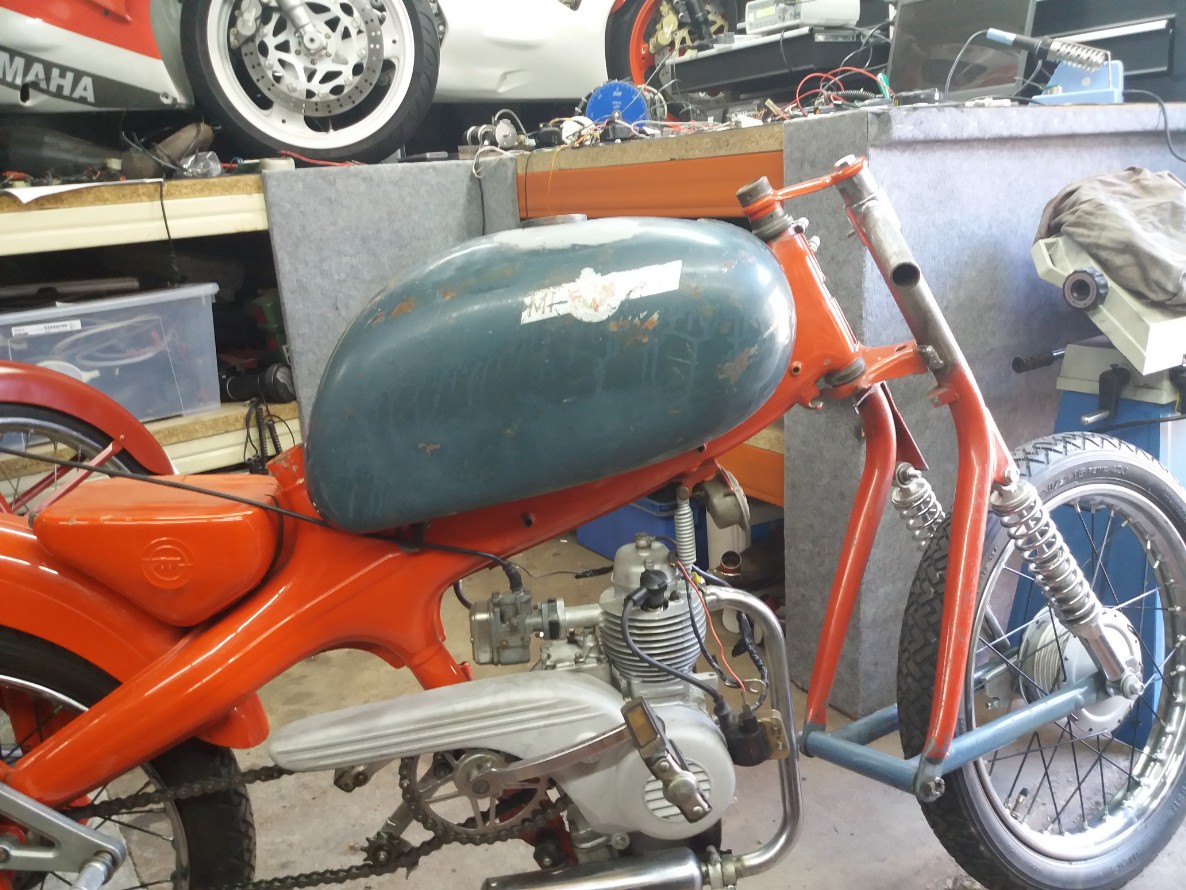

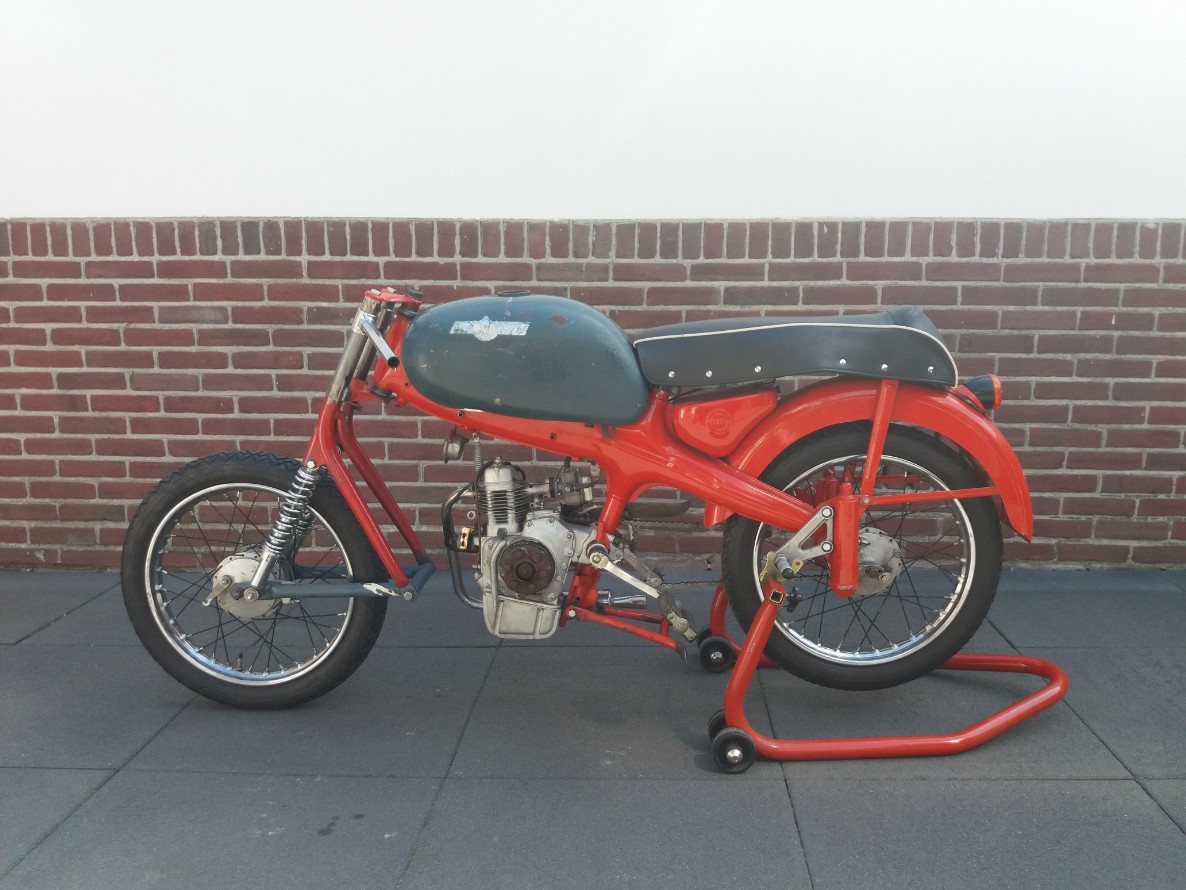

I could now place it to see how she looks
![](images/20200424_124108.jpg)
Not bad but it misses the special cut out the real Moton tanks has.
![](images/20200424_124555.jpg)

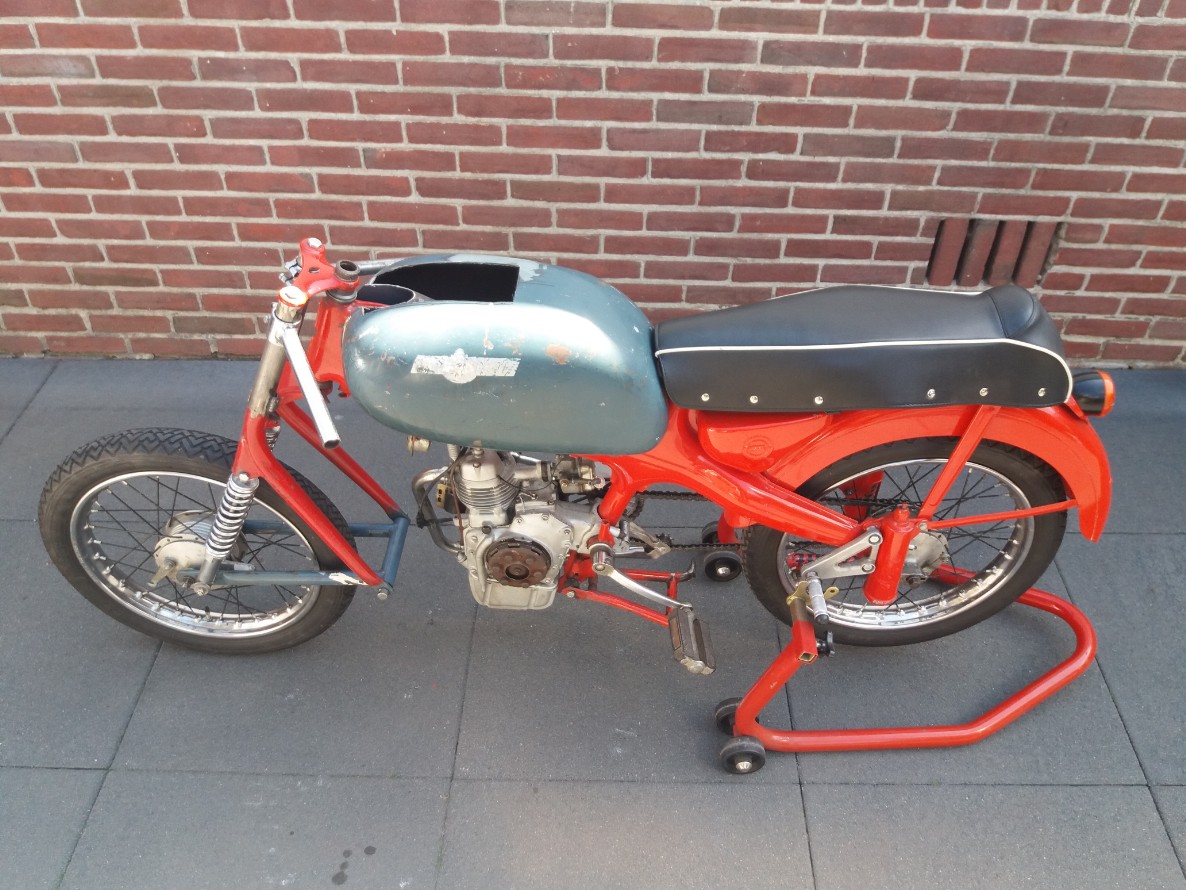

So start cutting the top
![](images/20200424_130502.jpg)

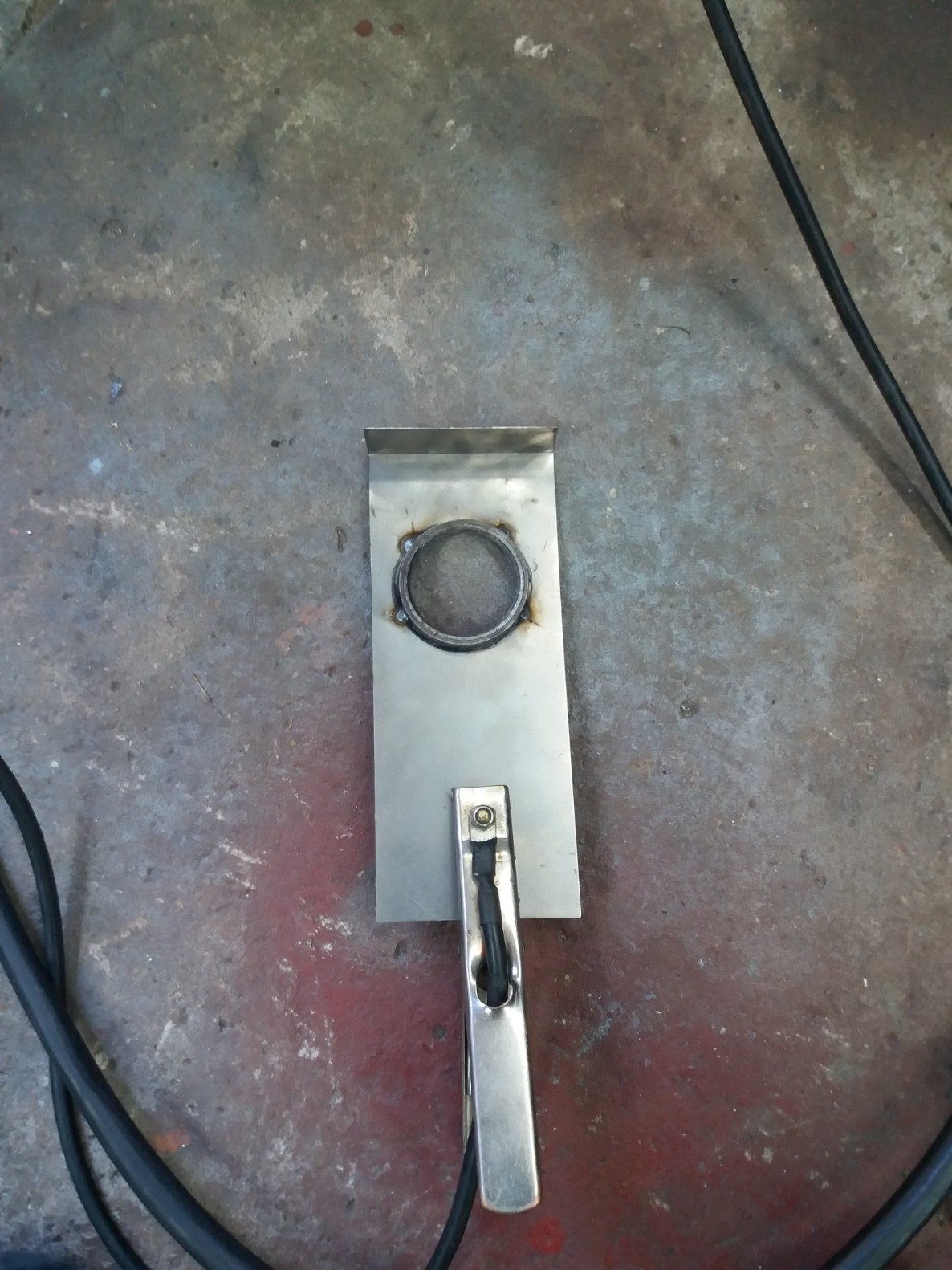

Start making the replacement top
![](images/20200424_133646.jpg)

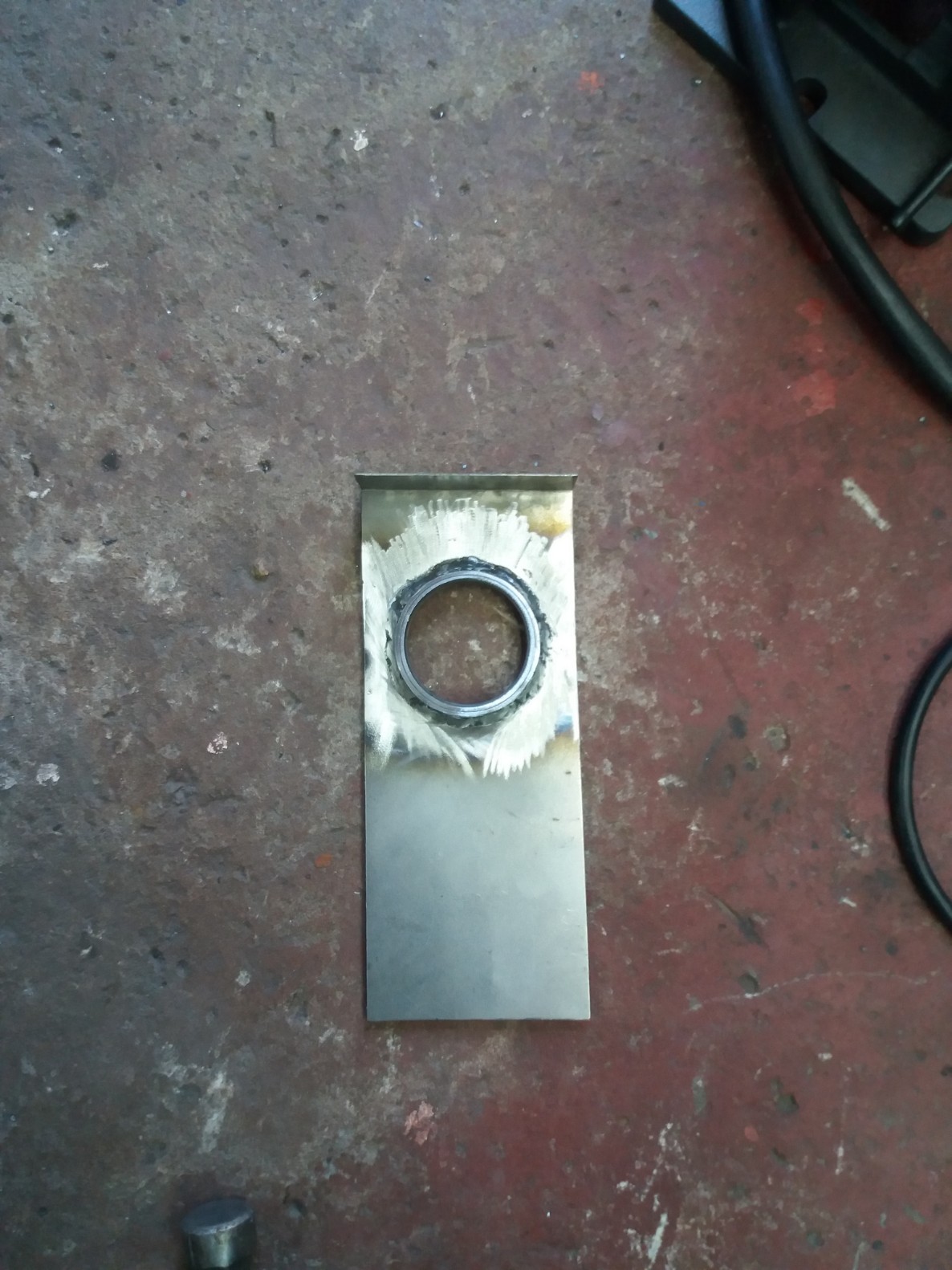

Dubbel welded
![](images/20200424_135456.jpg)

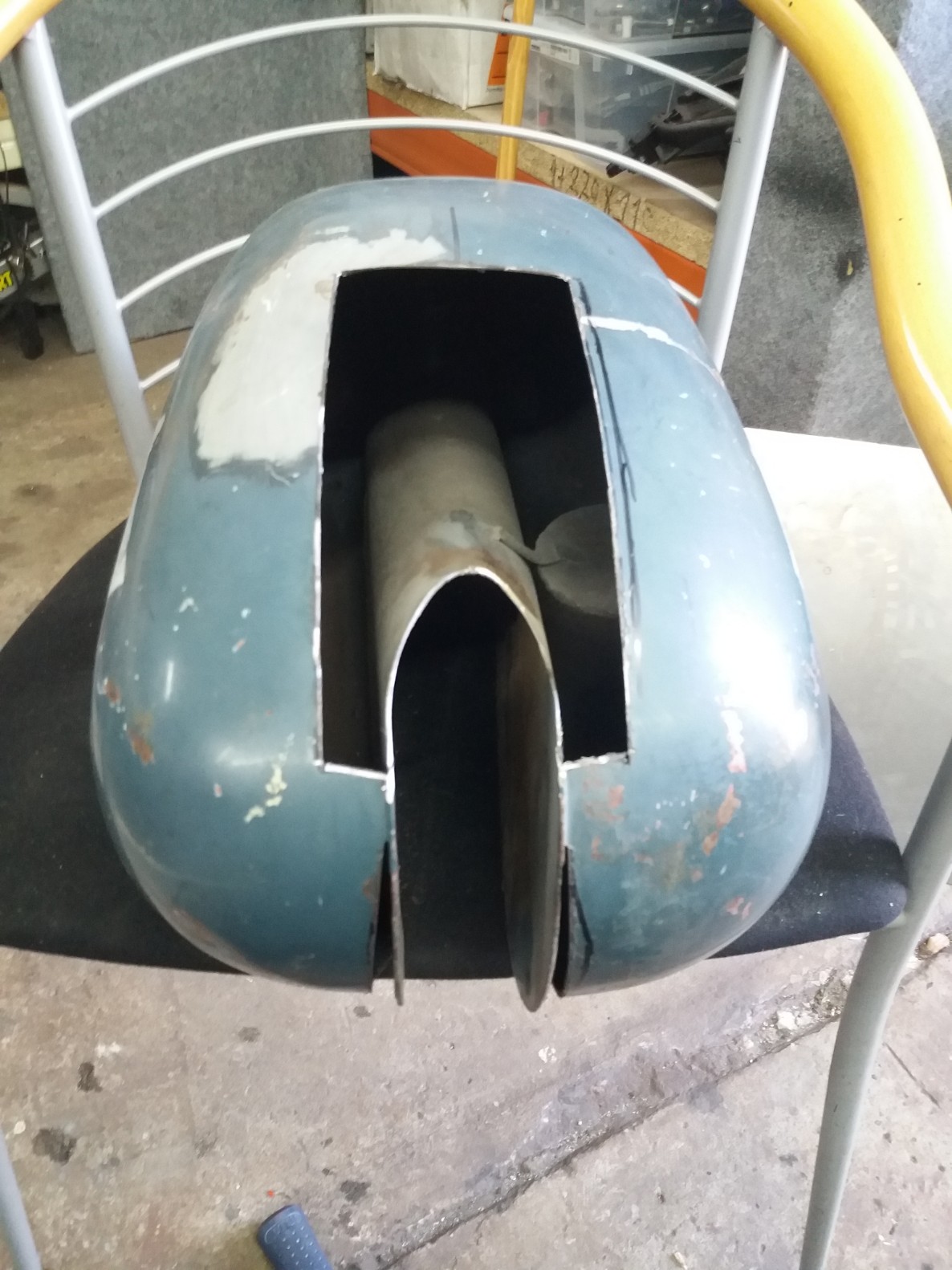

Don't have the real dimension so I just kept it 90mm by 200mm
![](images/20200424_135815.jpg)

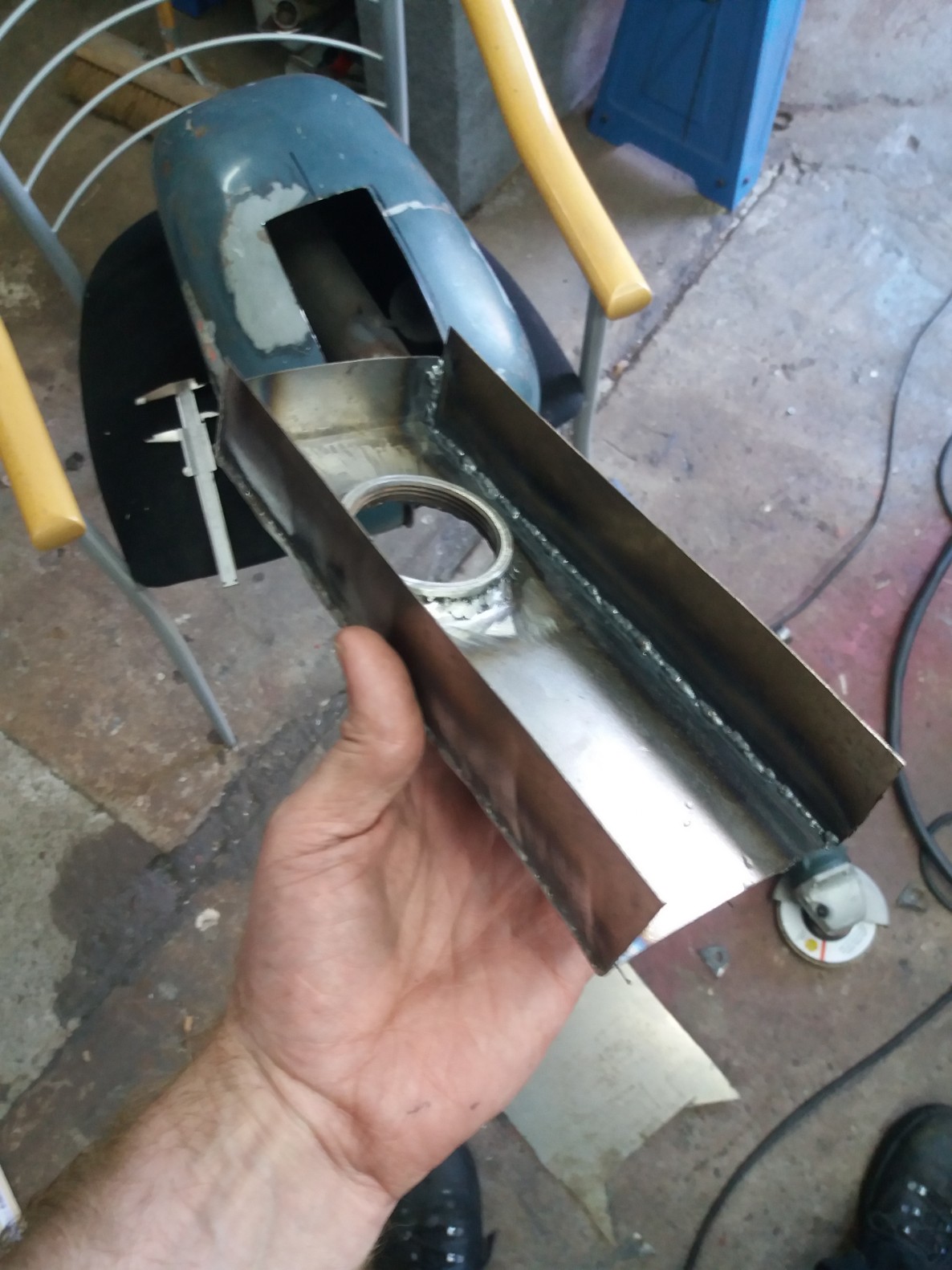

Welded the side's
Keep in mind it has to look hand made so not that precise
![](images/20200424_142902.jpg)

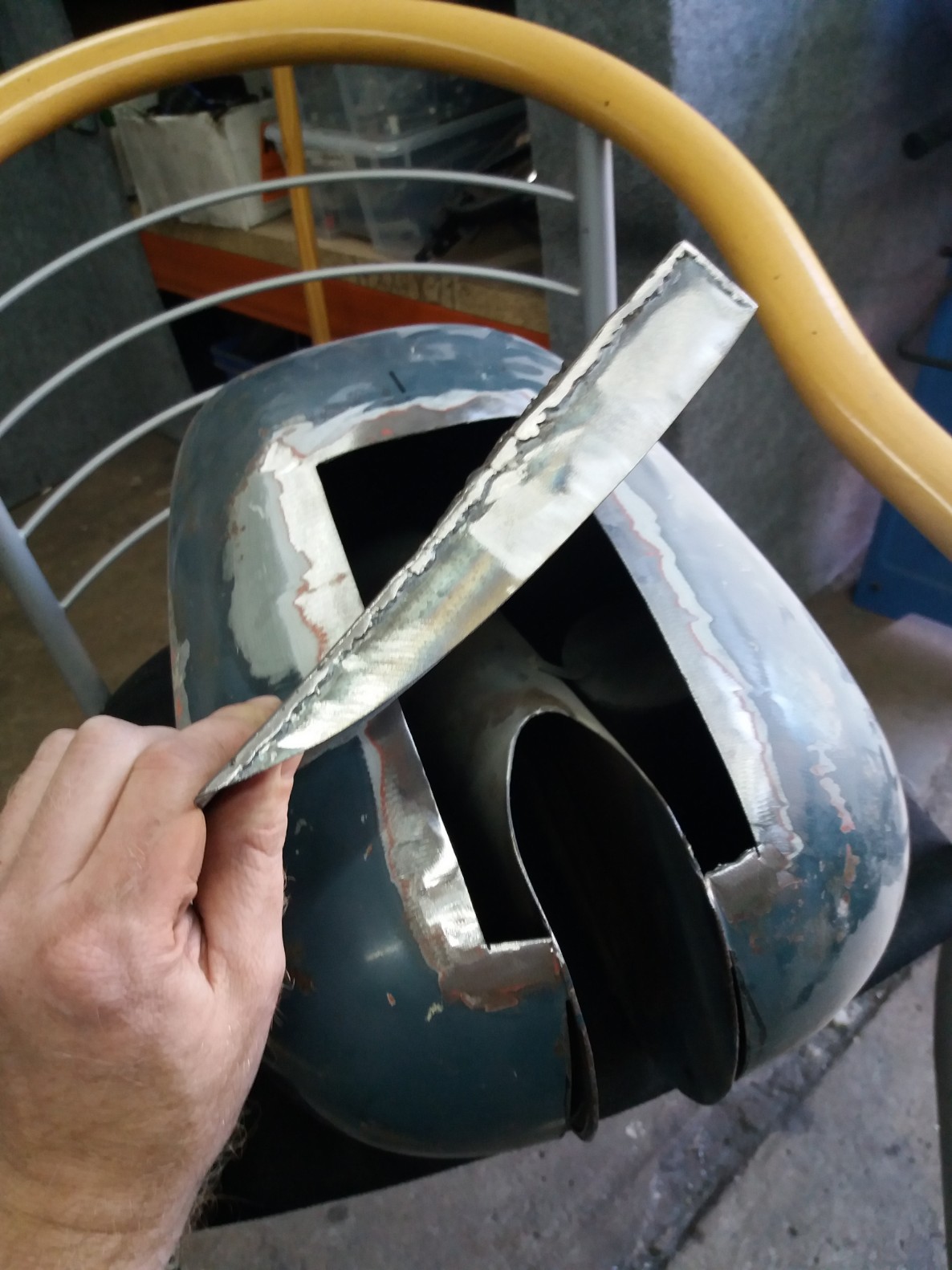

Cut the roundings out
![](images/20200424_143931.jpg)

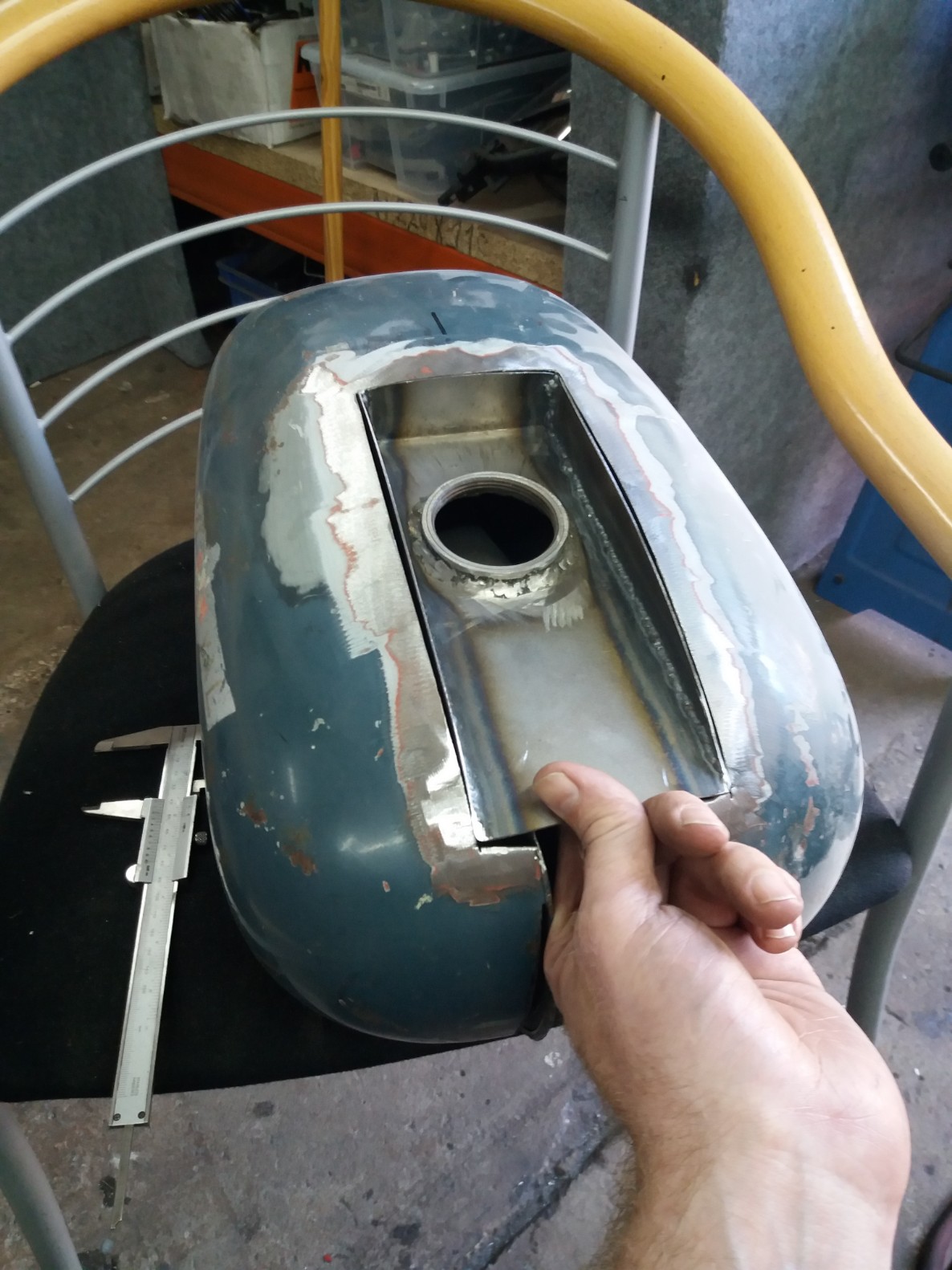

Well, it needs to be placed somewhere here
![](images/20200424_143958.jpg)

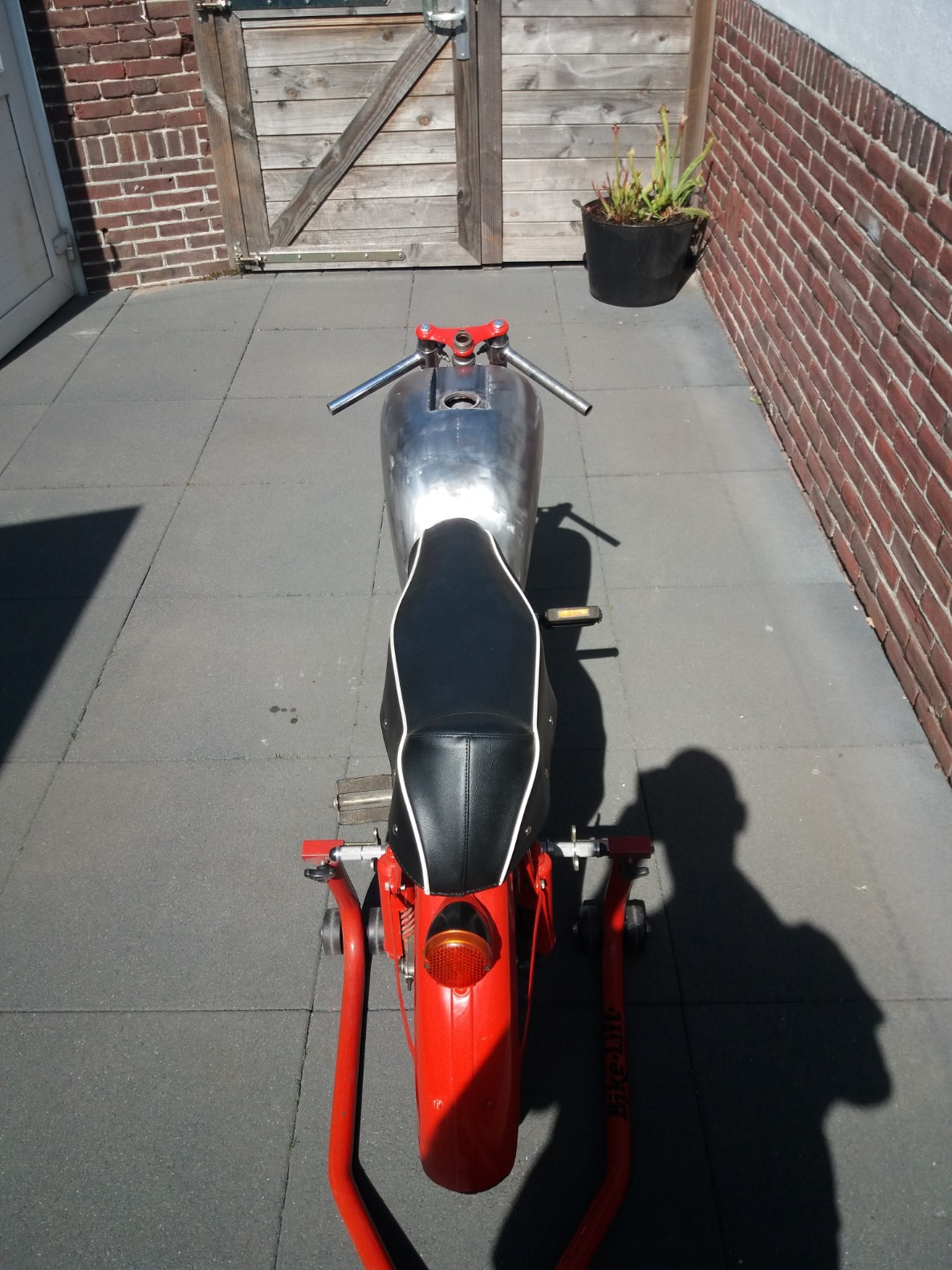

First impression from the back
![](images/20200424_153144.jpg)

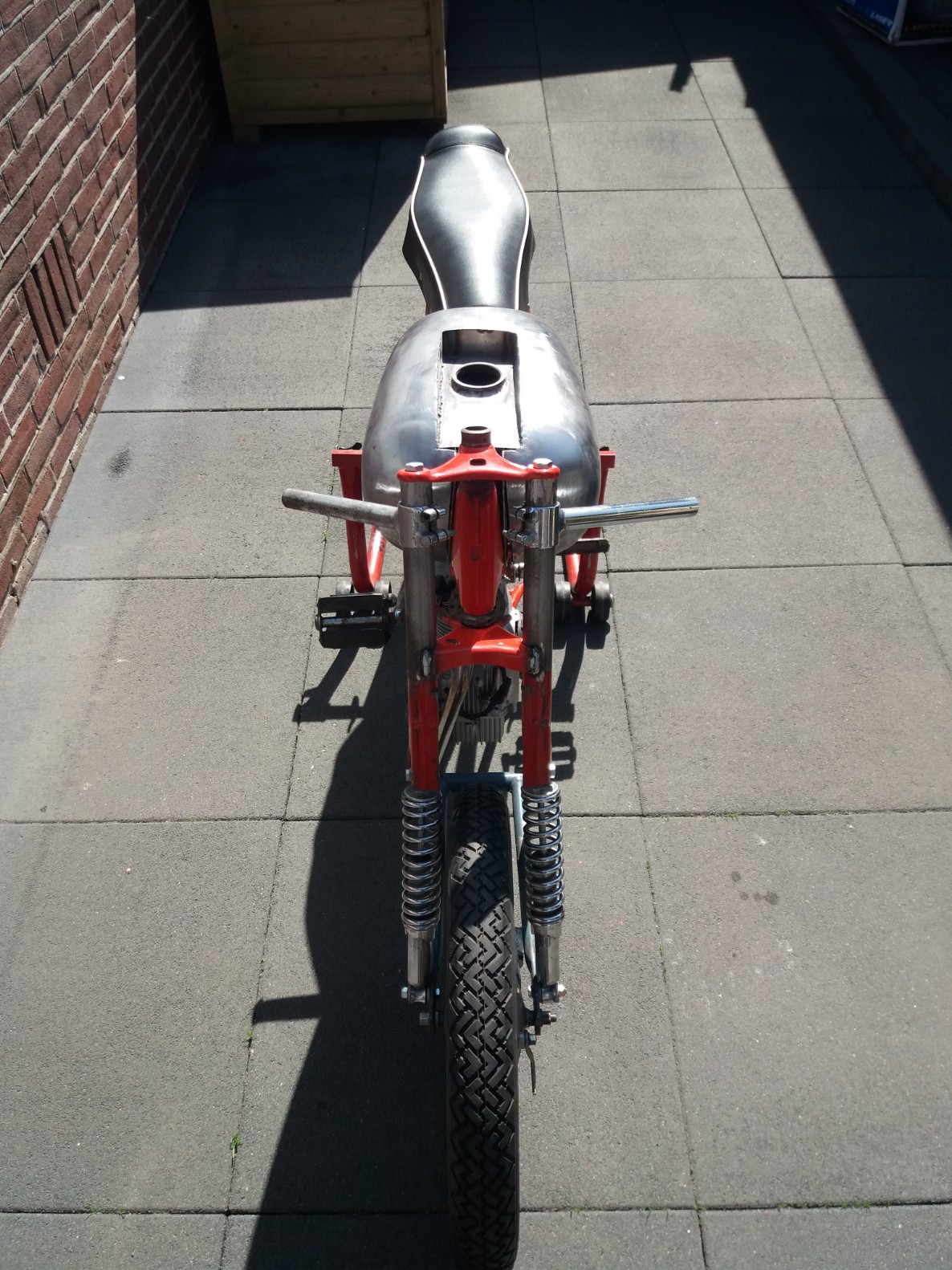

At the front, it's not too wide, but certainly not too small
![](images/20200424_153205.jpg)

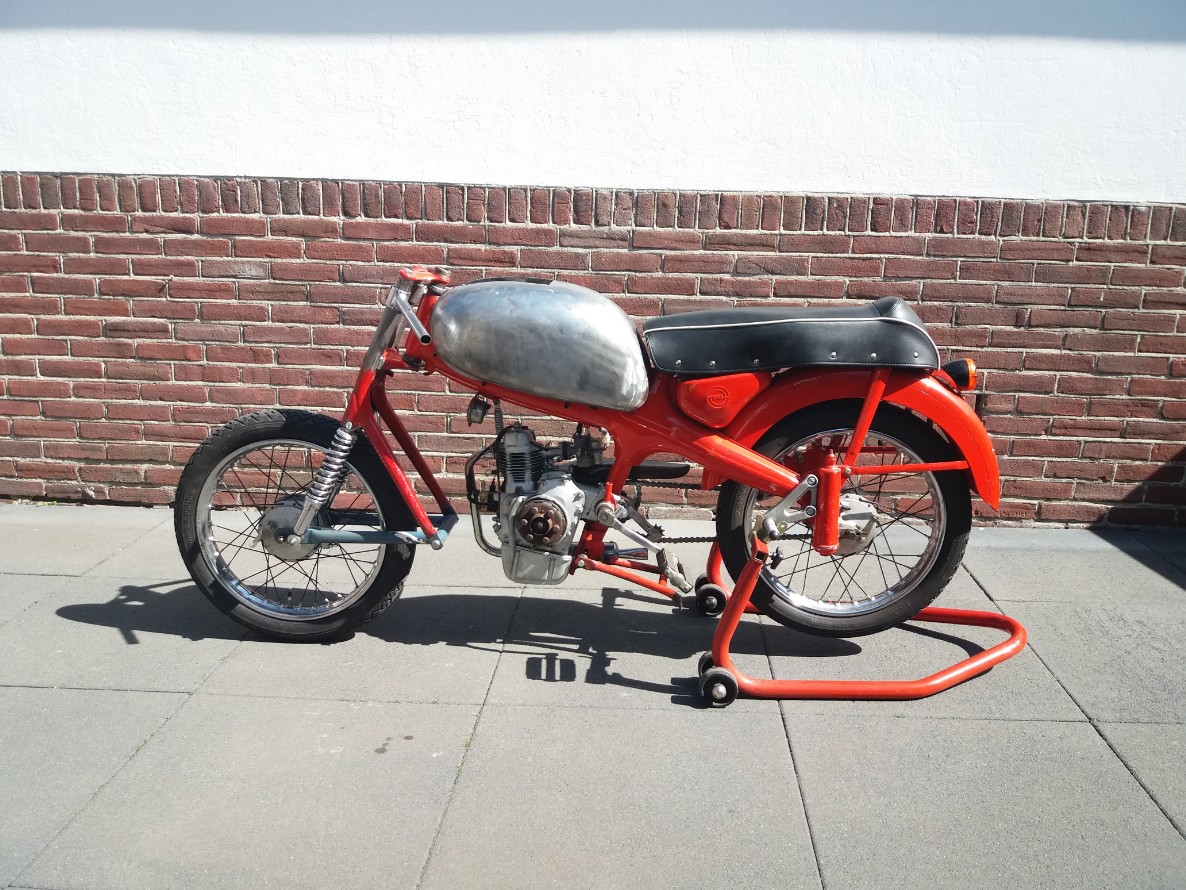

From the Left
![](images/20200424_153219.jpg)

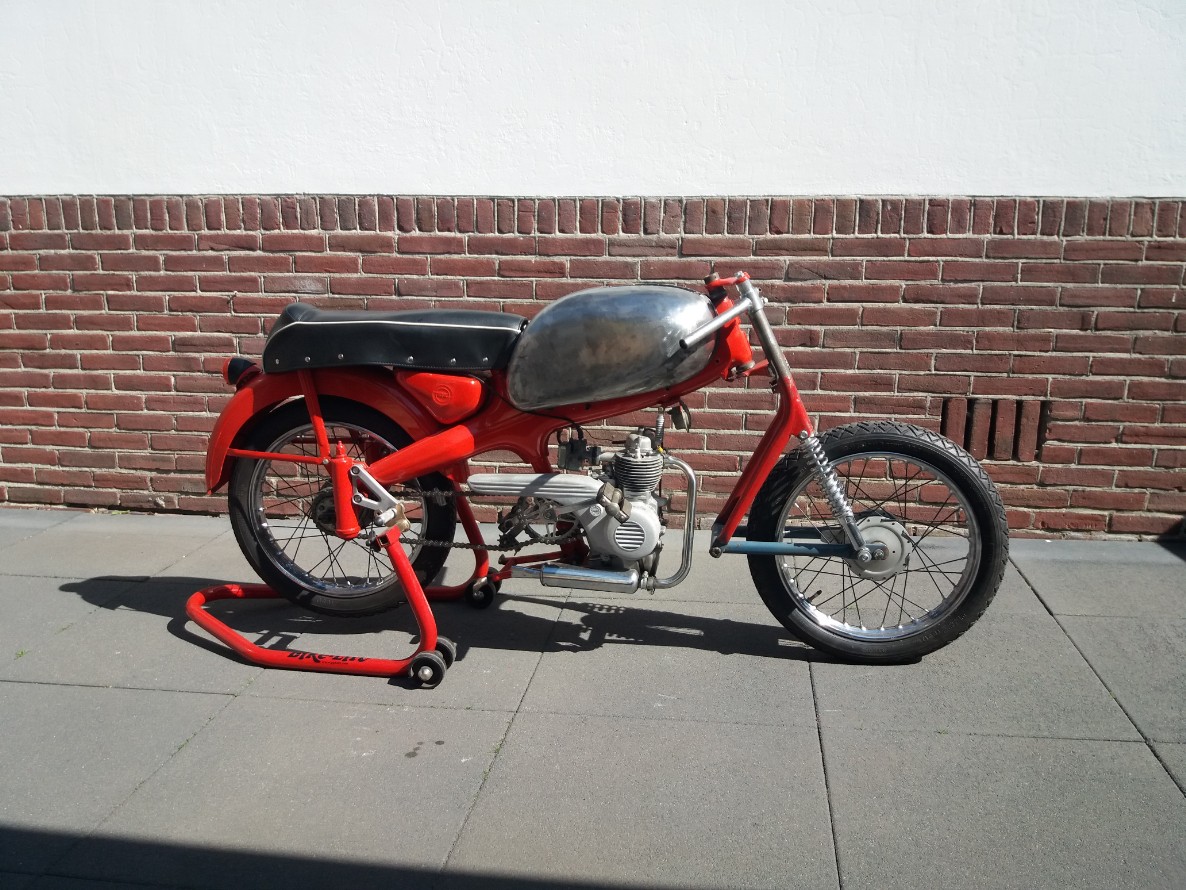

From the Right
![](images/20200424_154504.jpg)

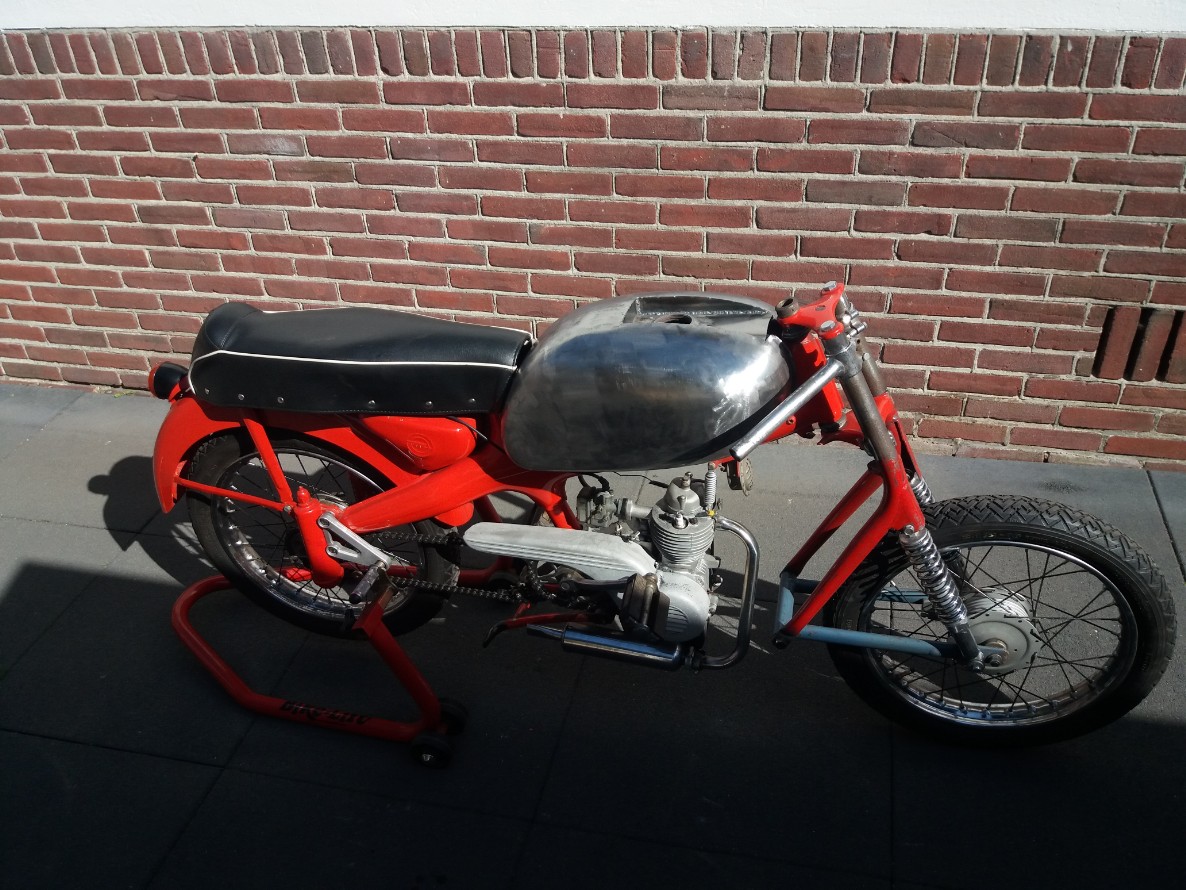

Certainly worth working this tank out, and see how the end result will be
![](images/20200424_163422.jpg)
