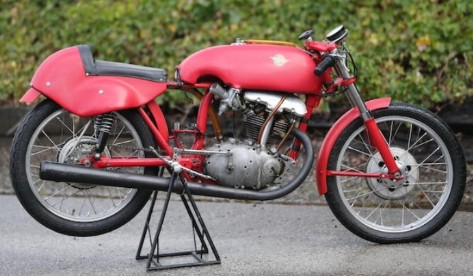

Well, in the end fifties a real racer had a nice big Dellorto sticking underneath the tank.
So when you looked you where looking right into its large trumpet almost seeing the valve.
A sign of a real racer, so my little Motom needs one too.....but hand made to keep it special.
![](images/carb-hoek.jpg)
Startpoint MA18B
![](images/20201001_175601.jpg)

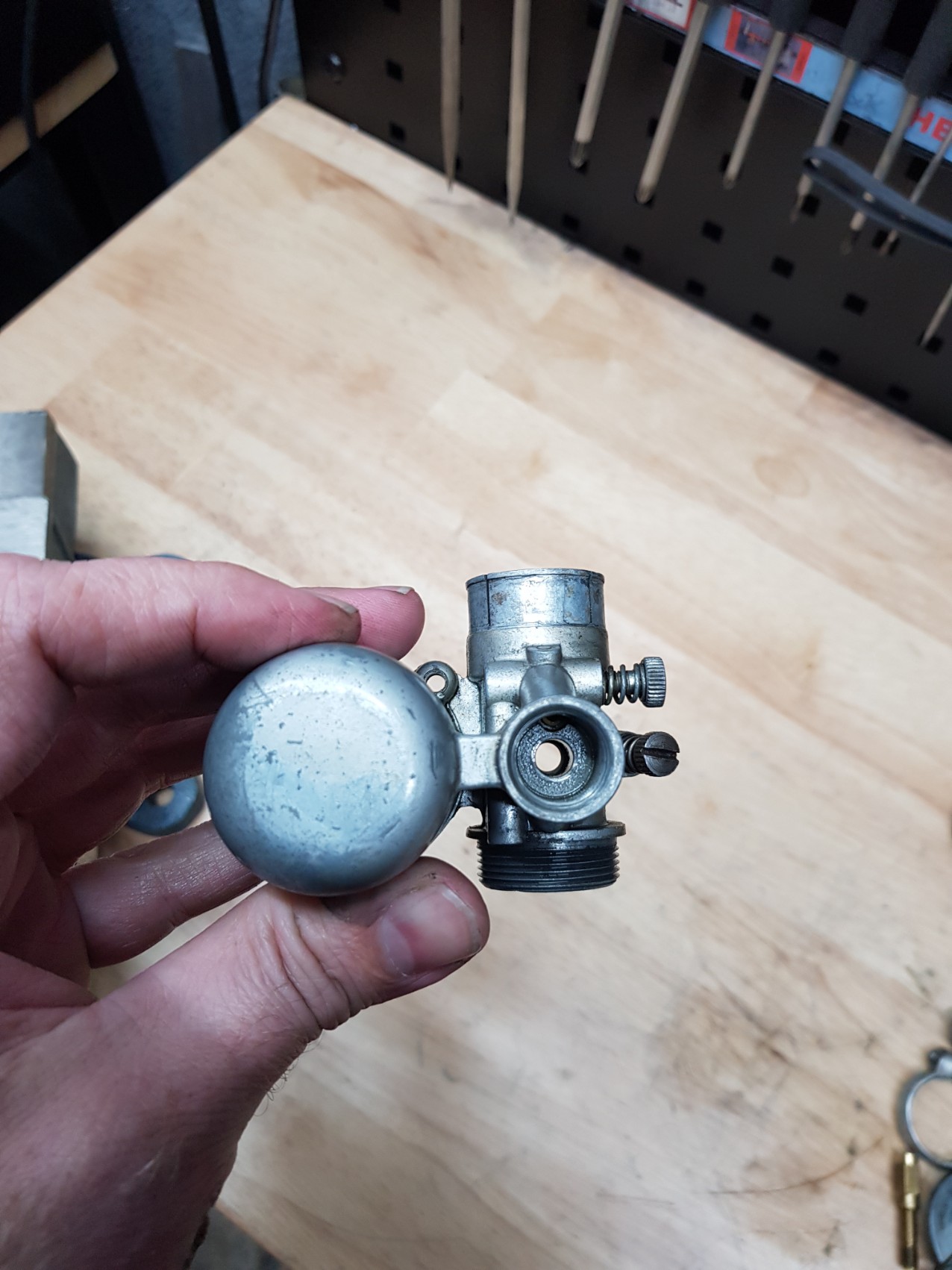

Still in one piece.
![](images/20201001_175609.jpg)

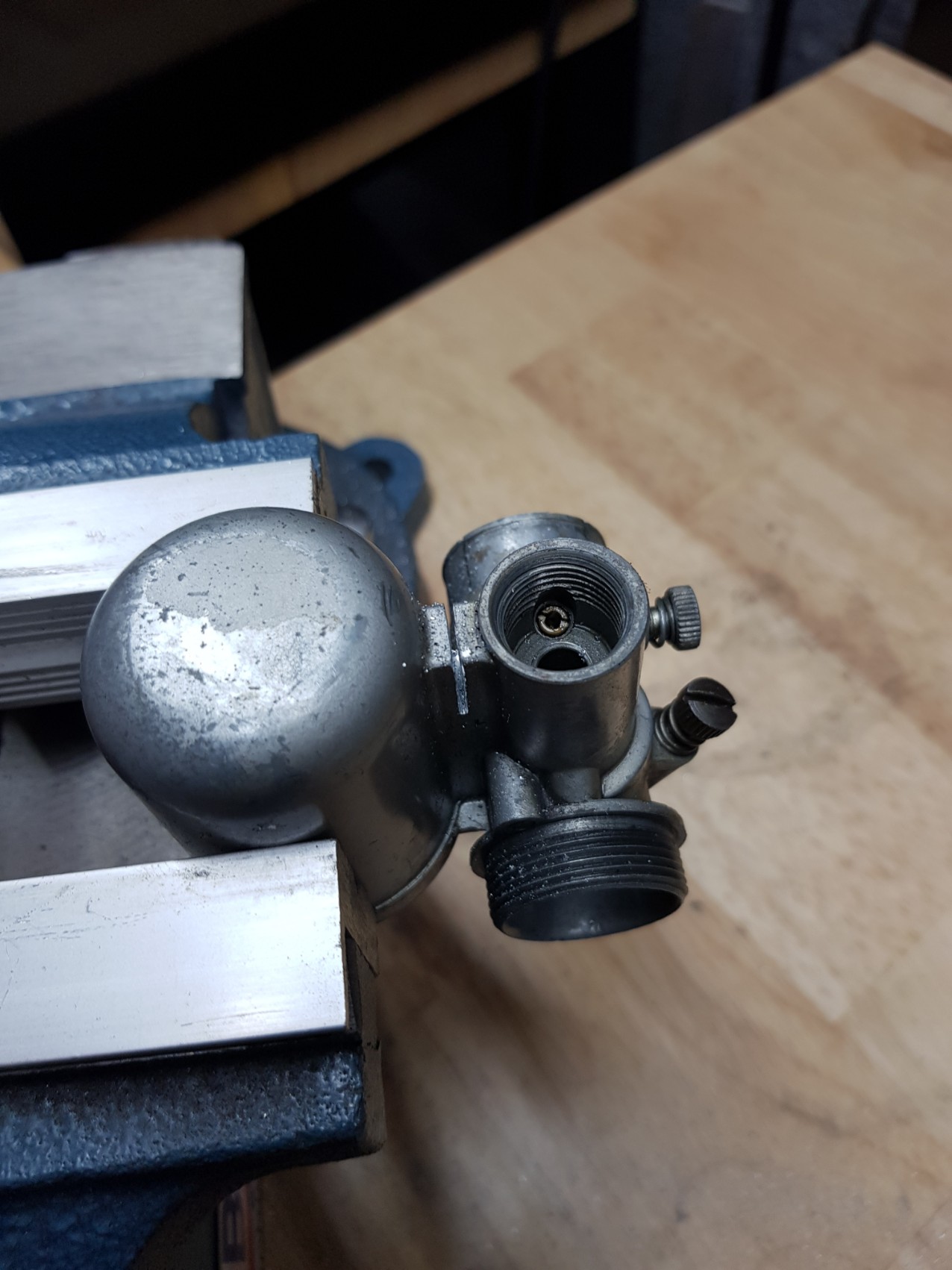

Start cutting.
![](images/20201001_175924.jpg)

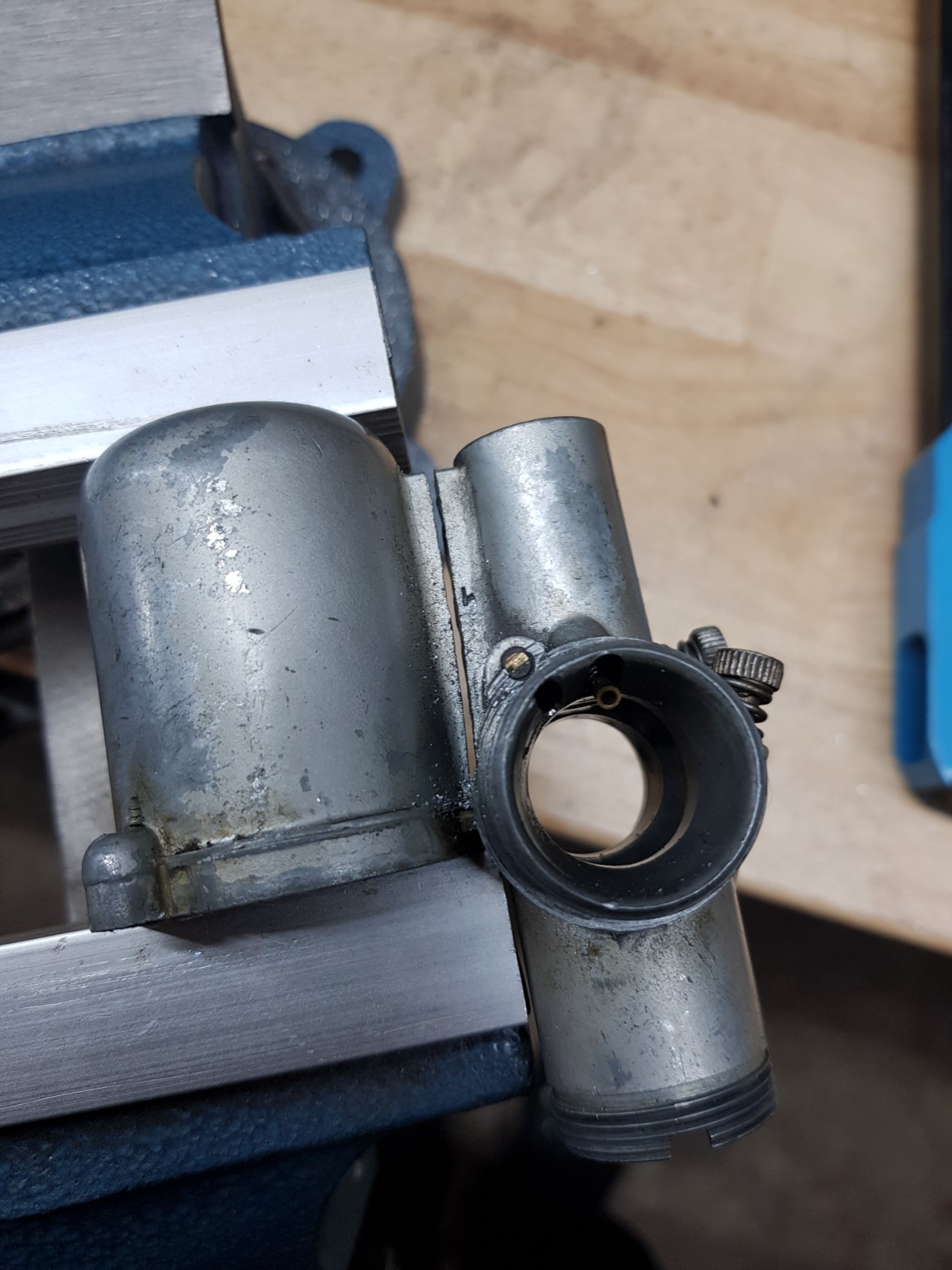

Almost there.
![](images/20201001_180137.jpg)

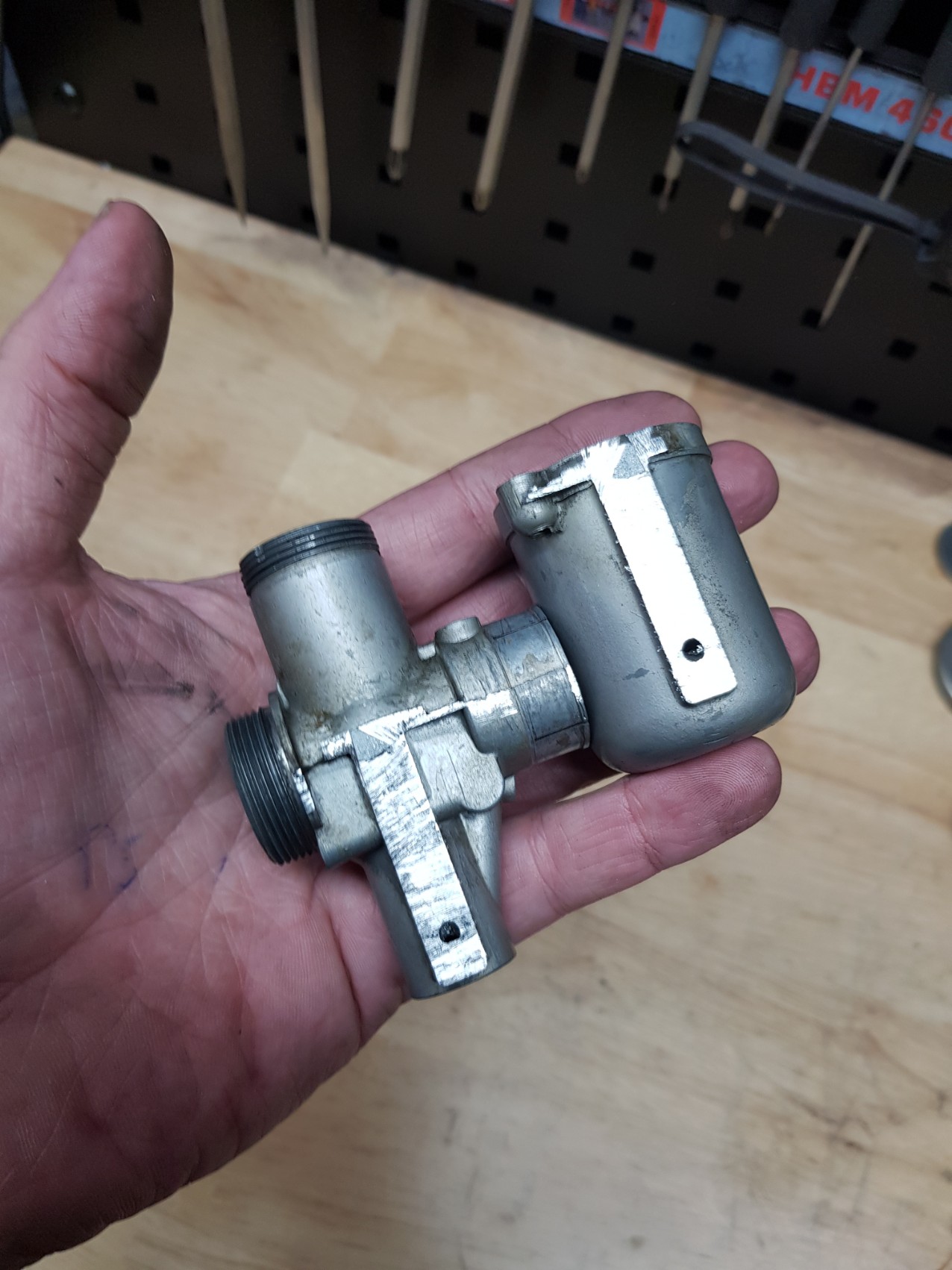

In two.
![](images/20201001_180411.jpg)

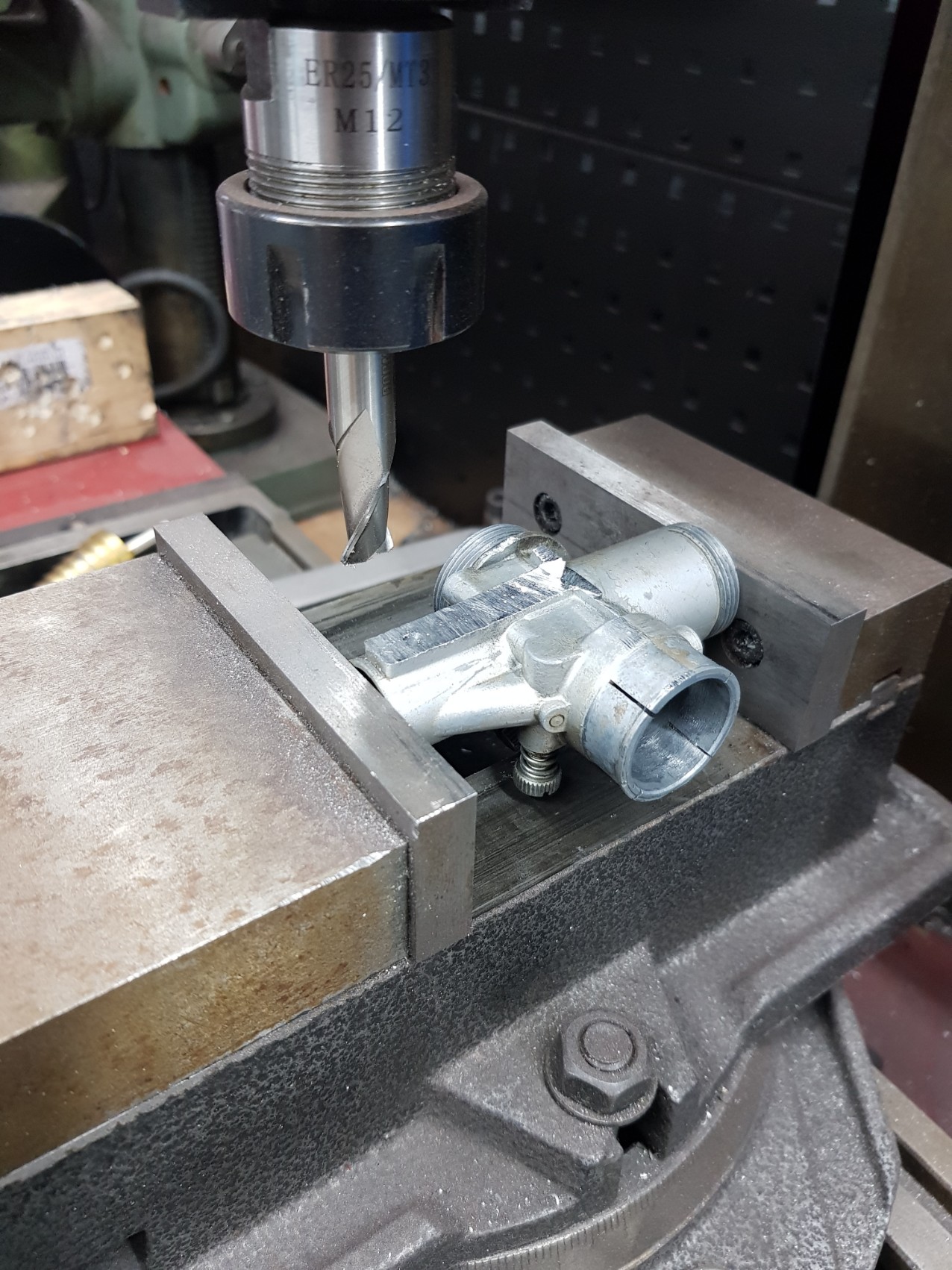

Start milling.
![](images/20201001_180933-0-.jpg)

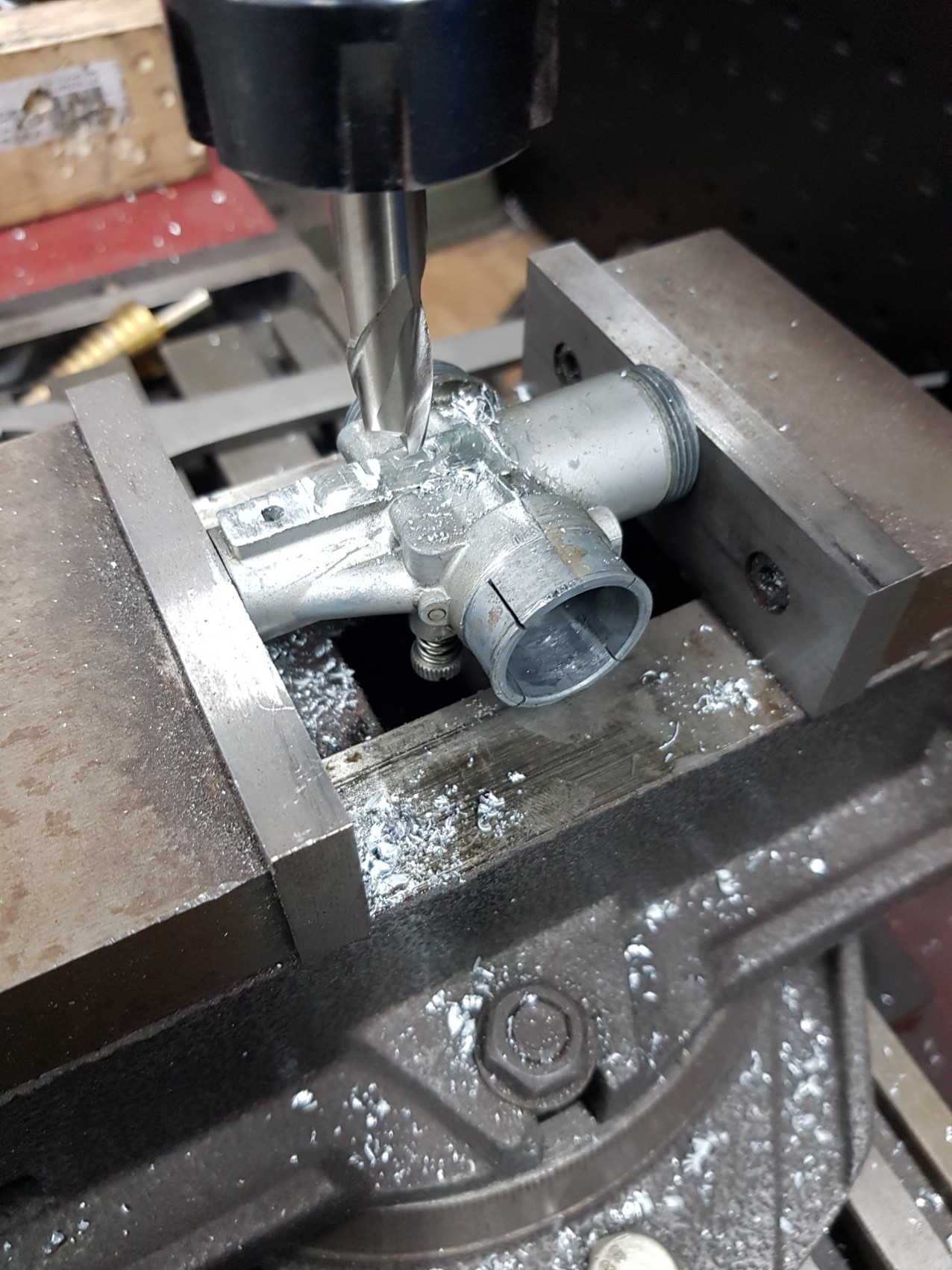

Geting close.
![](images/20201001_181441.jpg)

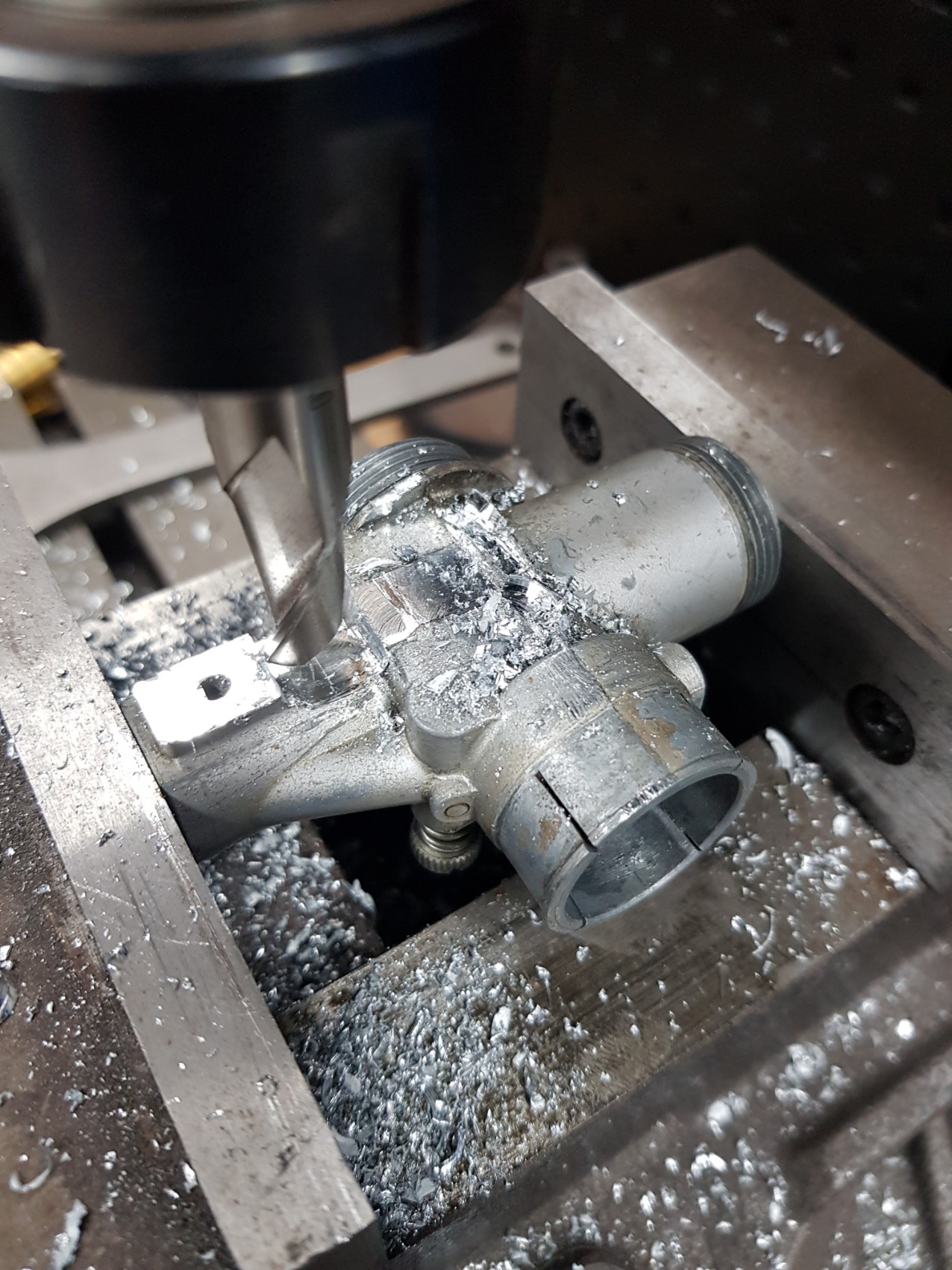

Done.
![](images/20201001_182117.jpg)

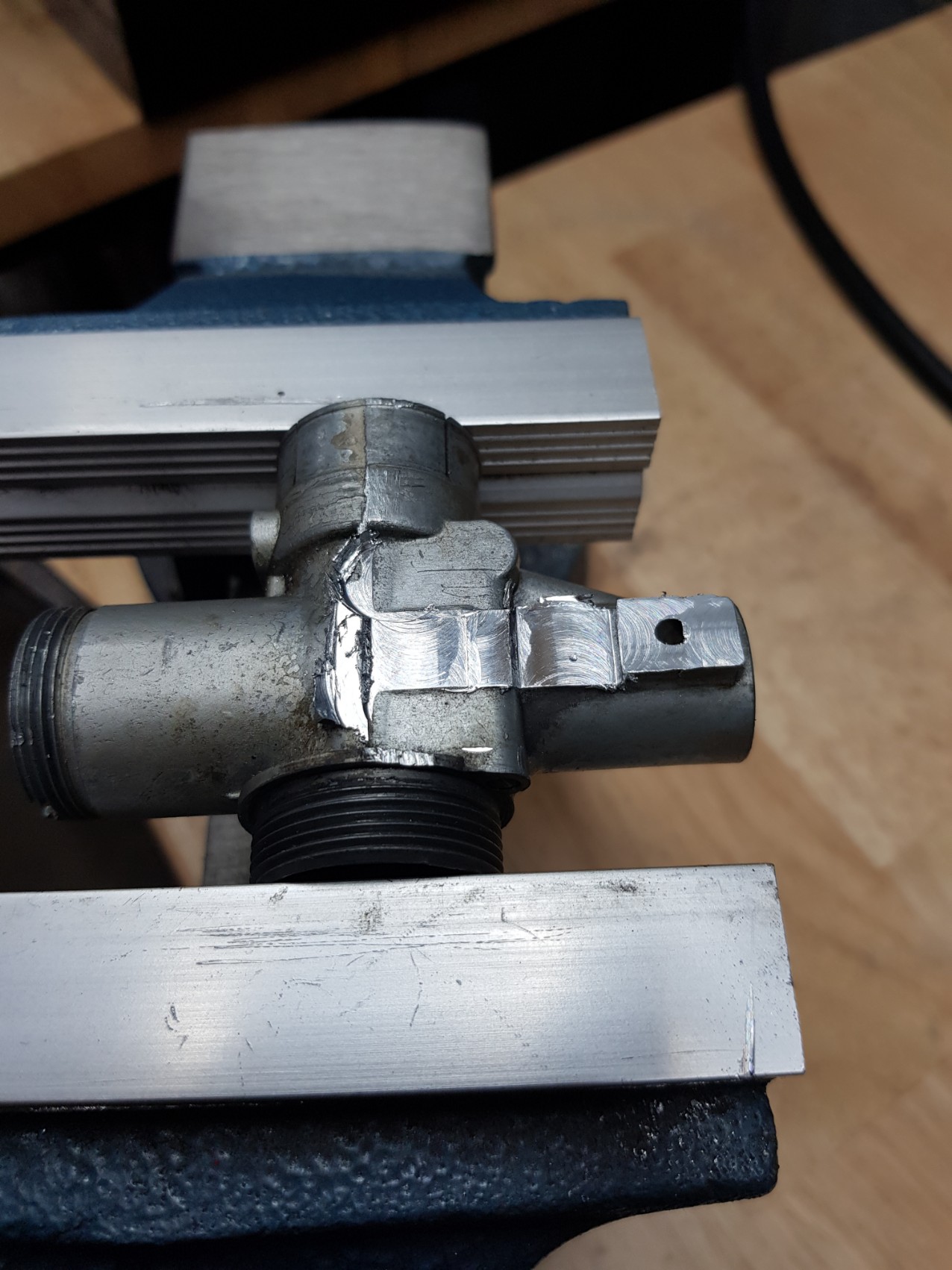

Start point for grinding.
![](images/20201001_182358.jpg)

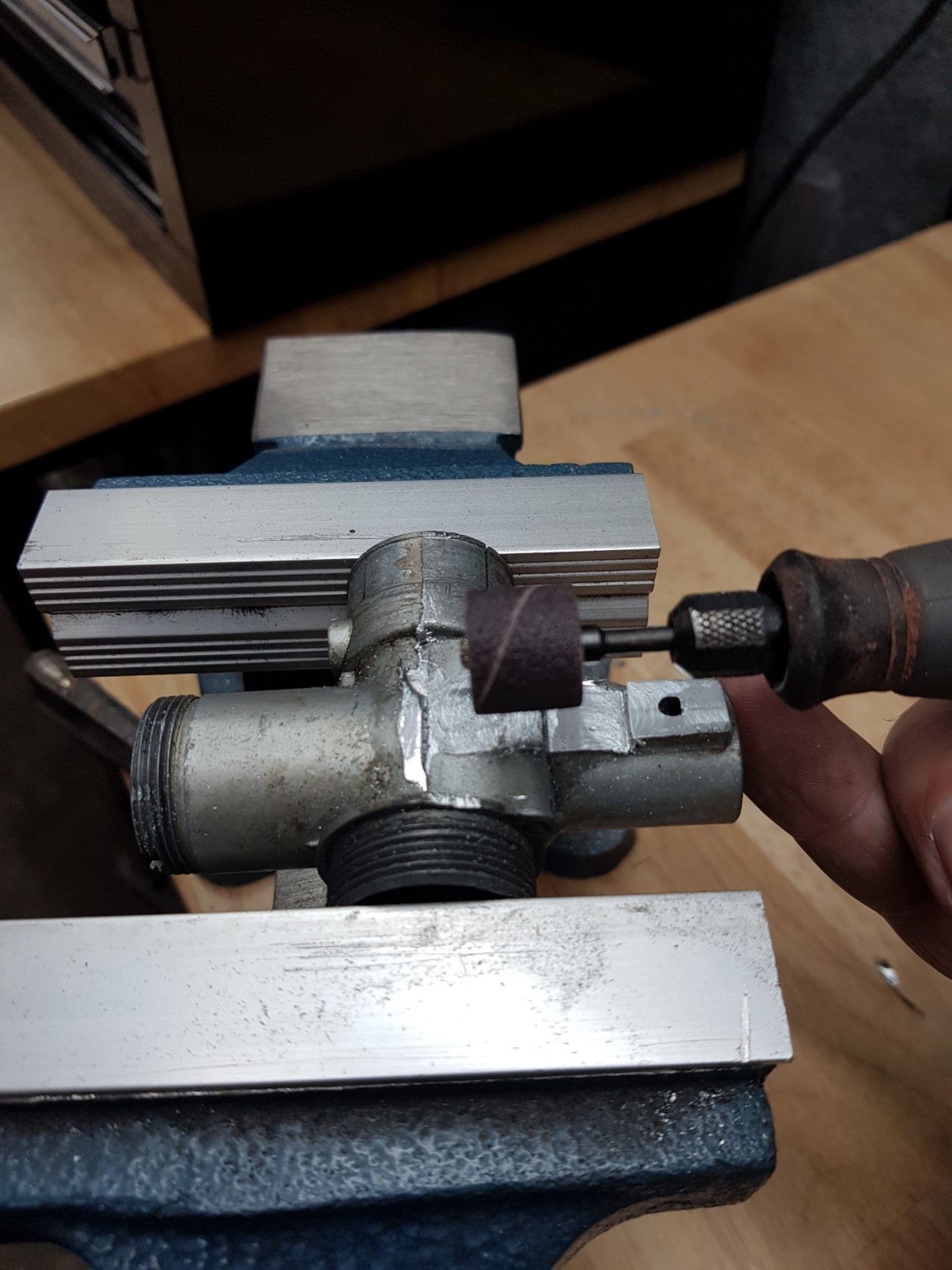

With the mini drill.
![](images/20201001_182601.jpg)

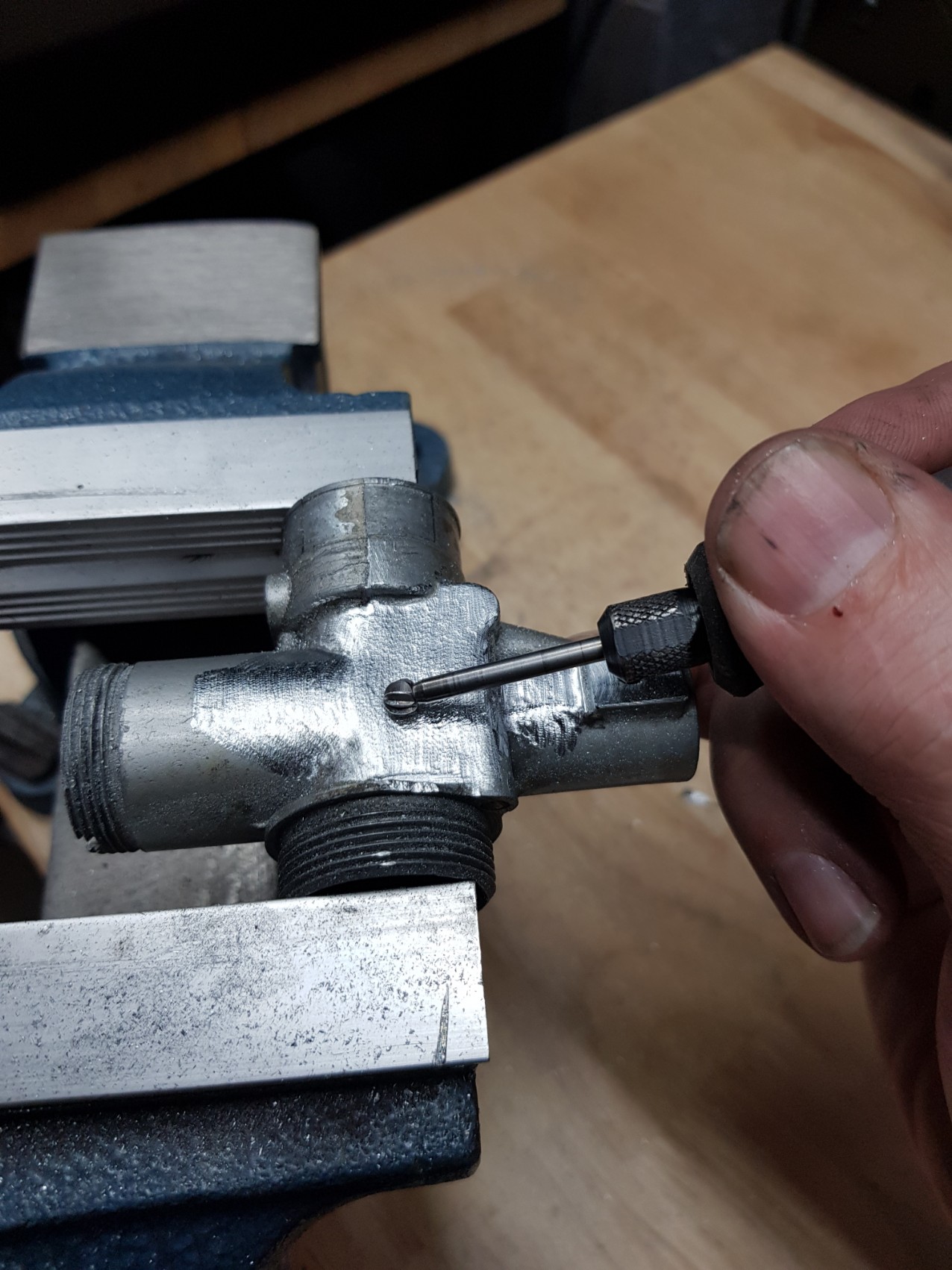

Grinding the angles too.
![](images/20201001_184550-0-.jpg)

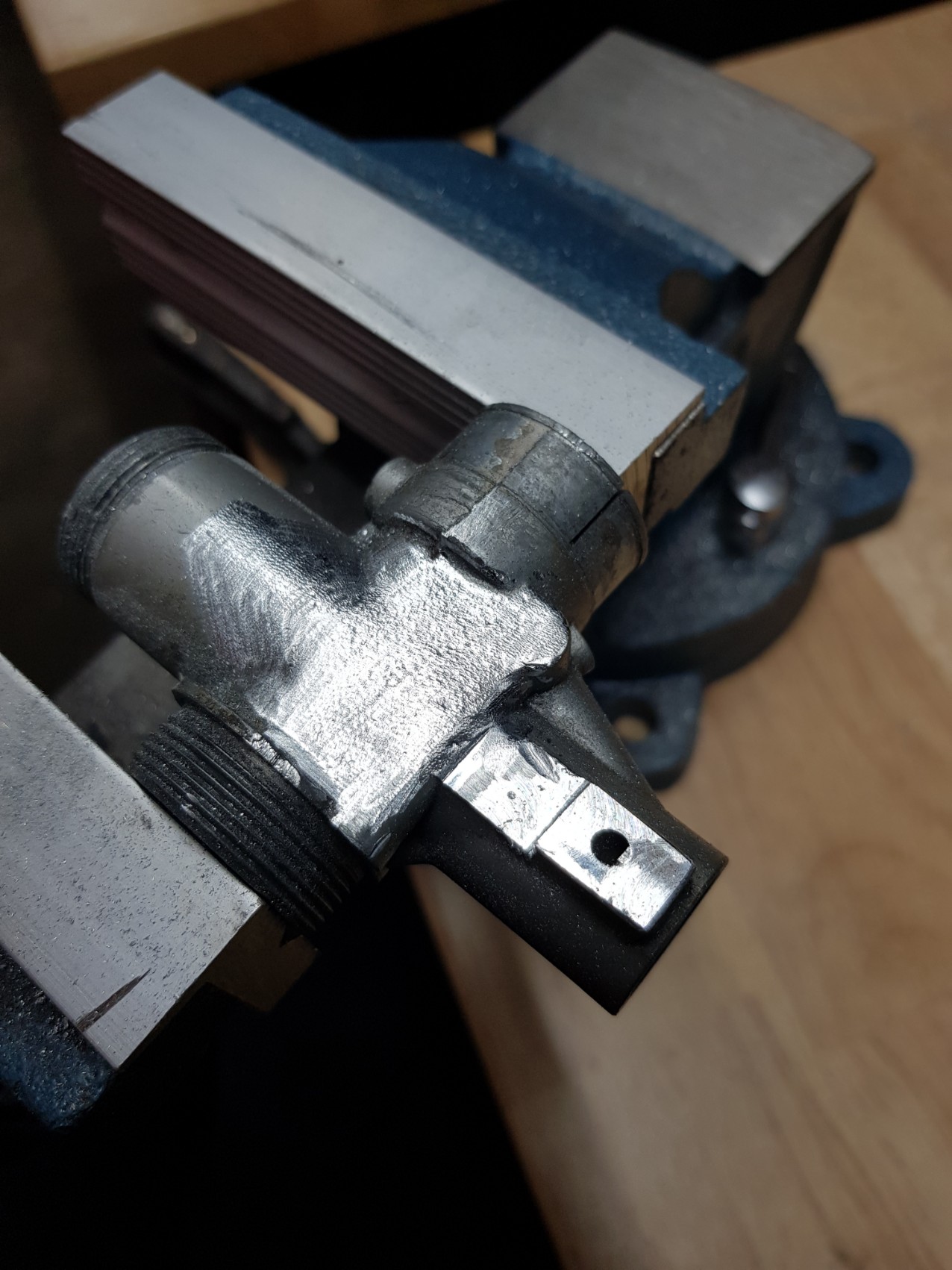

Getting it in shape.
![](images/20201001_184351-0-.jpg)

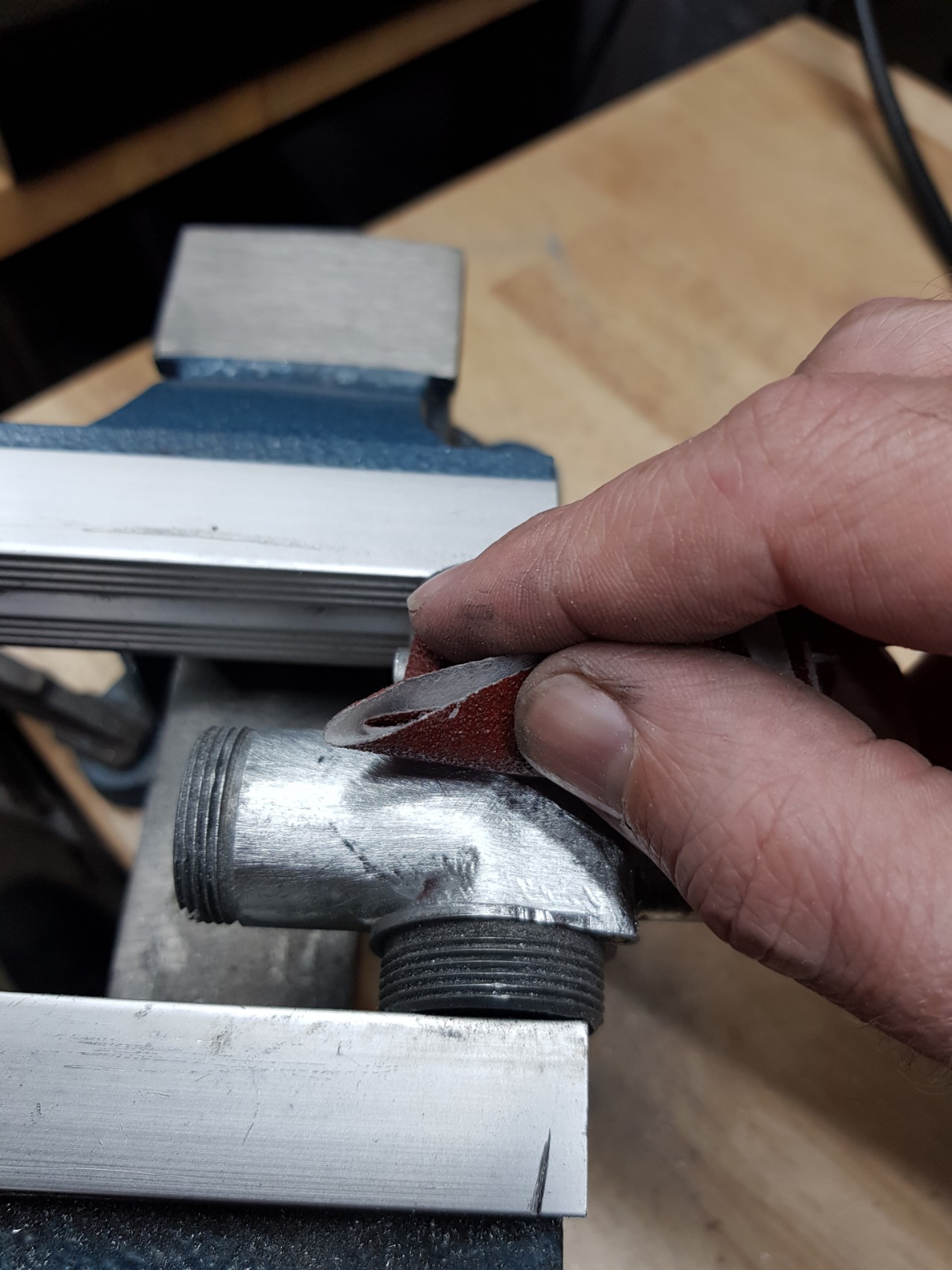

Sanding it.
![](images/20201001_190152.jpg)
All marks are gone.
![](images/20201001_190349.jpg)

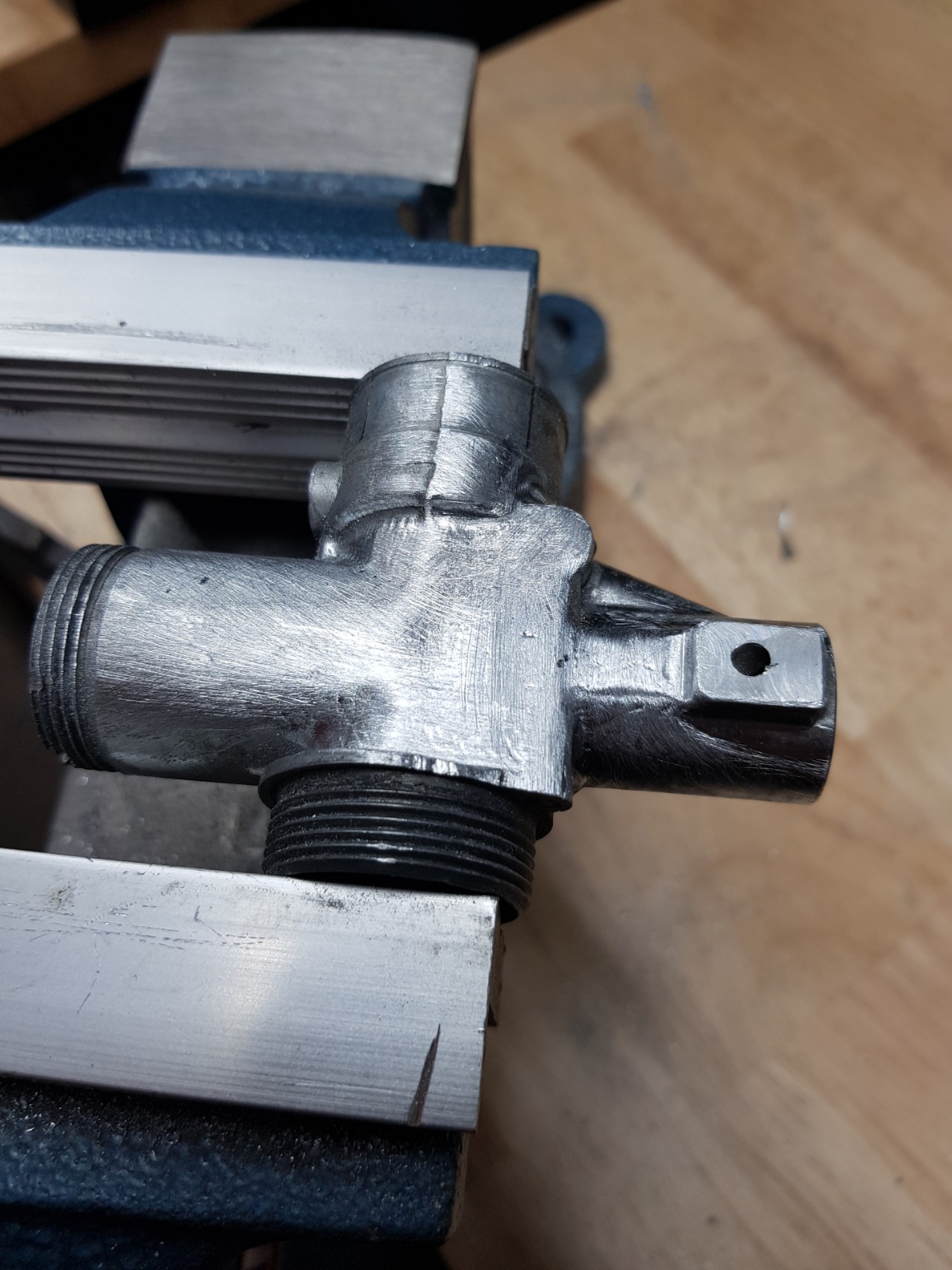

Polish the carb.
![](images/20201001_190354.jpg)

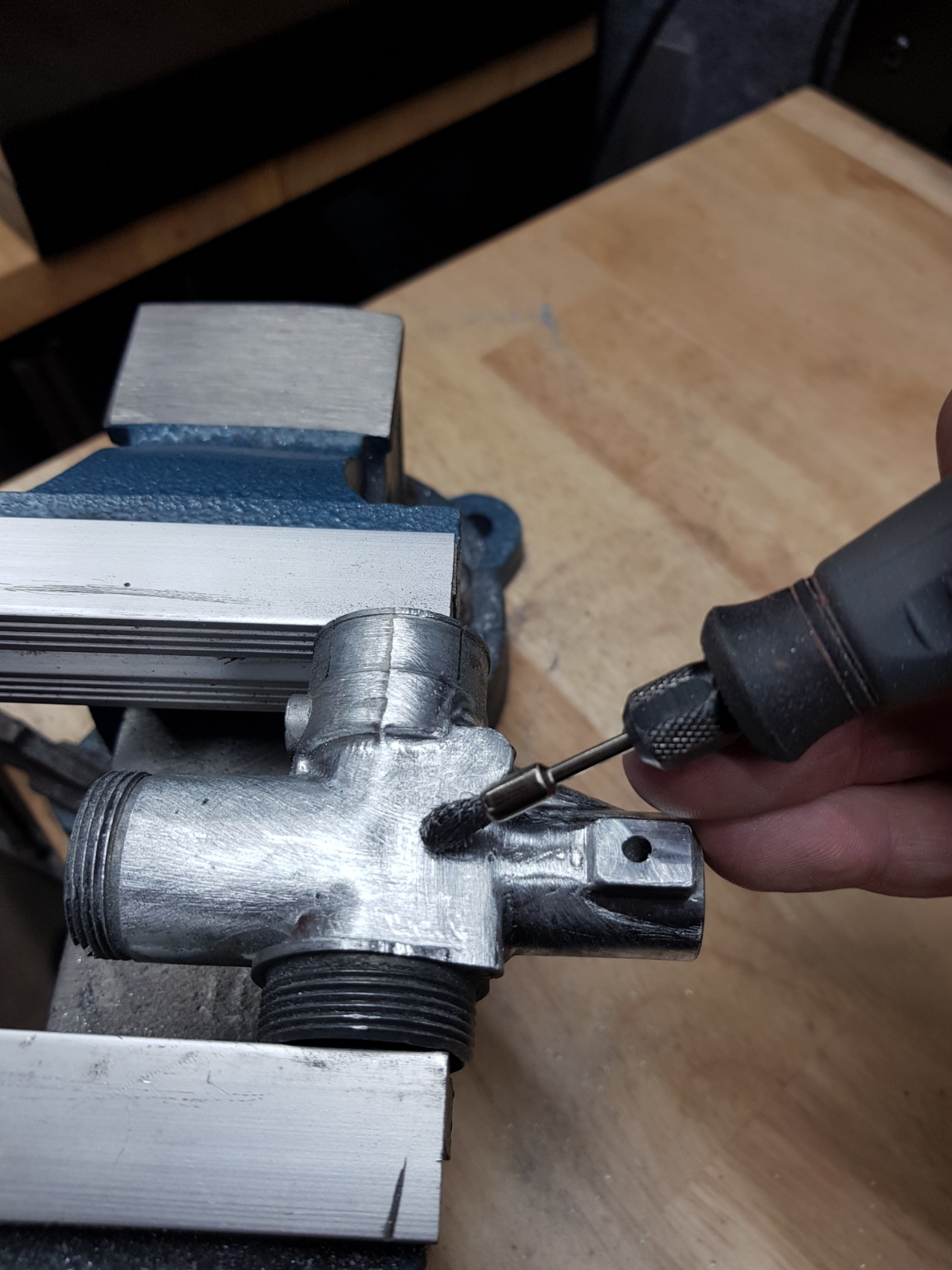

Start to look better.
![](images/20201001_190637-0-.jpg)

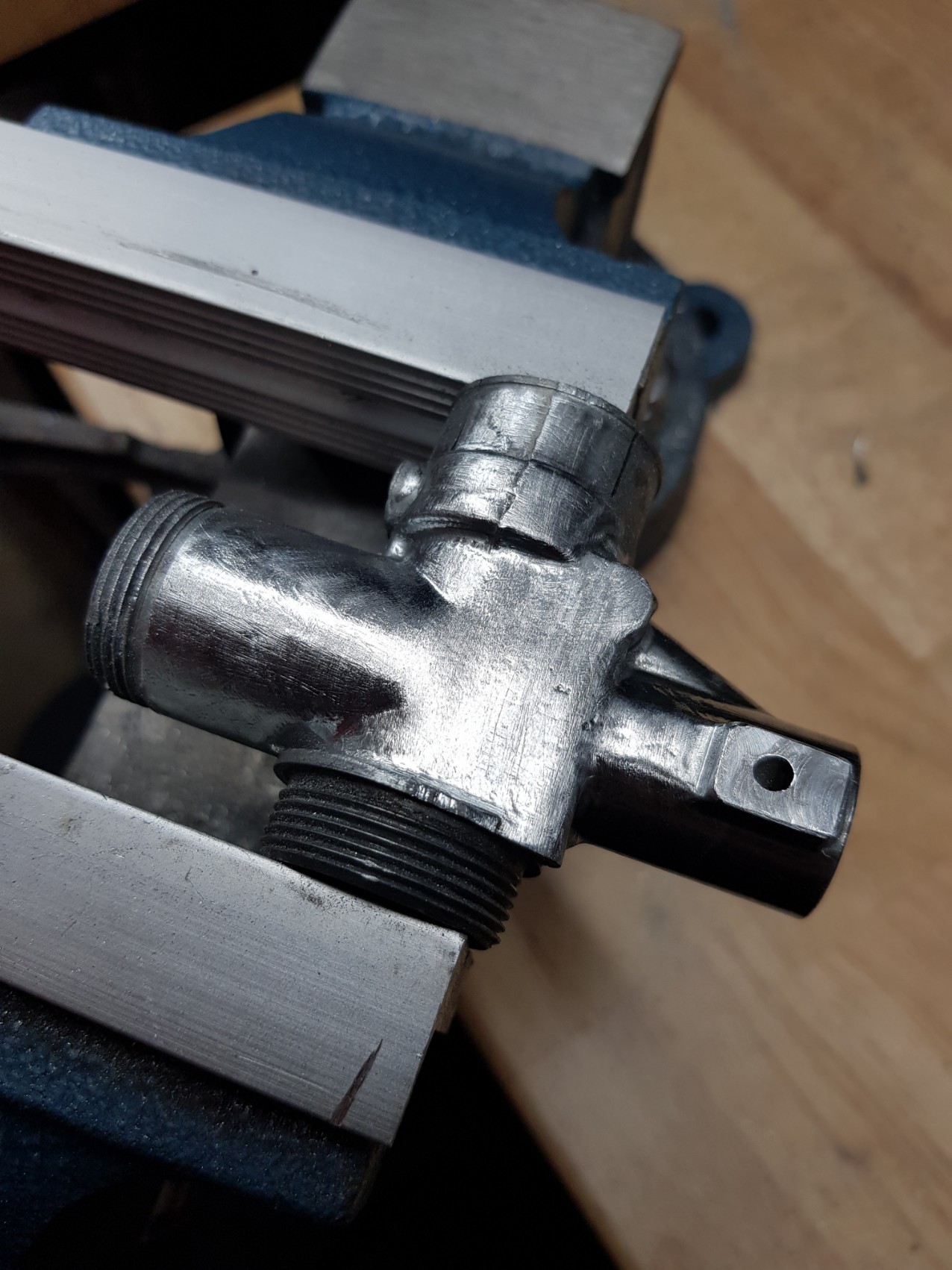

Done.
![](images/20201001_192118.jpg)

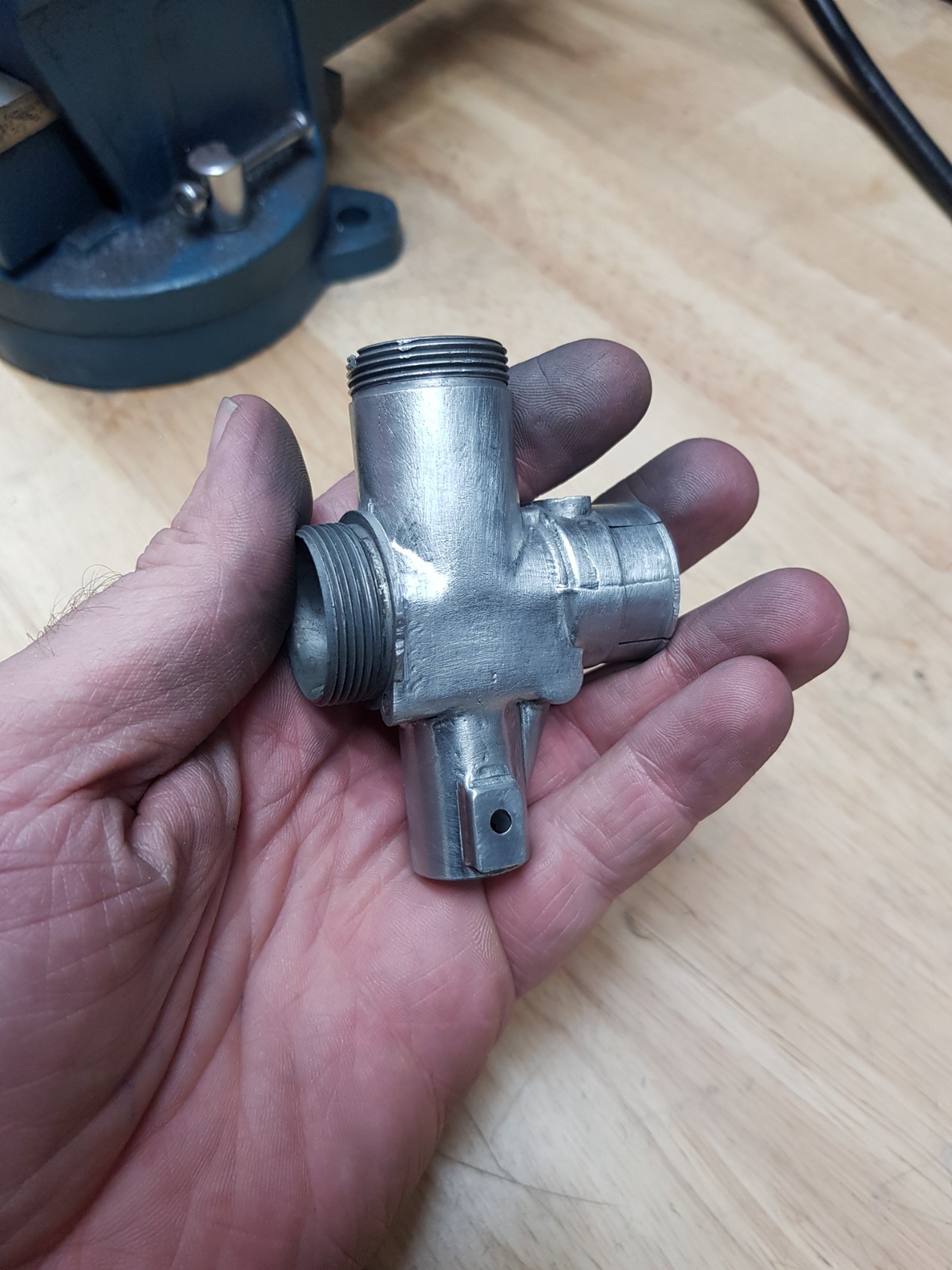

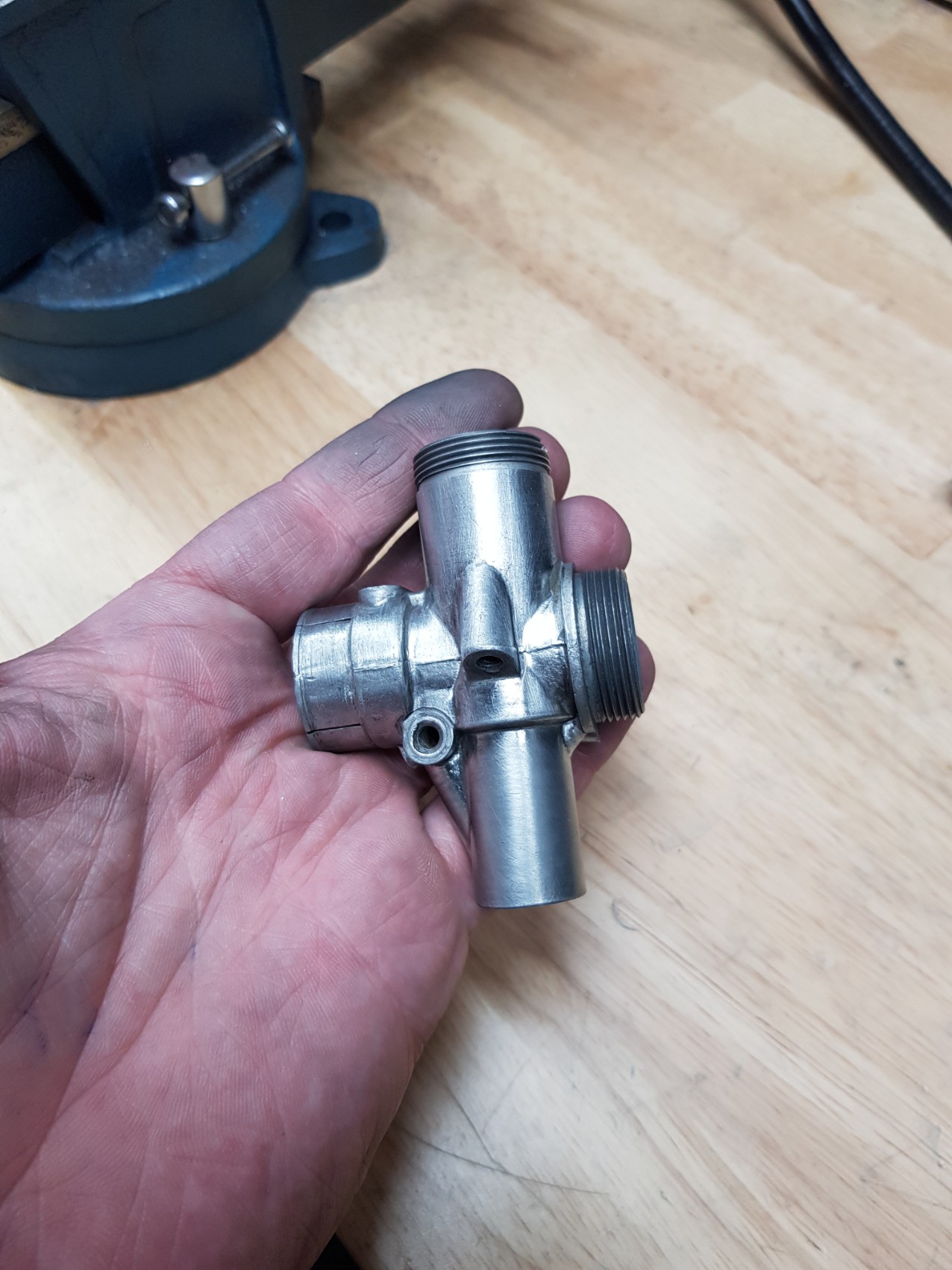

Nice and clean.
![](images/20201001_192121-0-.jpg)

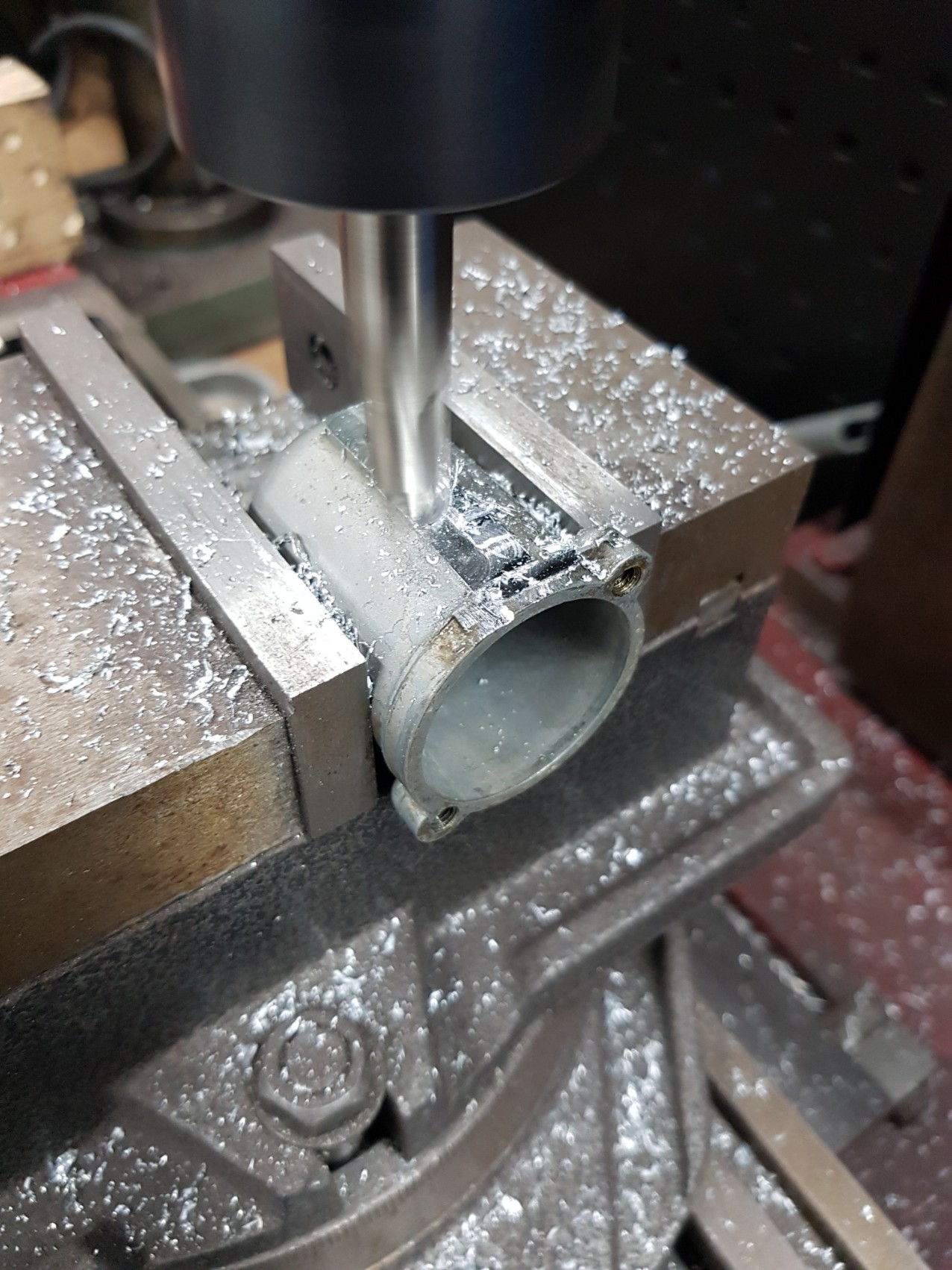

Milling the float bowl.
![](images/20201001_192848.jpg)

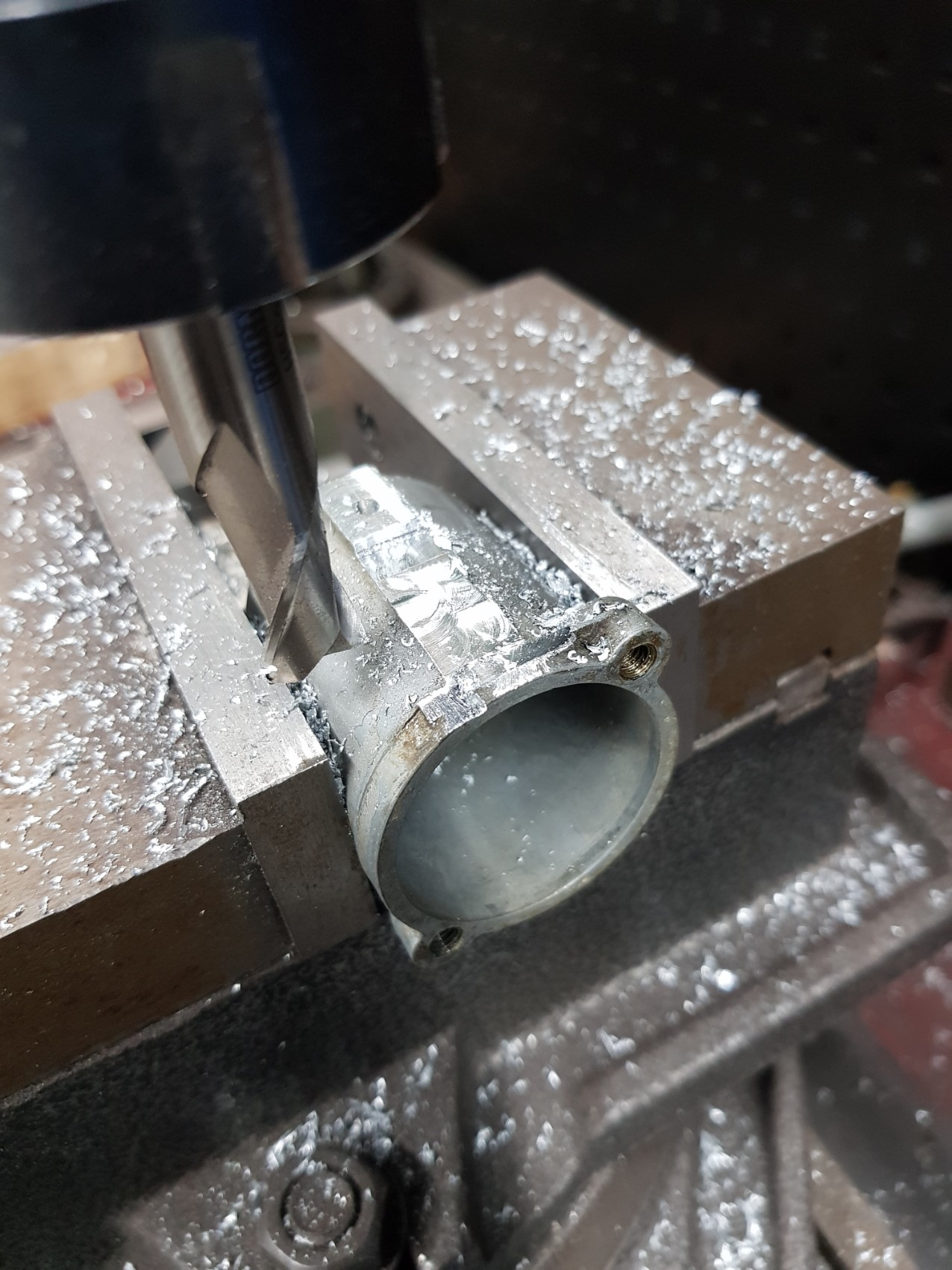

Getting close.
![](images/20201001_192957.jpg)

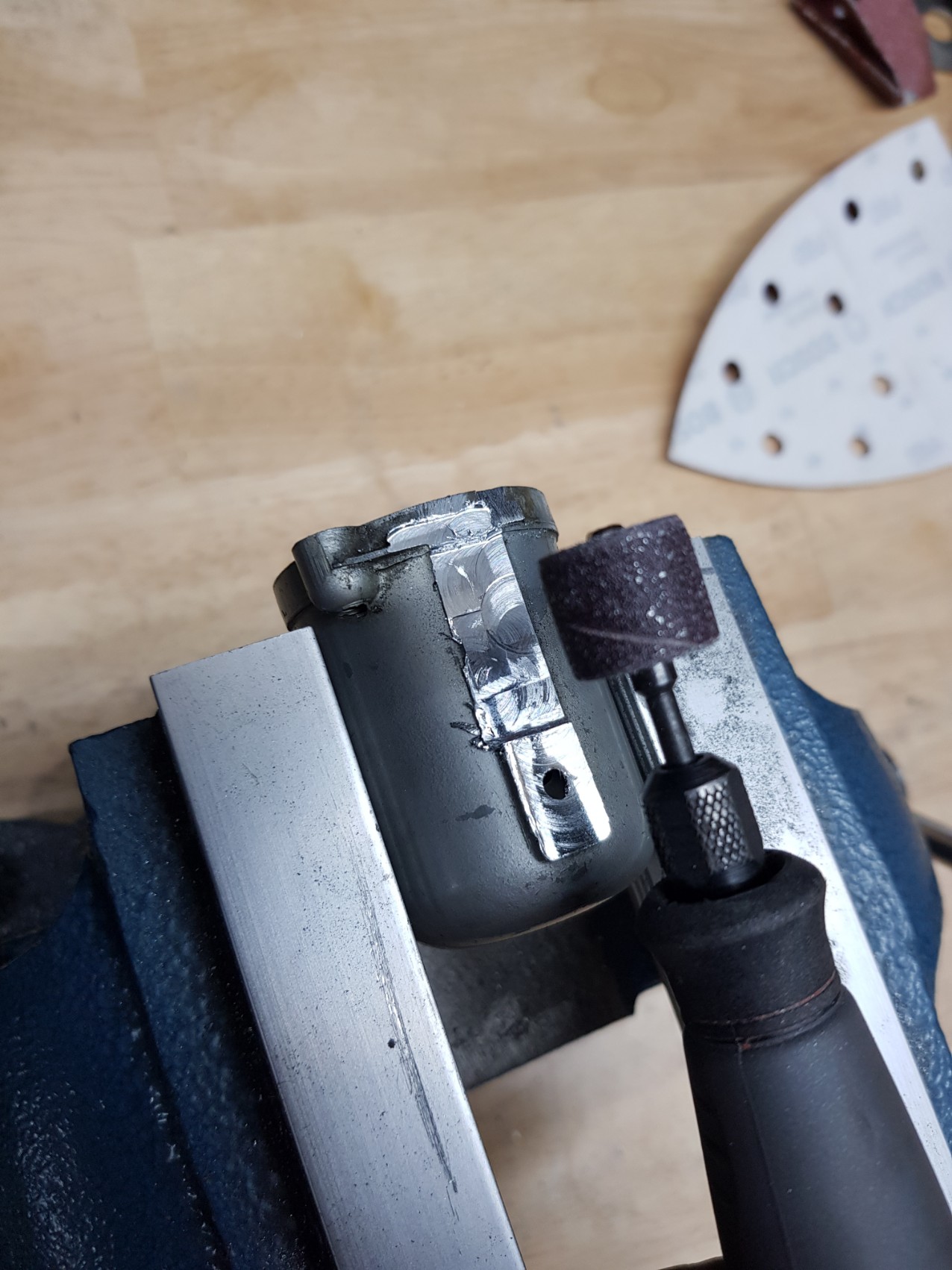

Ready for grinding
![](images/20201001_193149.jpg)

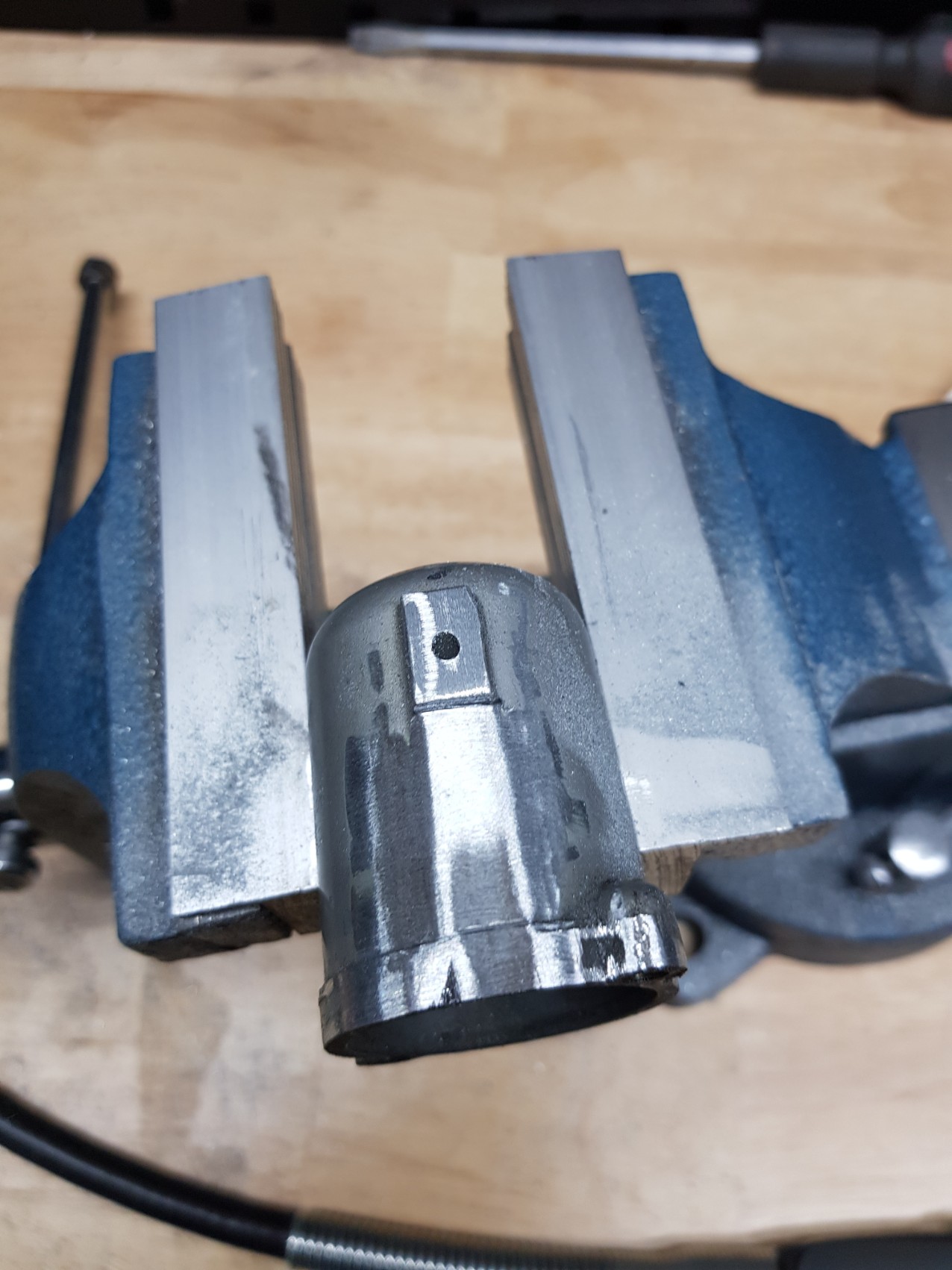

I'm getting there.
![](images/20201001_193554.jpg)
Polishing the surface.
![](images/20201001_193949.jpg)

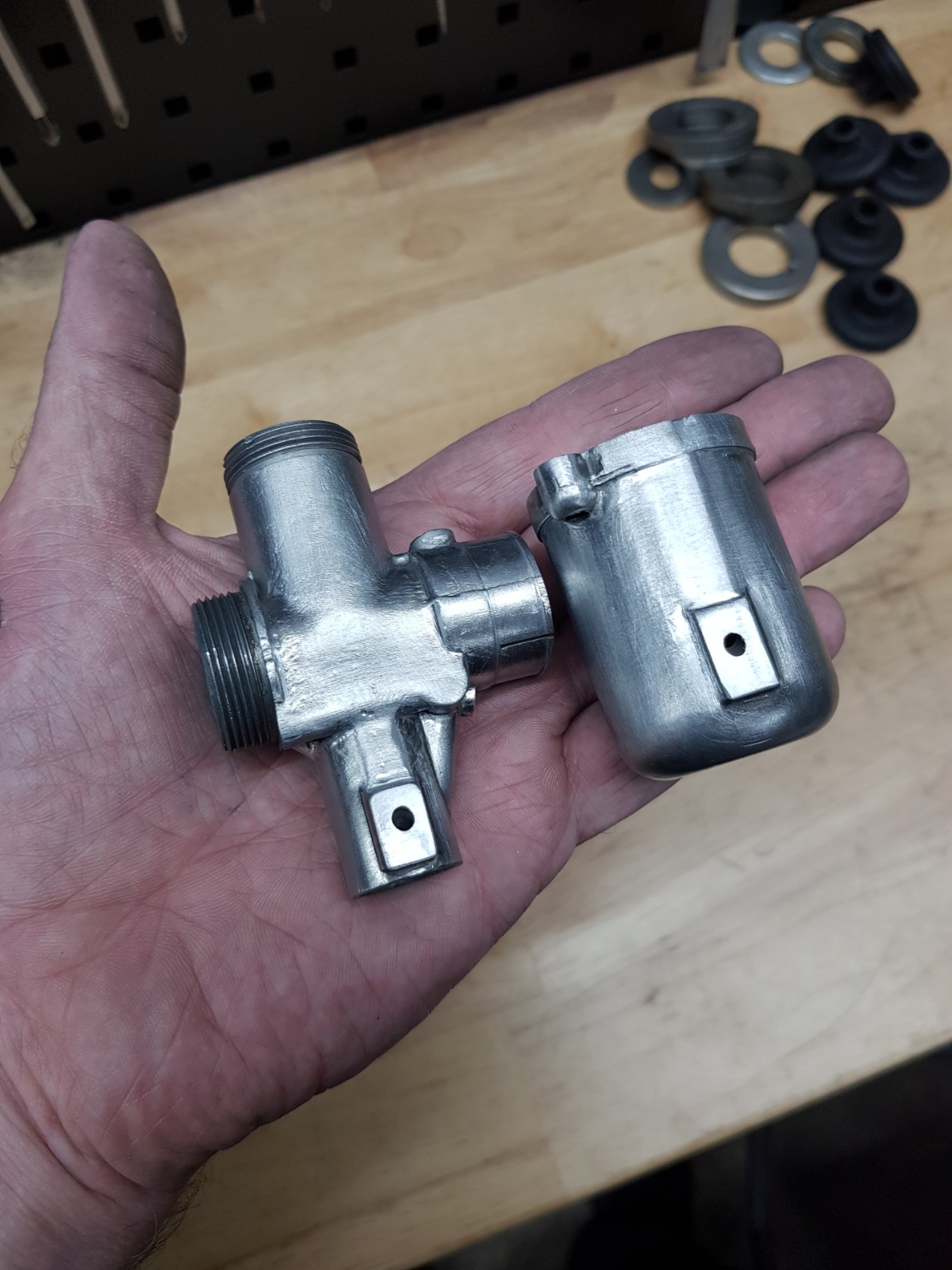

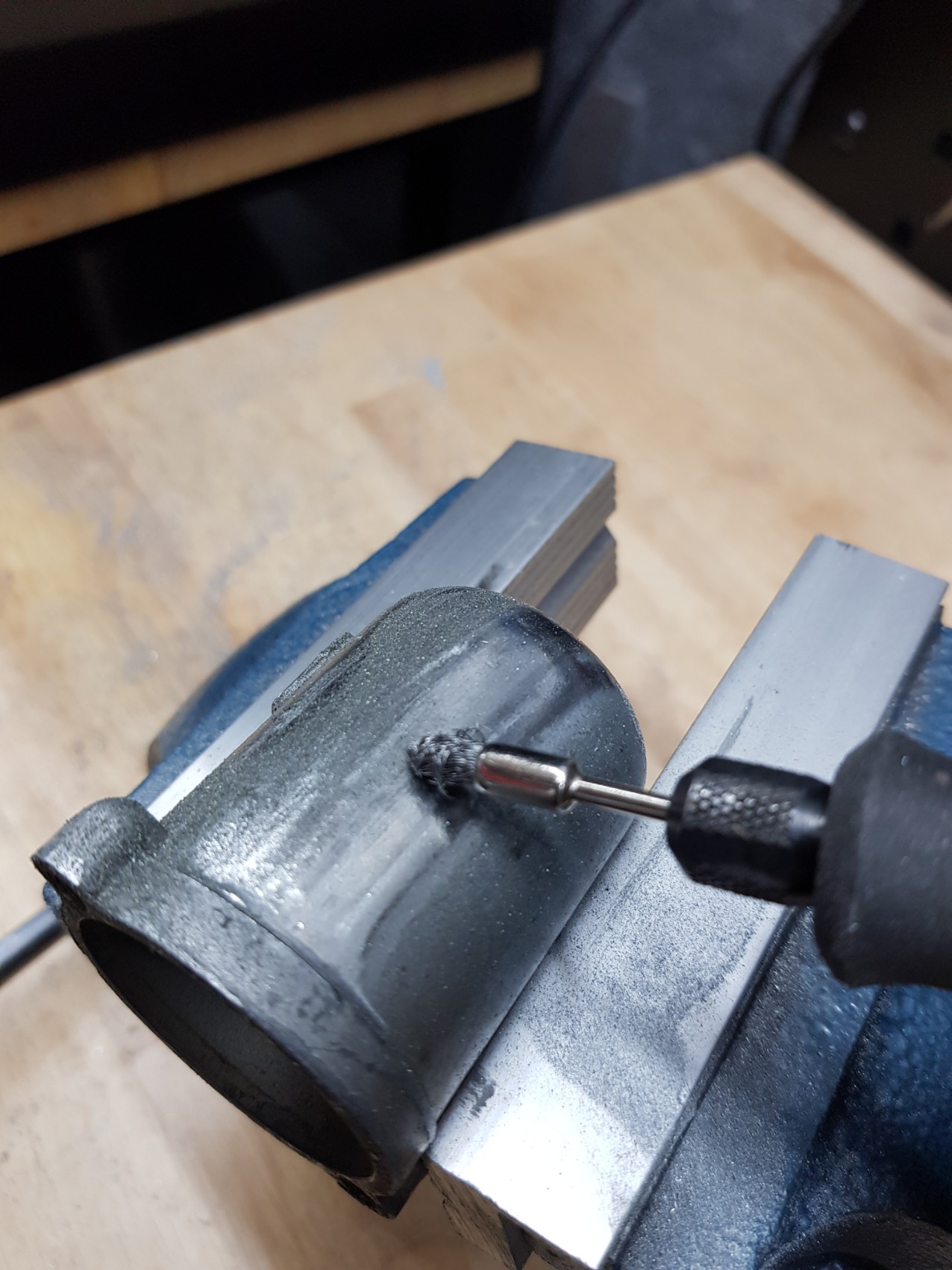

Ready for the nexst step
![](images/20201001_195014.jpg)

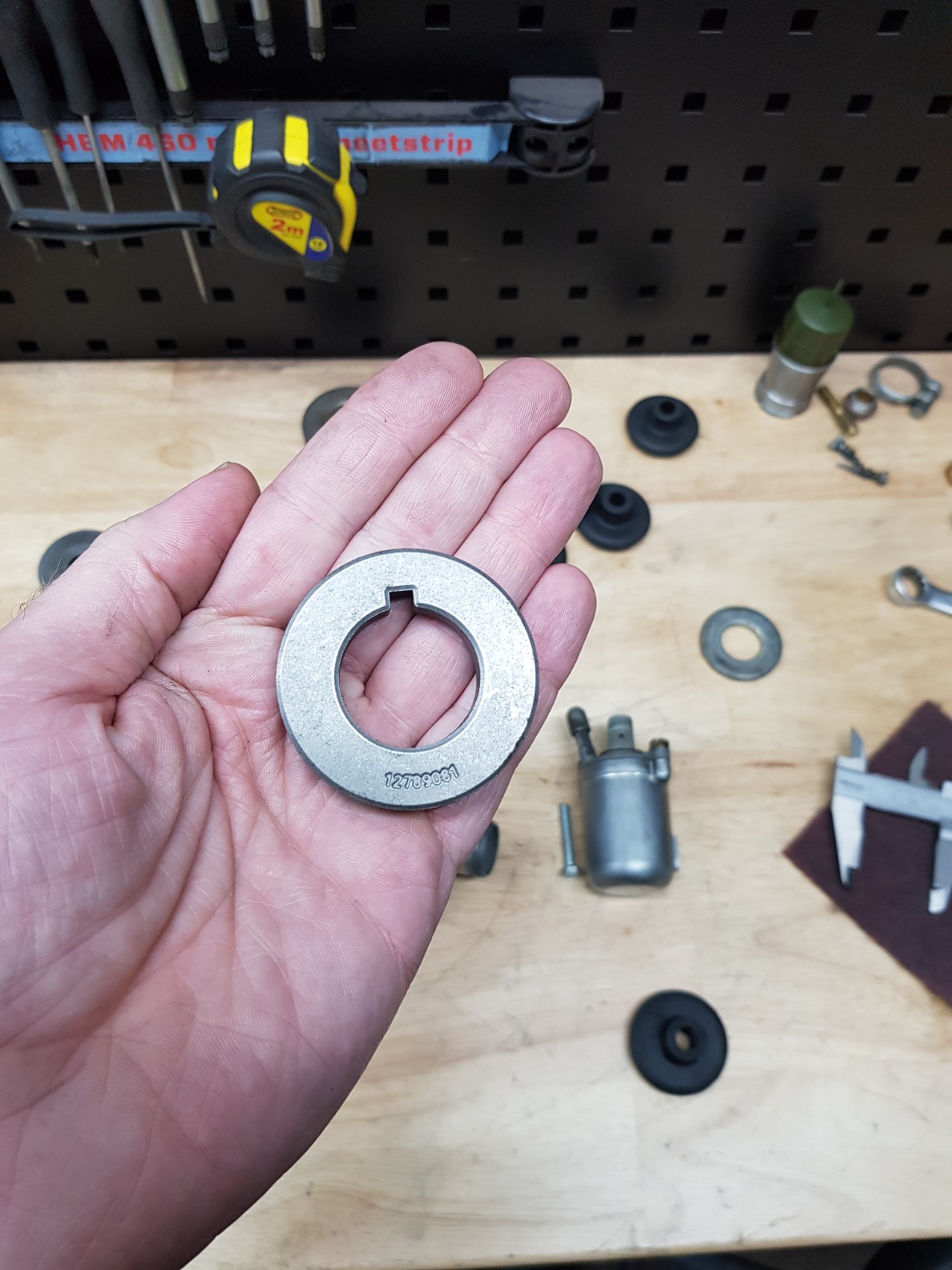

Some ring.
![](images/20201003_100340.jpg)

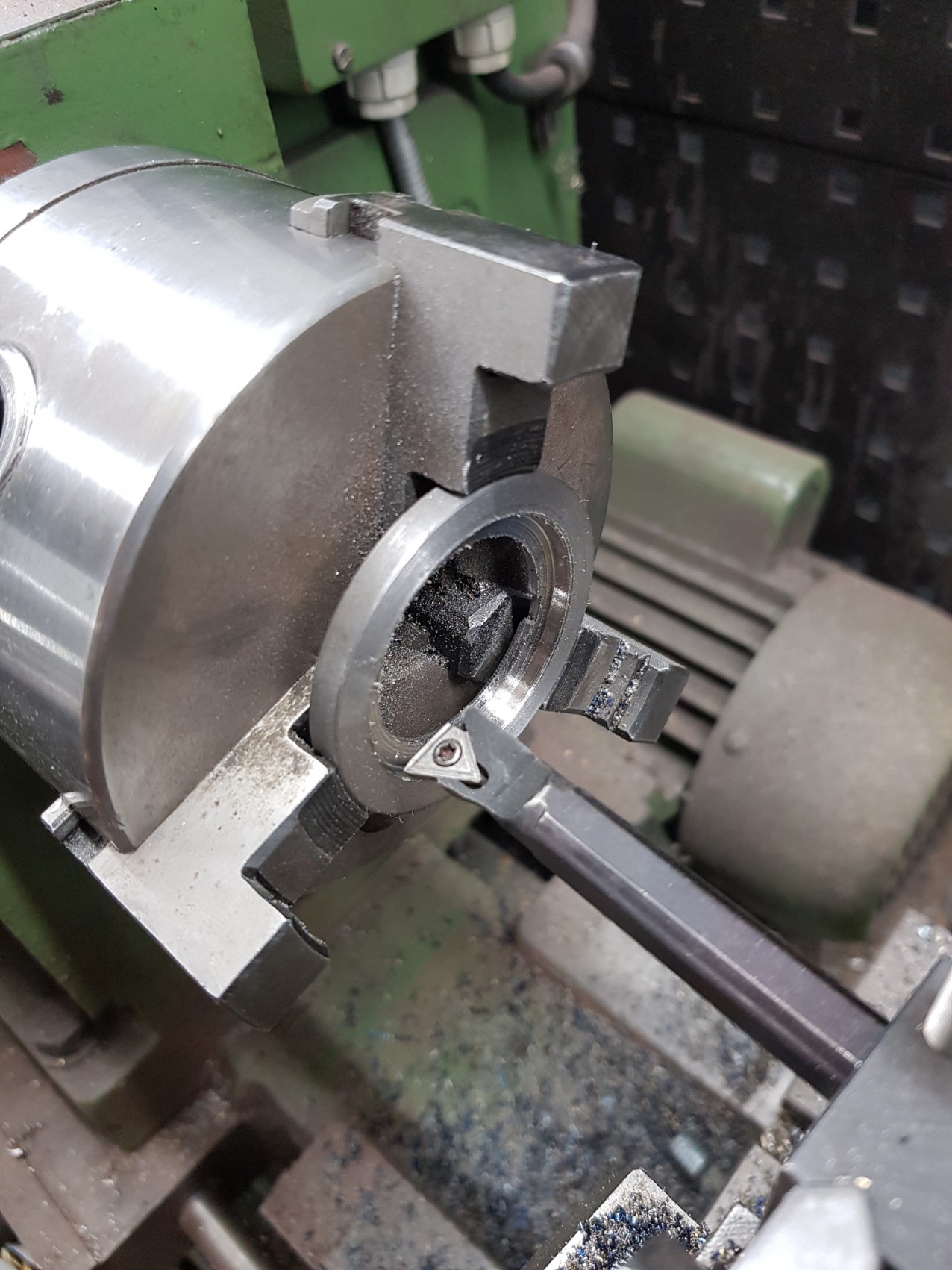

Start working out the idea.
![](images/20201003_102901.jpg)

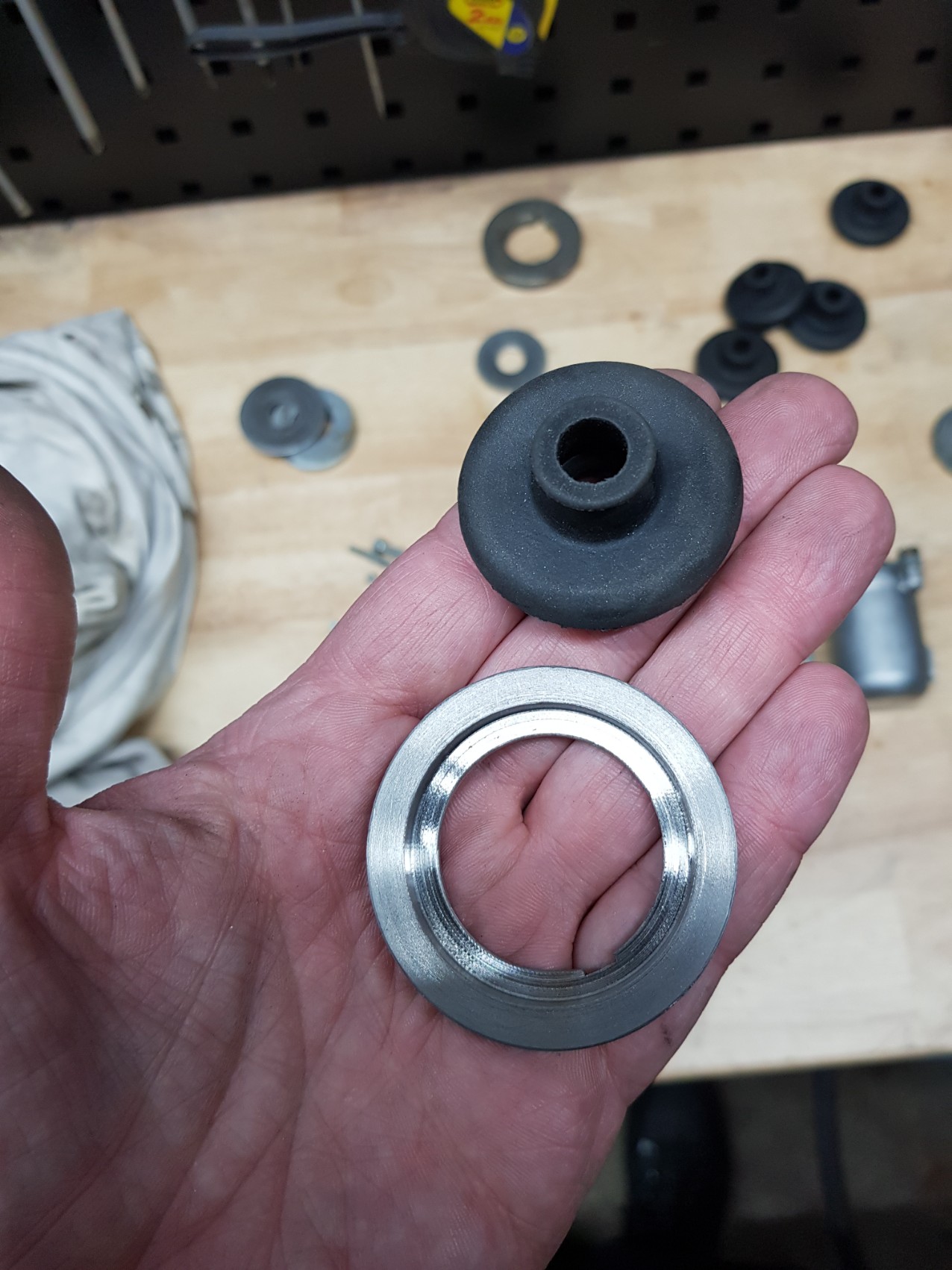

Made it the same dimension as the rubber.
![](images/20201003_103144-0-.jpg)

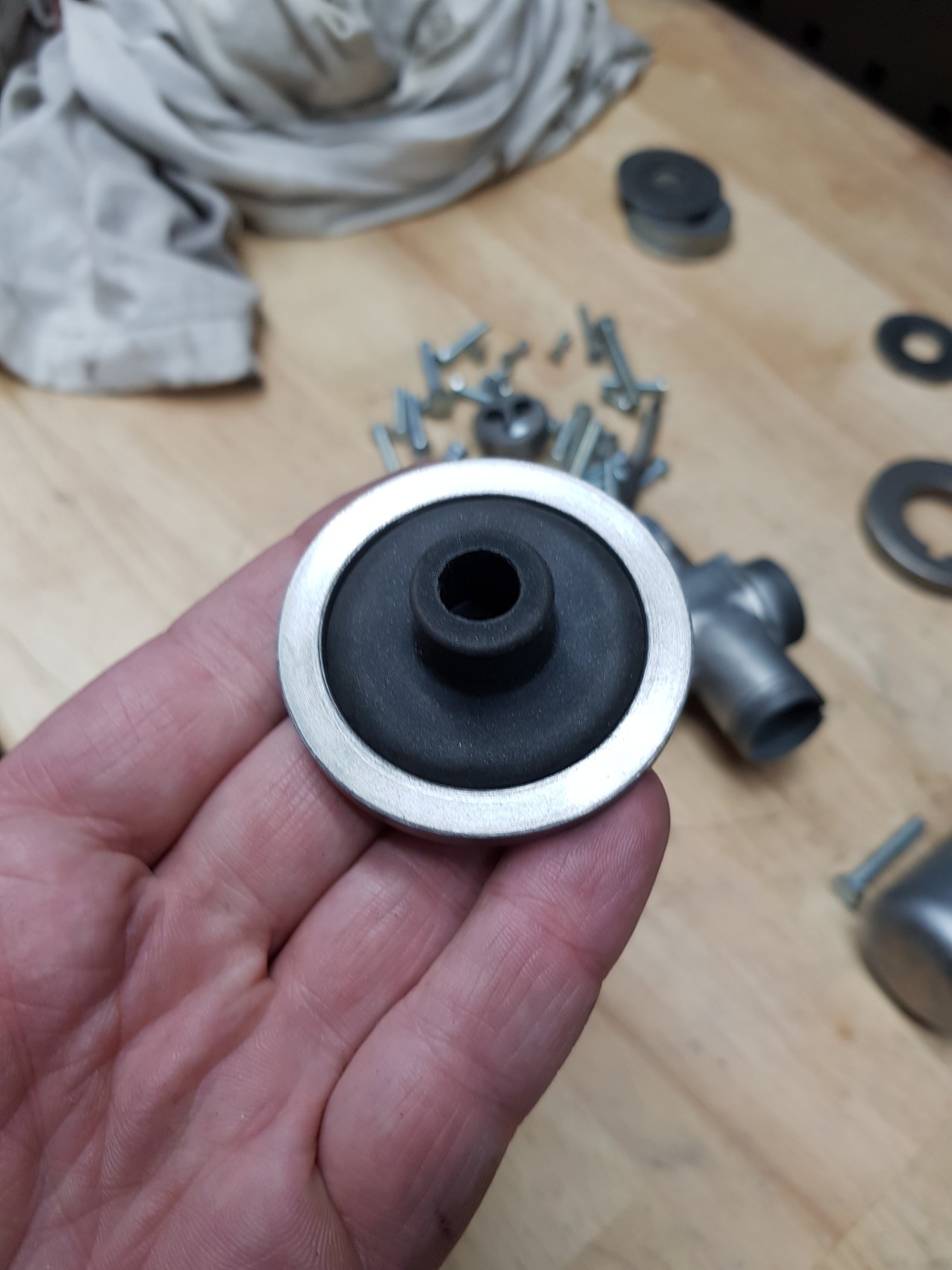

Doesn't go any ware.
![](images/20201003_103255.jpg)

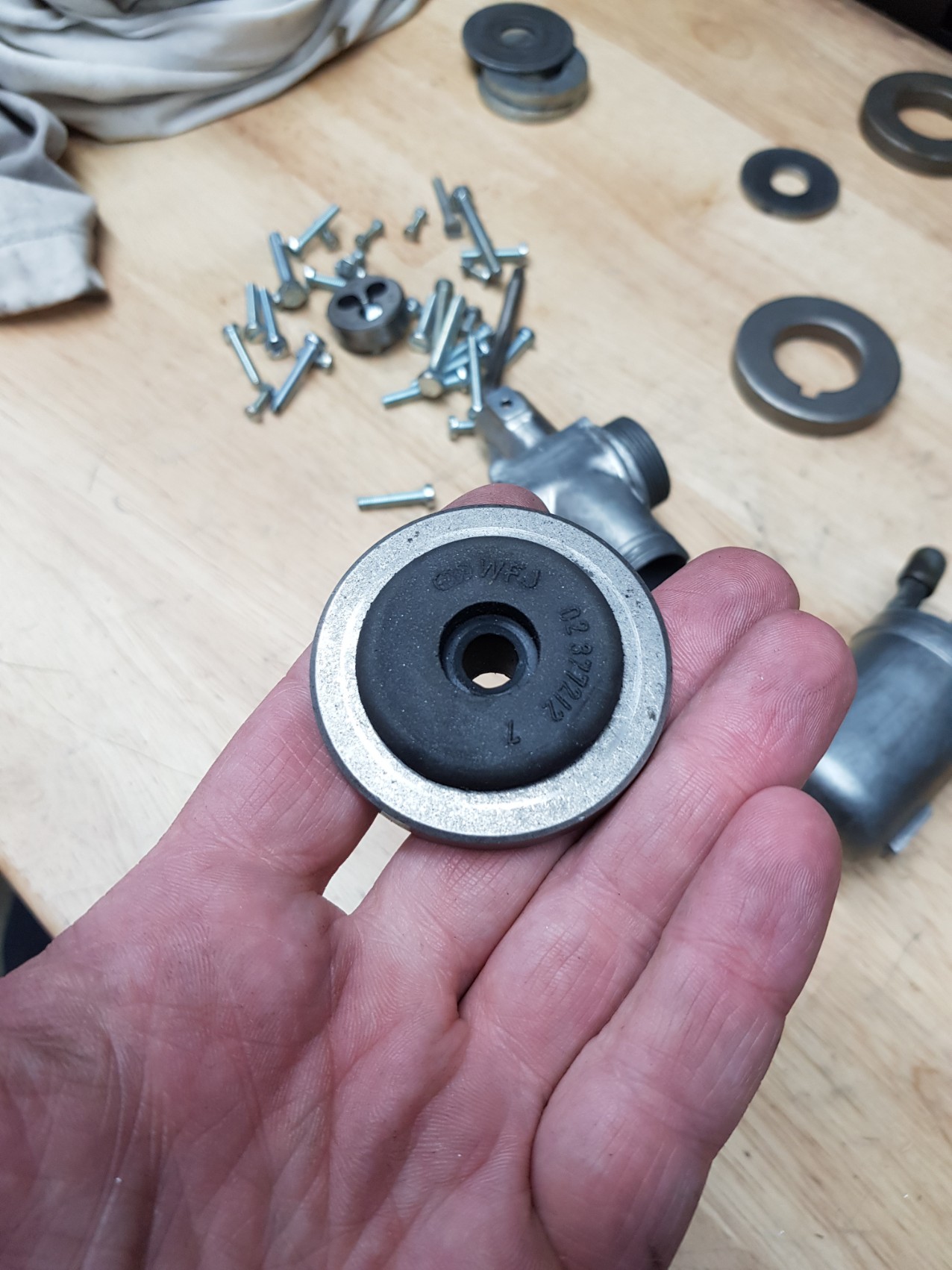

Nice and tight.
![](images/20201003_103307.jpg)

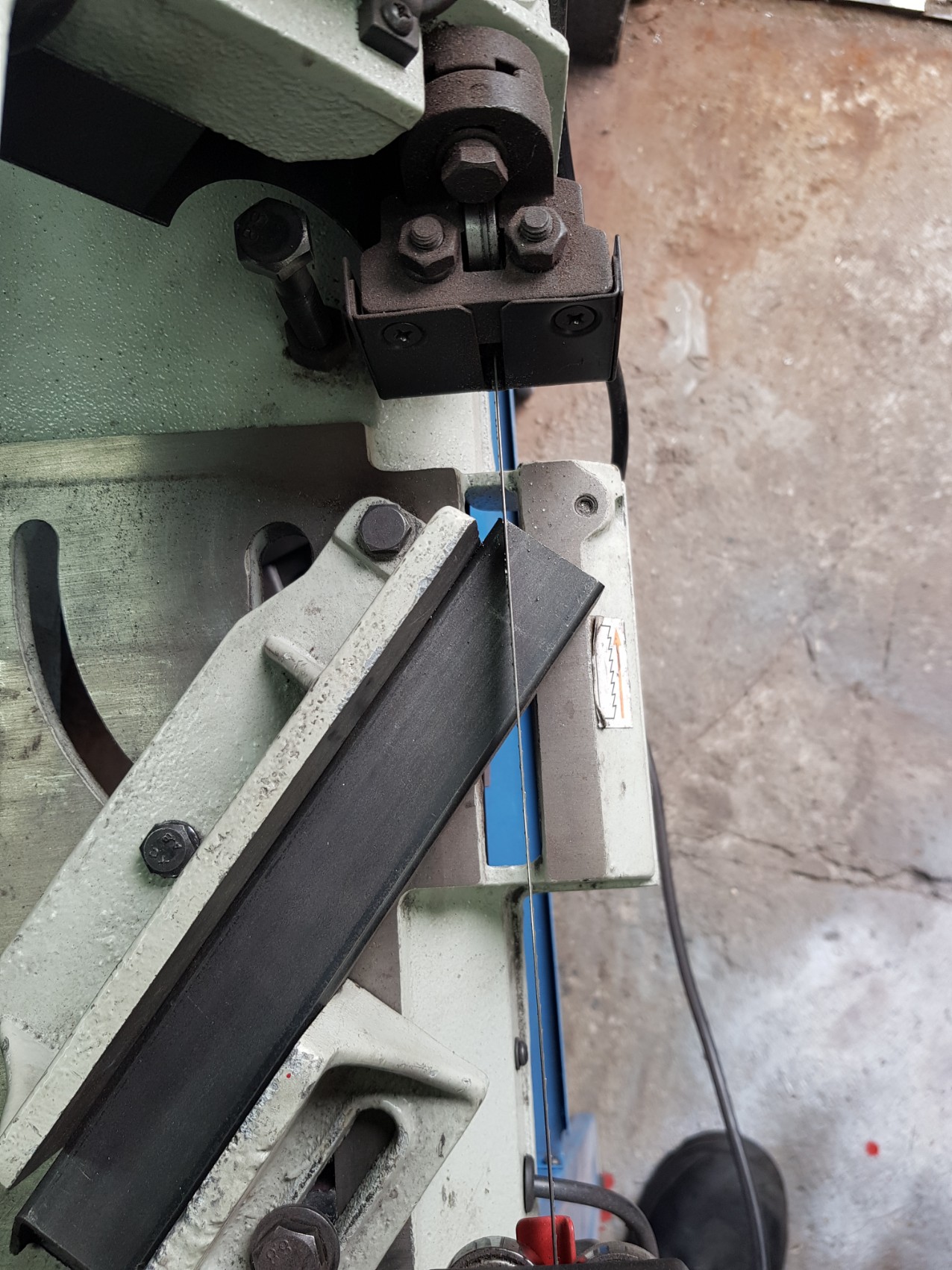

Start off the mounting point.
![](images/20201003_103952-0-.jpg)

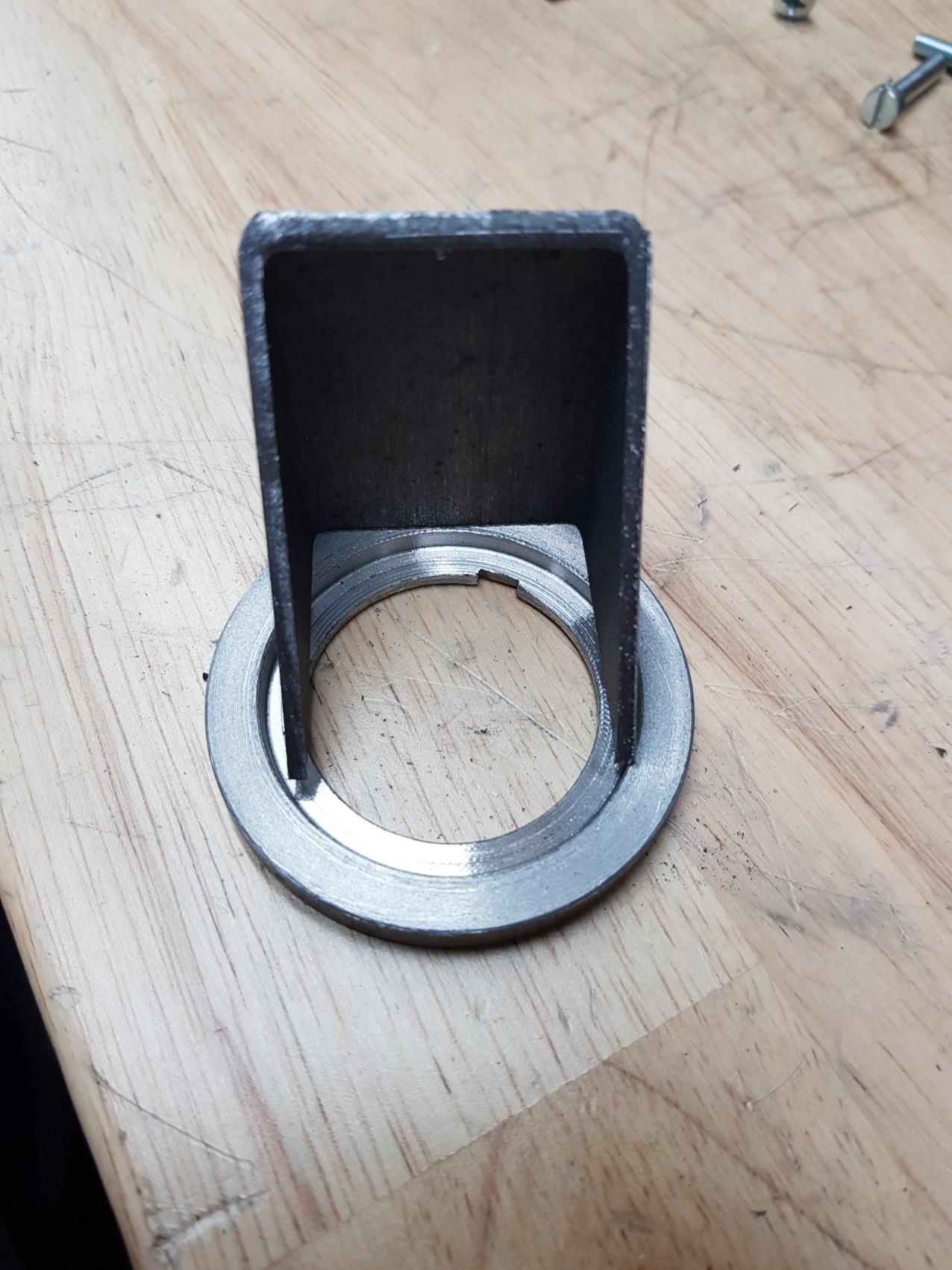

Indication.
![](images/20201003_104356.jpg)

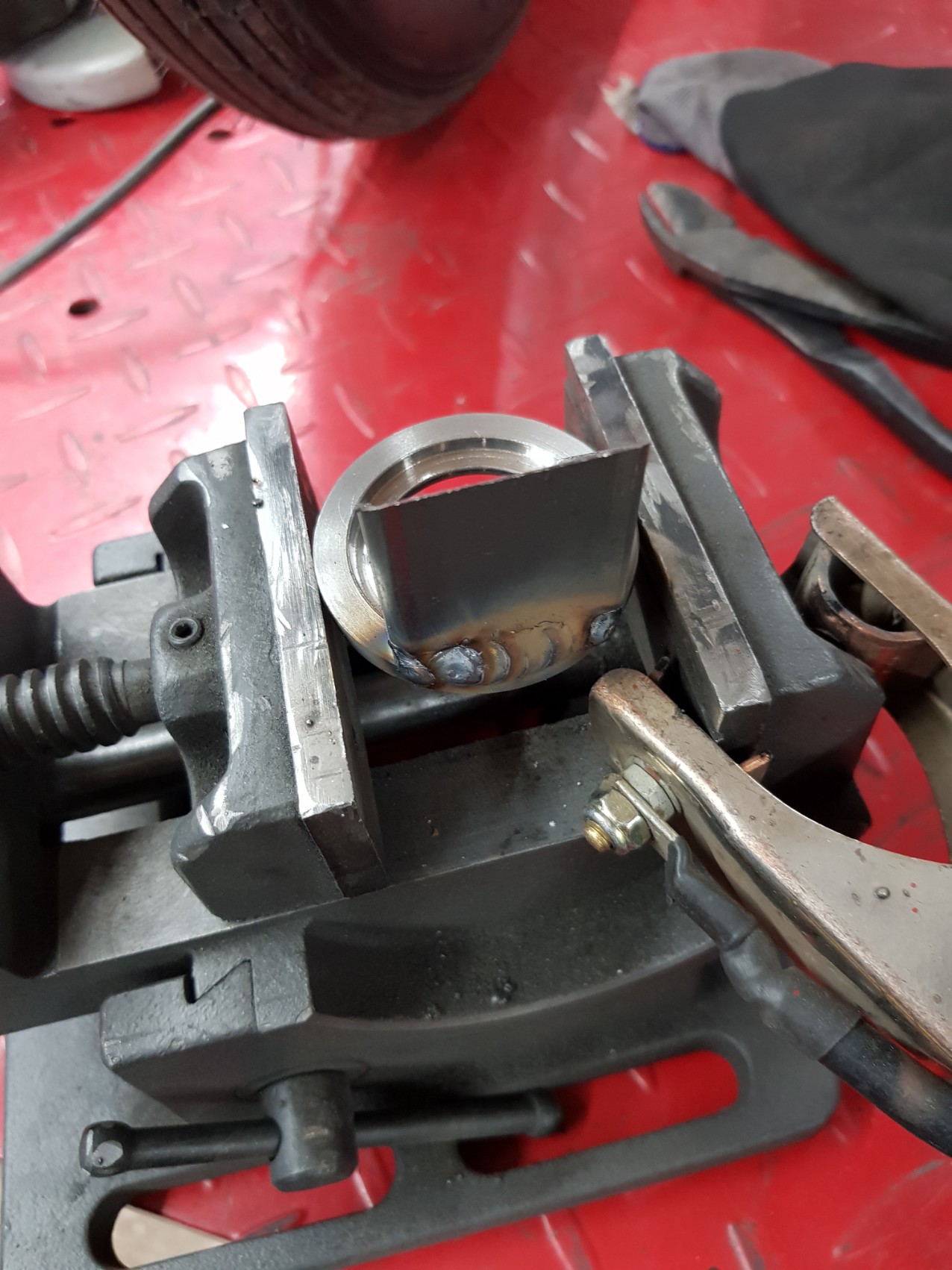

Welding.
![](images/20201003_105022.jpg)

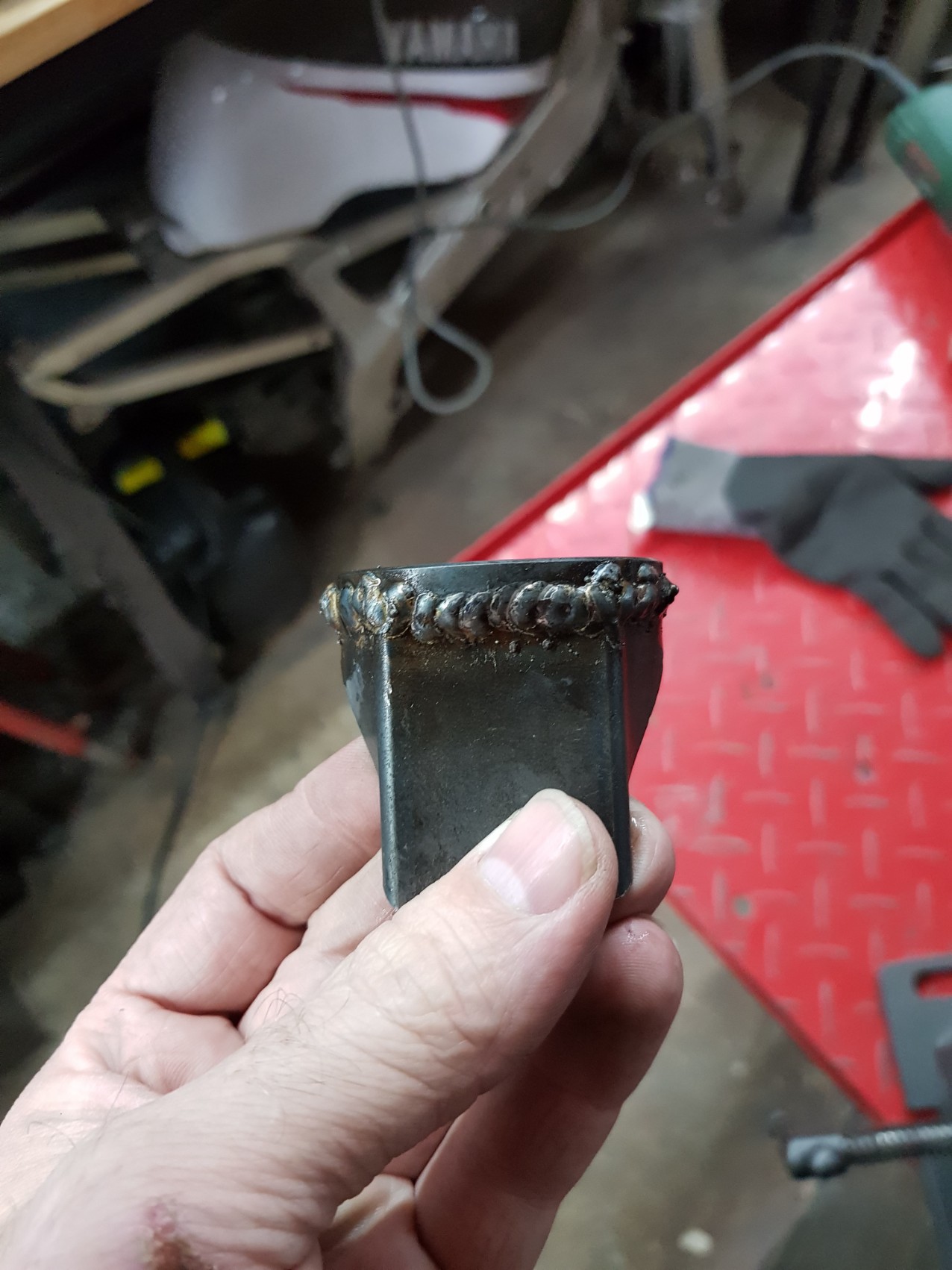

Done.
![](images/20201003_110125.jpg)
Grinding.
![](images/20201003_110604.jpg)

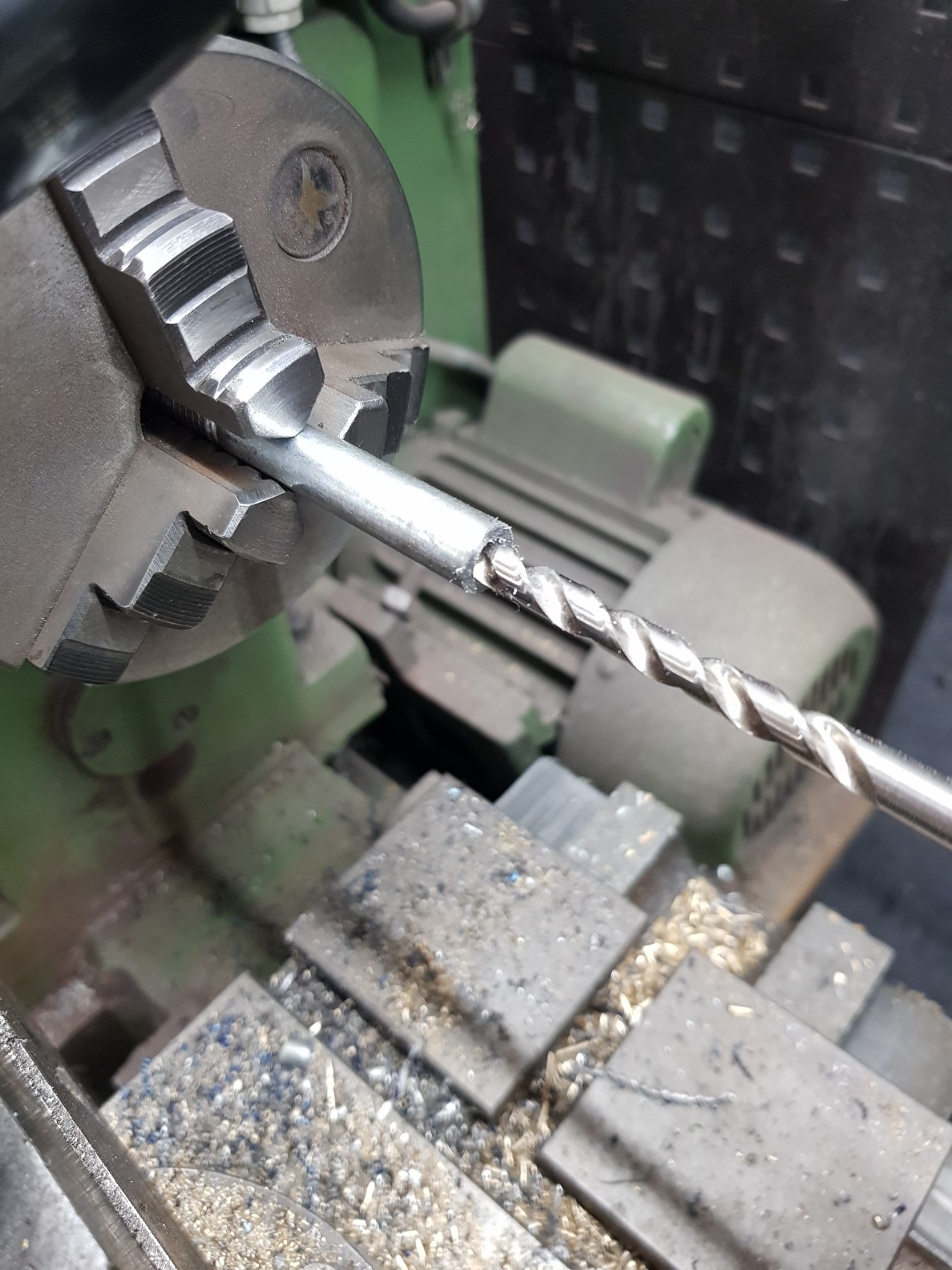

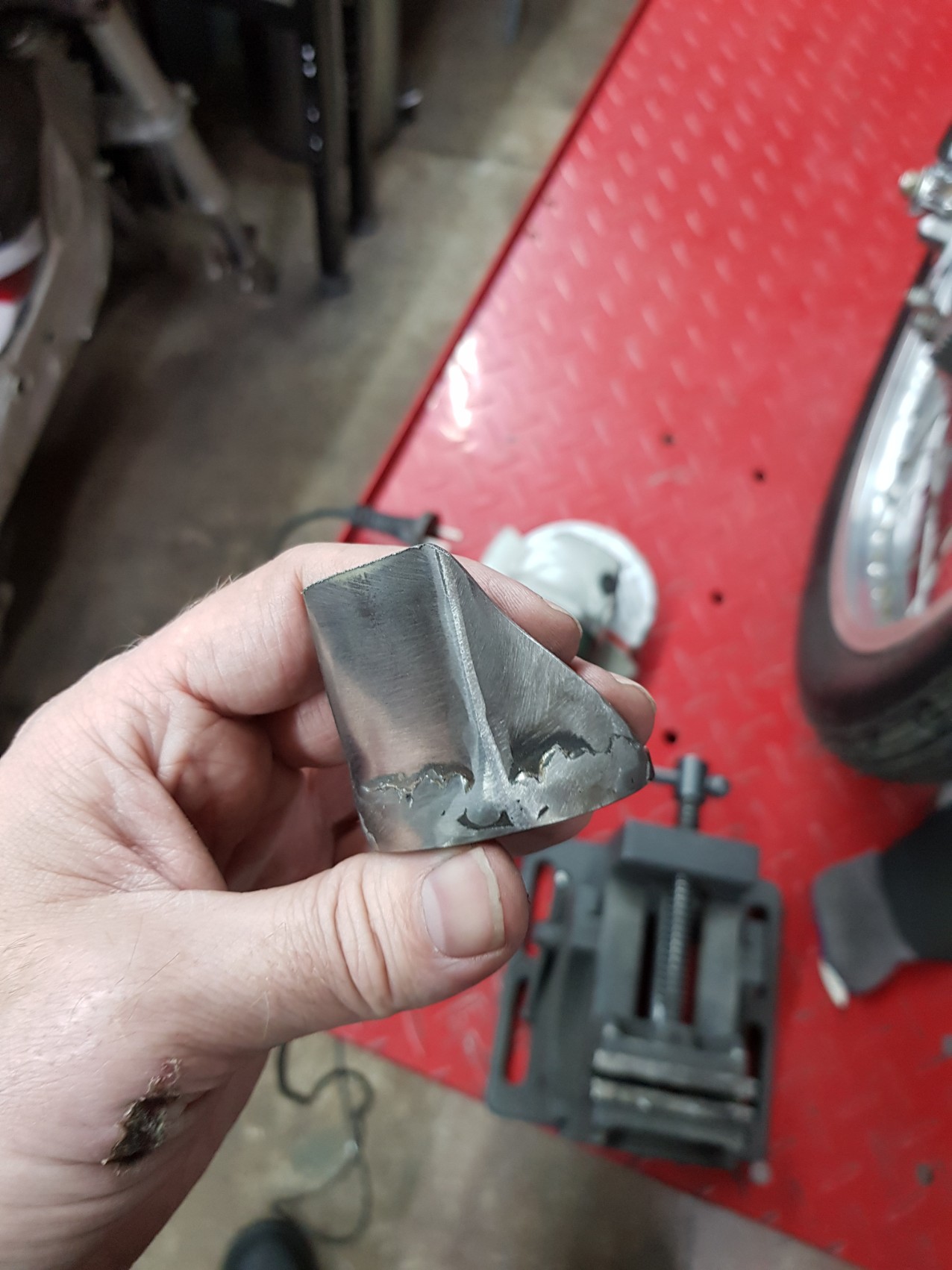

Get it on 6mm
![](images/20201003_112342-0-.jpg)

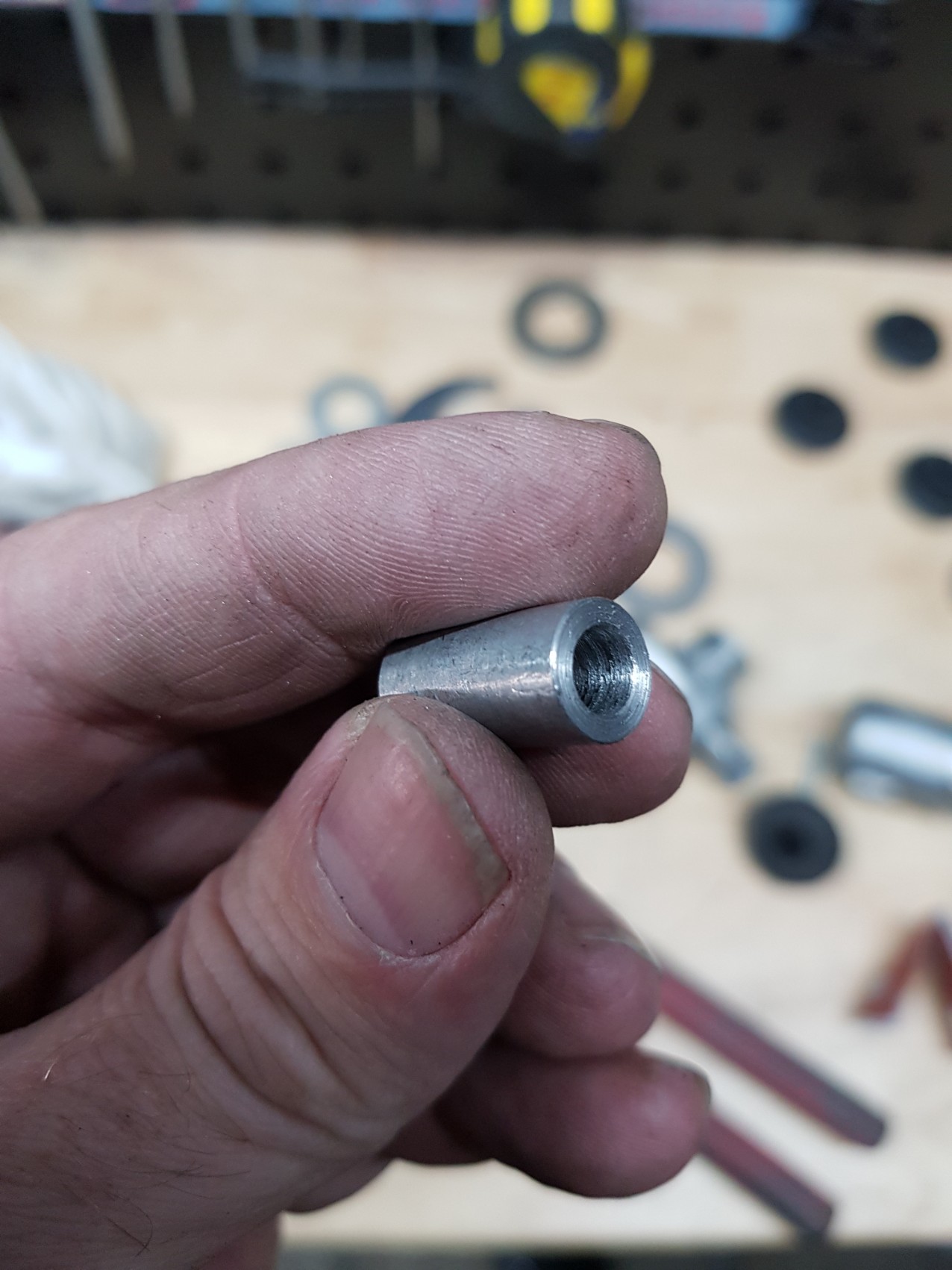

Spacer ready.
![](images/20201003_113331-0-.jpg)
Getting close.
![](images/20201003_113344.jpg)

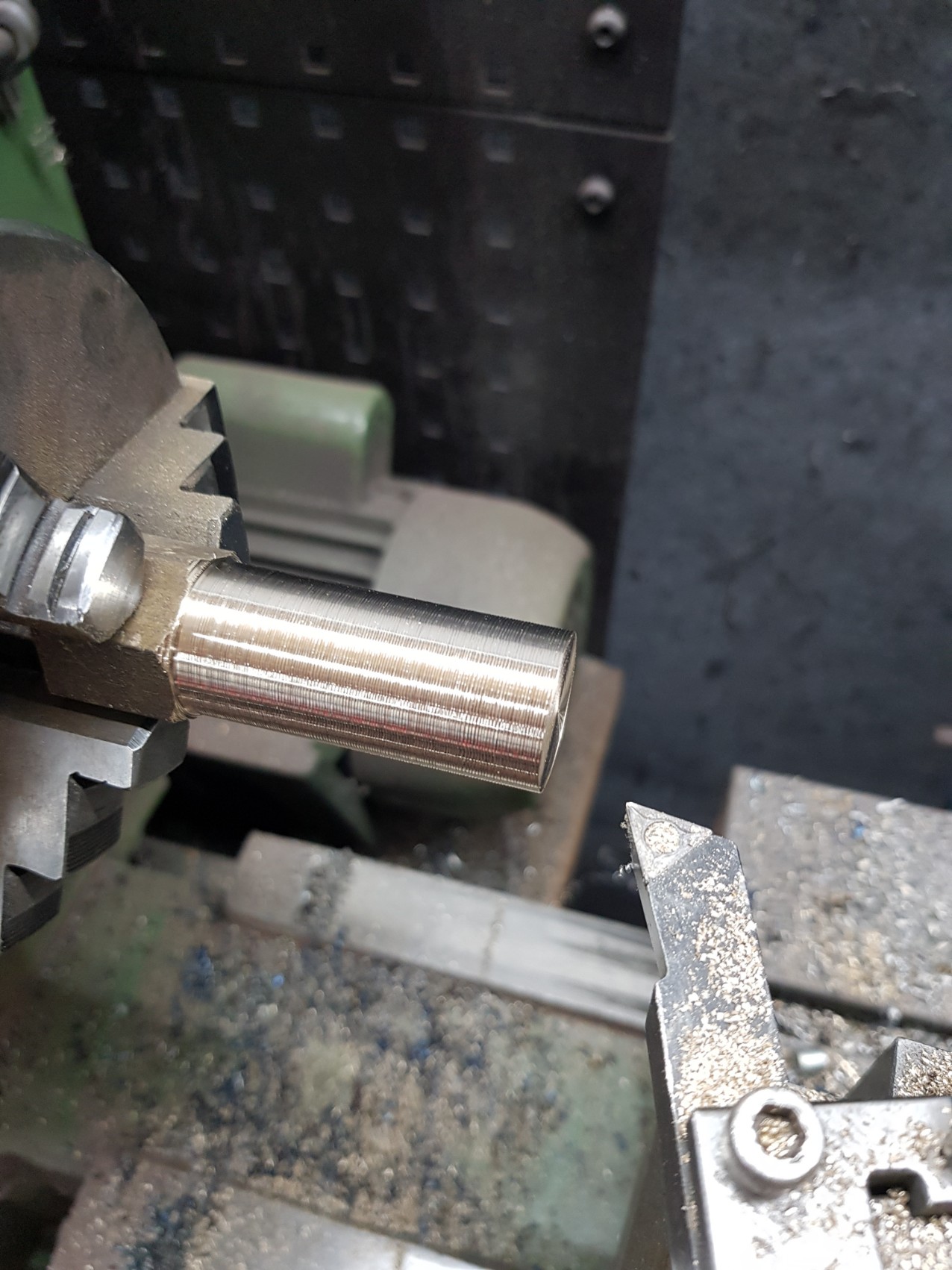

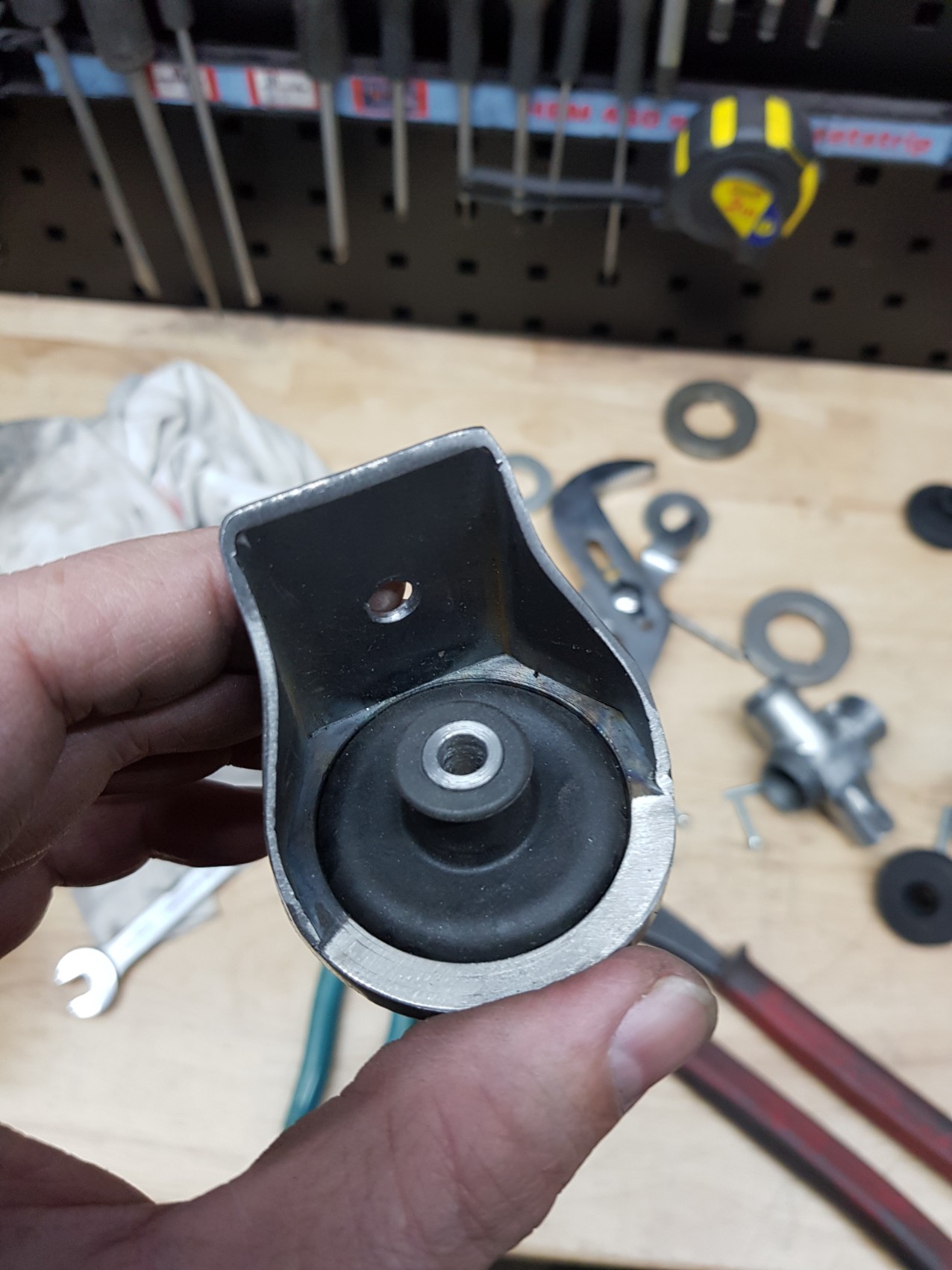

Start making spacer for bowl.
![](images/20201003_120612.jpg)

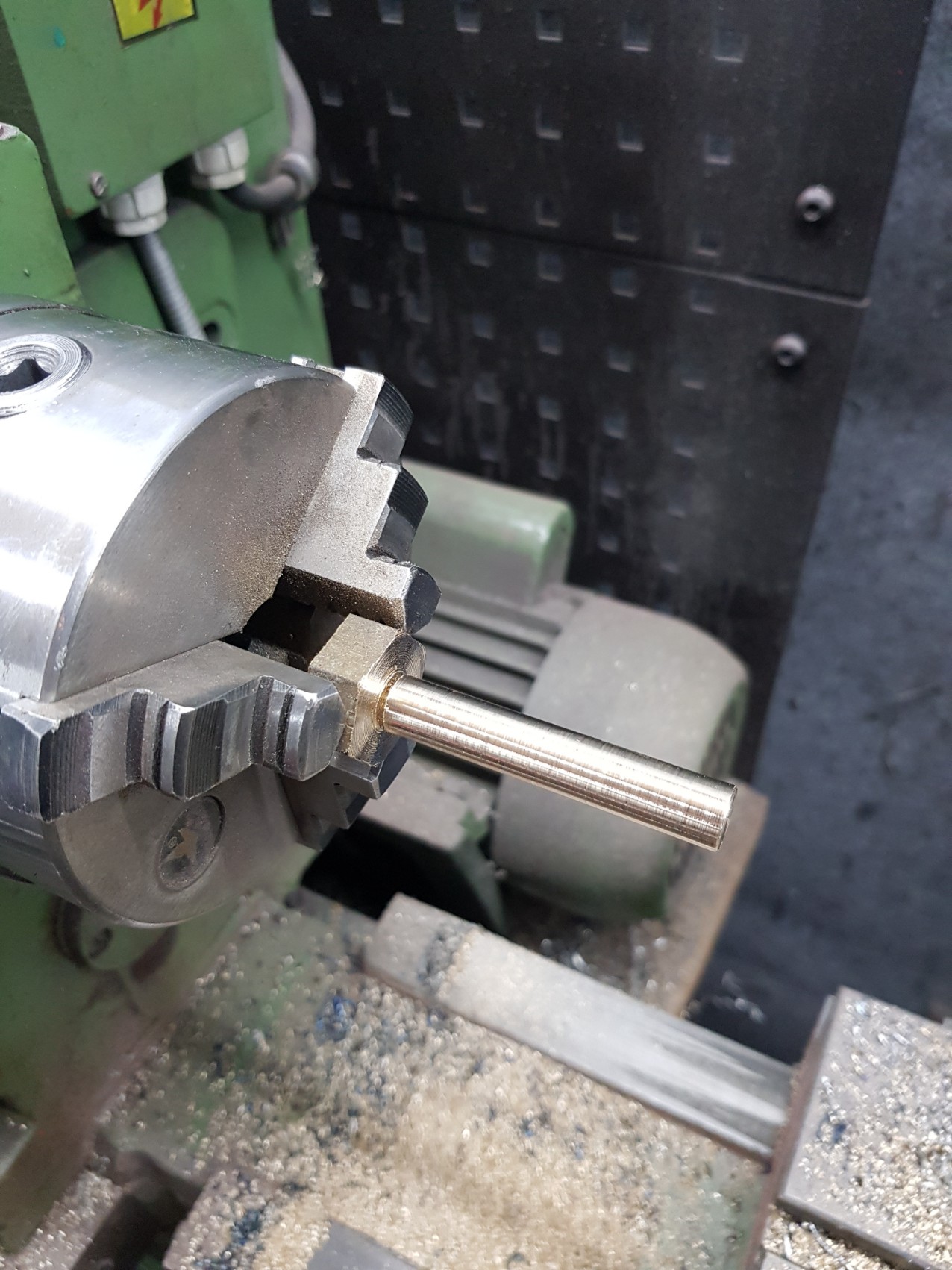

Outside 10mm
![](images/20201003_122608.jpg)

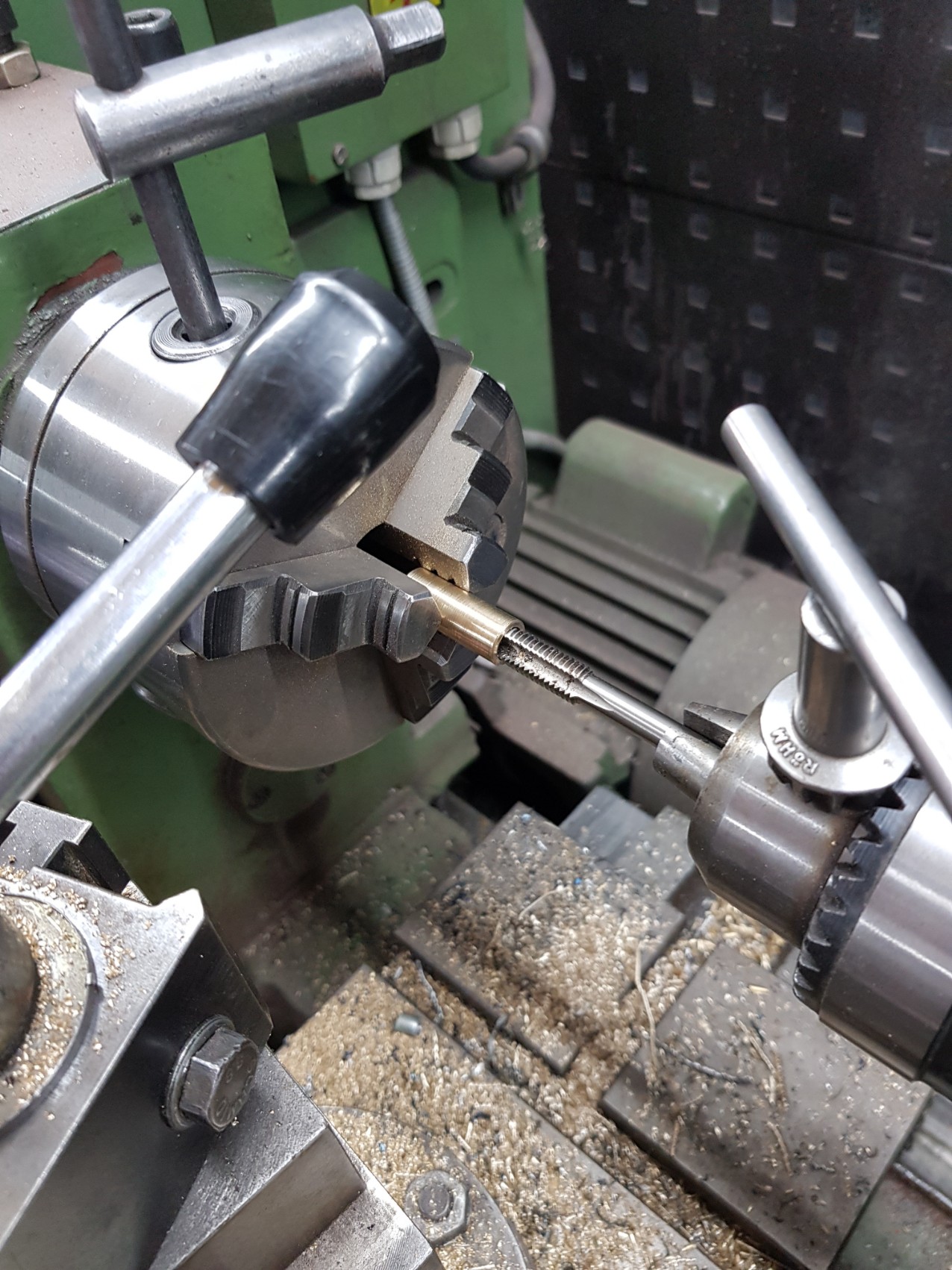

Tapping M8
![](images/20201003_124702.jpg)

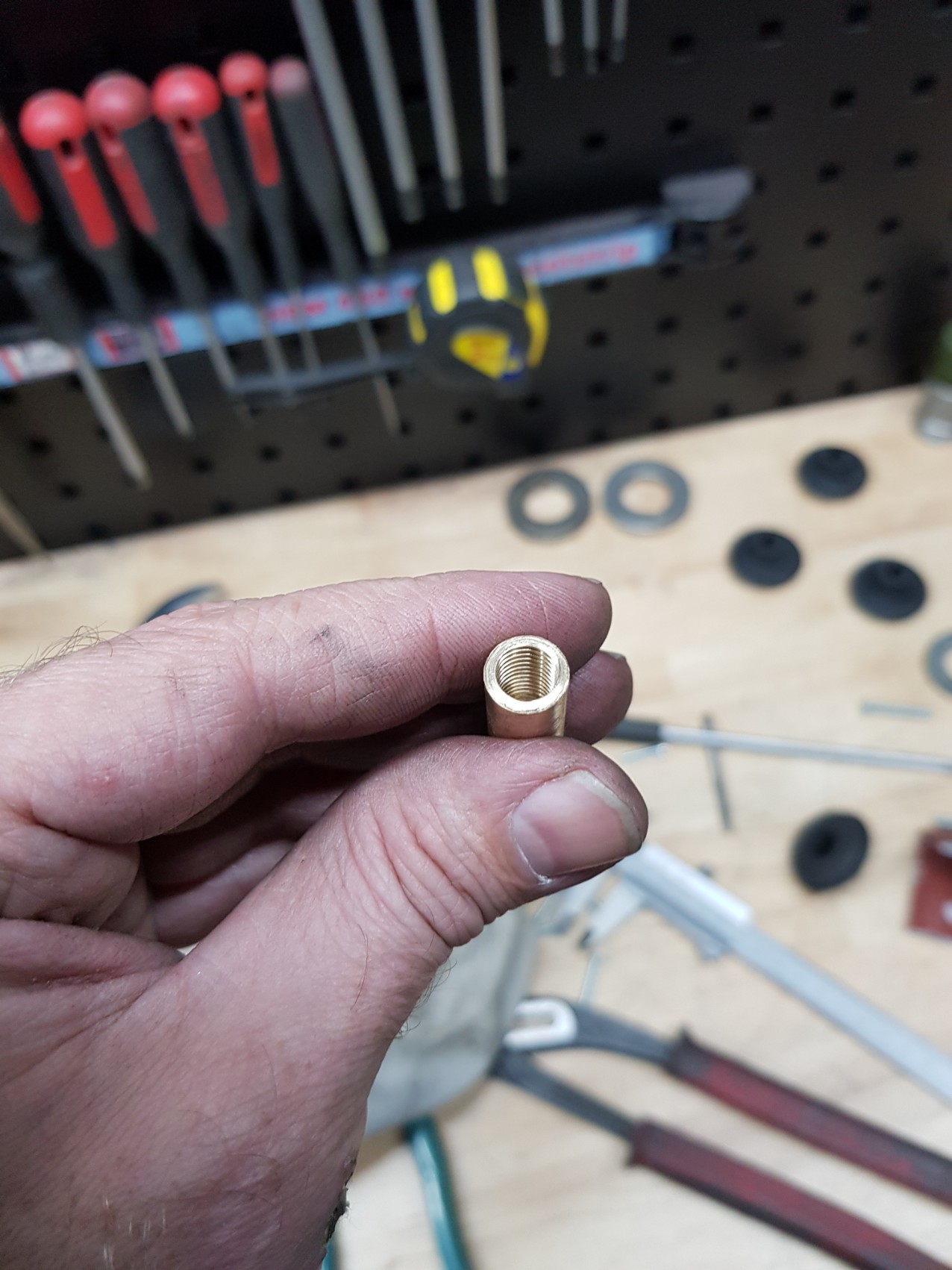

Looking good.
![](images/20201003_125059-0-.jpg)

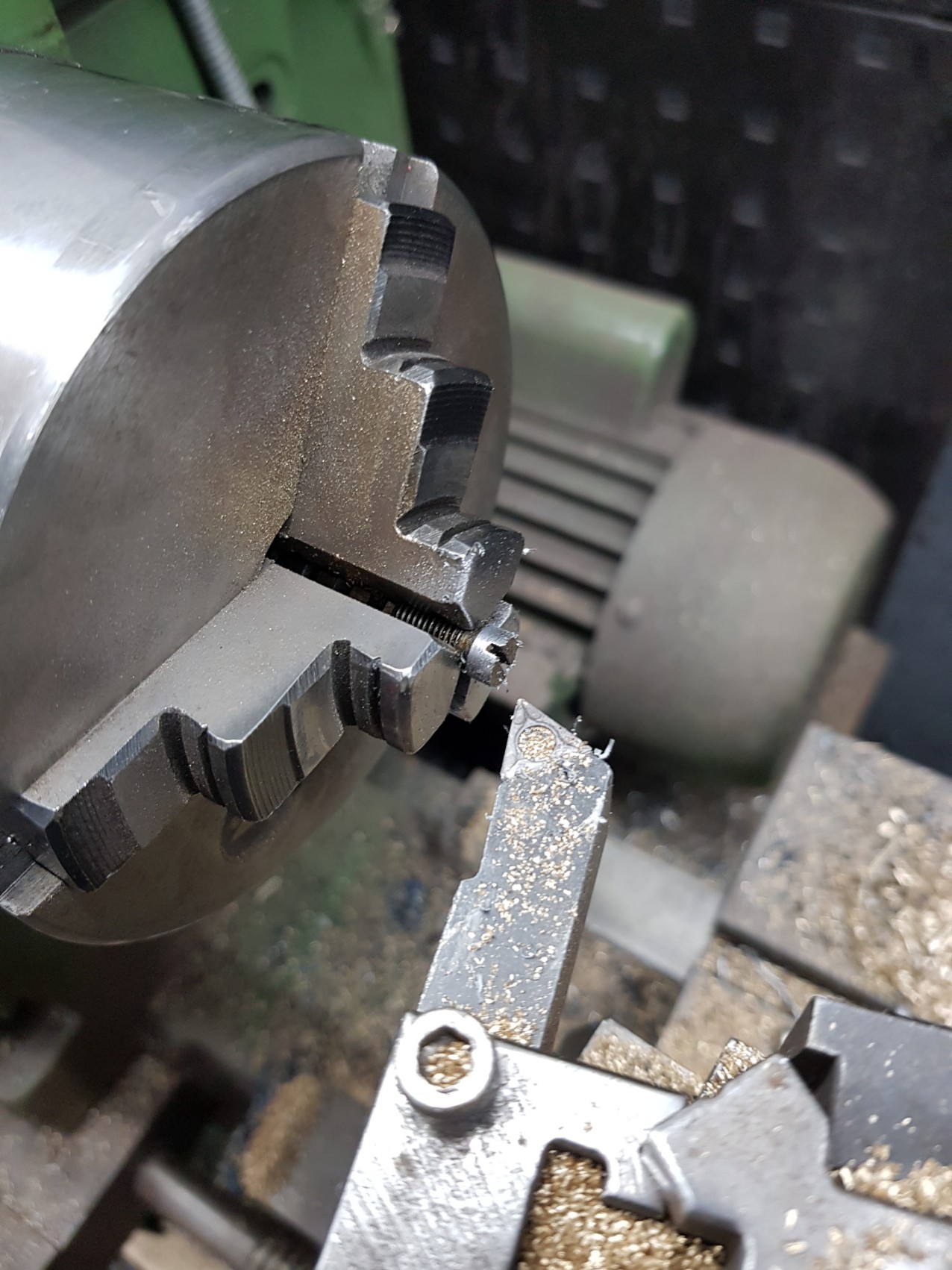

Changing original Dellorto bold.
![](images/20201003_130548.jpg)
It needs to be in there.
![](images/20201003_131013.jpg)

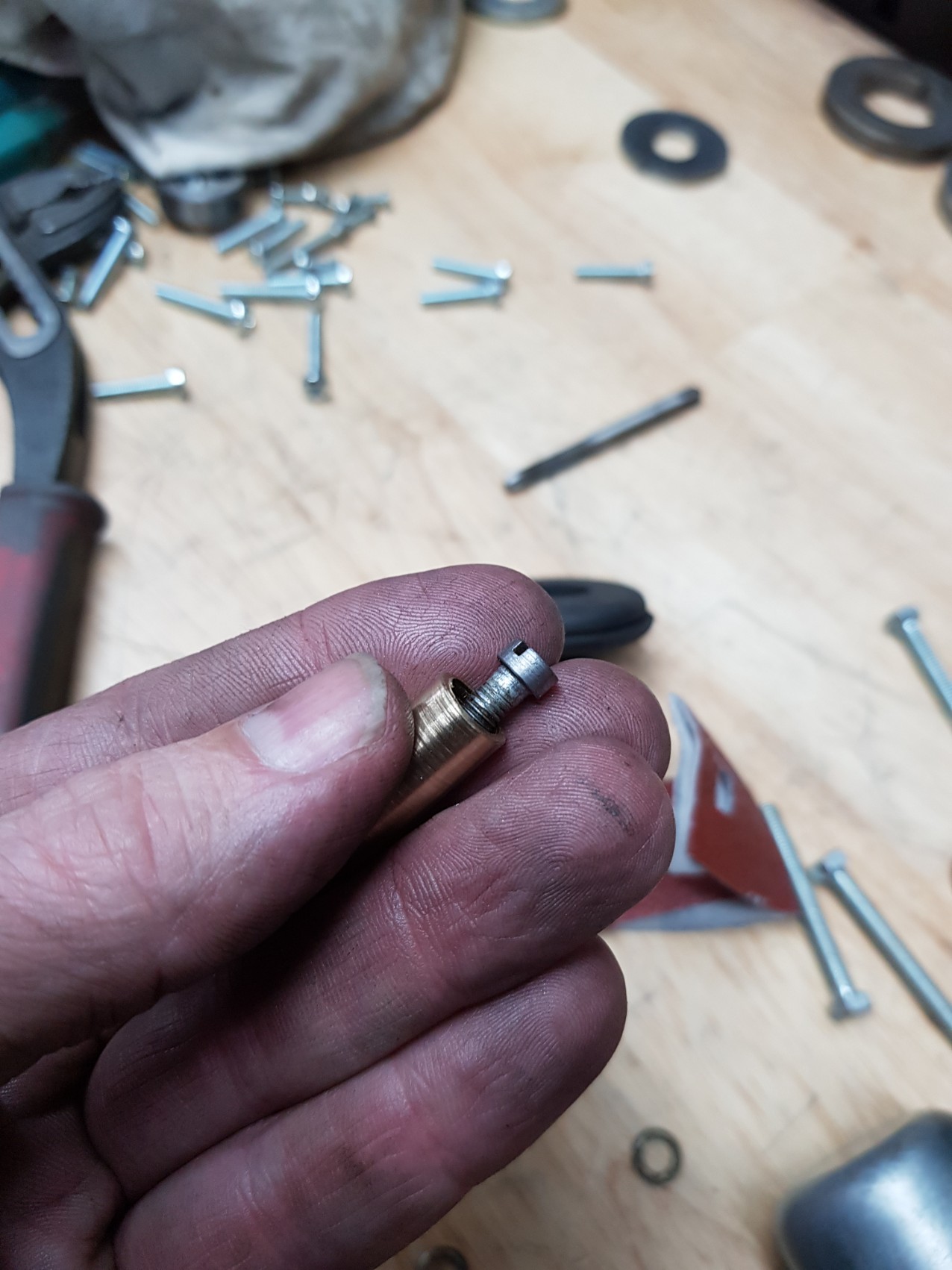

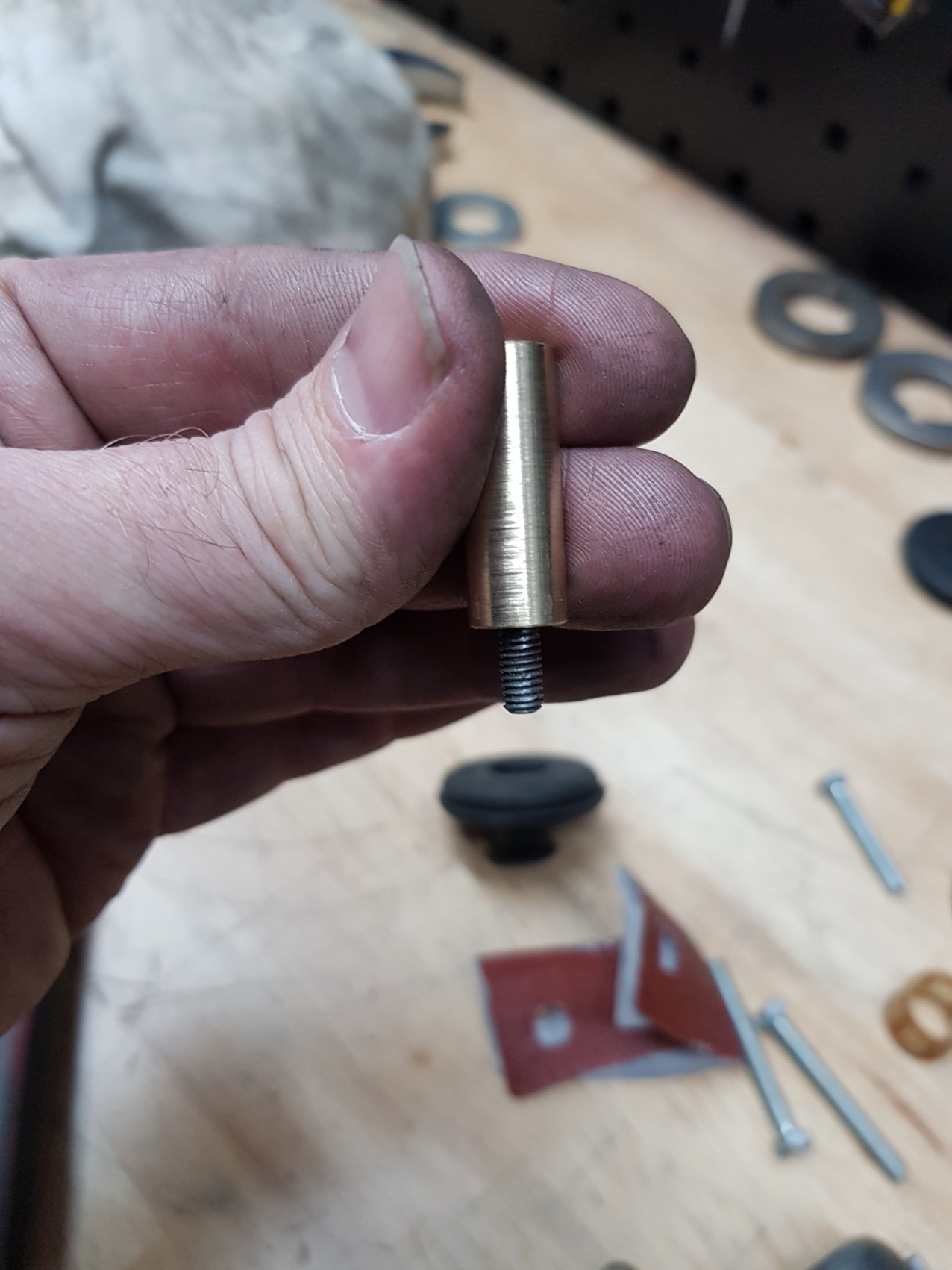

Perfect.
![](images/20201003_131018.jpg)

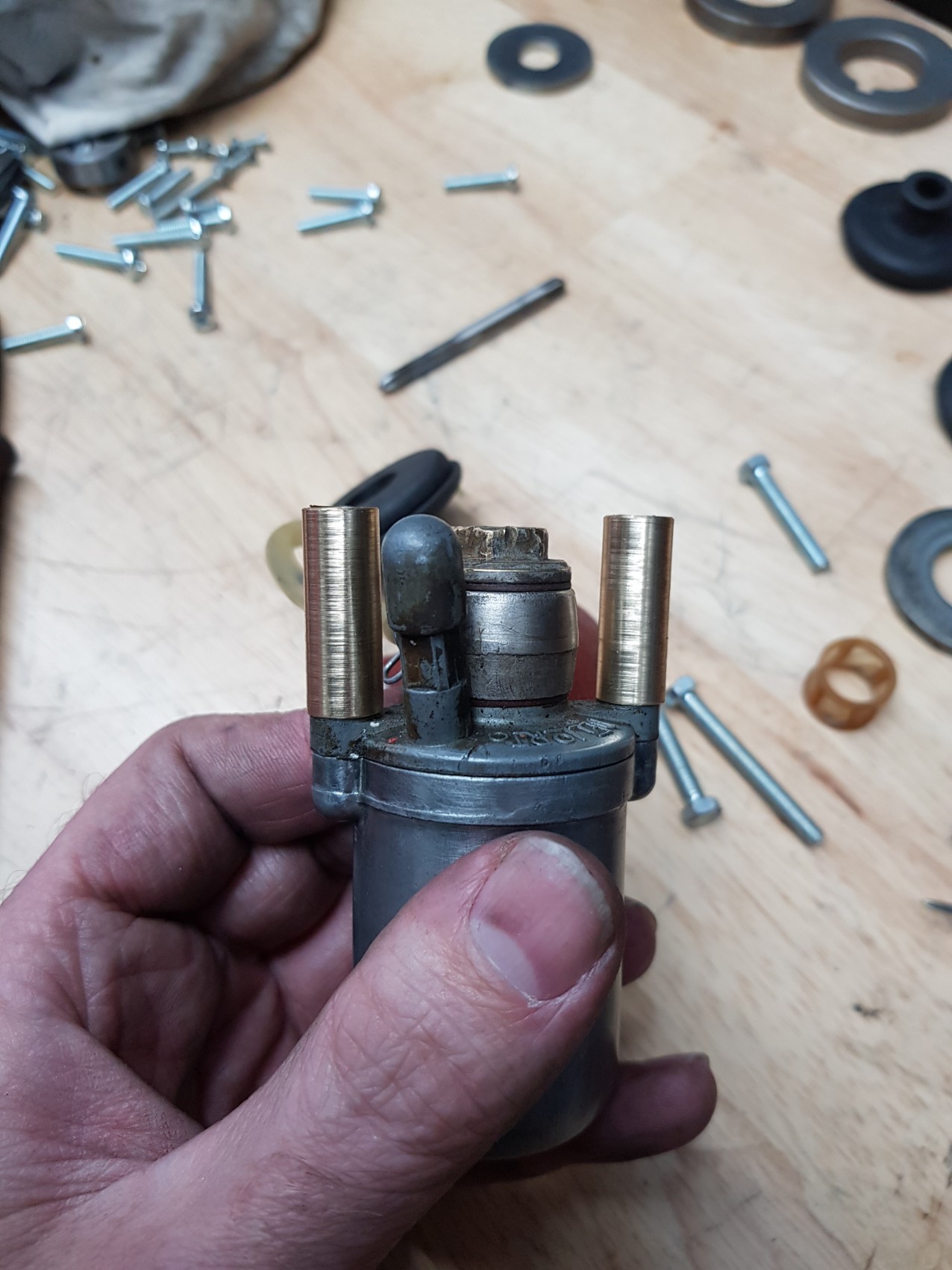

Indication
![](images/20201003_131040-0-.jpg)

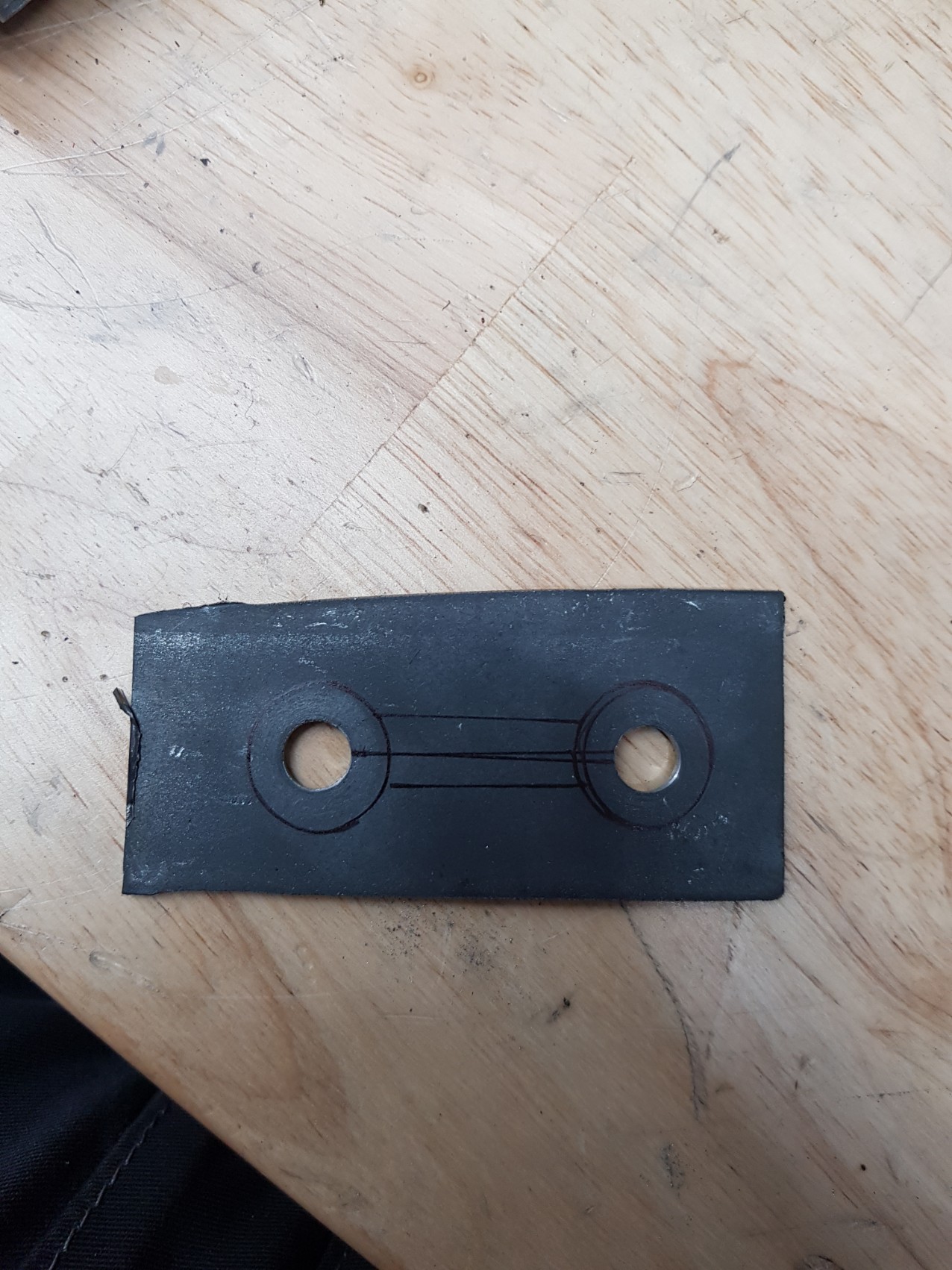

Making a bracket.
![](images/20201003_133134-0-.jpg)

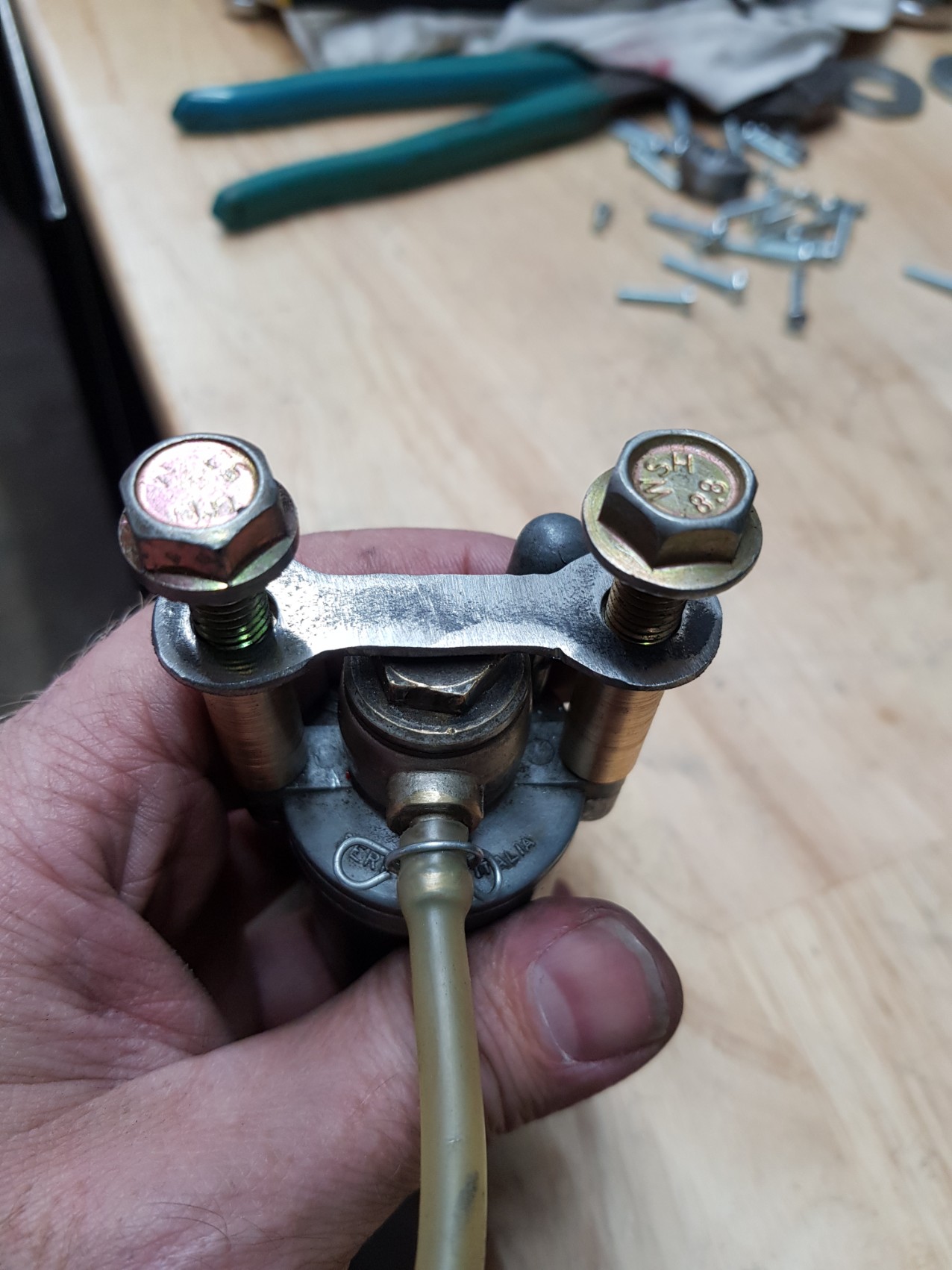

Start to look good.
![](images/20201003_134345.jpg)

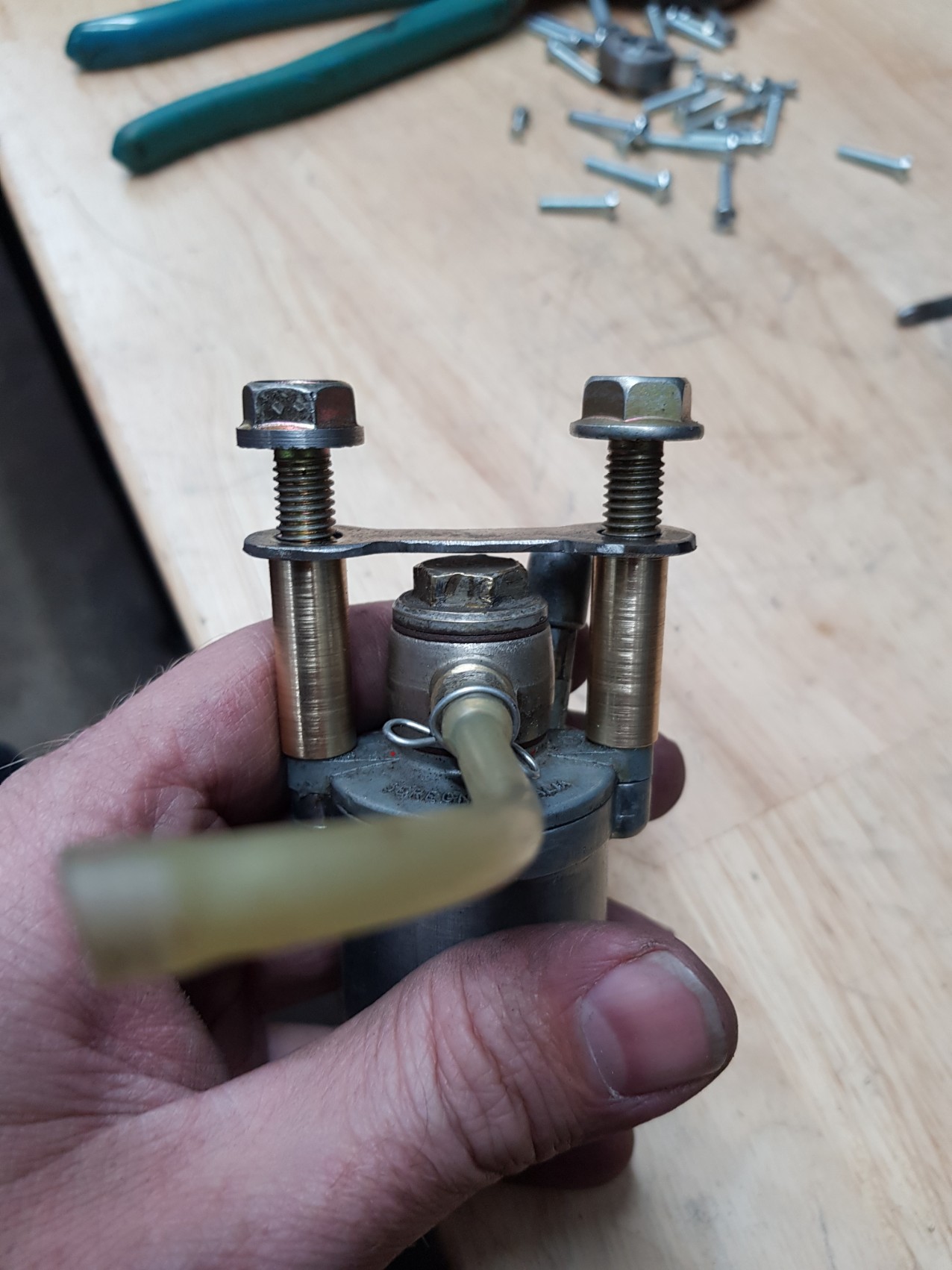

Just over the top.
![](images/20201003_134349.jpg)

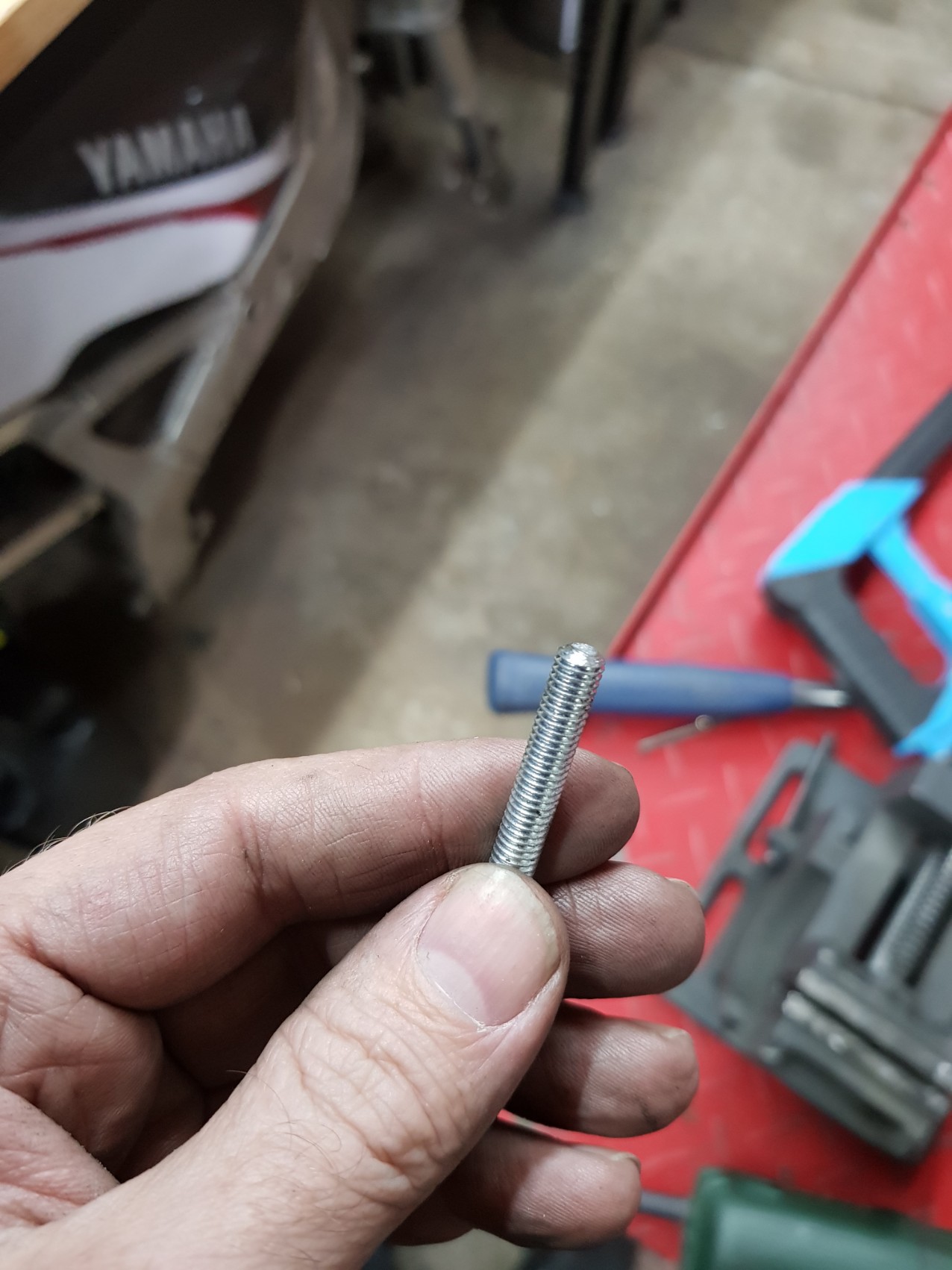

M6 wire end.
![](images/20201003_134813.jpg)

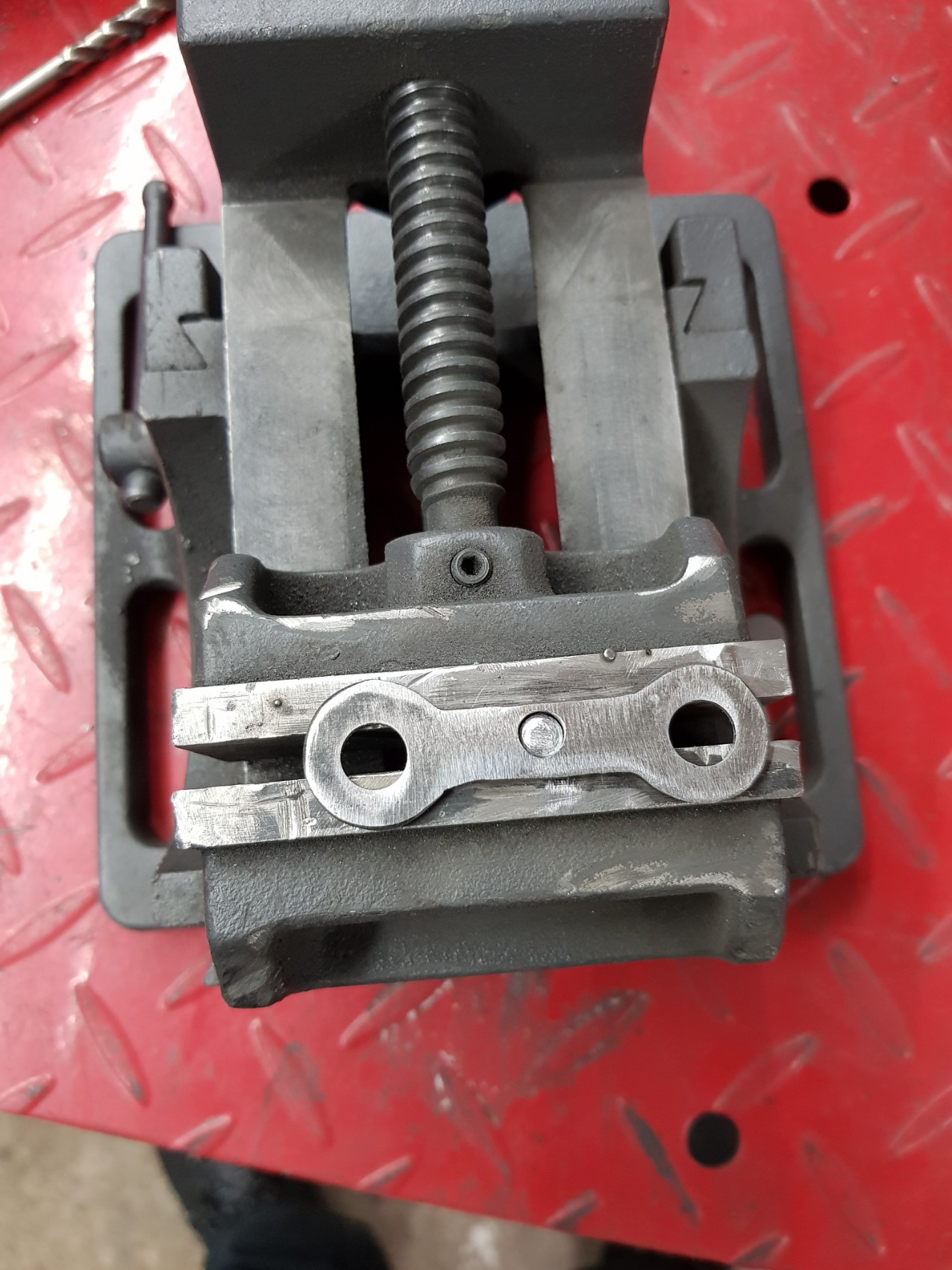

Welding it to the bracket.
![](images/20201003_134924-0-.jpg)

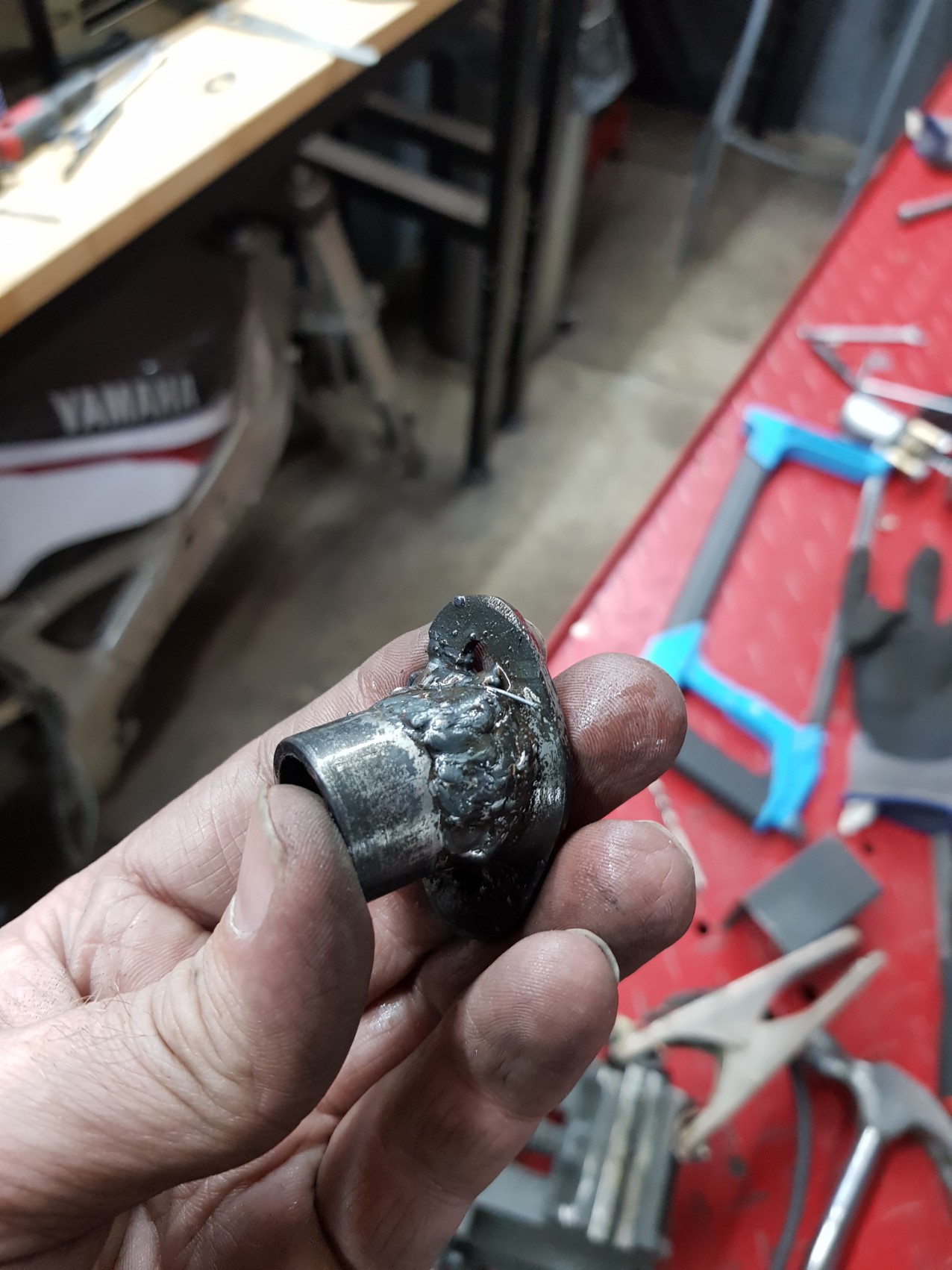

Manifold changed.
![](images/20201003_145105.jpg)

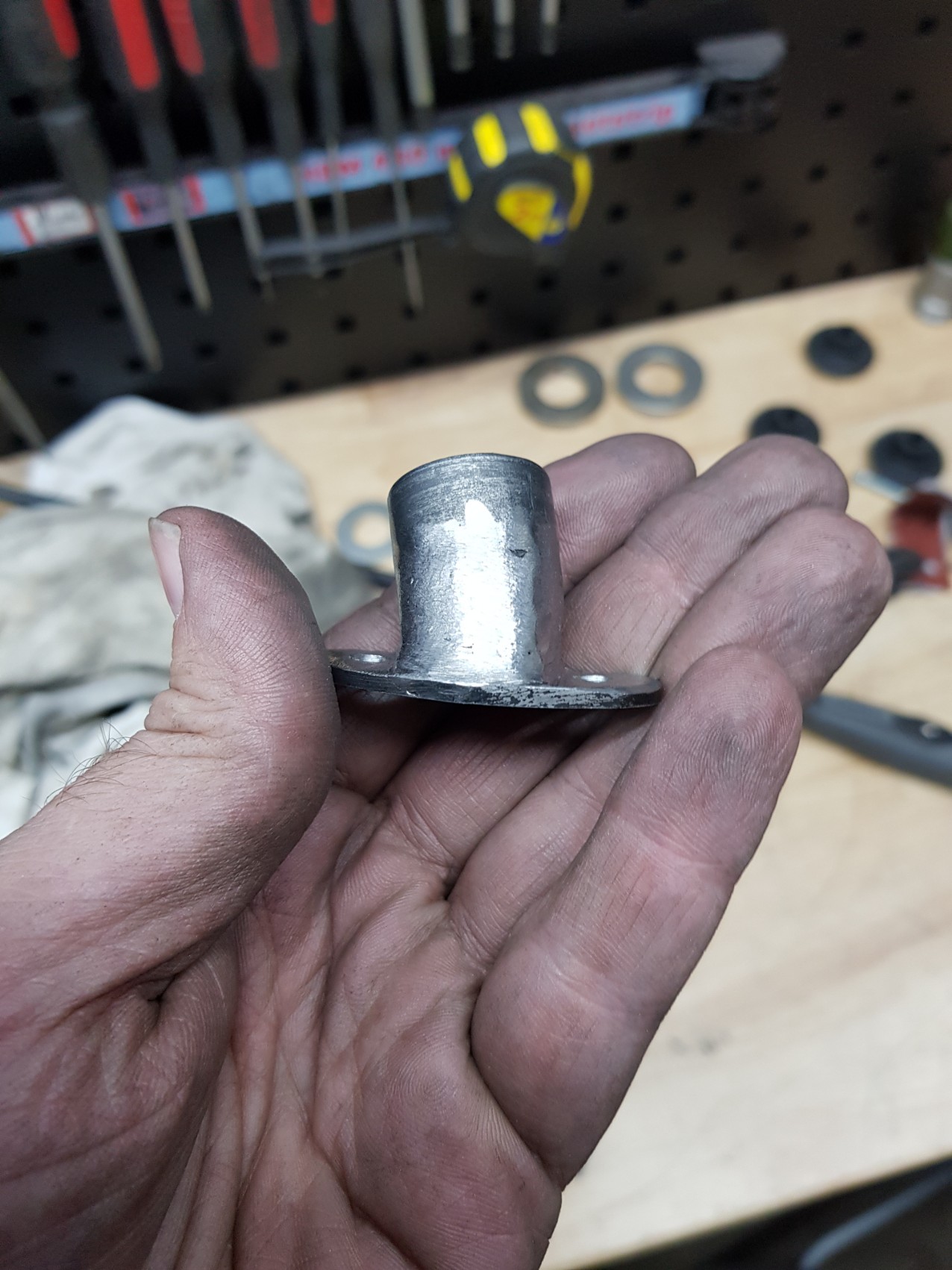

Cleaned.
![](images/20201003_151324-0-.jpg)
Tapping M5
![](images/20201003_155239--2-.jpg)

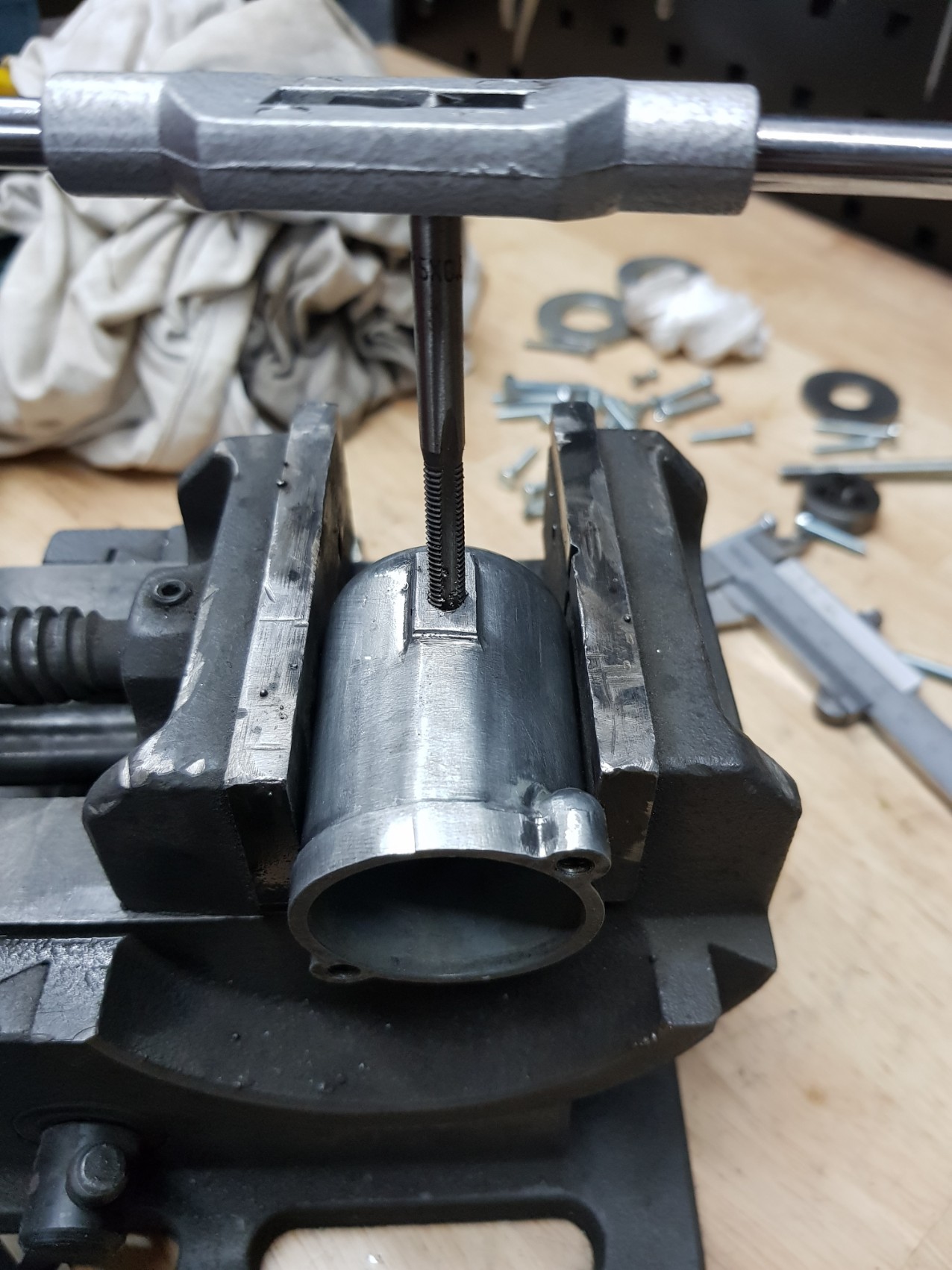

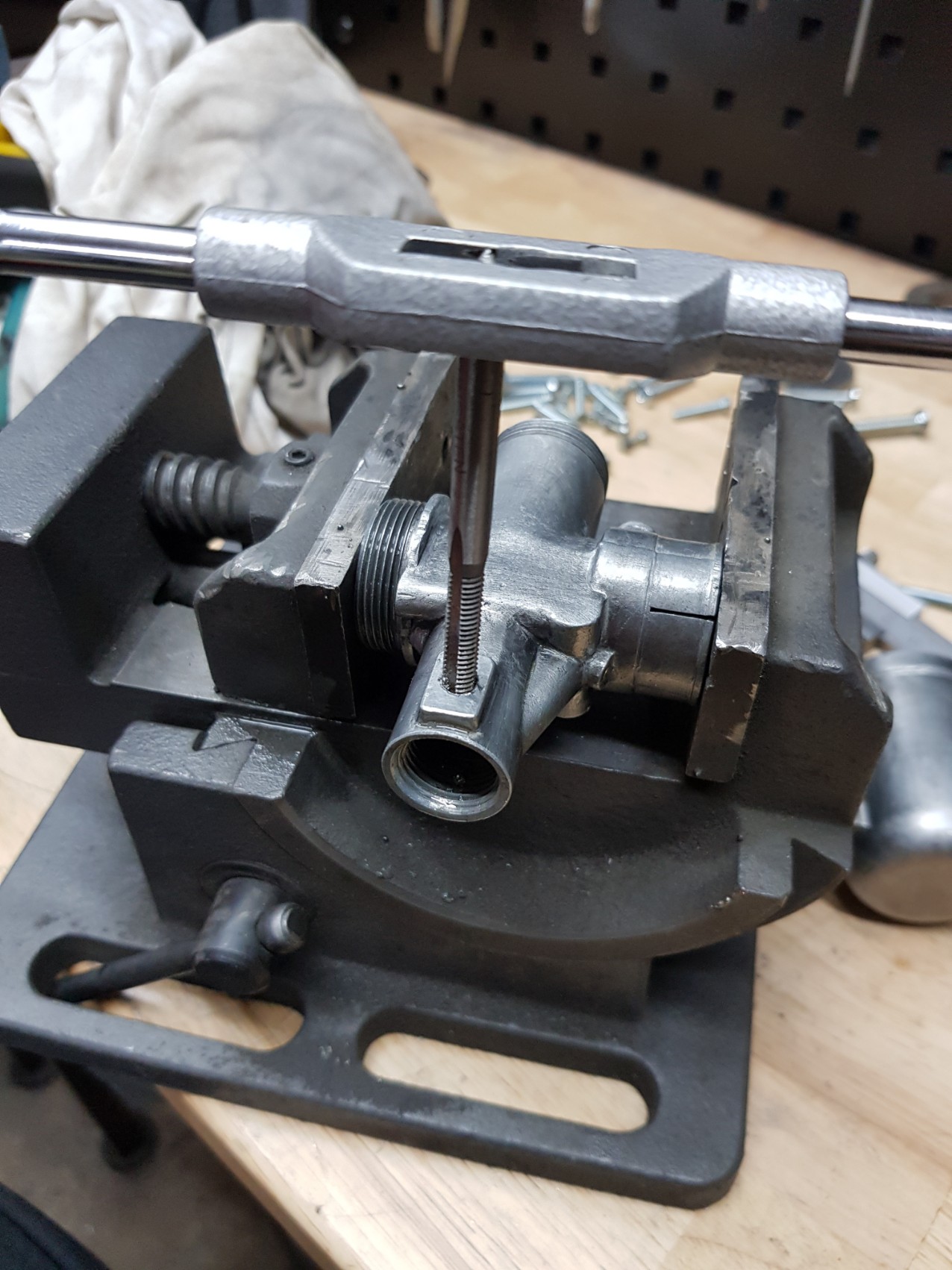

Taping M5
![](images/20201003_155406.jpg)

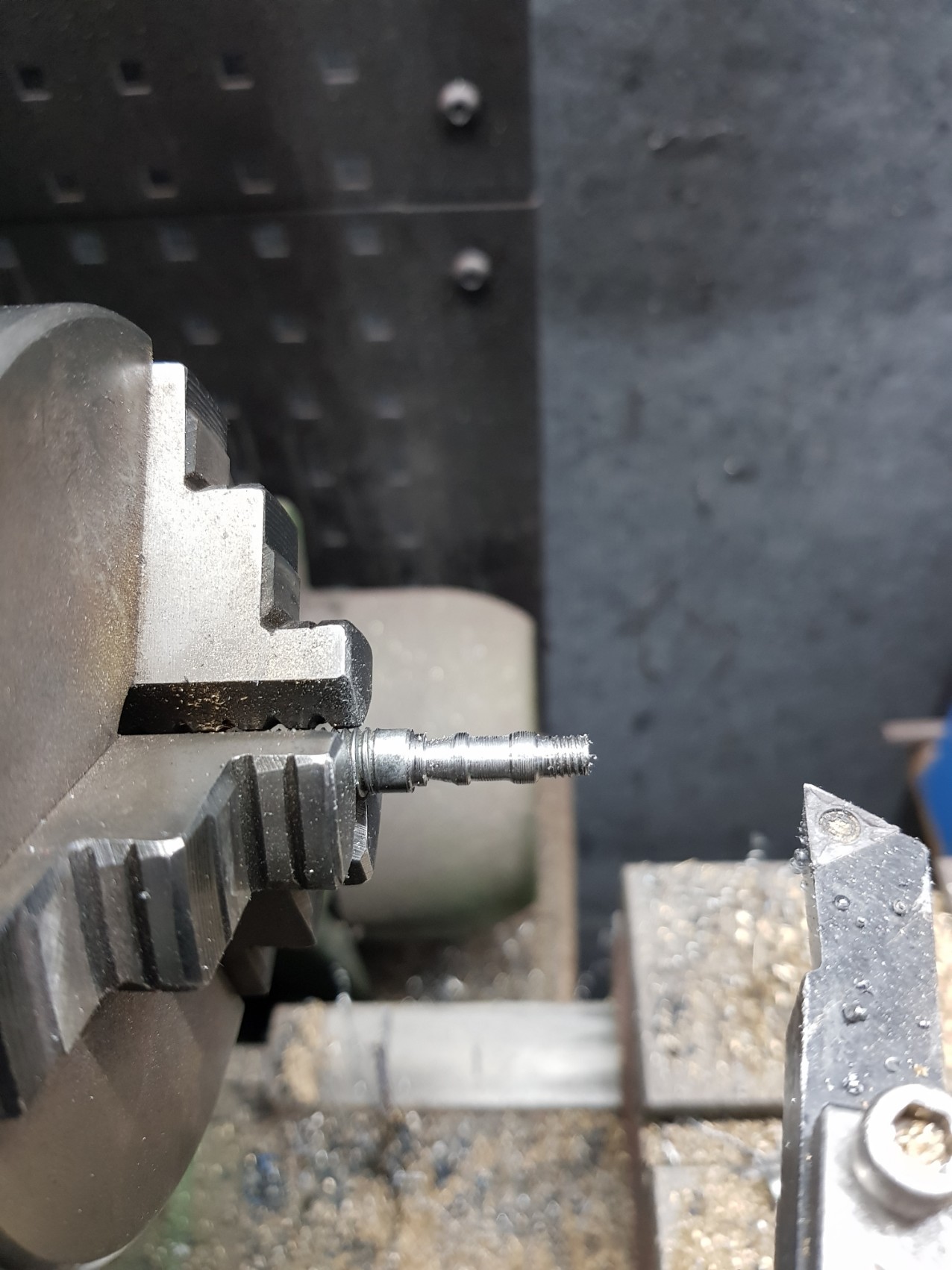

Fuel line connector.
![](images/20201003_161845.jpg)

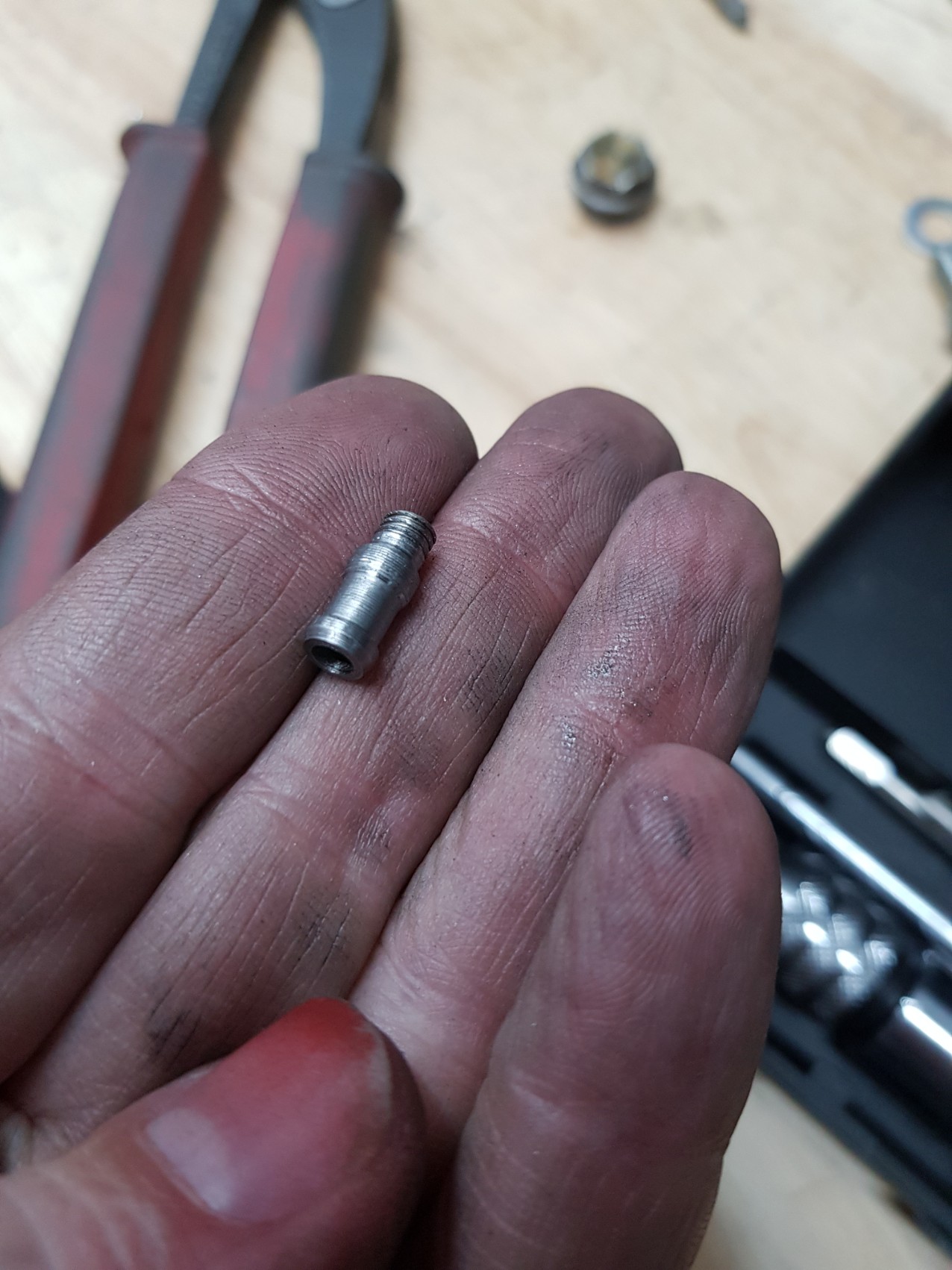

Finished
![](images/20201003_163320.jpg)

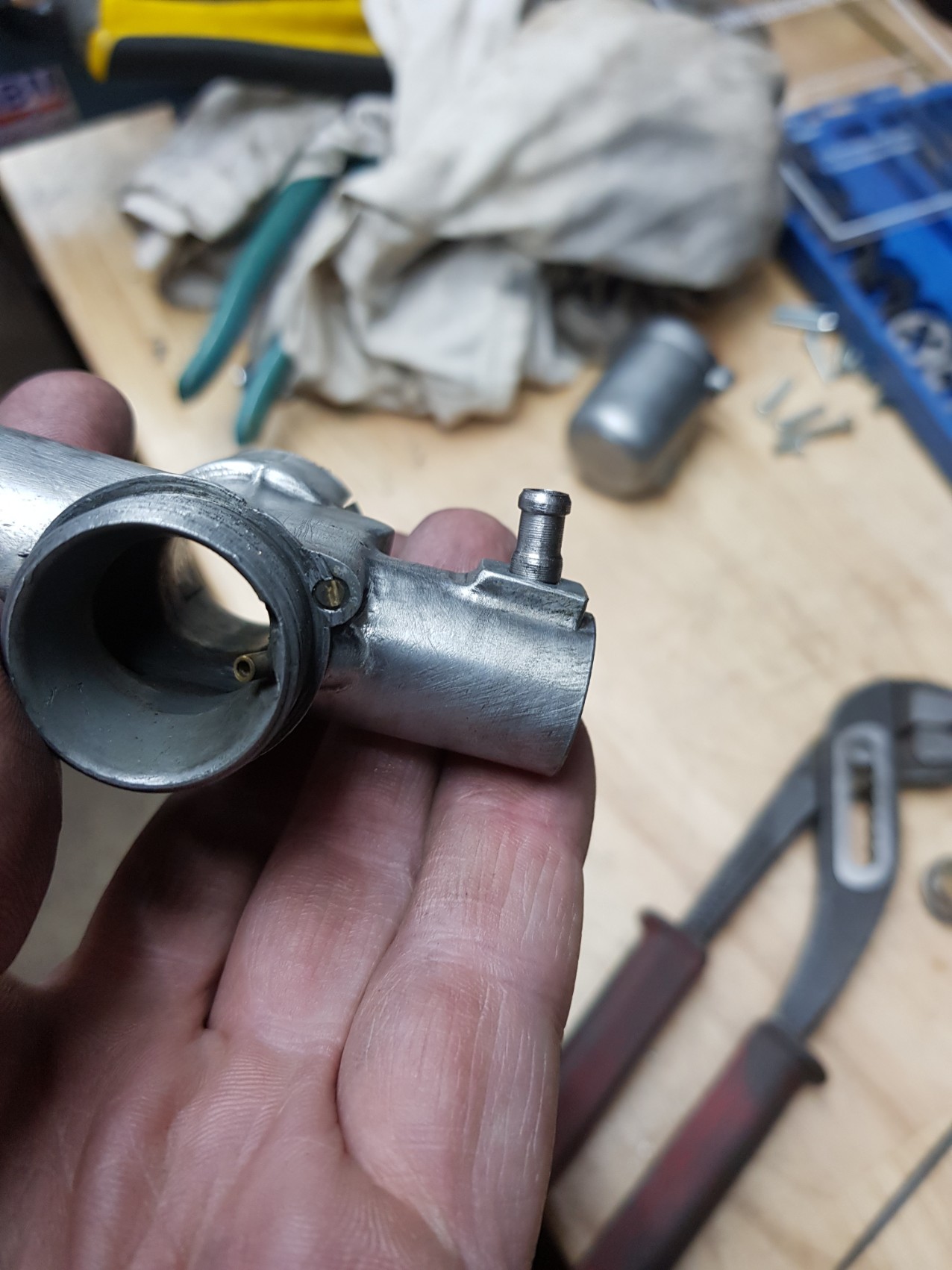

Mounted.
![](images/20201003_163609.jpg)

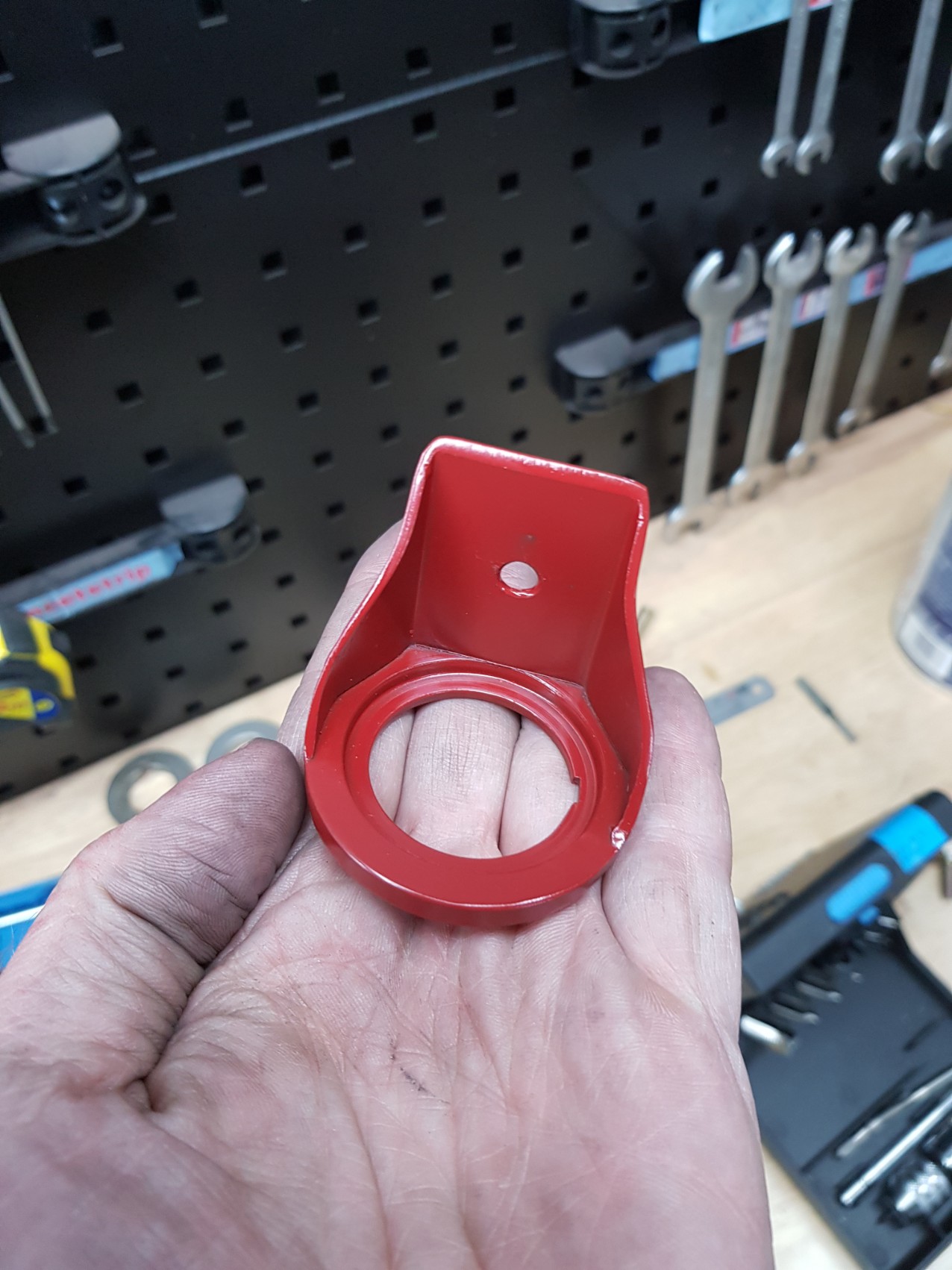

Painted.
![](images/20201003_165021-0-.jpg)
Start to look good.
![](images/20201003_184634.jpg)

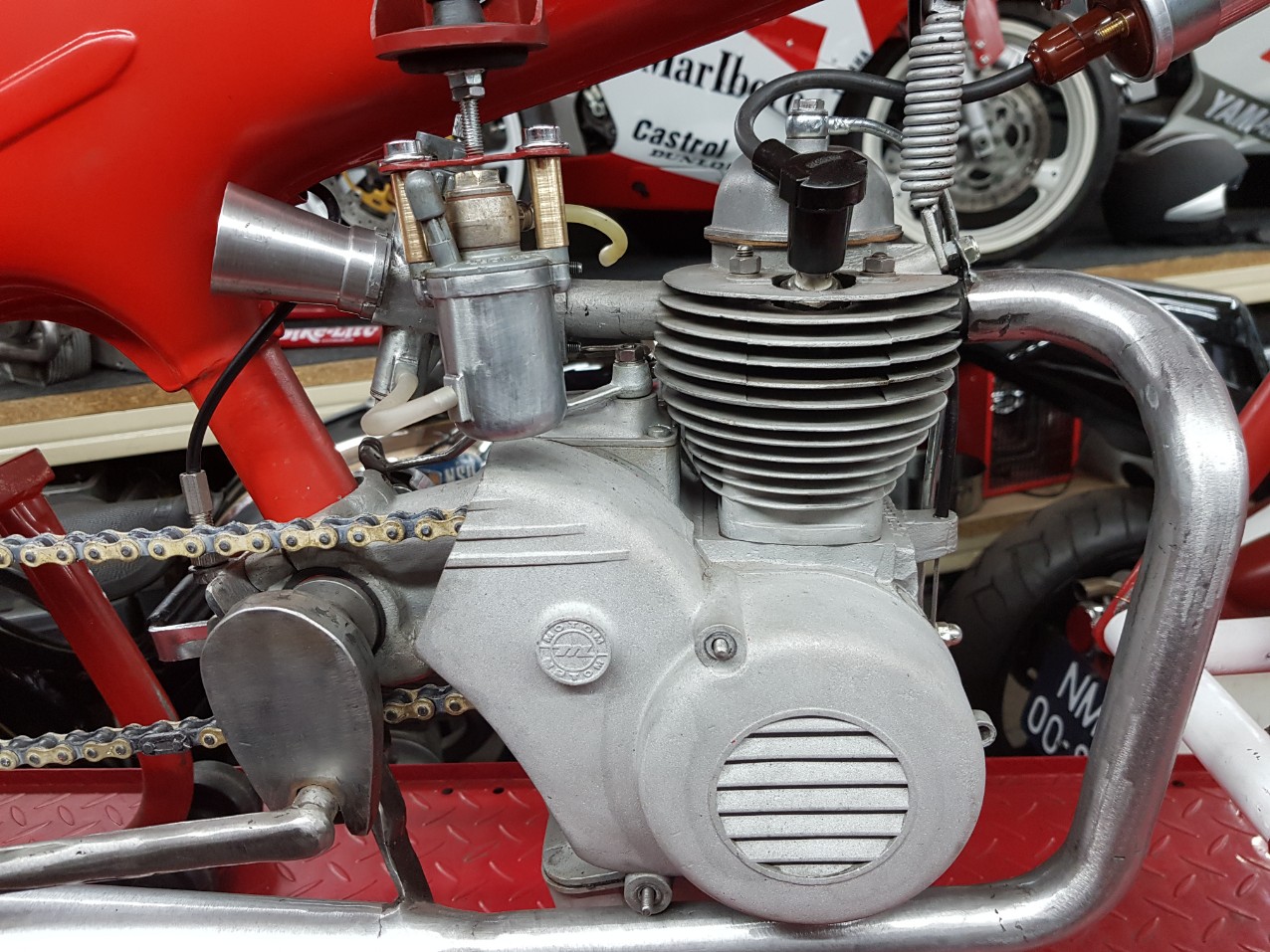

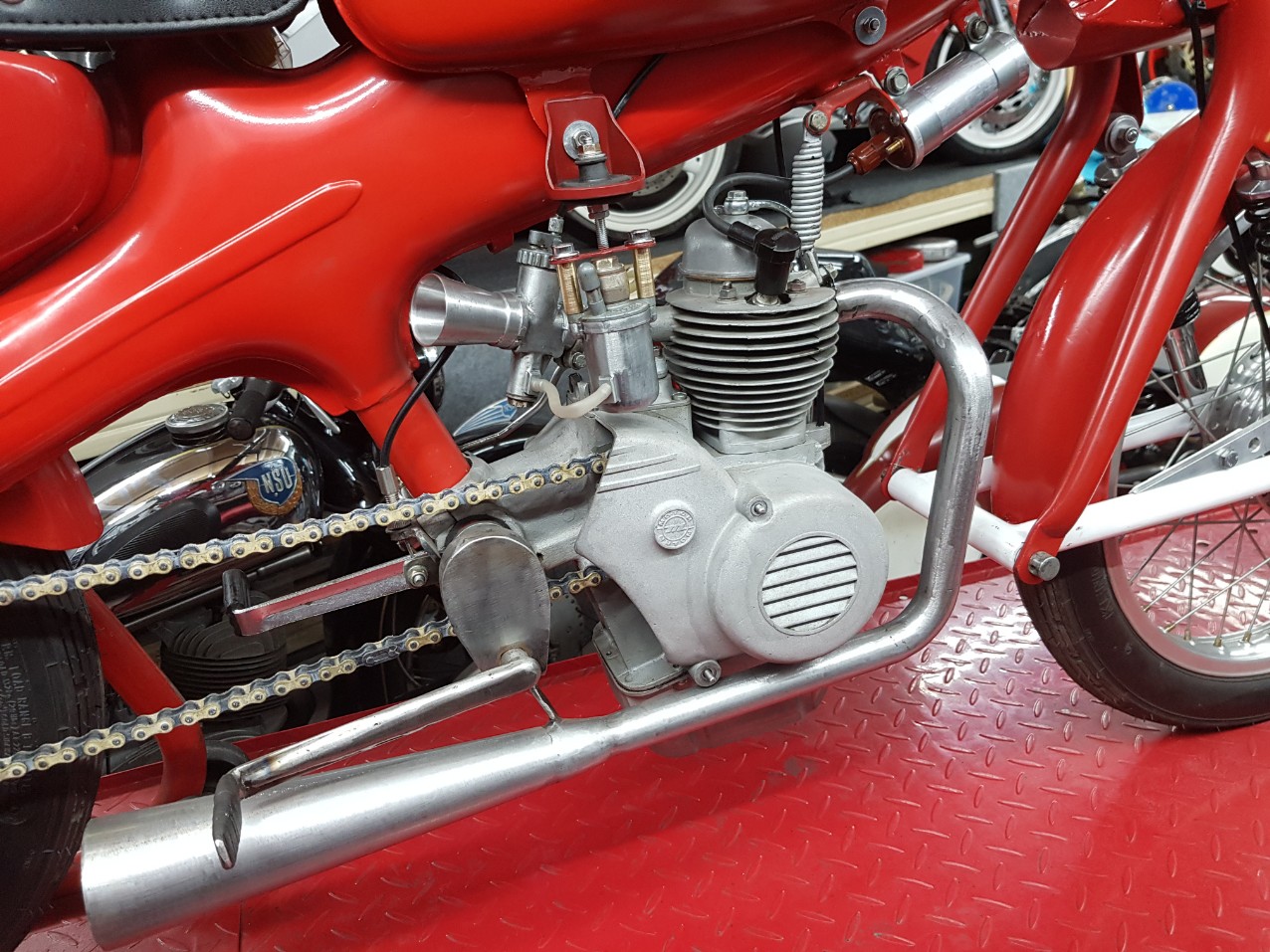

Happy with the look.
![](images/20201003_184621.jpg)

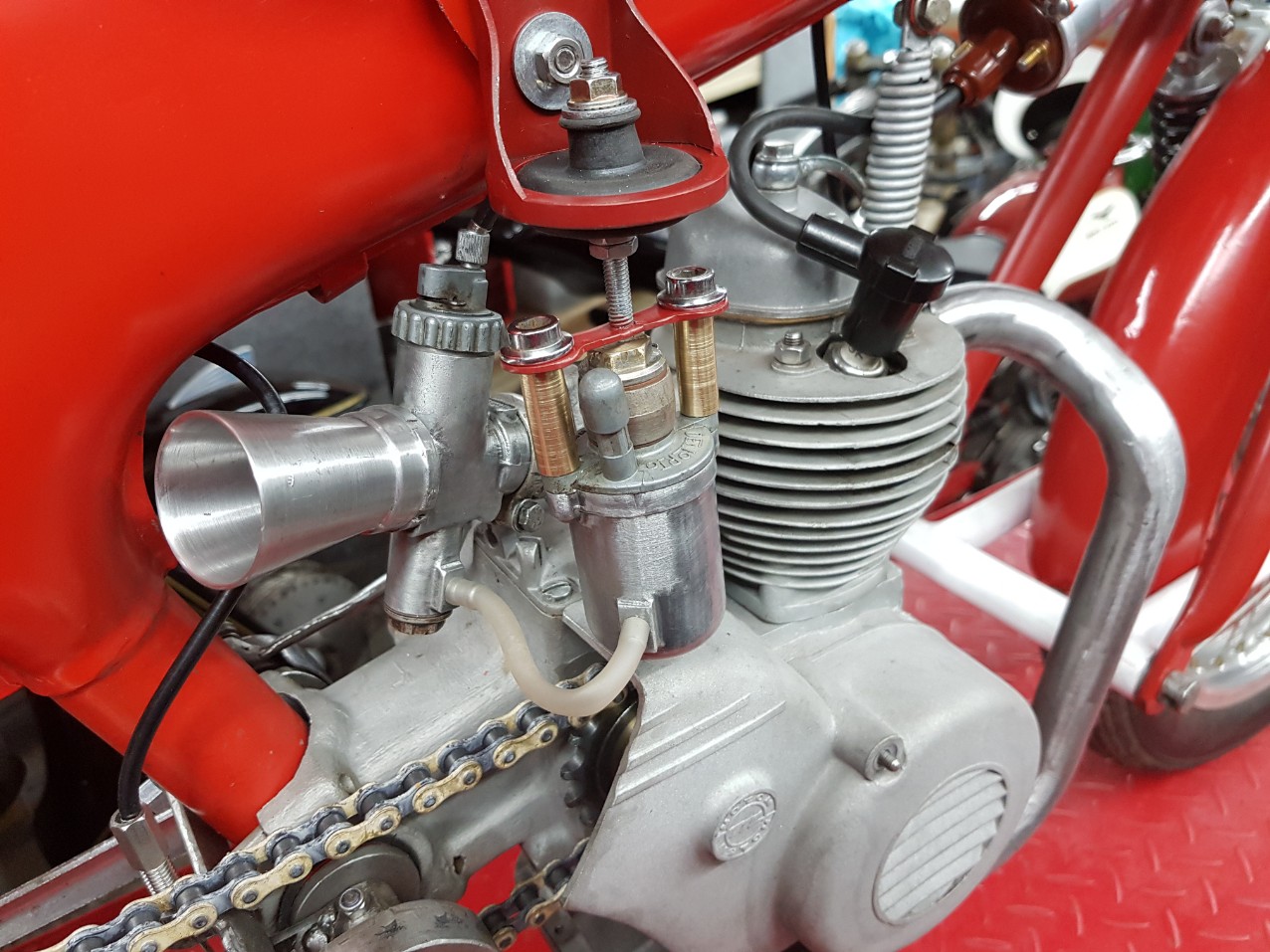

Angular is also great.
![](images/20201003_184652.jpg)

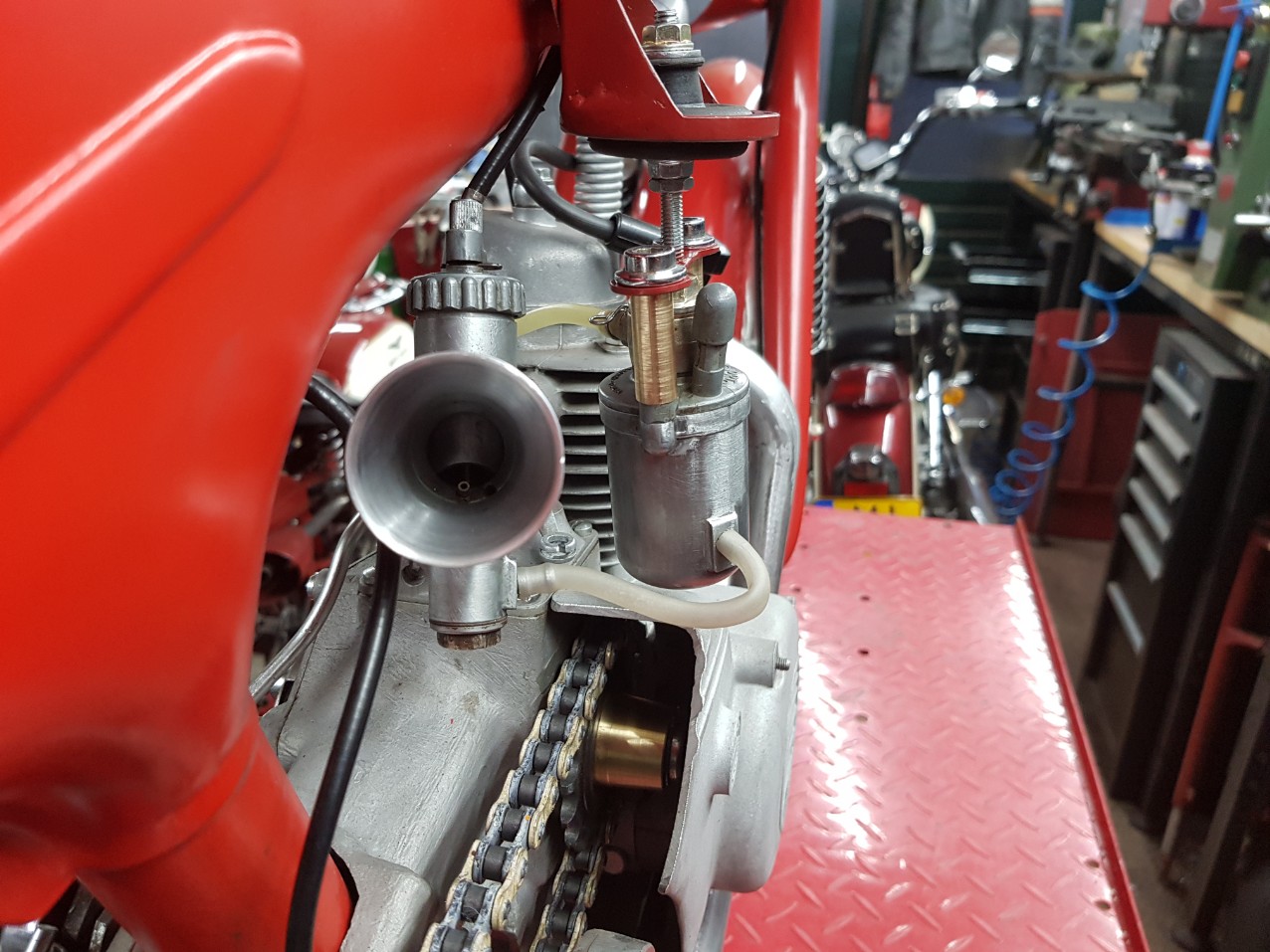

Looking right in the carb.
![](images/20201003_184708-0-.jpg)
