First test with the use off the HPI ignition and separate float bowl.
Must say I like the nervous throttle response, but it will be difficult to set it up correct.
Will need to investigate it further.......

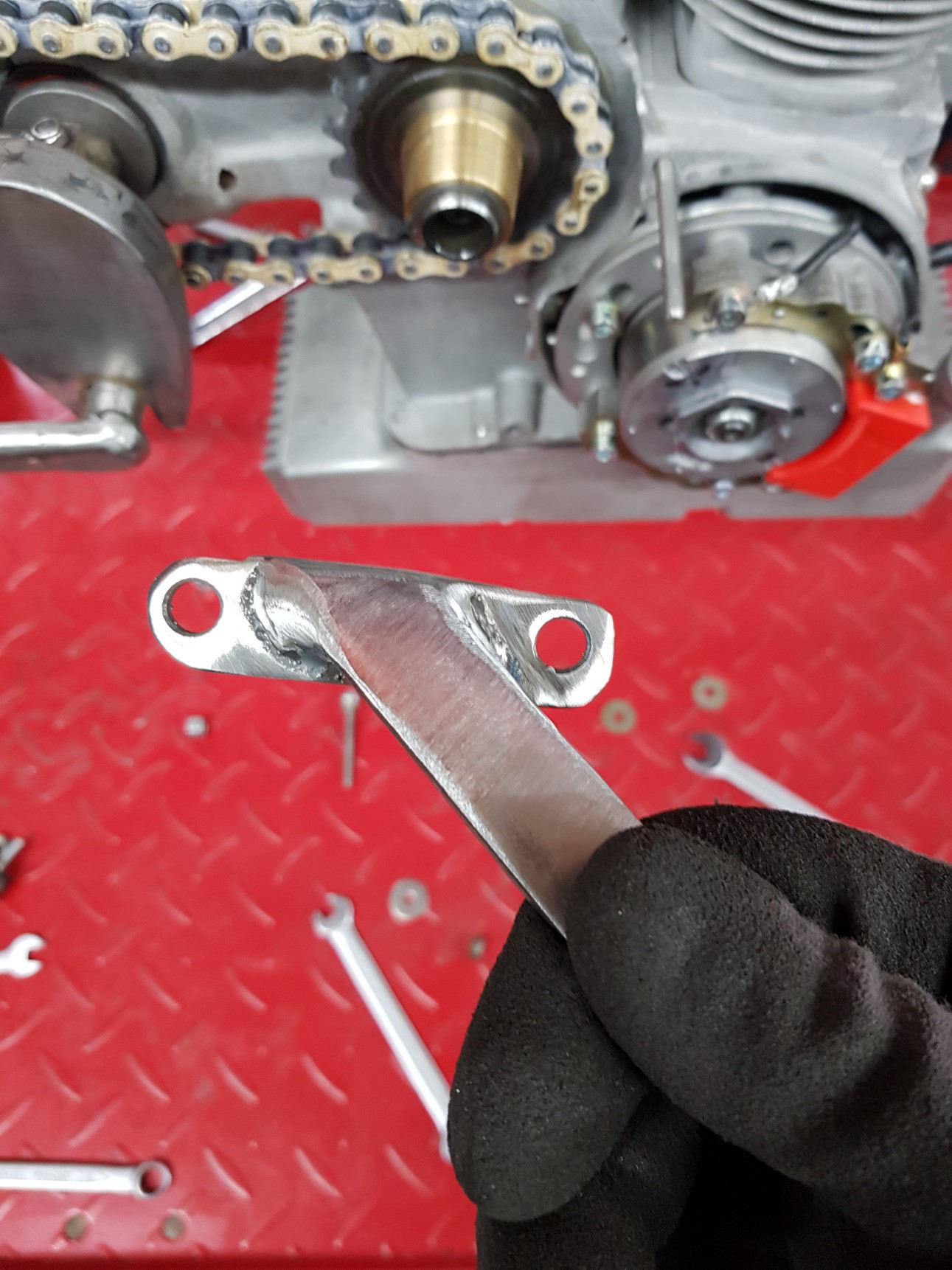

New bracket for the exhaust.
![](images/20201017_113944.jpg)

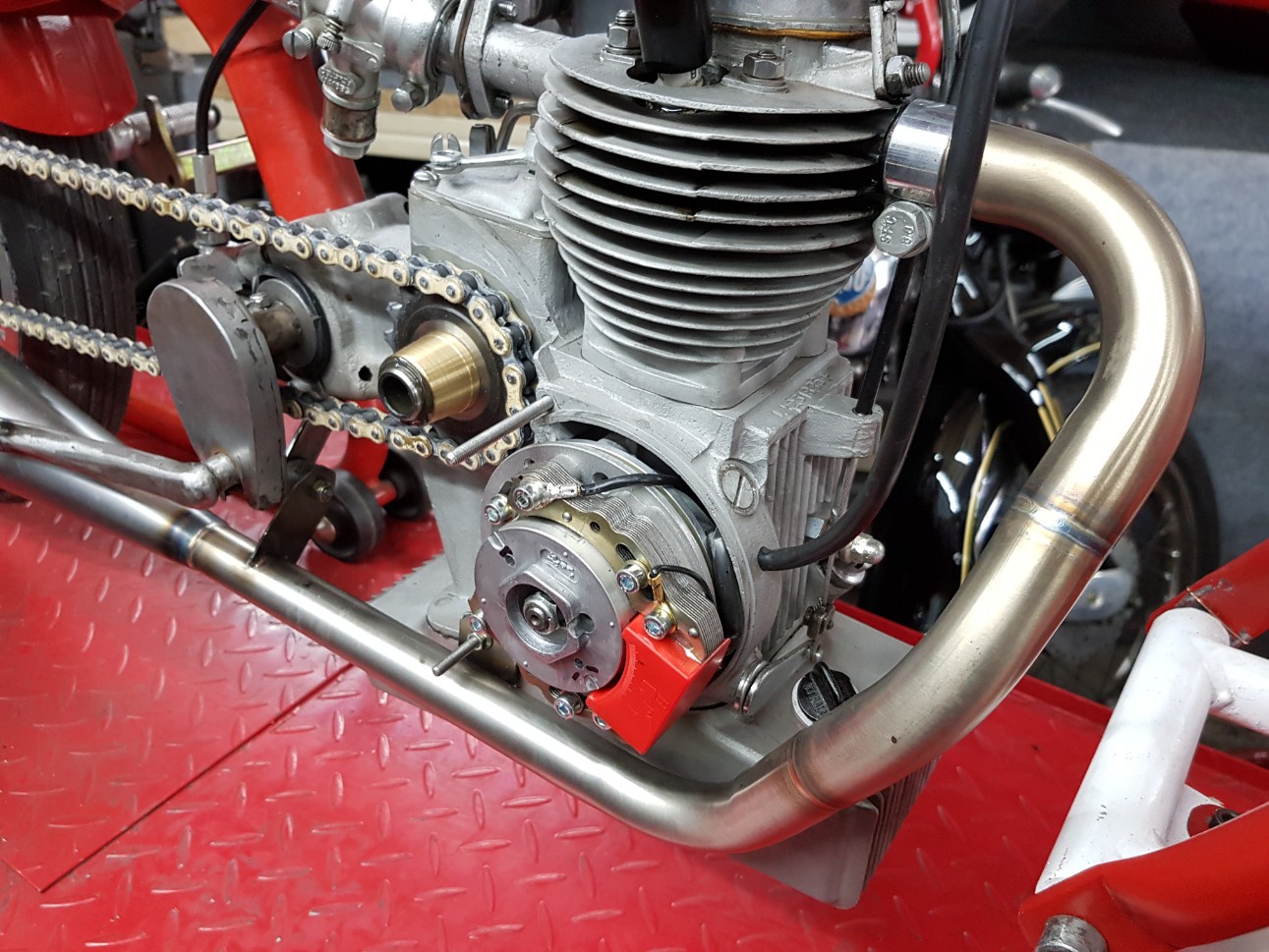

This time with a silentblock.
![](images/20201017_143358.jpg)

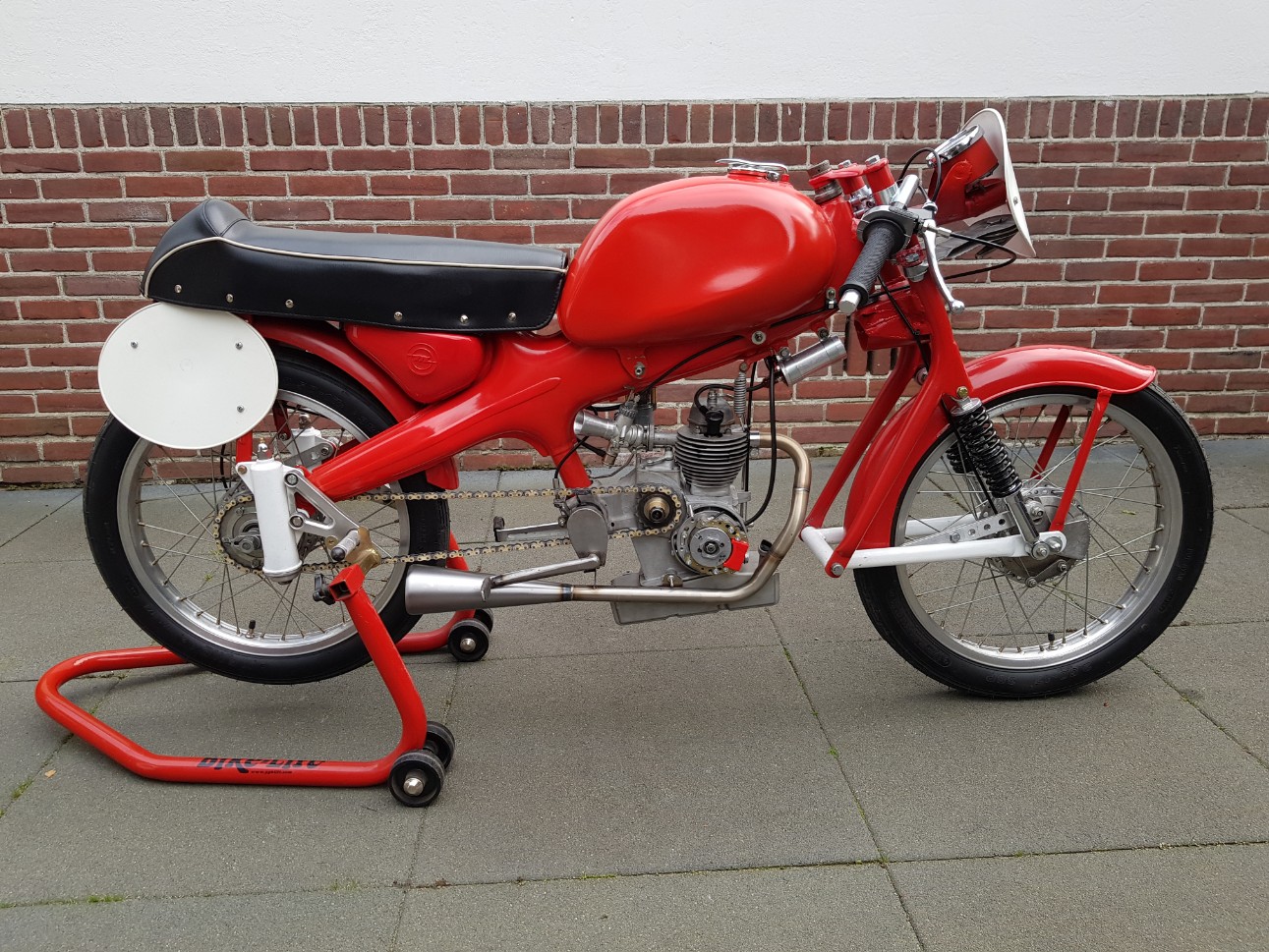

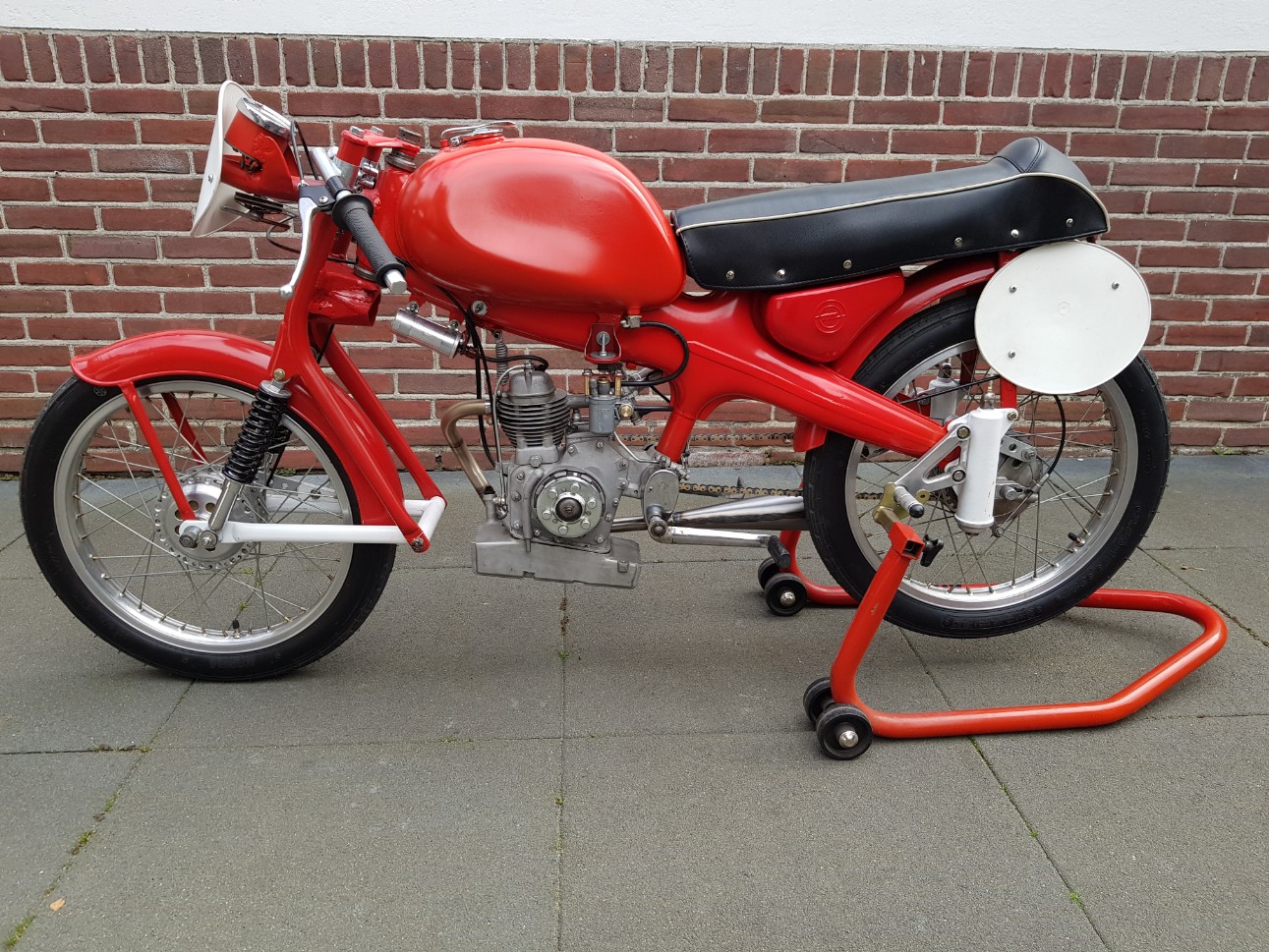

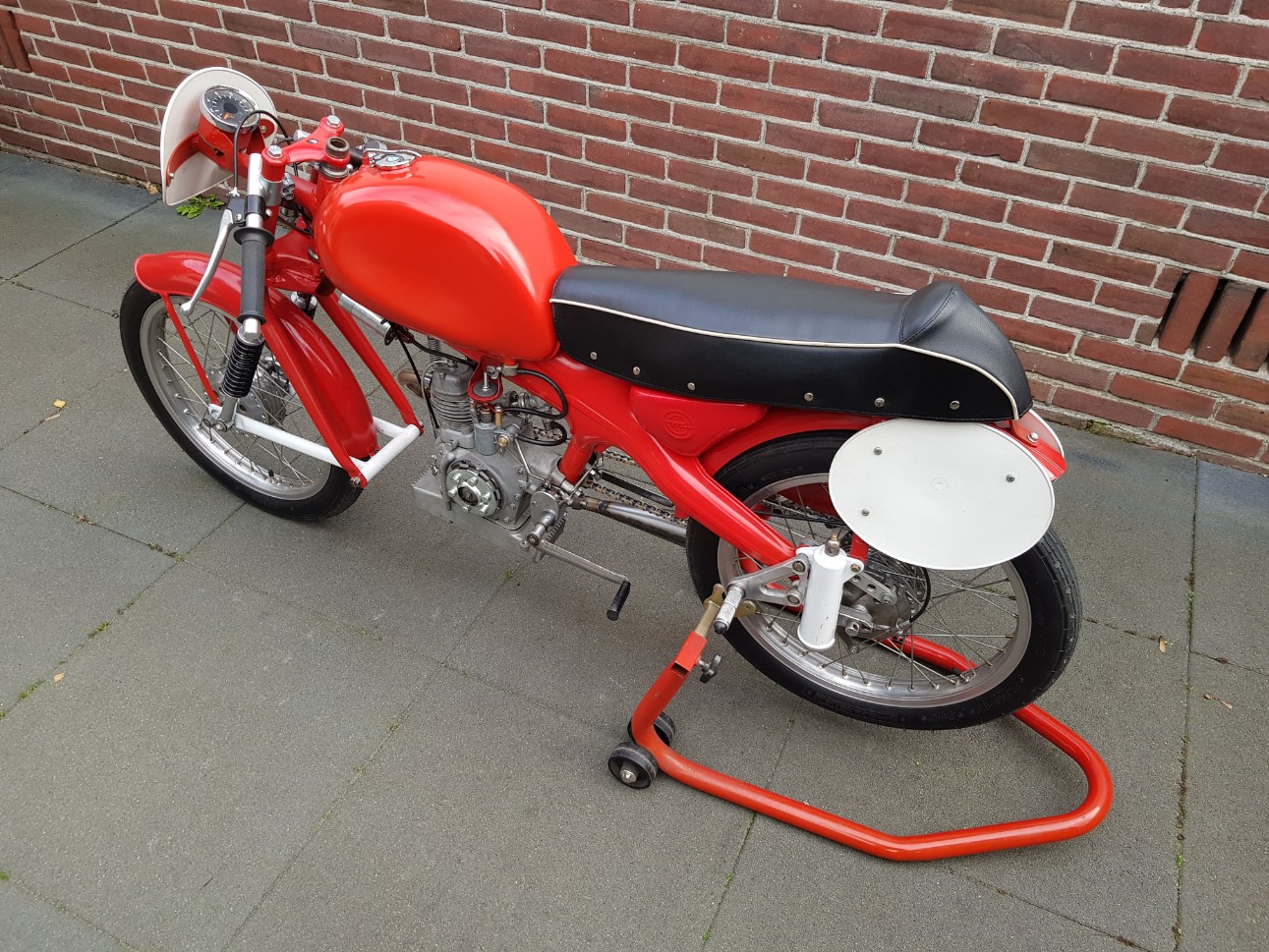

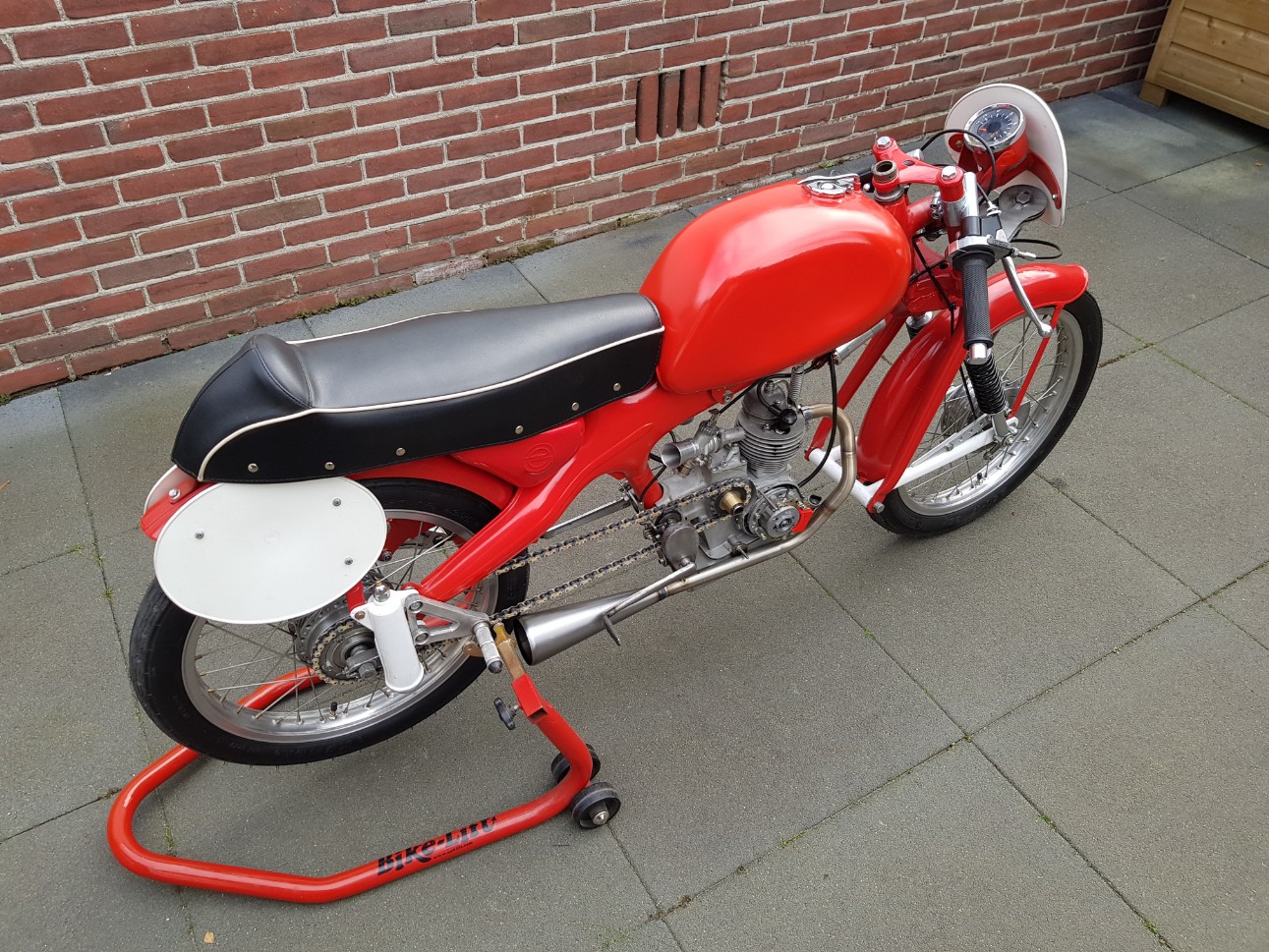

Still looking good.
![](images/20201017_143001.jpg)
![](images/20201017_143009.jpg)
![](images/20201017_143116.jpg)
![](images/20201017_143104.jpg)

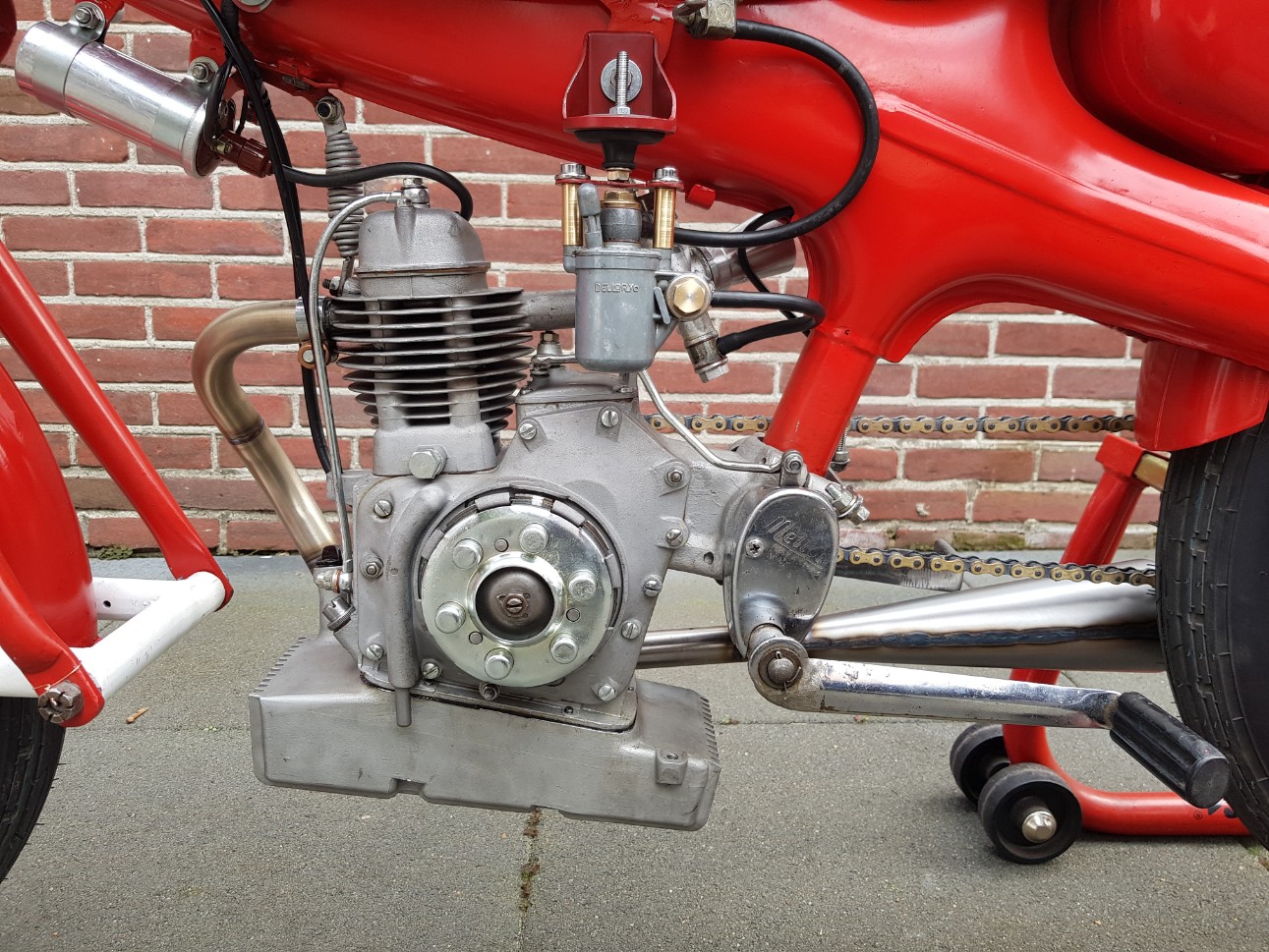

This picture is made for float height reference
![](images/20201017_143129.jpg)
It is running but it will take more work to setup correct.
Well, to let the Motom run better I needed to investigate/change thinks.
First one is that I need to see where the float height is, second it was still running badly can't give full throttle so need to check the valves or see if a other problem is pressent.

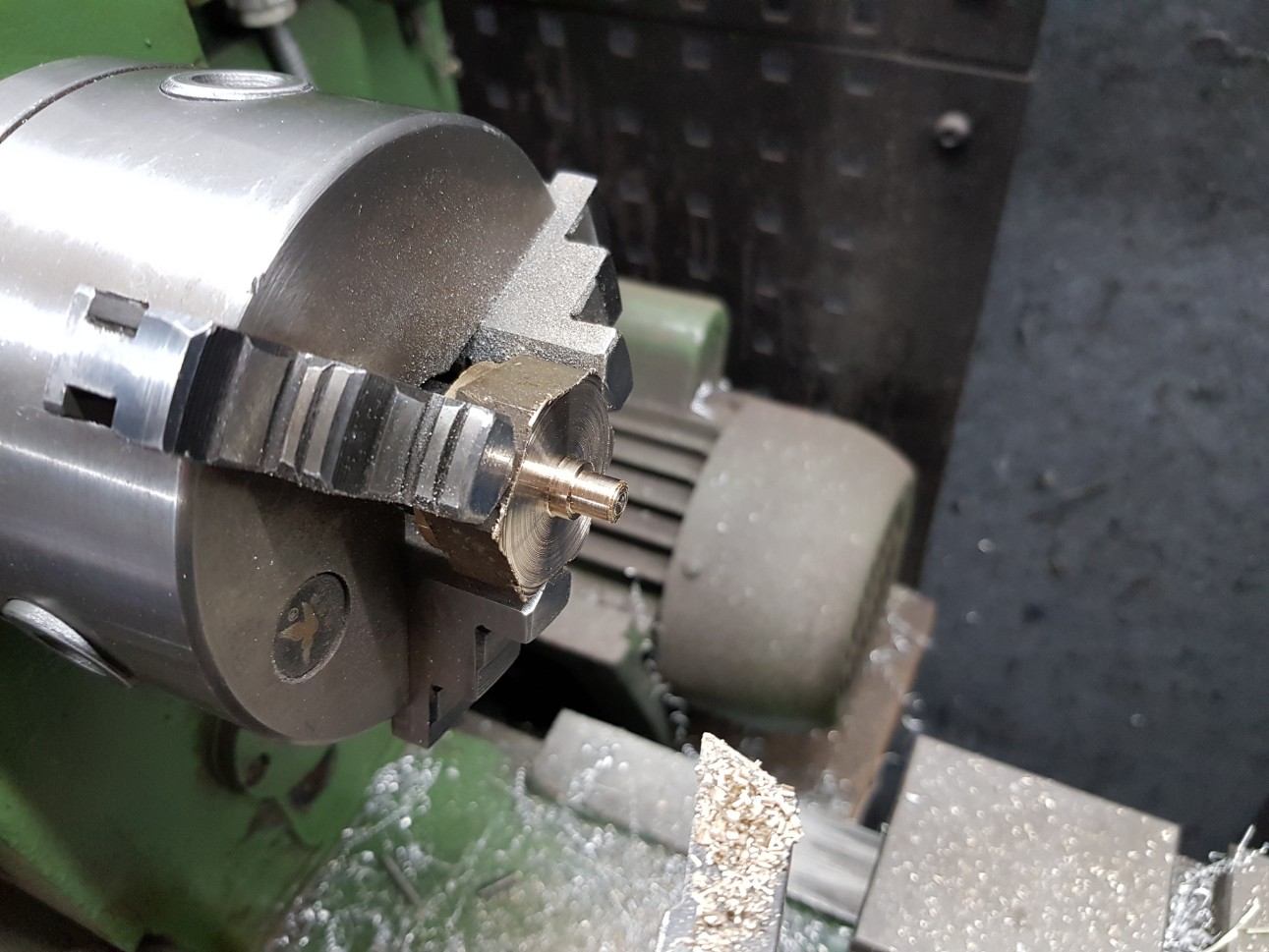

Working out a idea.
![](images/20201018_120906.jpg)

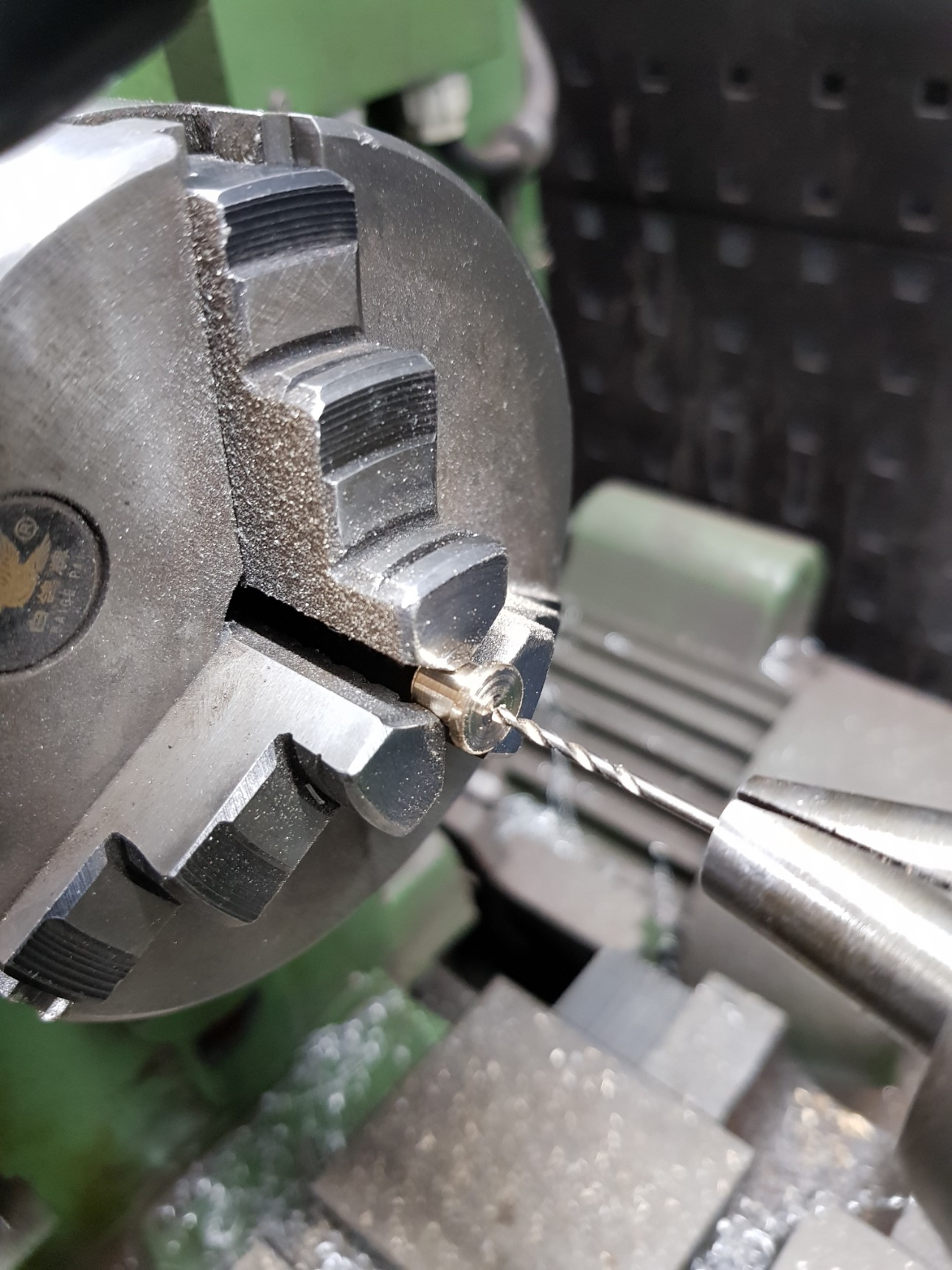

1,5mm center hole
![](images/20201018_121648.jpg)

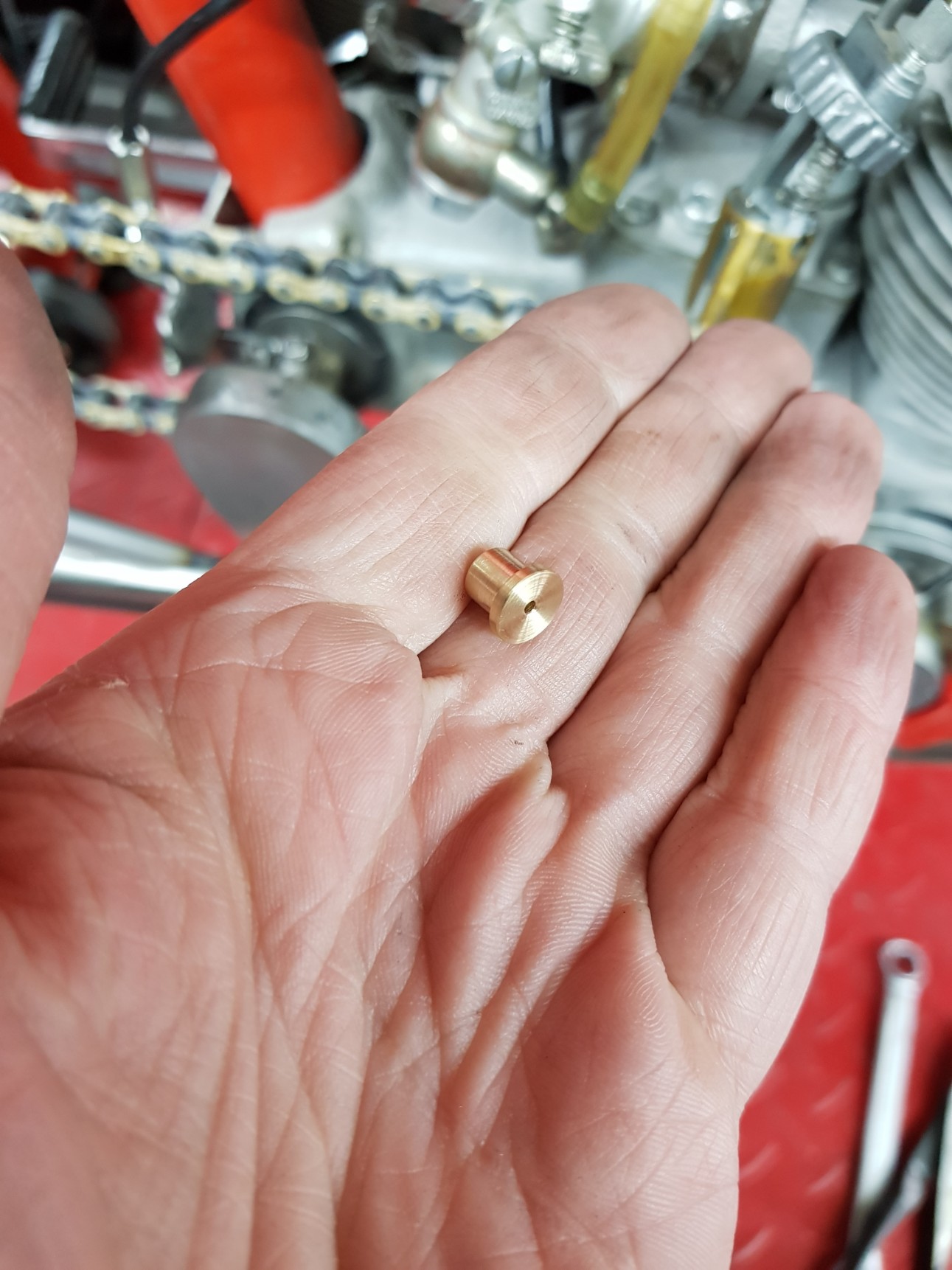

Ready for mounting
![](images/20201018_122032.jpg)

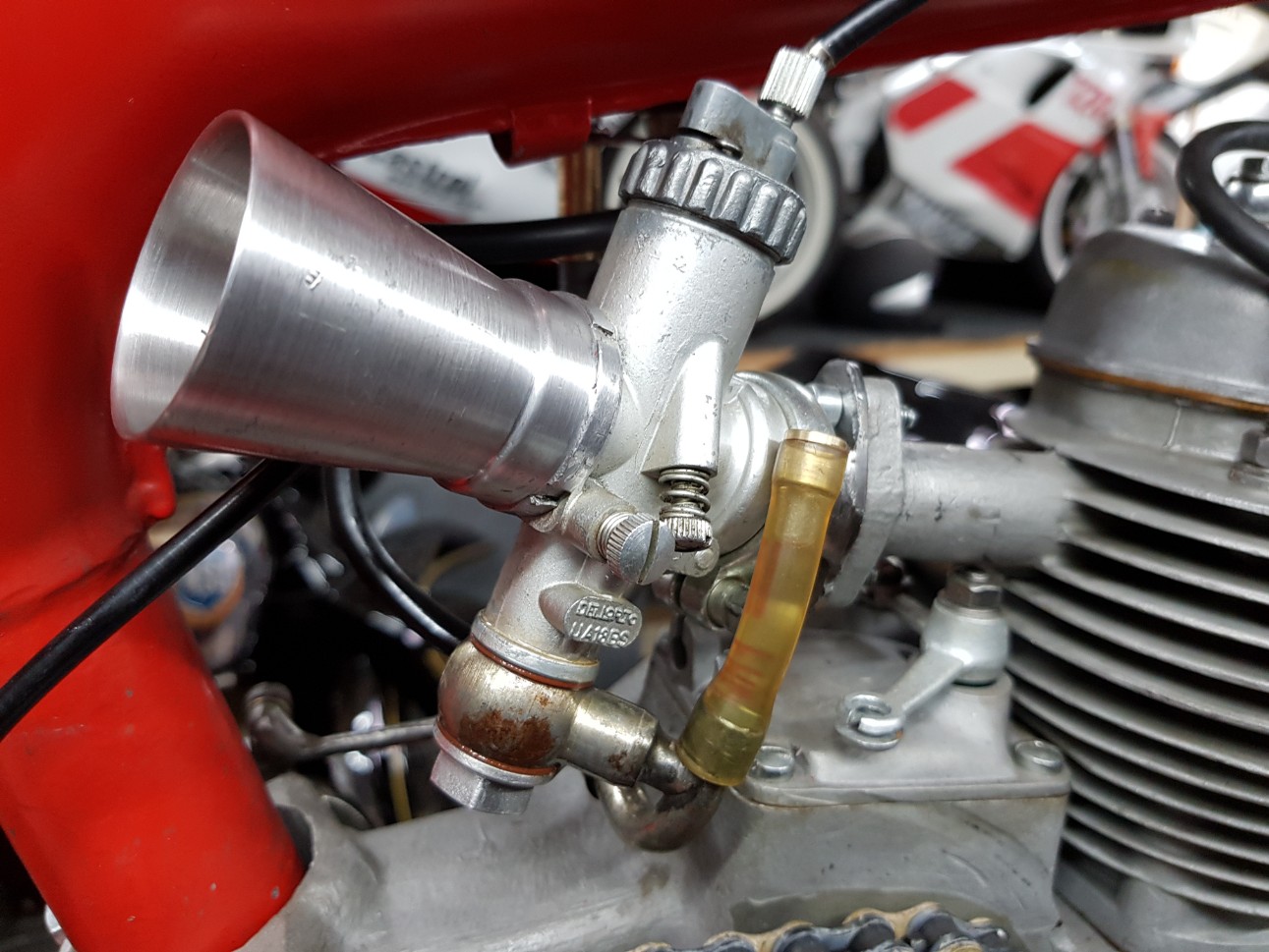

I can check now how high the float level is while the engine is running.
Need to use a little bid longer hose this is just for testing.
![](images/20201018_124211.jpg)

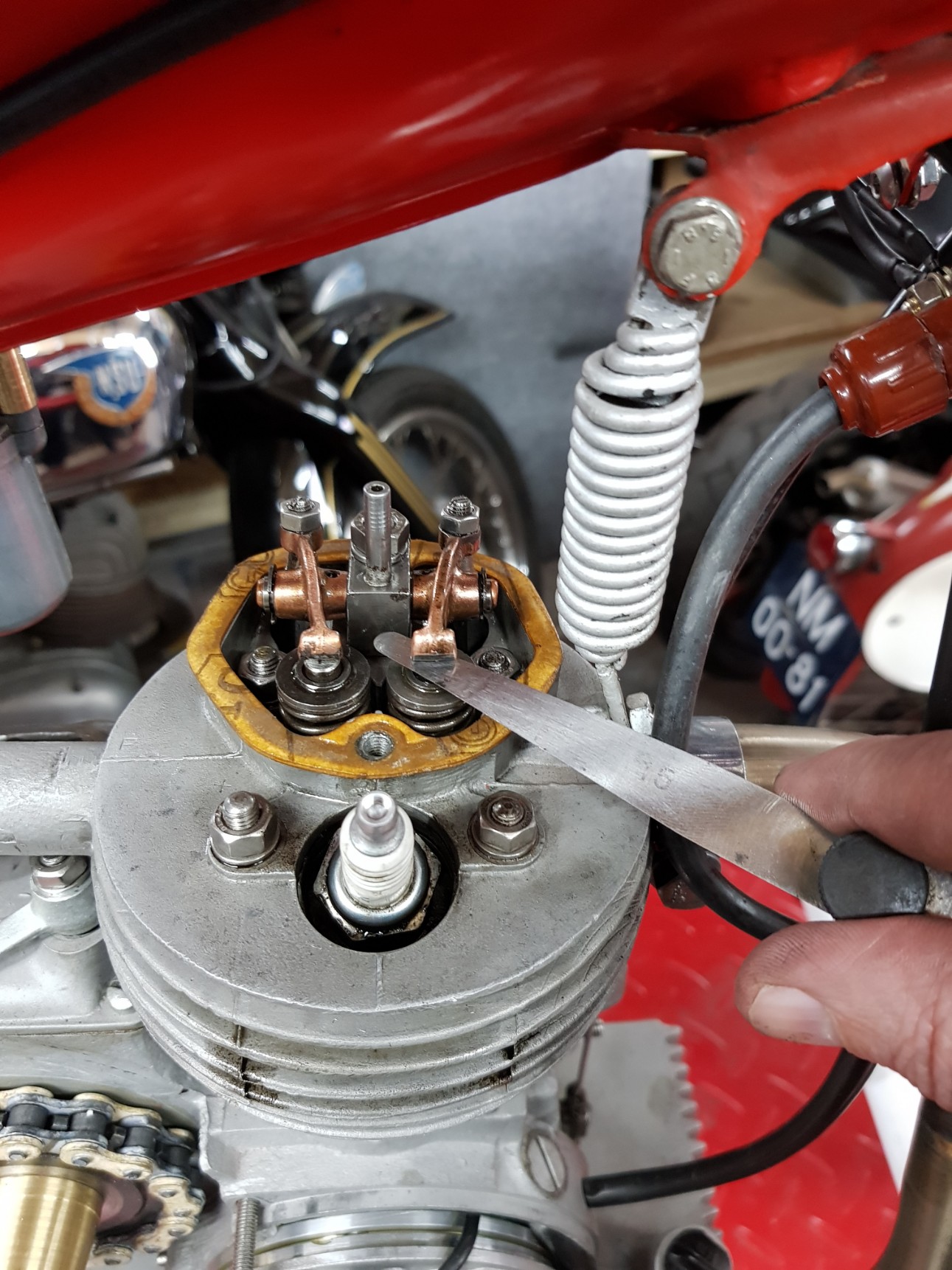

Checking the valve at 0,15mm.
![](images/20201018_130304.jpg)

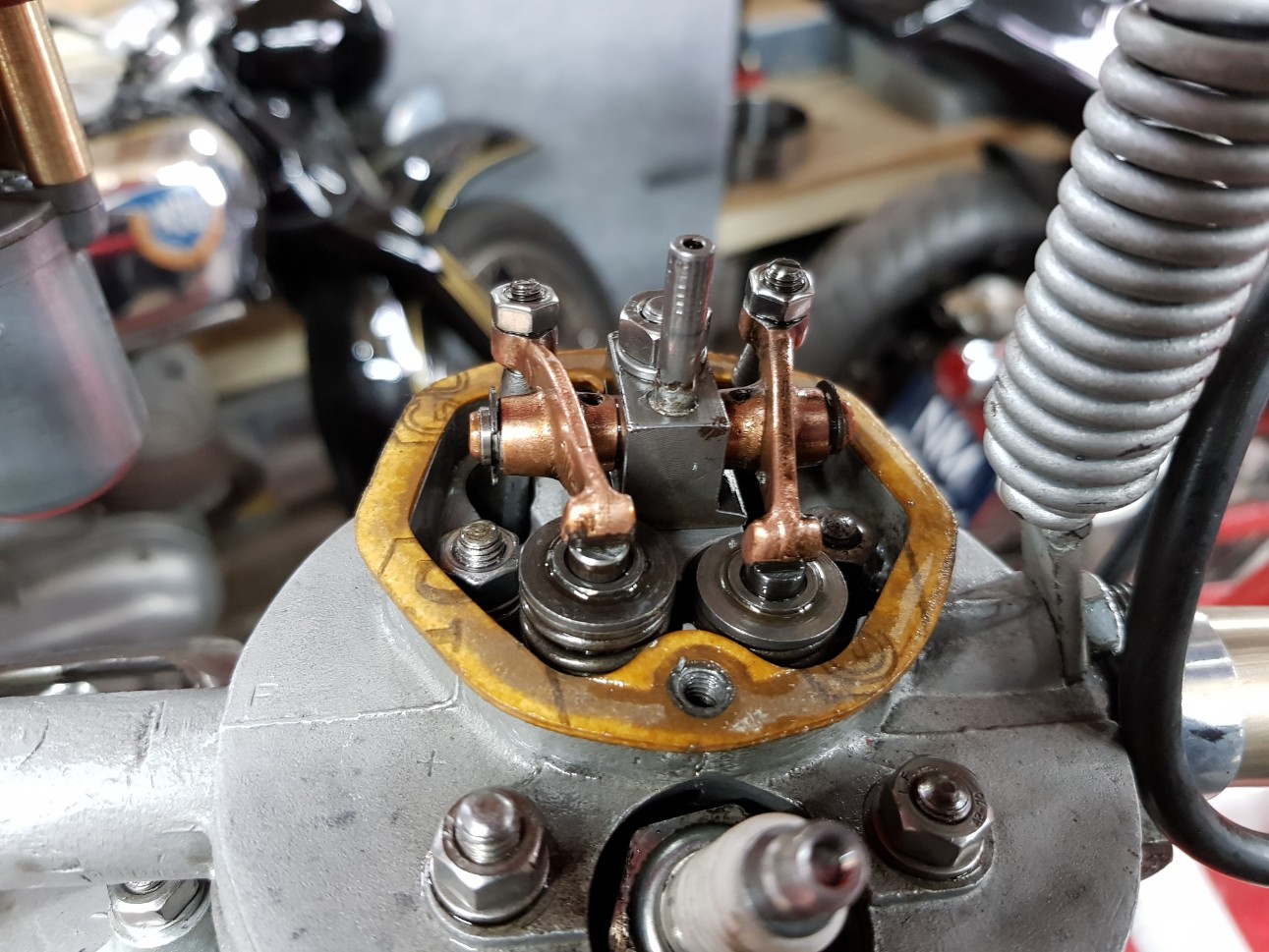

Ready for second test run.
![](images/20201018_125744.jpg)
