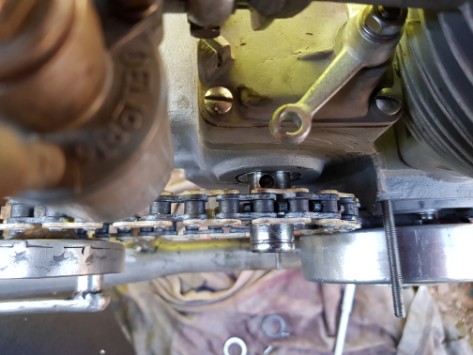

Have to try something to see if the gear problem can be solved.
It turns out there is inside the shaft a spring loaded mechanism that pusses the metal bols outside into the sprocket.
My idea is to give the spring load a bid more pressure....
![](images/20200918_123251_q872lmhz.jpg)

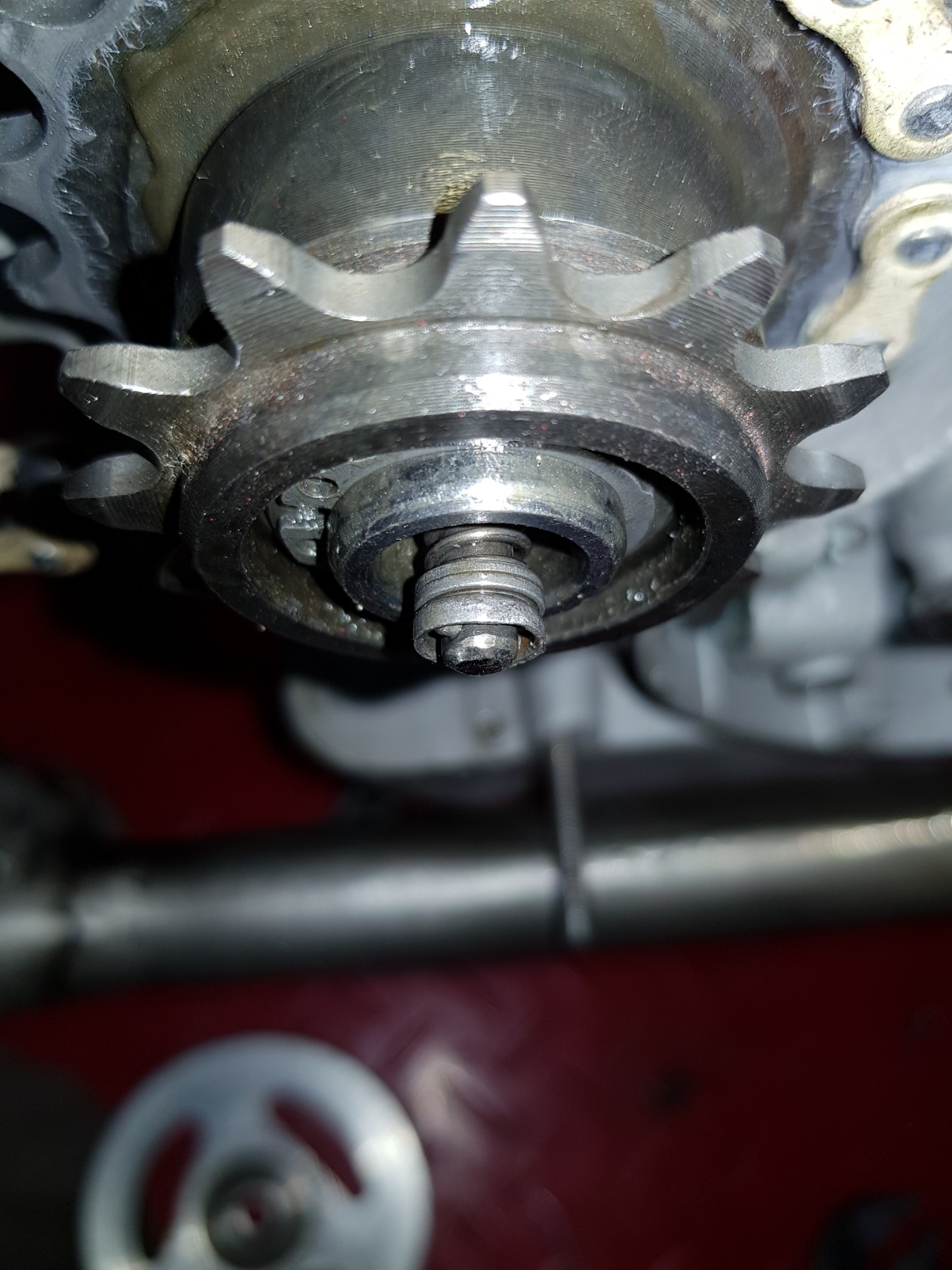

I used a different spring from my spare engine and placed an extra shim to get more pressure.
![](images/20200920_142101.jpg)

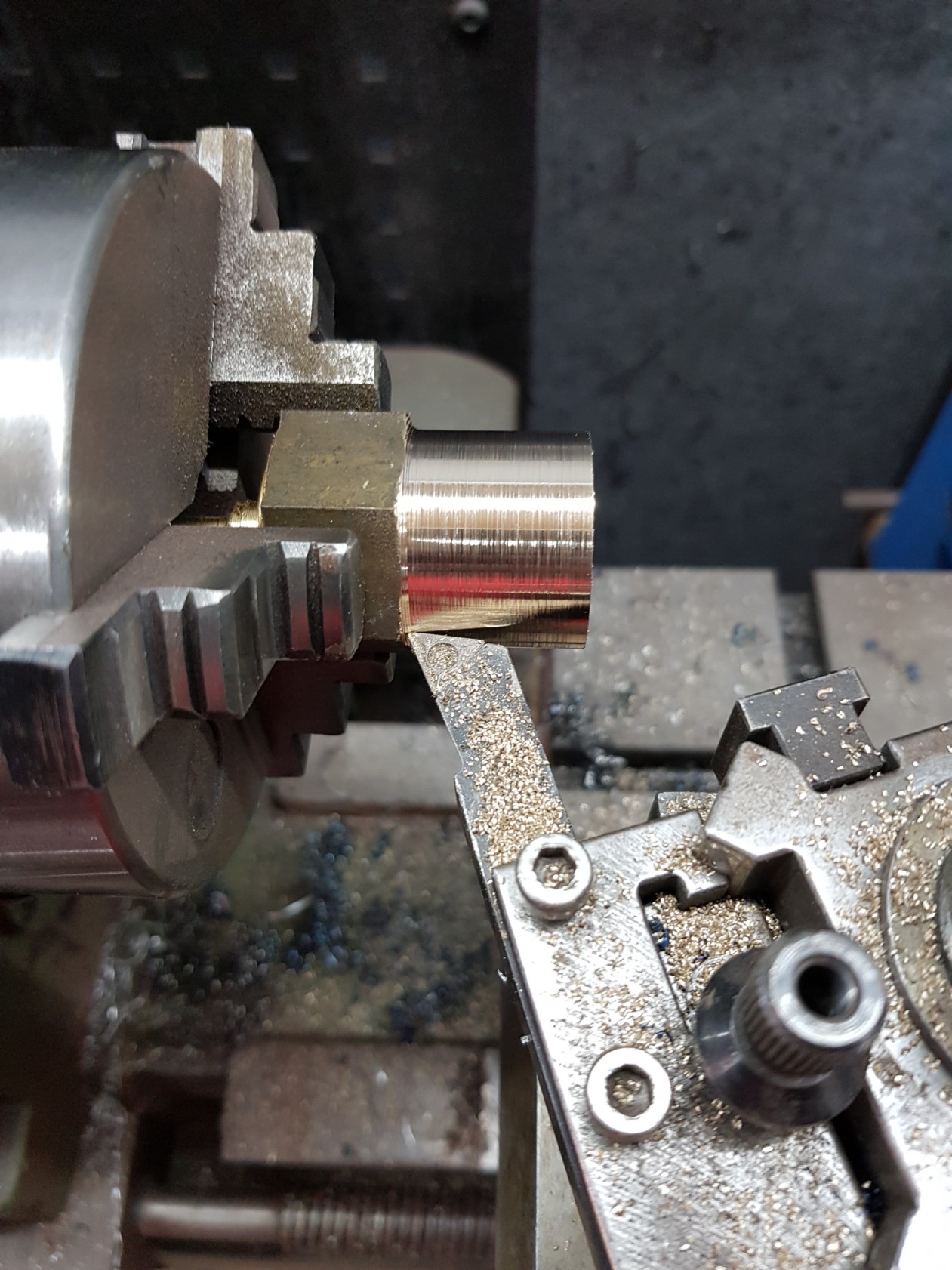

Starting to make a new spacer. (of brass metal)
![](images/20200920_144513.jpg)

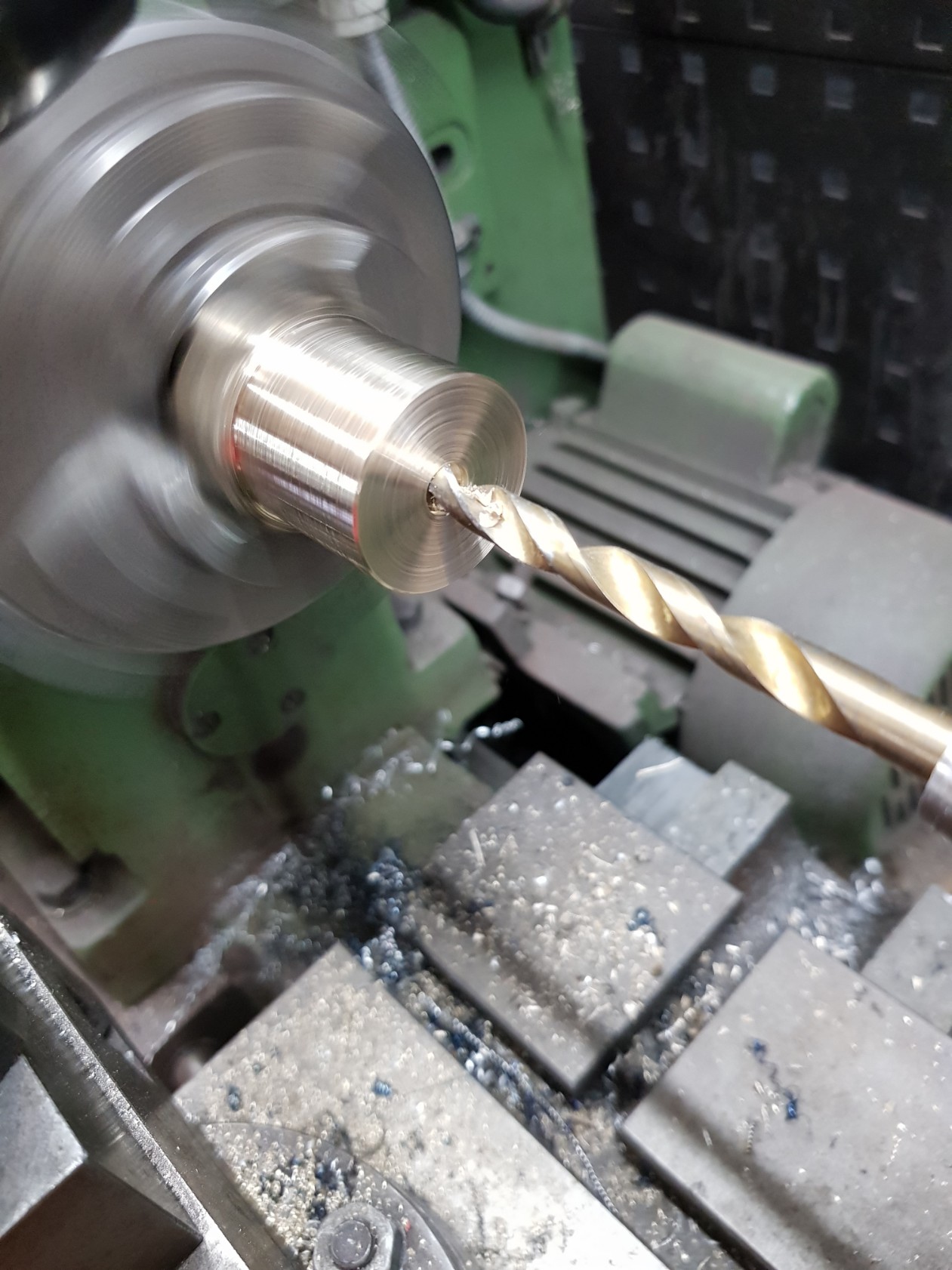

Starting with the center hole.
![](images/20200920_144958.jpg)

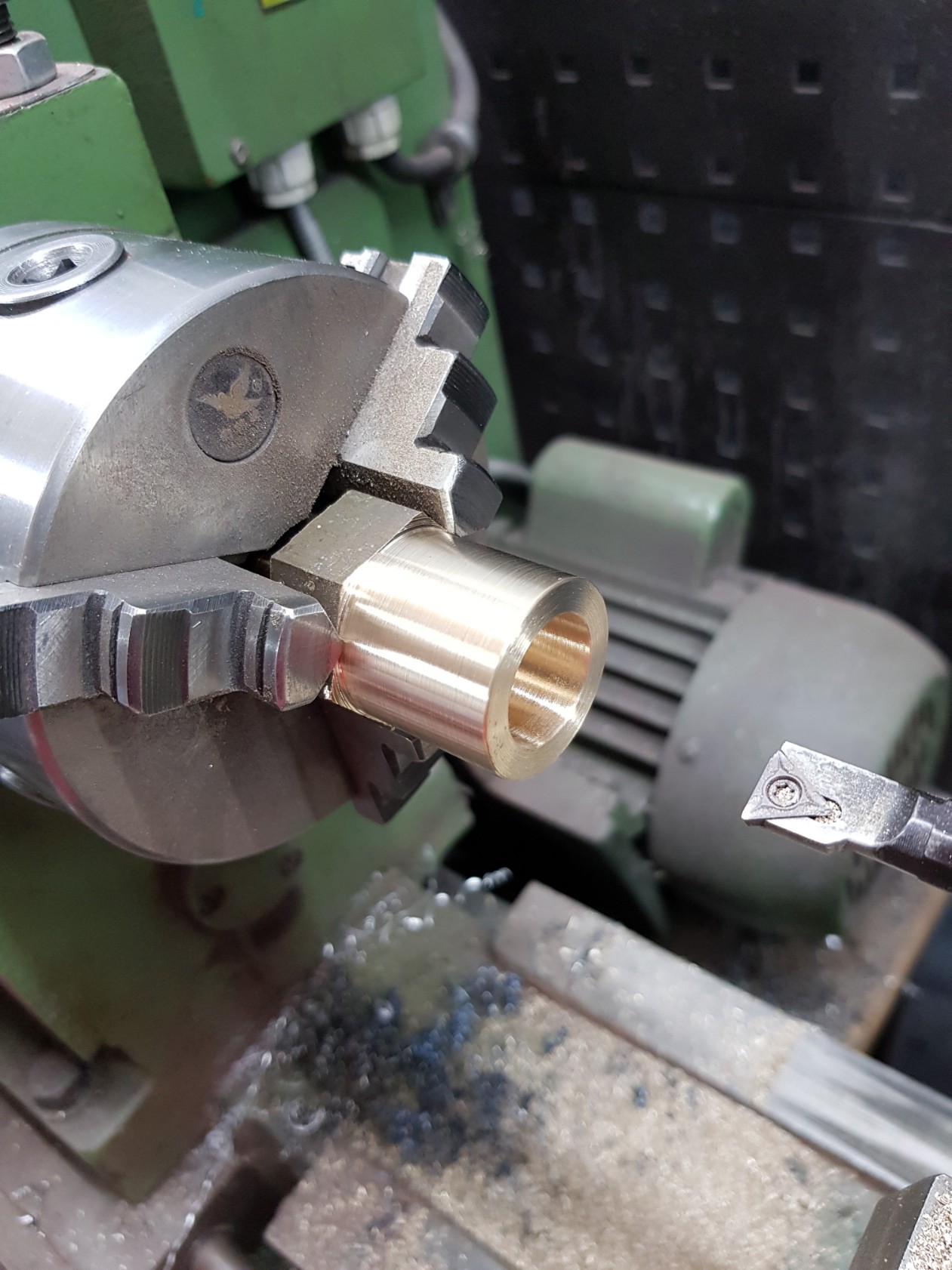

Machined it to 20mm
![](images/20200920_150259.jpg)

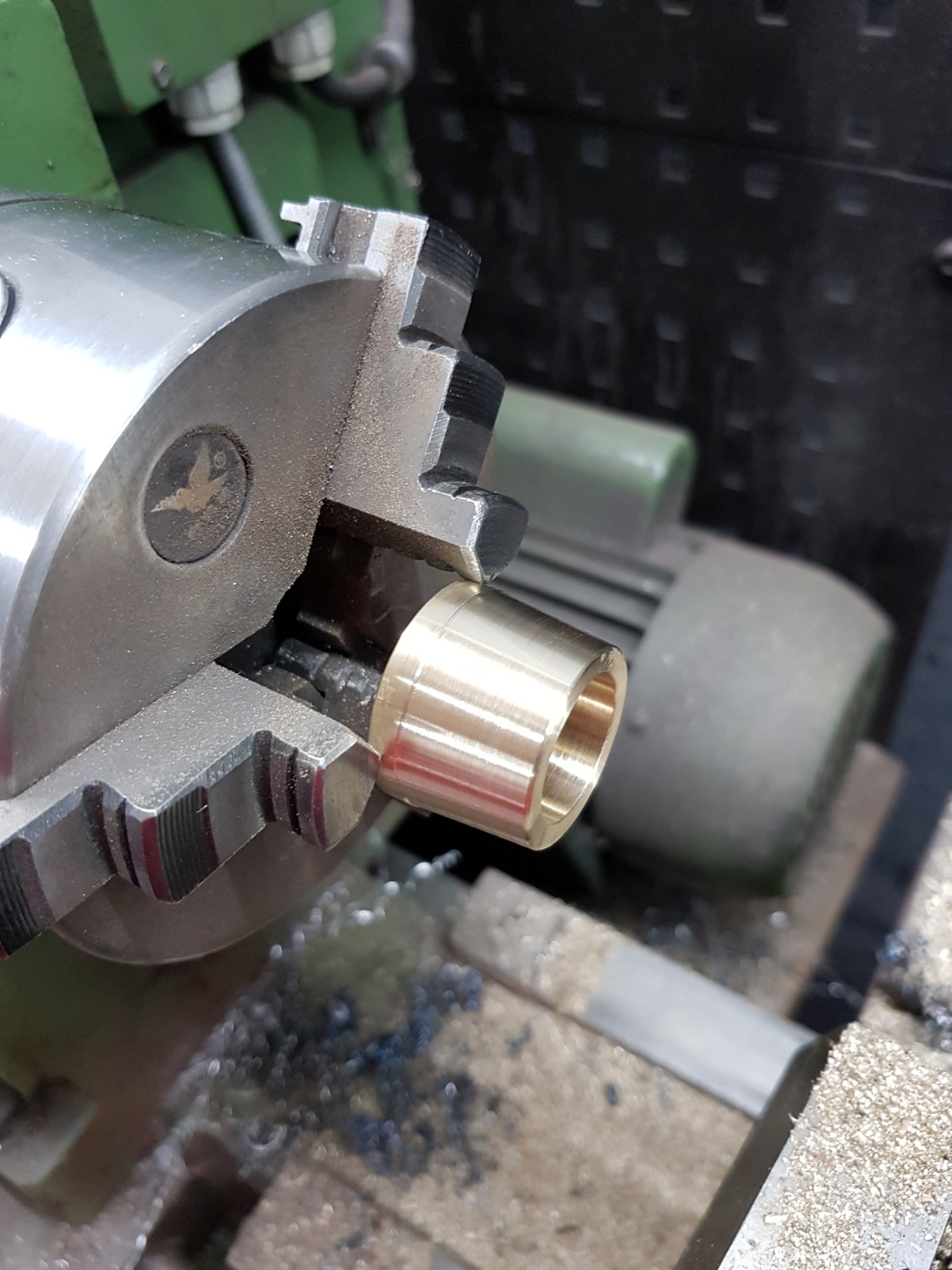

Made a nice soft angular (so it doesn't look that massive)
![](images/20200920_152439.jpg)

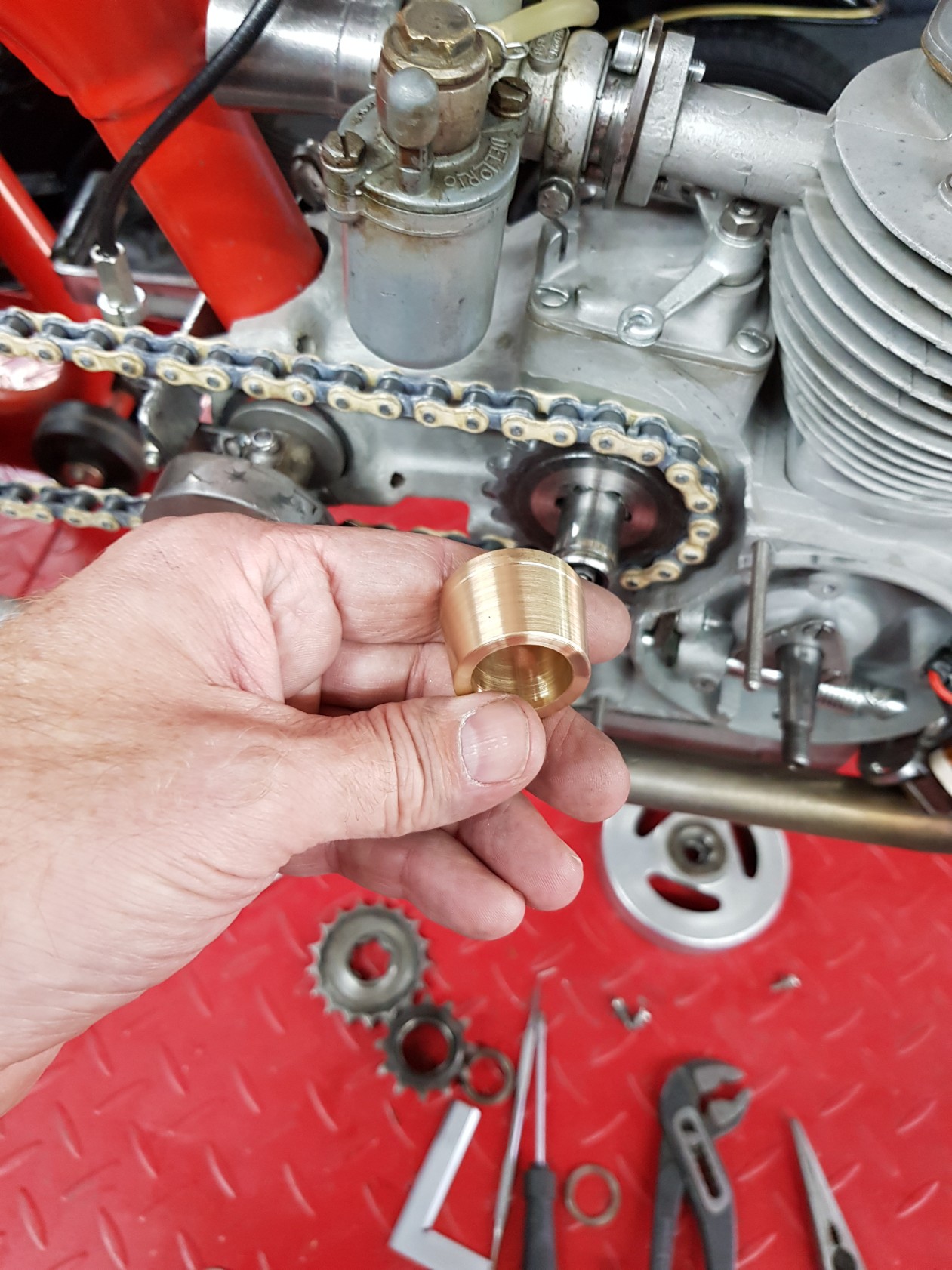

A nice shine and not too hard metal (so it can damage the shaf)
![](images/20200920_152511.jpg)

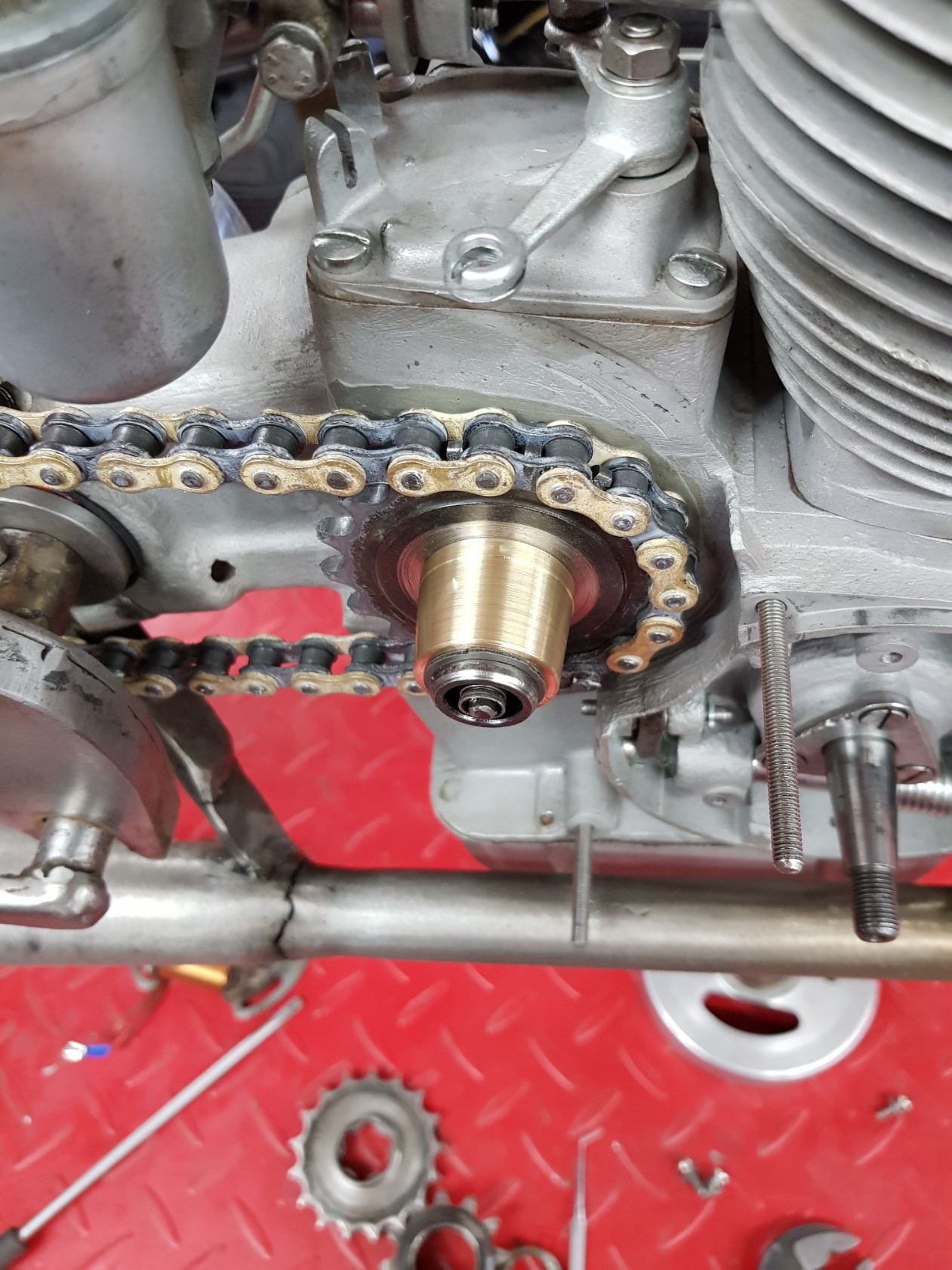

Looking good.
![](images/20200920_152626.jpg)
Still trying to solve the gear problems, now I'm experimenting with different length of arms.
Sadly, this did not give me the results I liked.
Ended up with changing my first arm

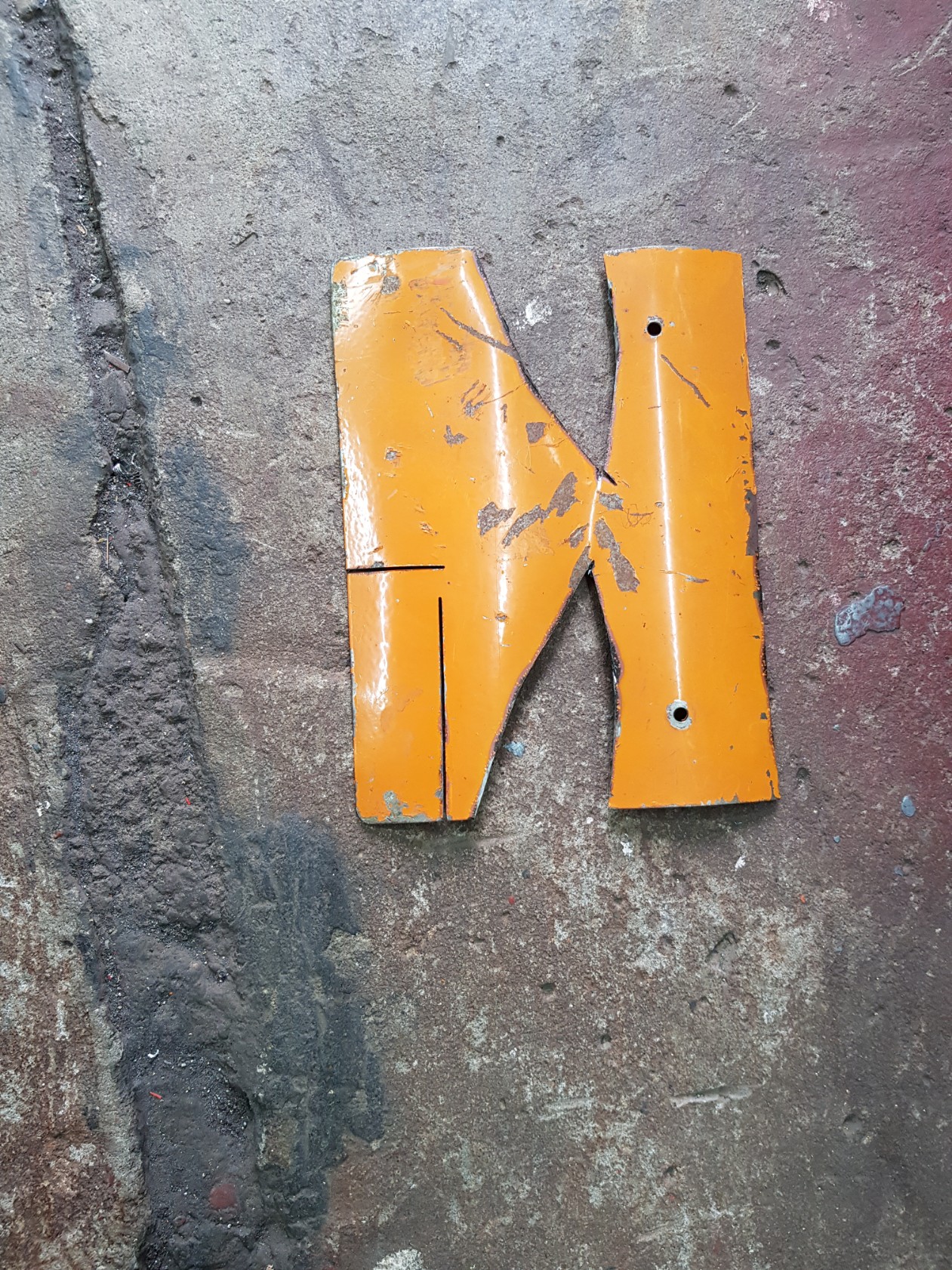

Startung point 1,5 mm metal.
![](images/20200926_101833.jpg)

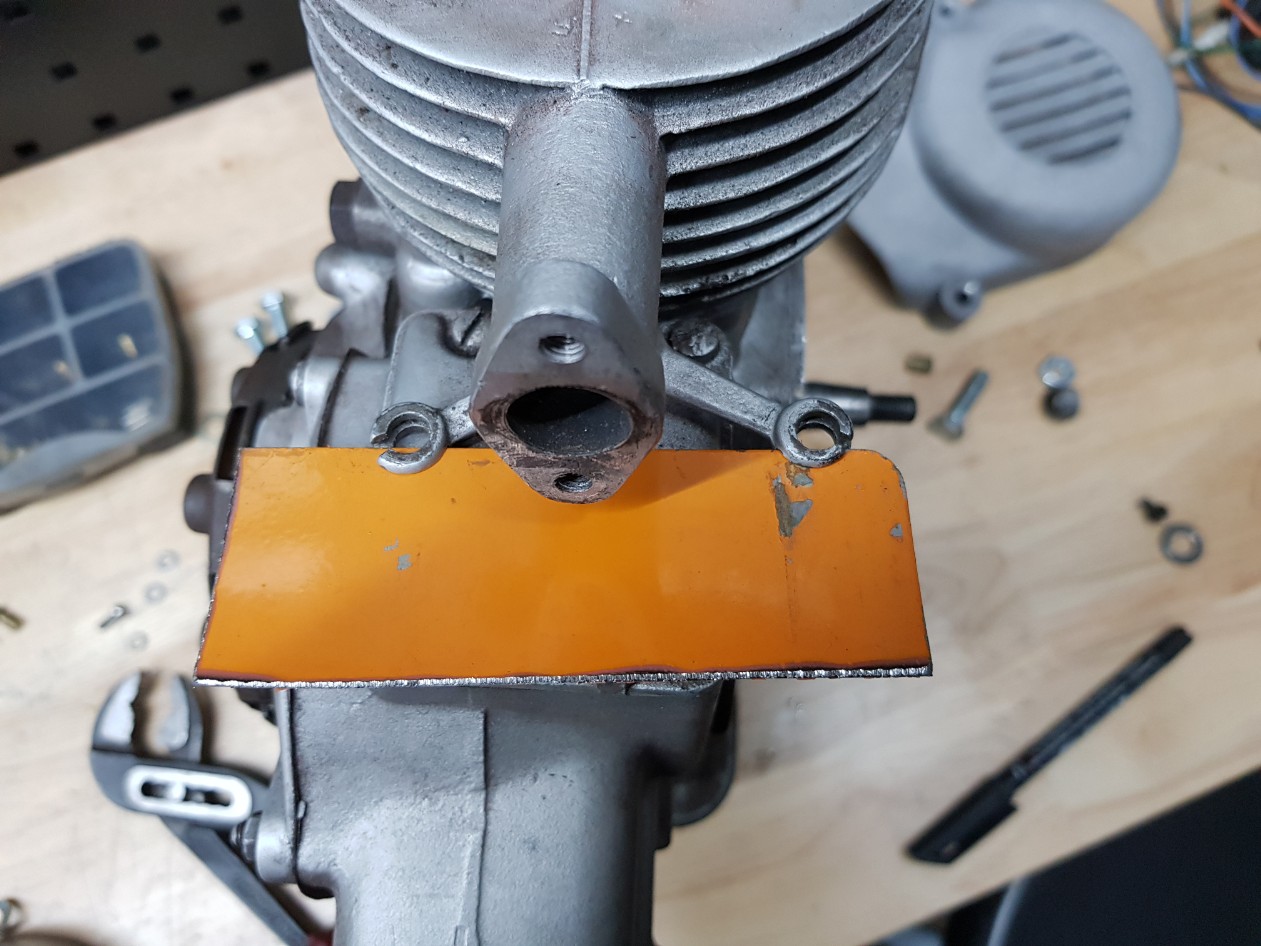

First fit.
![](images/20200926_102012.jpg)

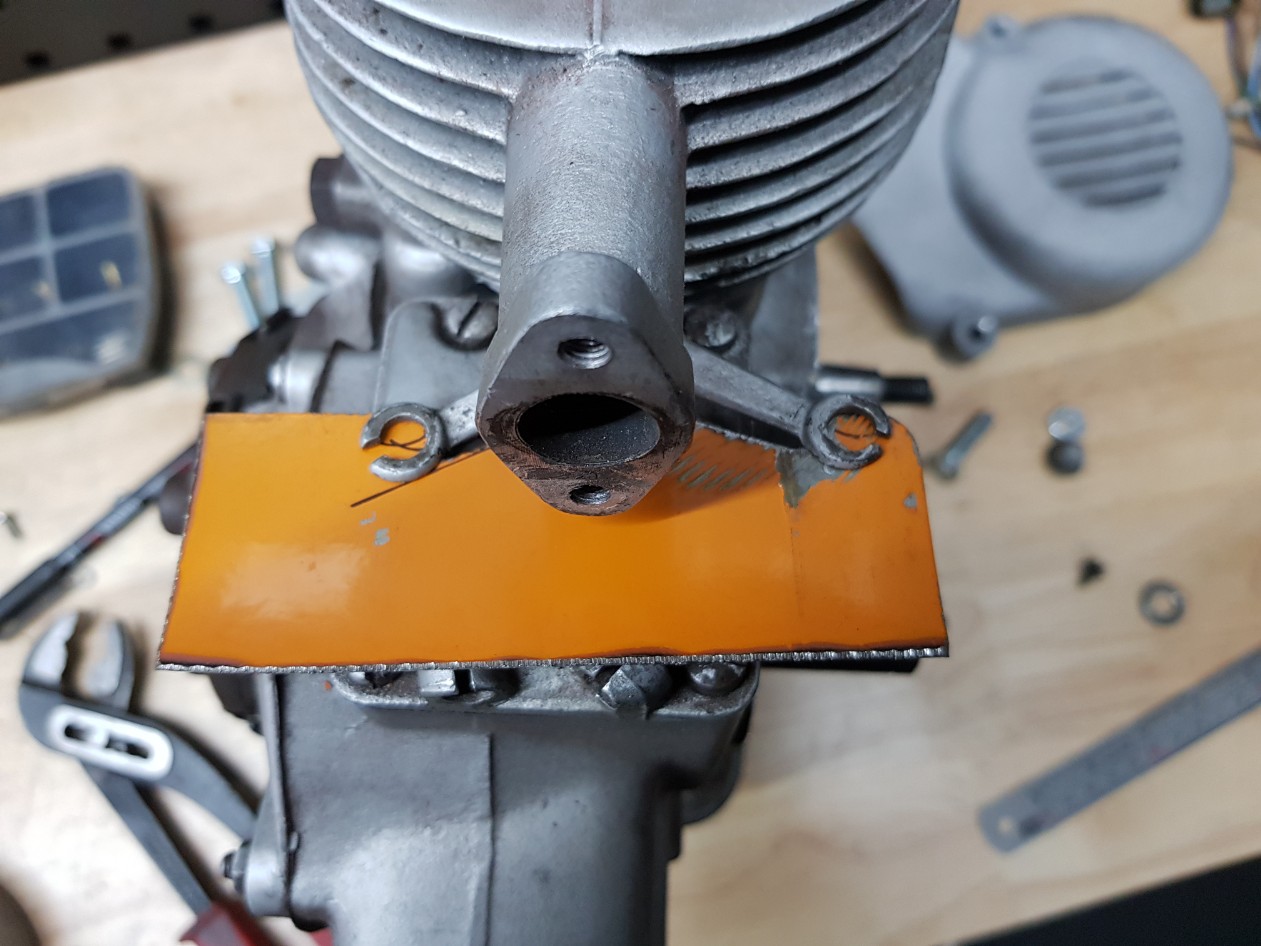

Start grinding
![](images/20200926_102650.jpg)

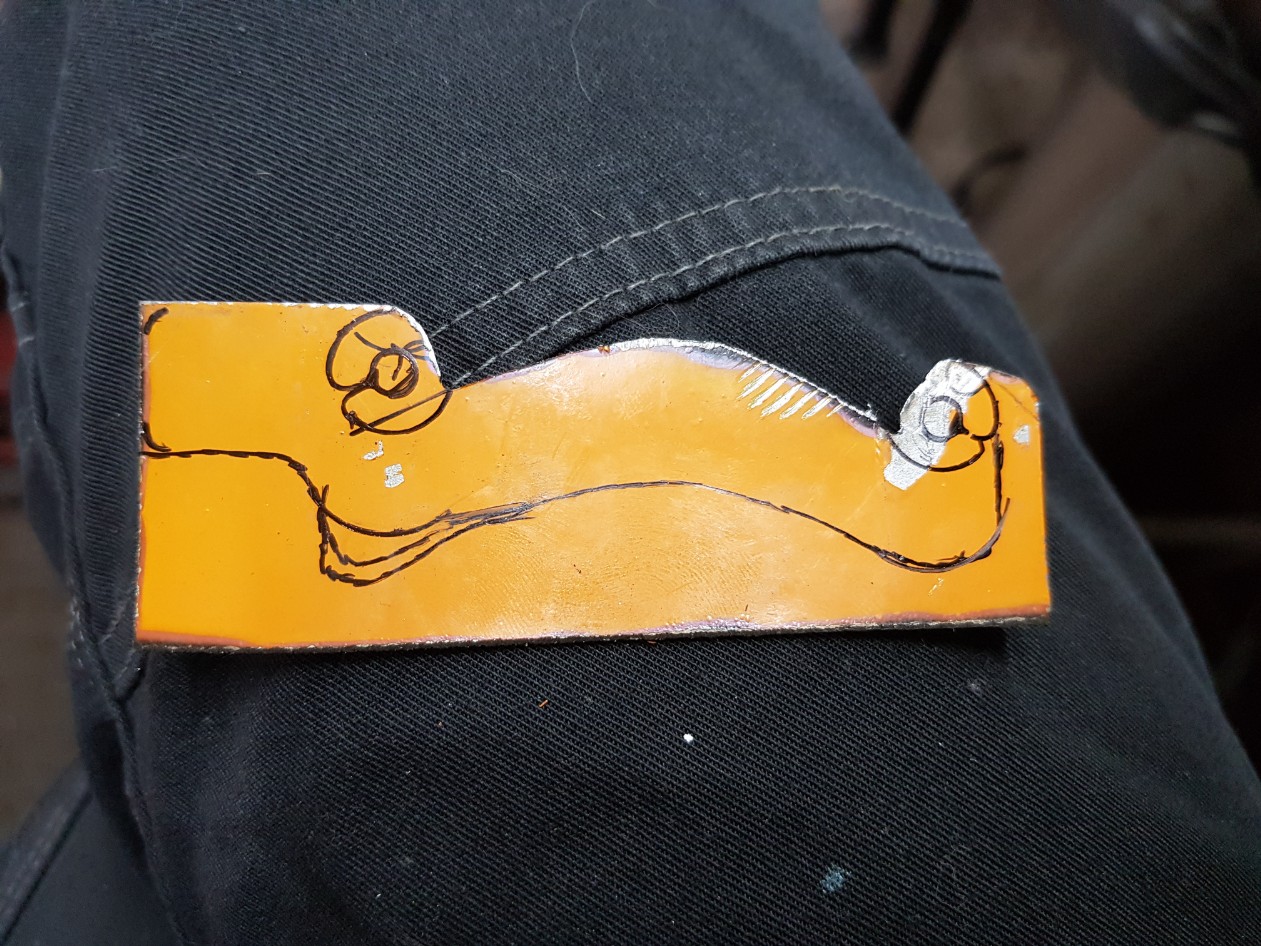

Started with the shape.
![](images/20200926_104000.jpg)

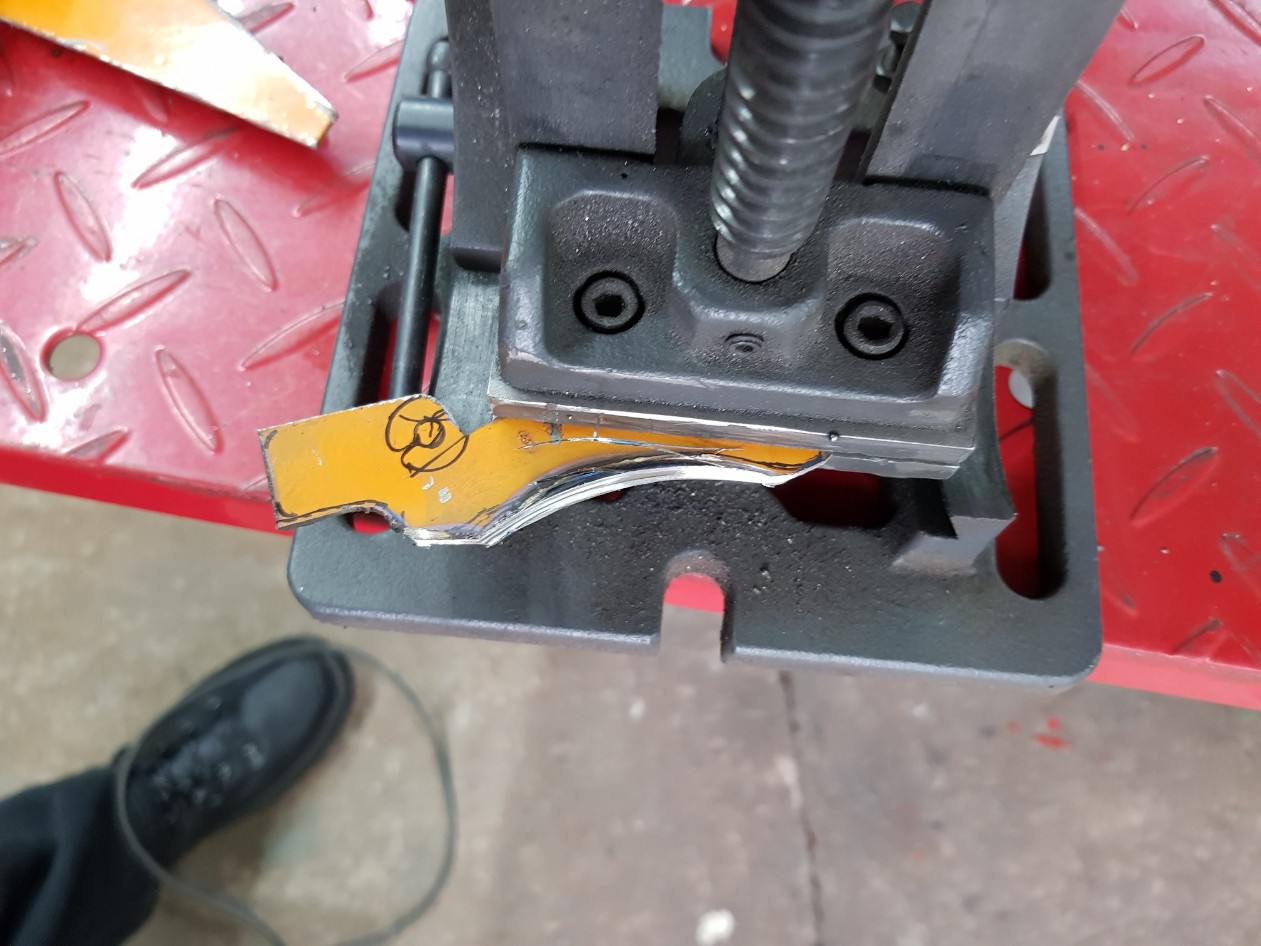

Grinding more.
![](images/20200926_104549-0-.jpg)

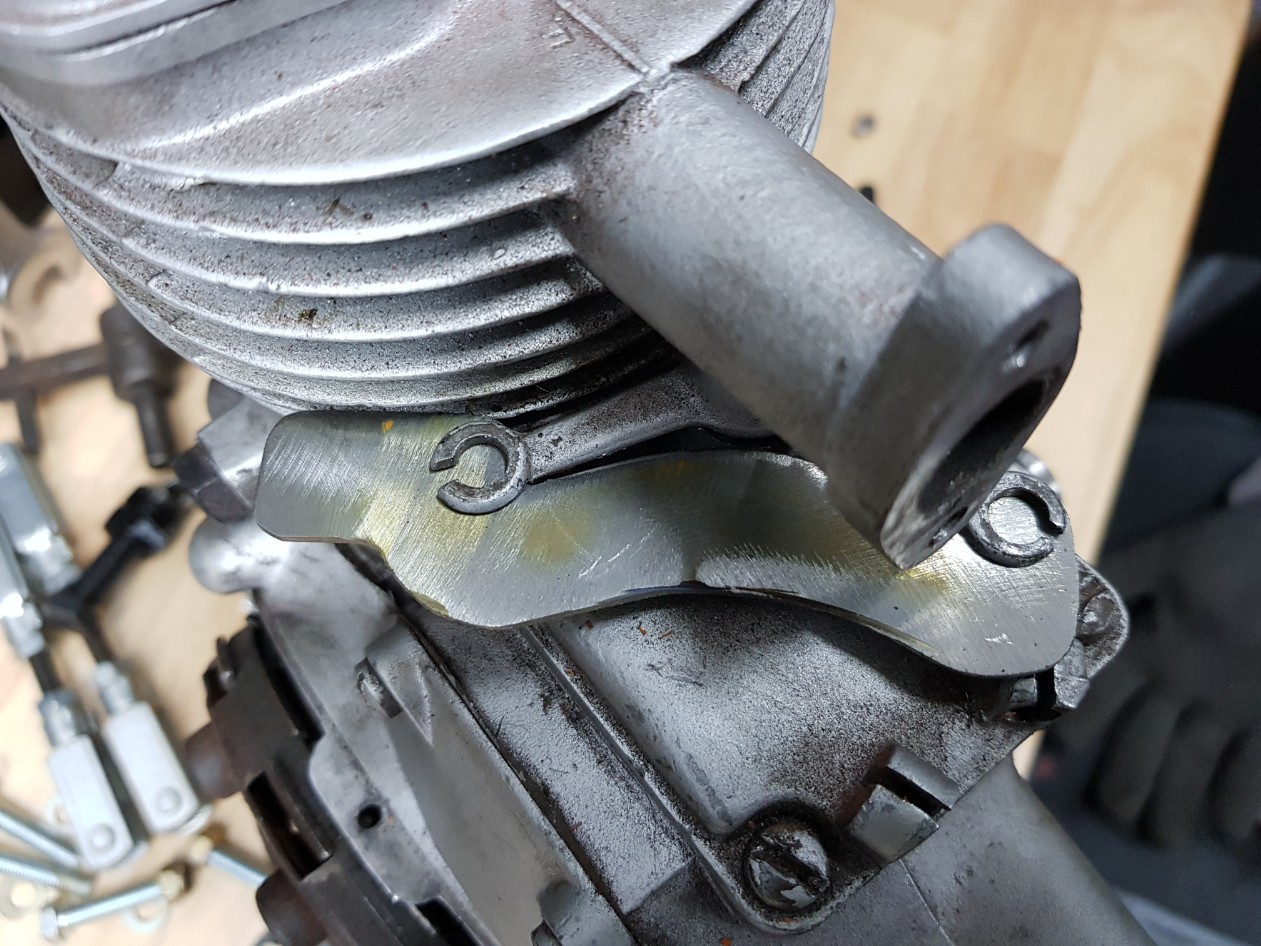

Geting close.
![](images/20200926_104932.jpg)

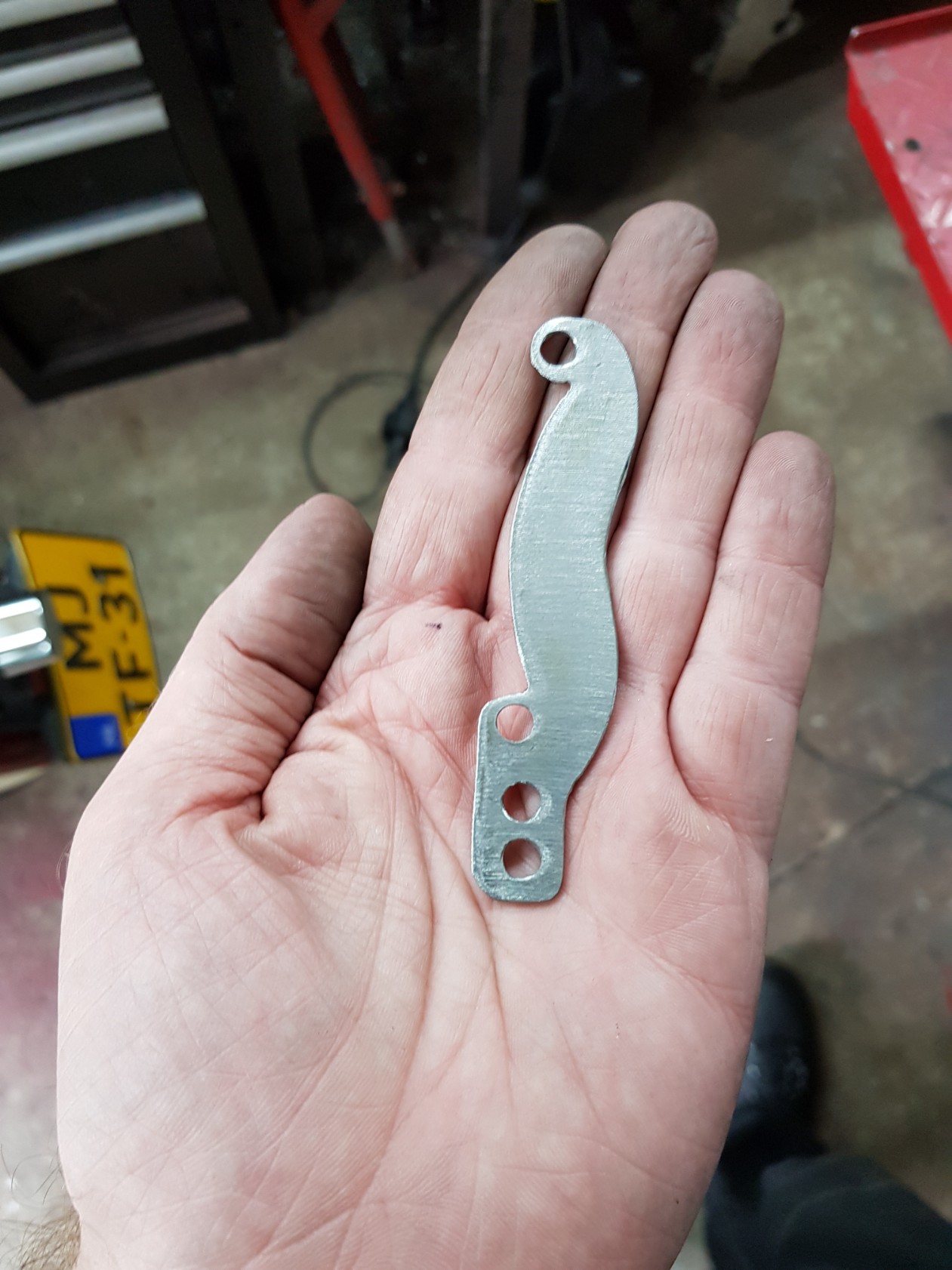

End resuld.
![](images/20200926_112123.jpg)

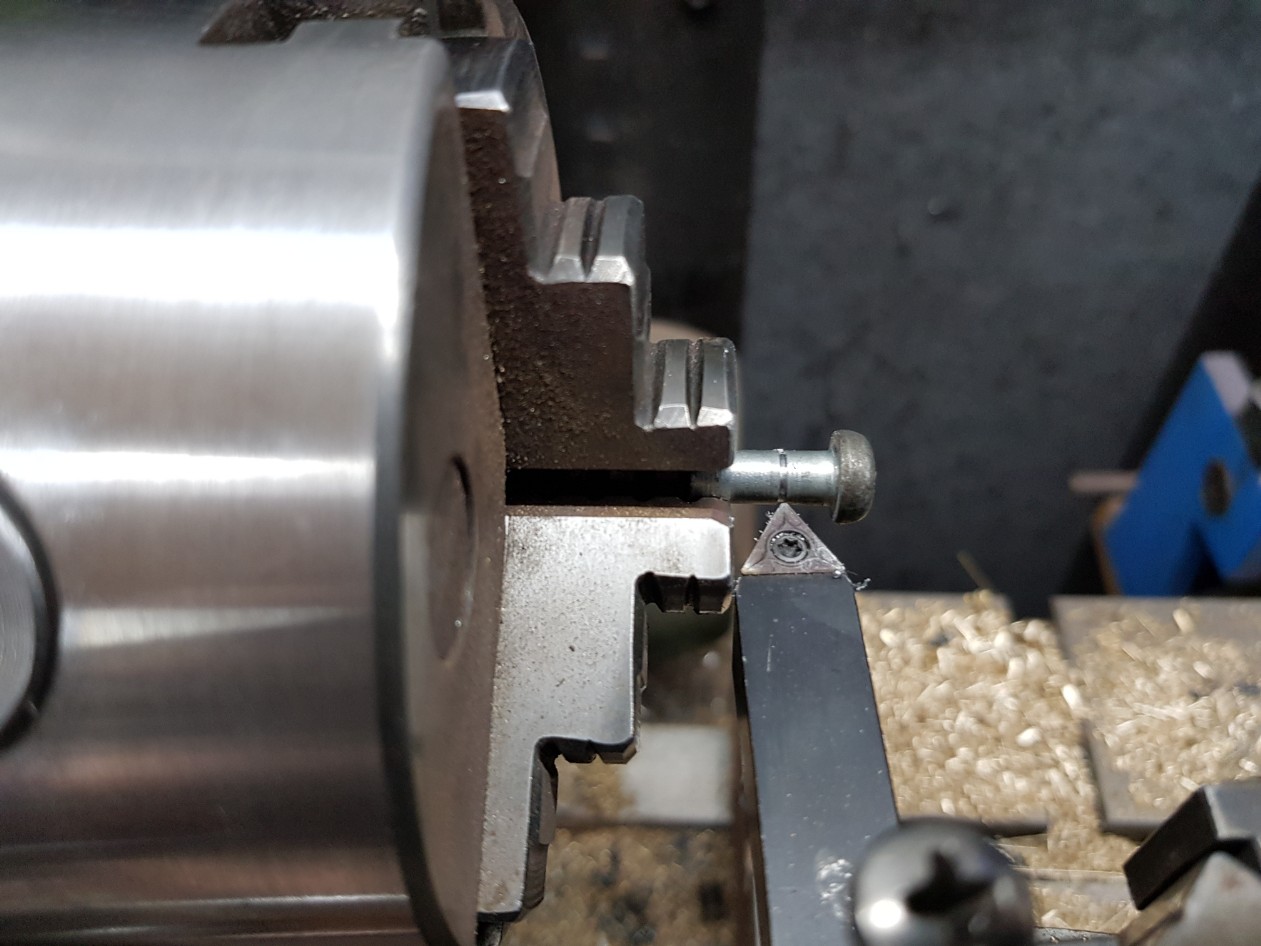

Making the mounting nails.
![](images/20200926_115731.jpg)

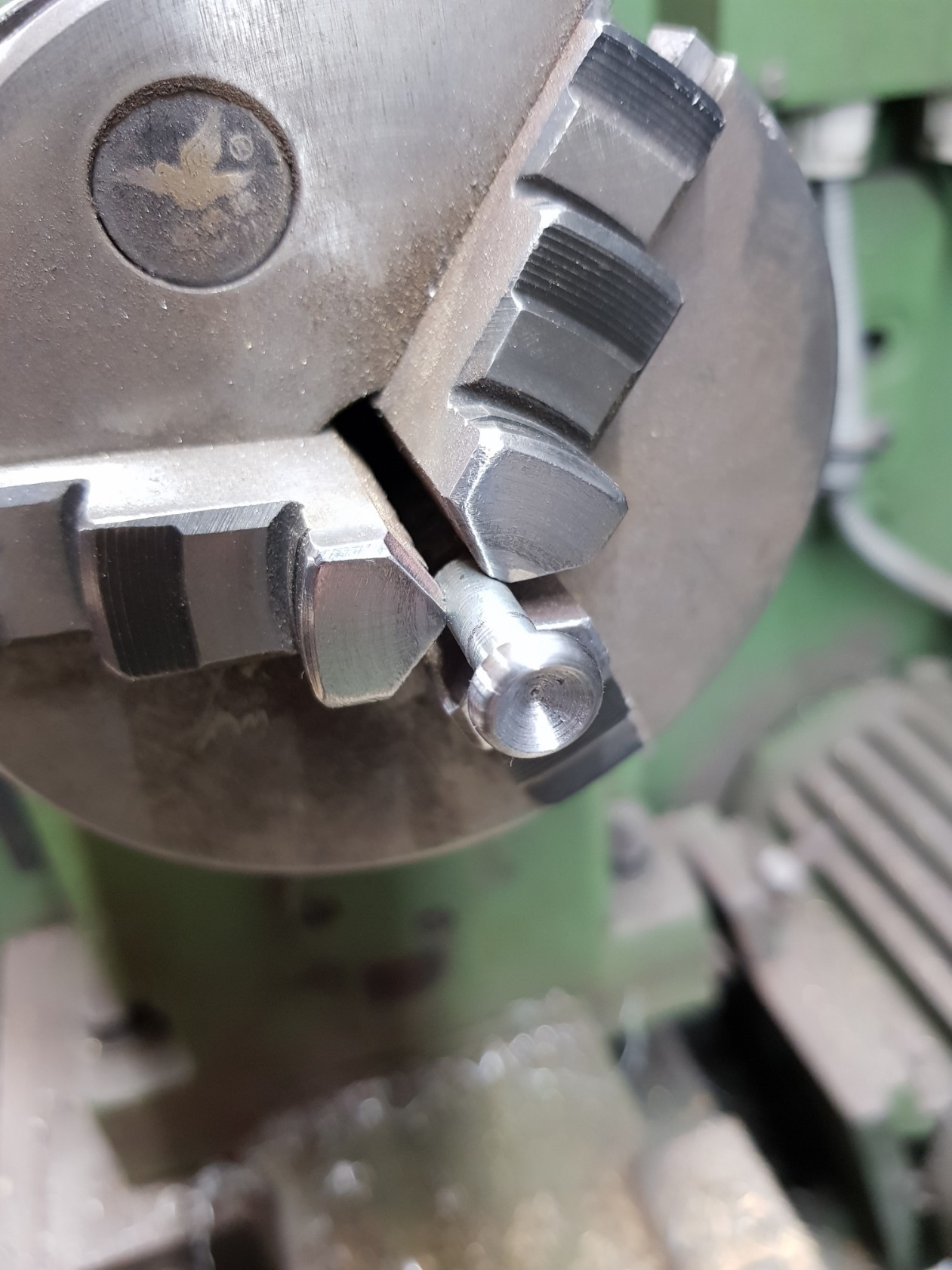

Special look.
![](images/20200926_115945.jpg)

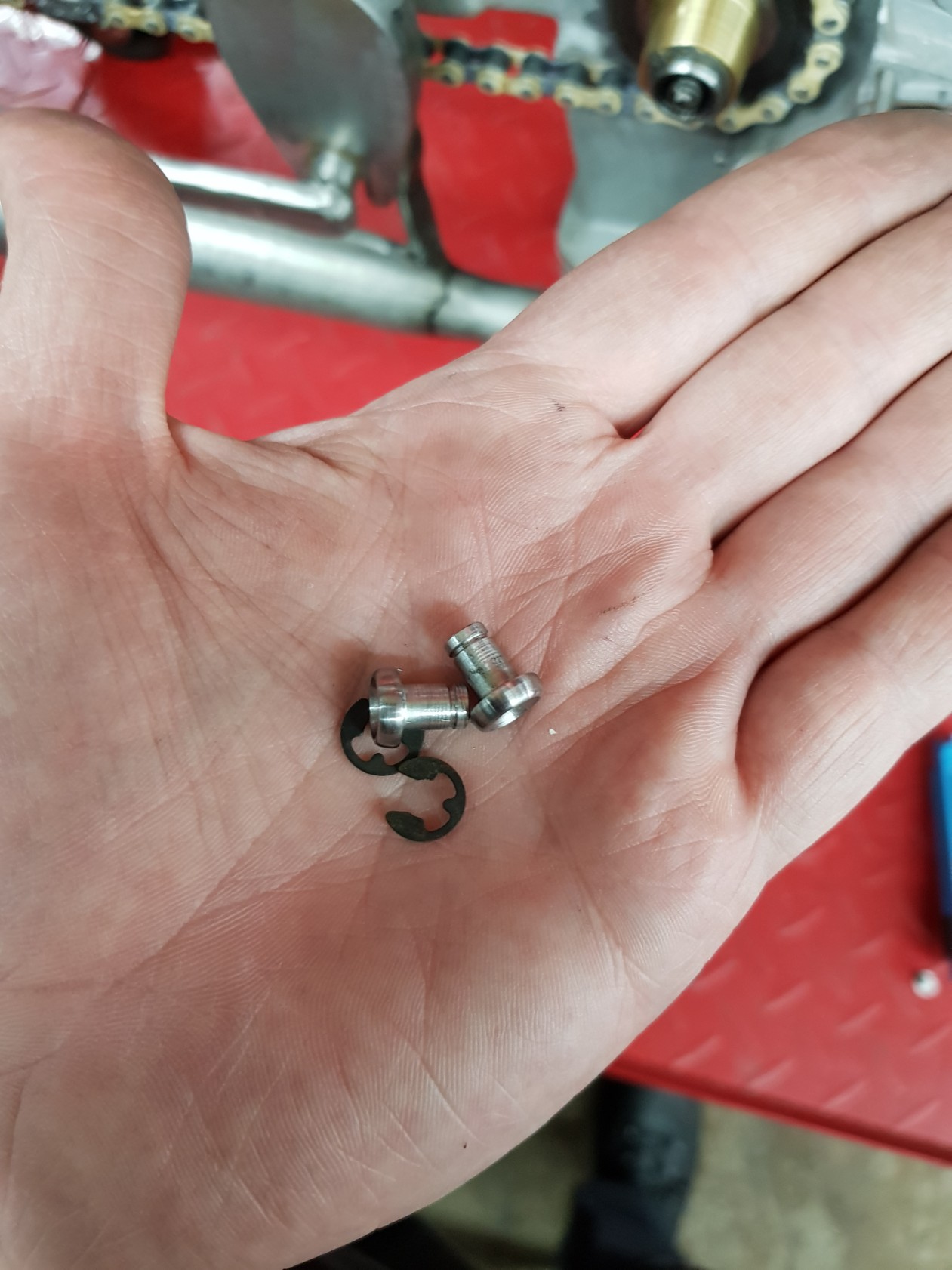

The whole set.
![](images/20200926_121946.jpg)

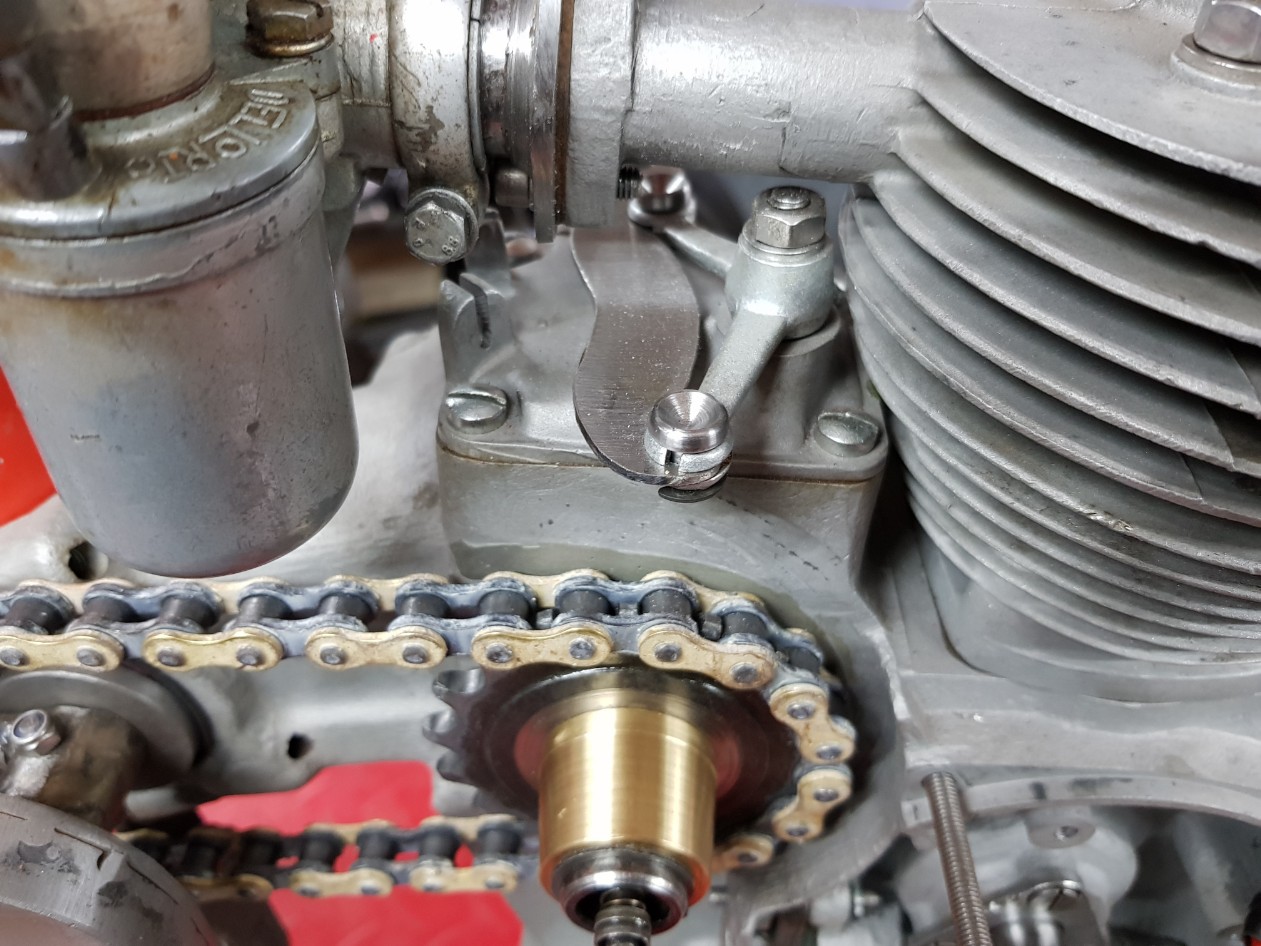

Nicely fitted.
![](images/20200926_123750.jpg)

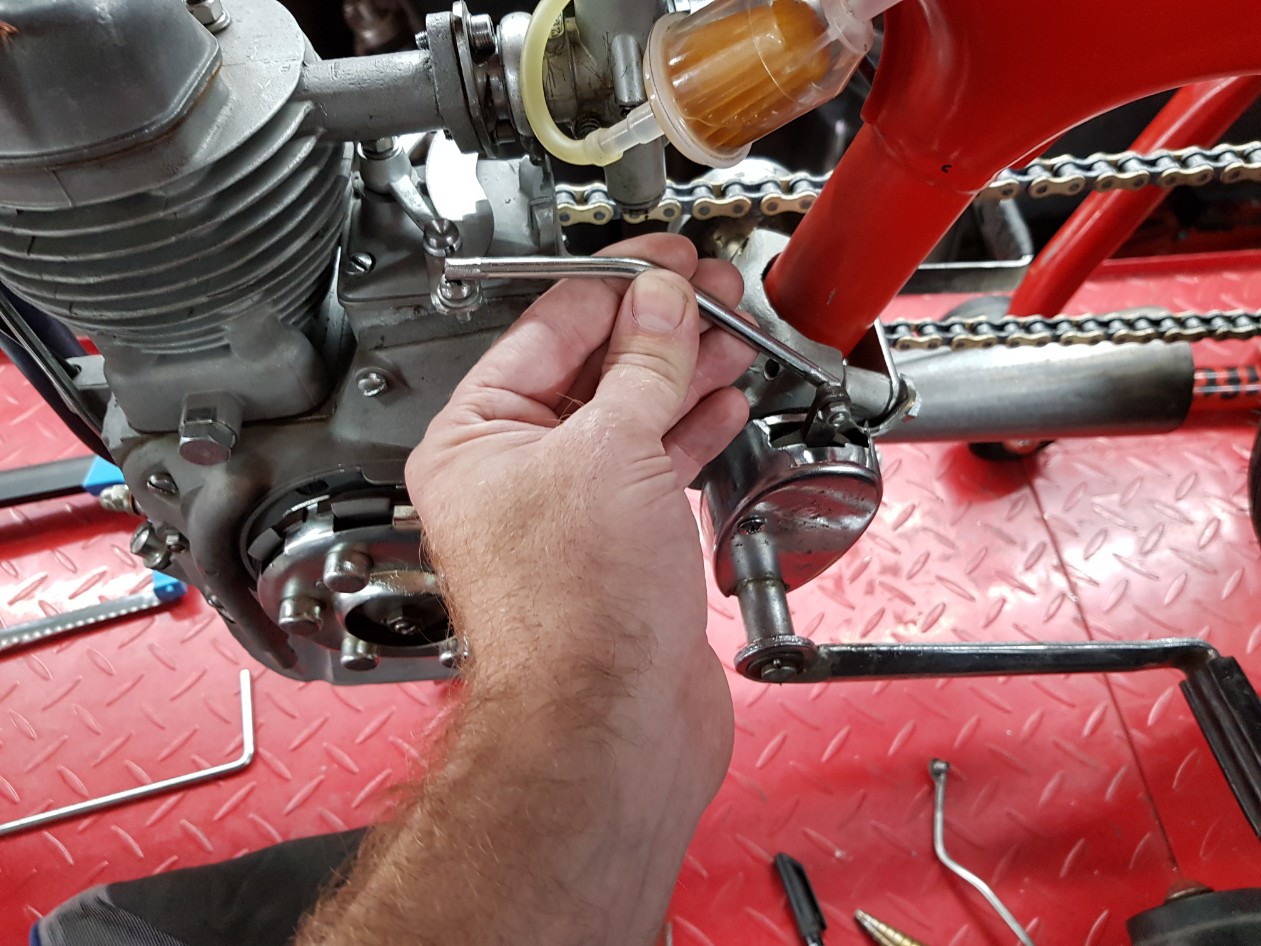

Making the first arm.
![](images/20200926_130441.jpg)

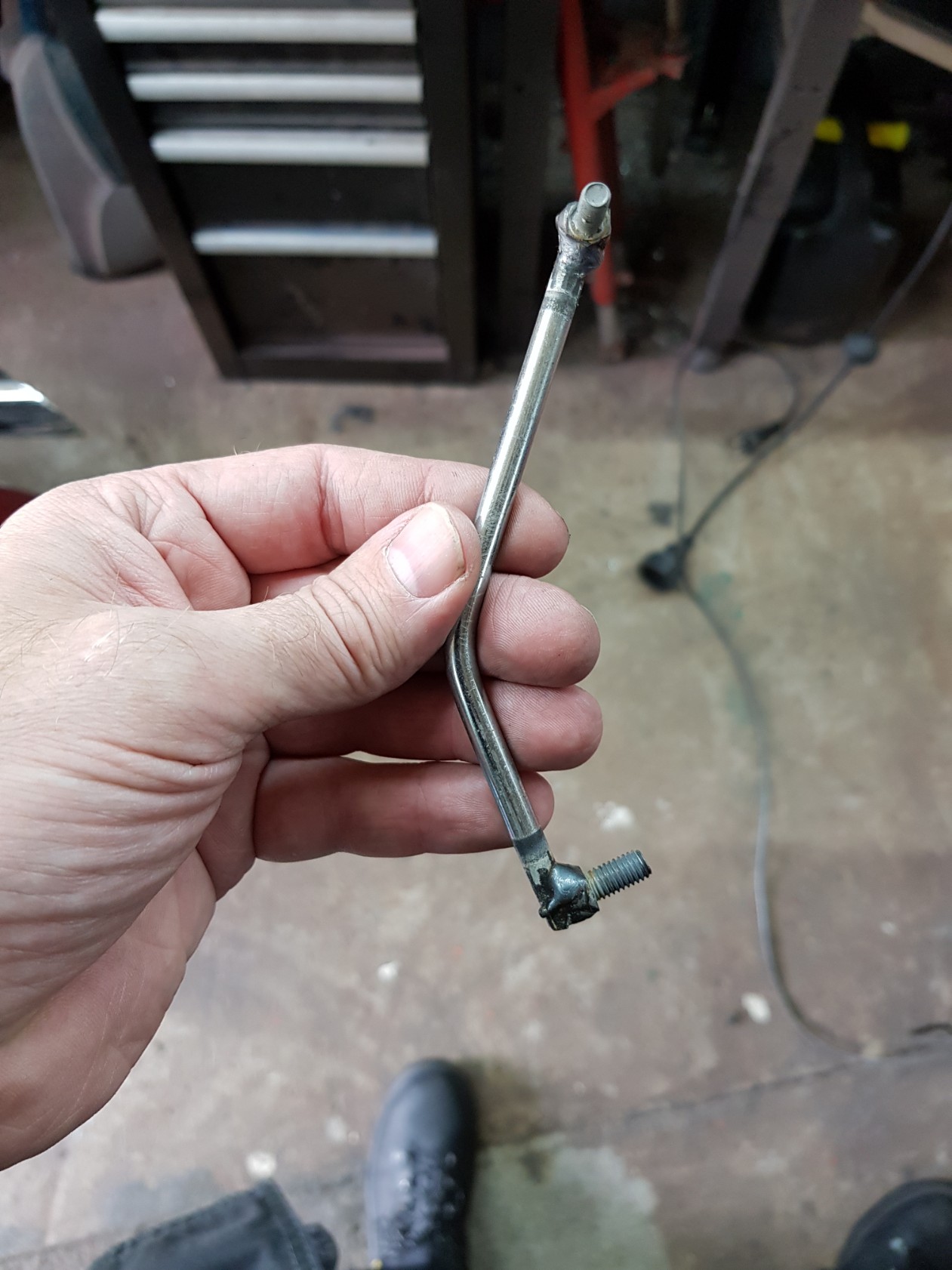

Welded.
![](images/20200926_131257.jpg)

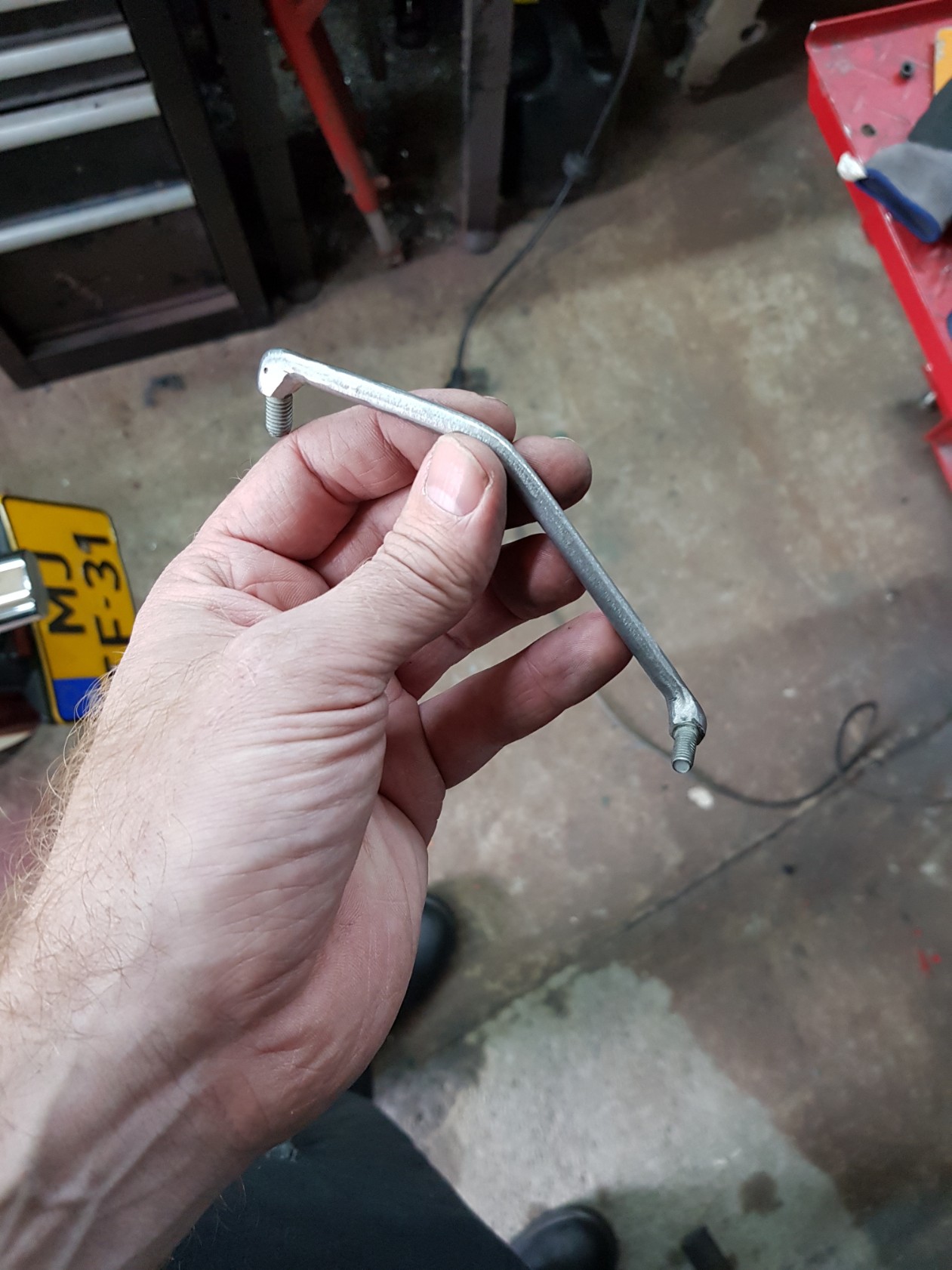

Grinded
![](images/20200926_132058.jpg)

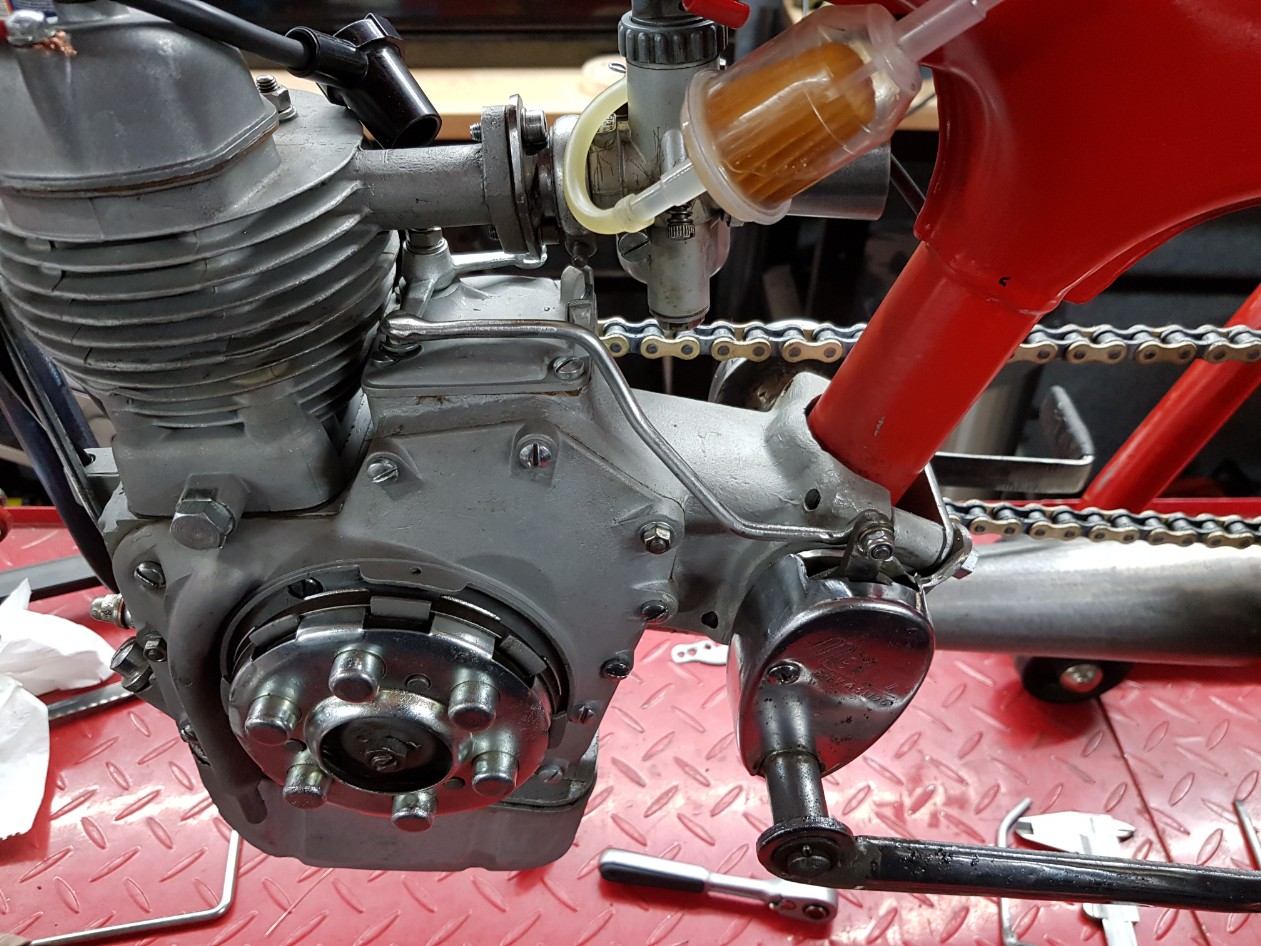

Stopped, and went back to the original setting. It was getting too complicated.
![](images/20200926_164208-0-.jpg)

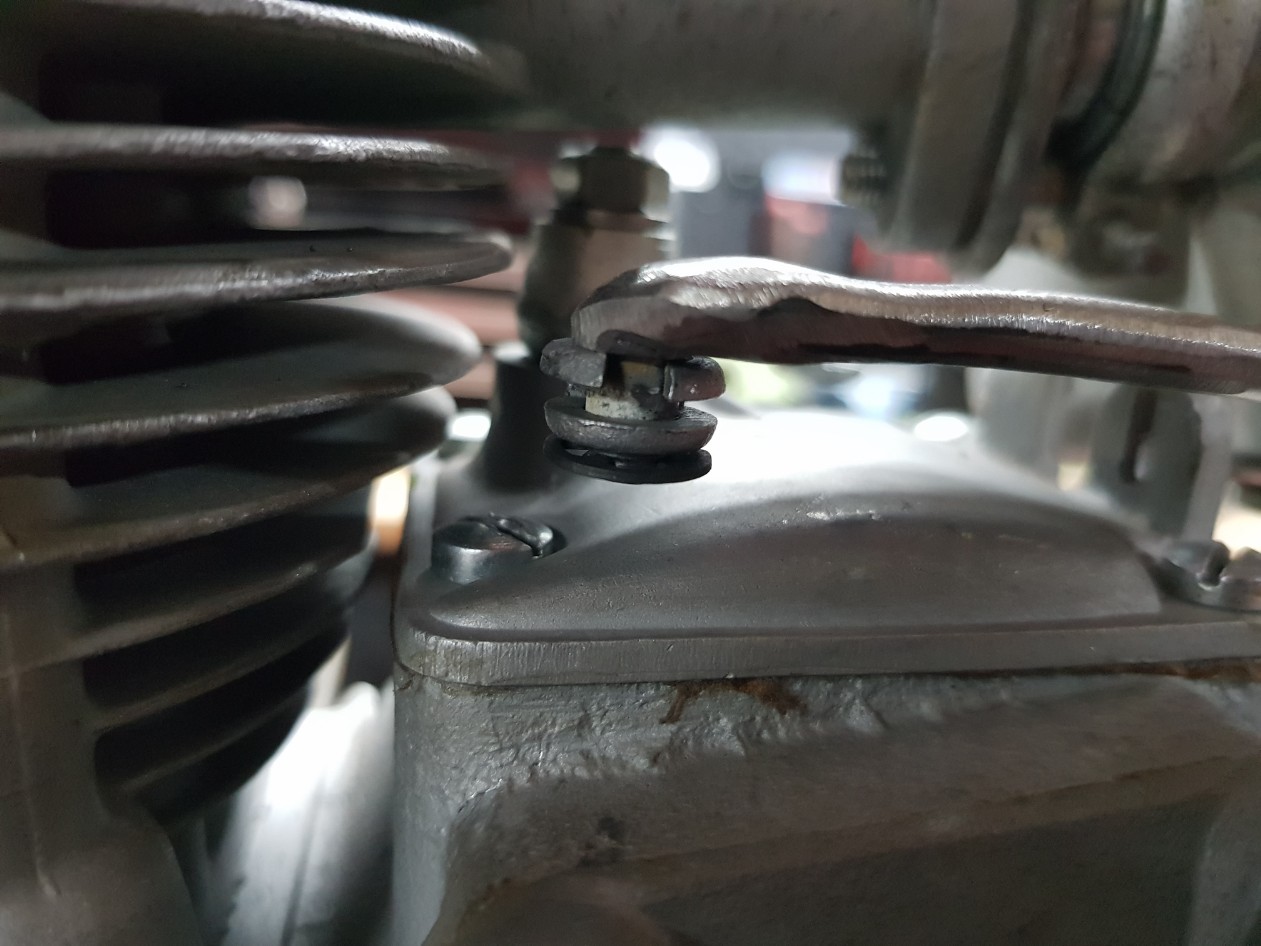

I did used a special nail.
![](images/20200926_164219.jpg)
To overcome the problem to shift past third gear and activate the pedal mode I made an adjustable end stop.
So after third gear you can push what you want but it will stay in third gear.

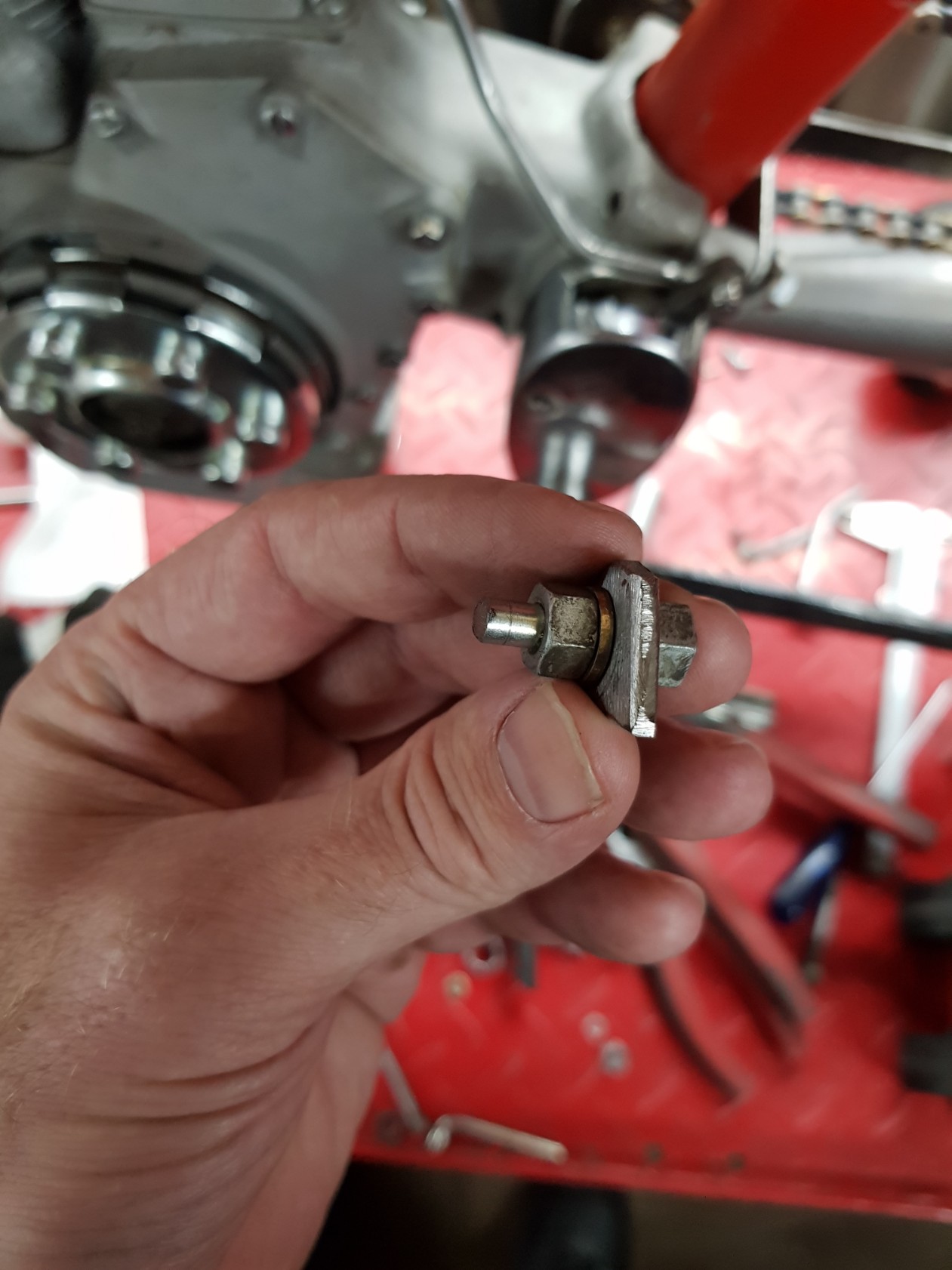

The end stop in totall
![](images/20200927_092144.jpg)

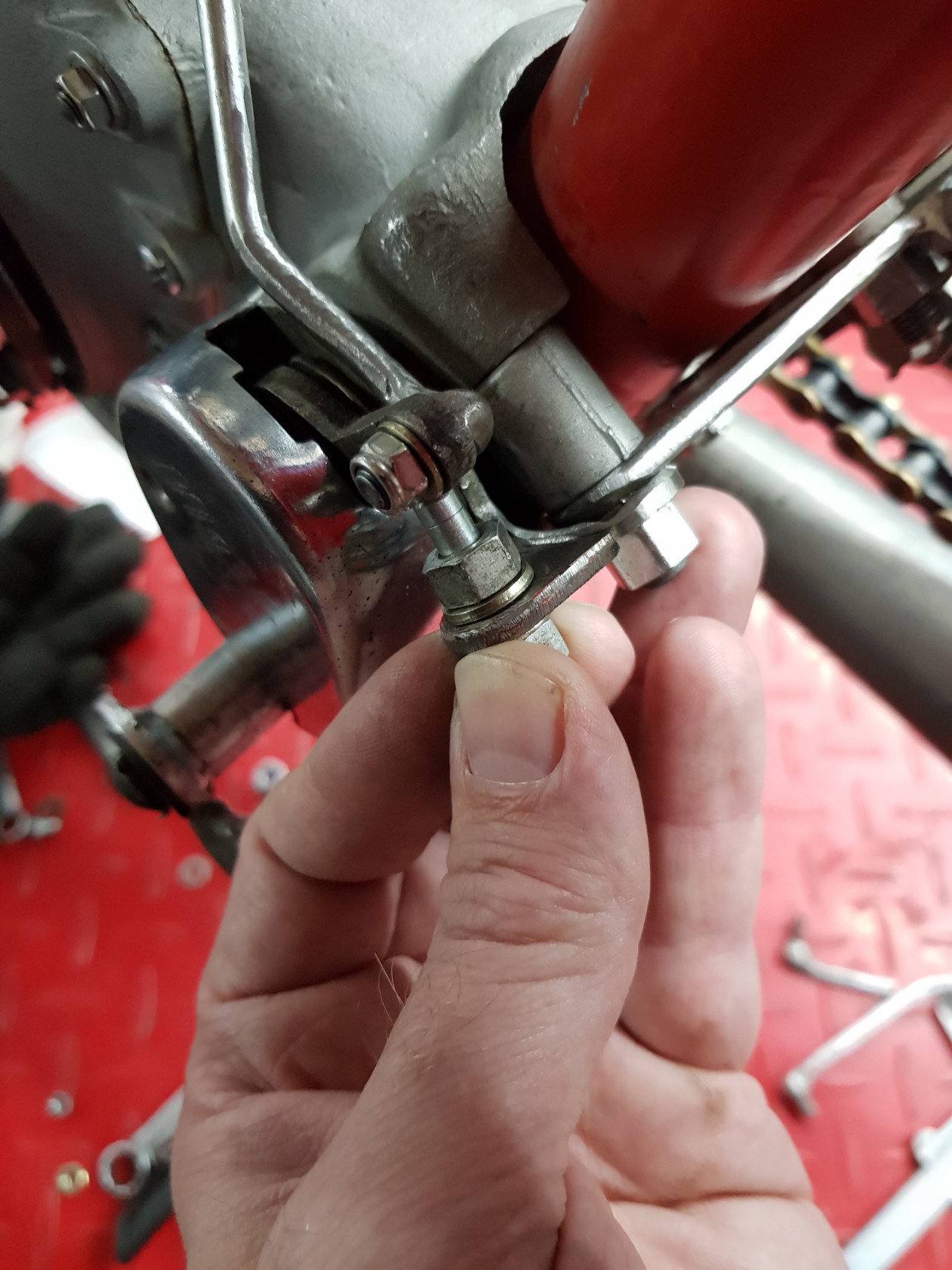

Roughly around here.
![](images/20200927_092210.jpg)

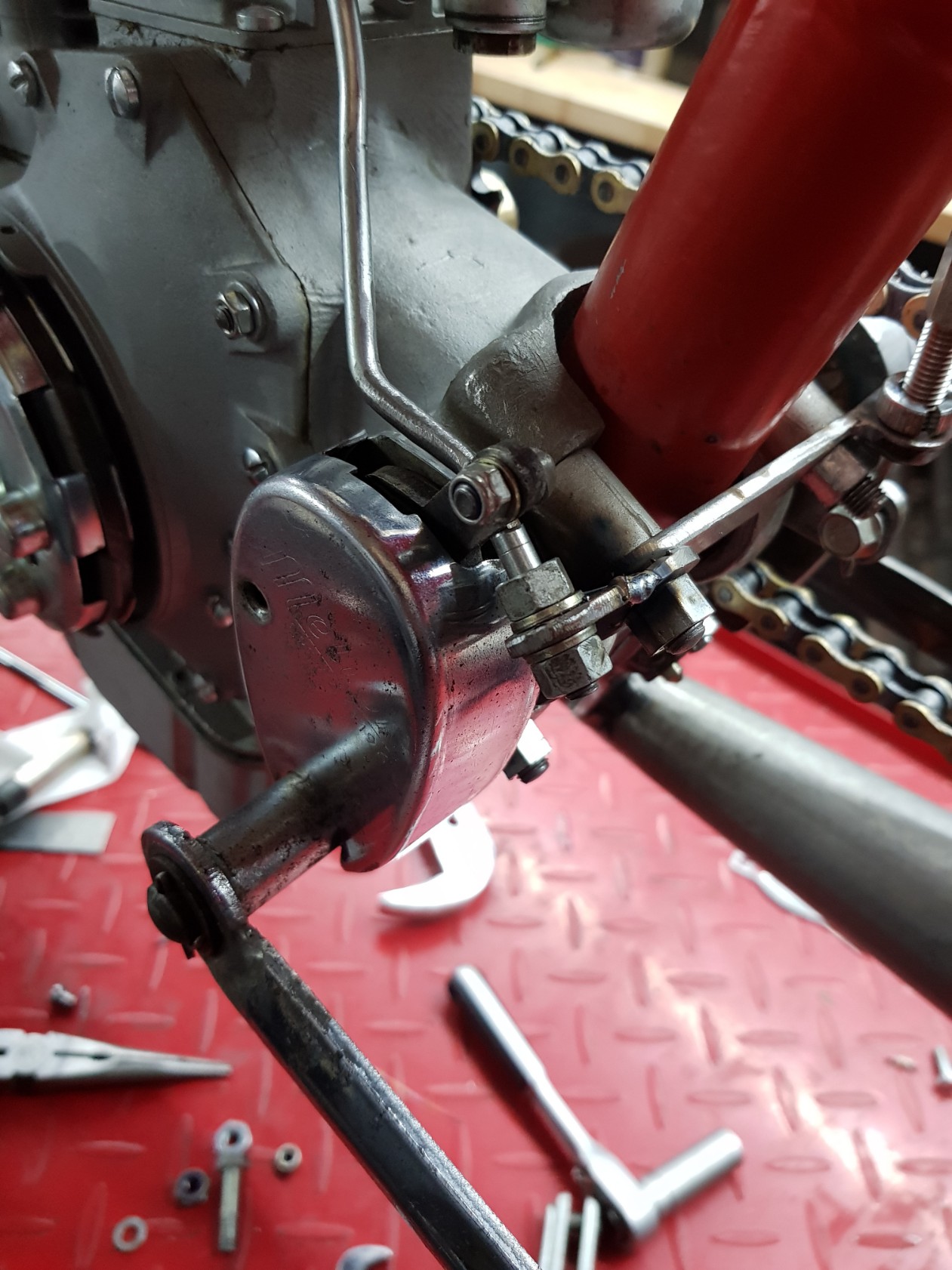

Tacket in to its place.
![](images/20200927_092706.jpg)

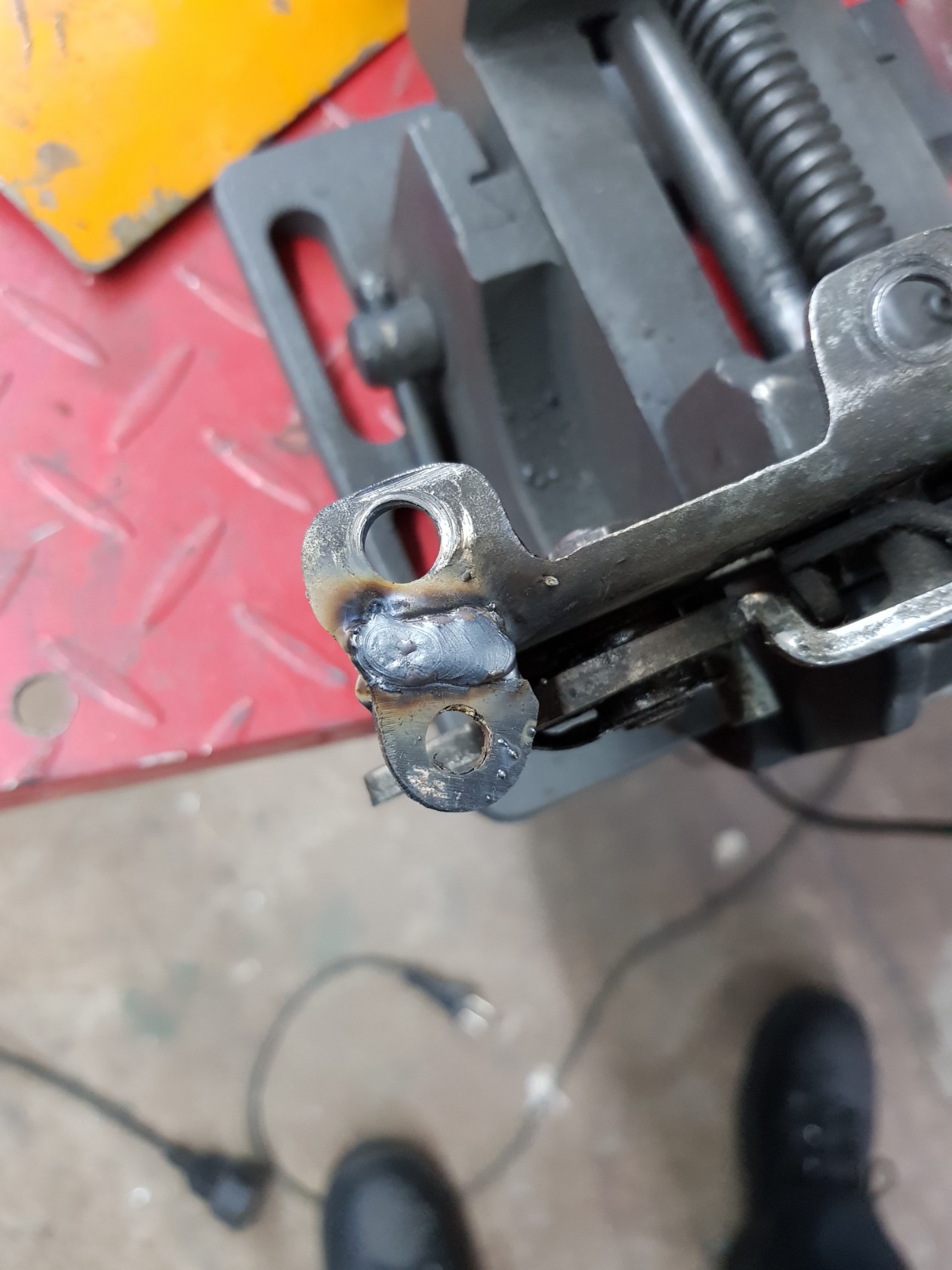

Welded
![](images/20200927_093004.jpg)

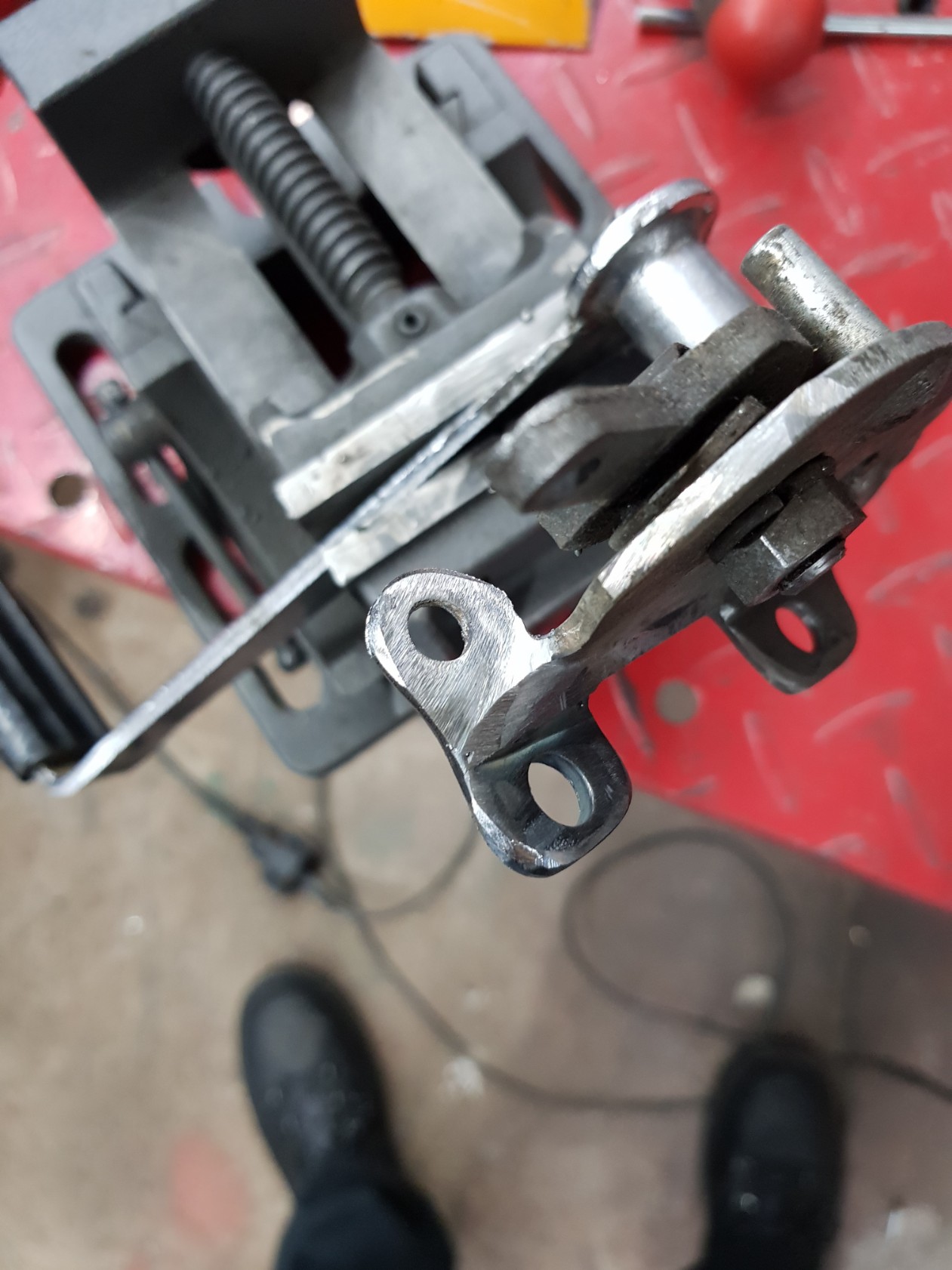

Grinded.
![](images/20200927_093308.jpg)

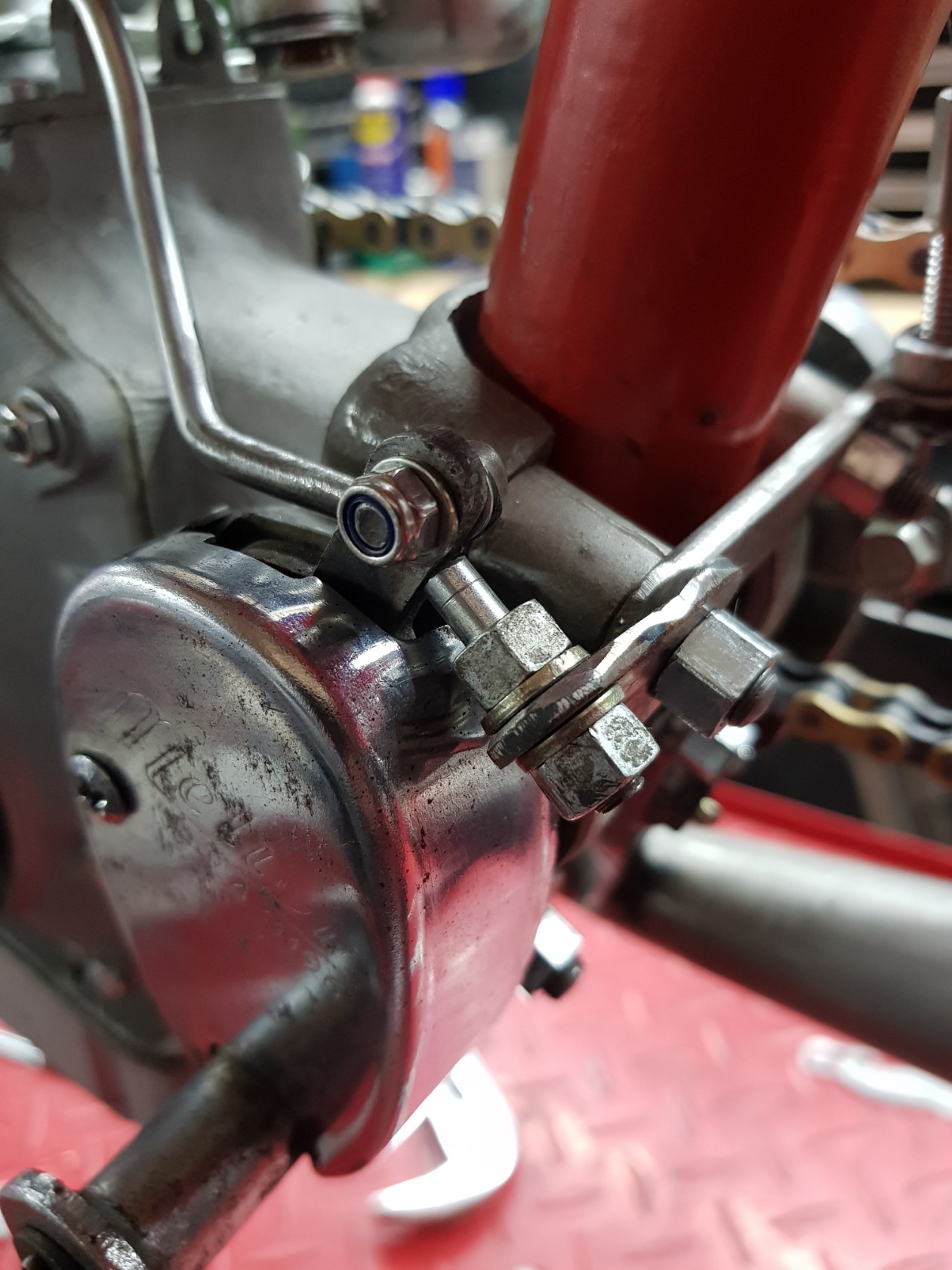

A real stop.
![](images/20200927_093733.jpg)

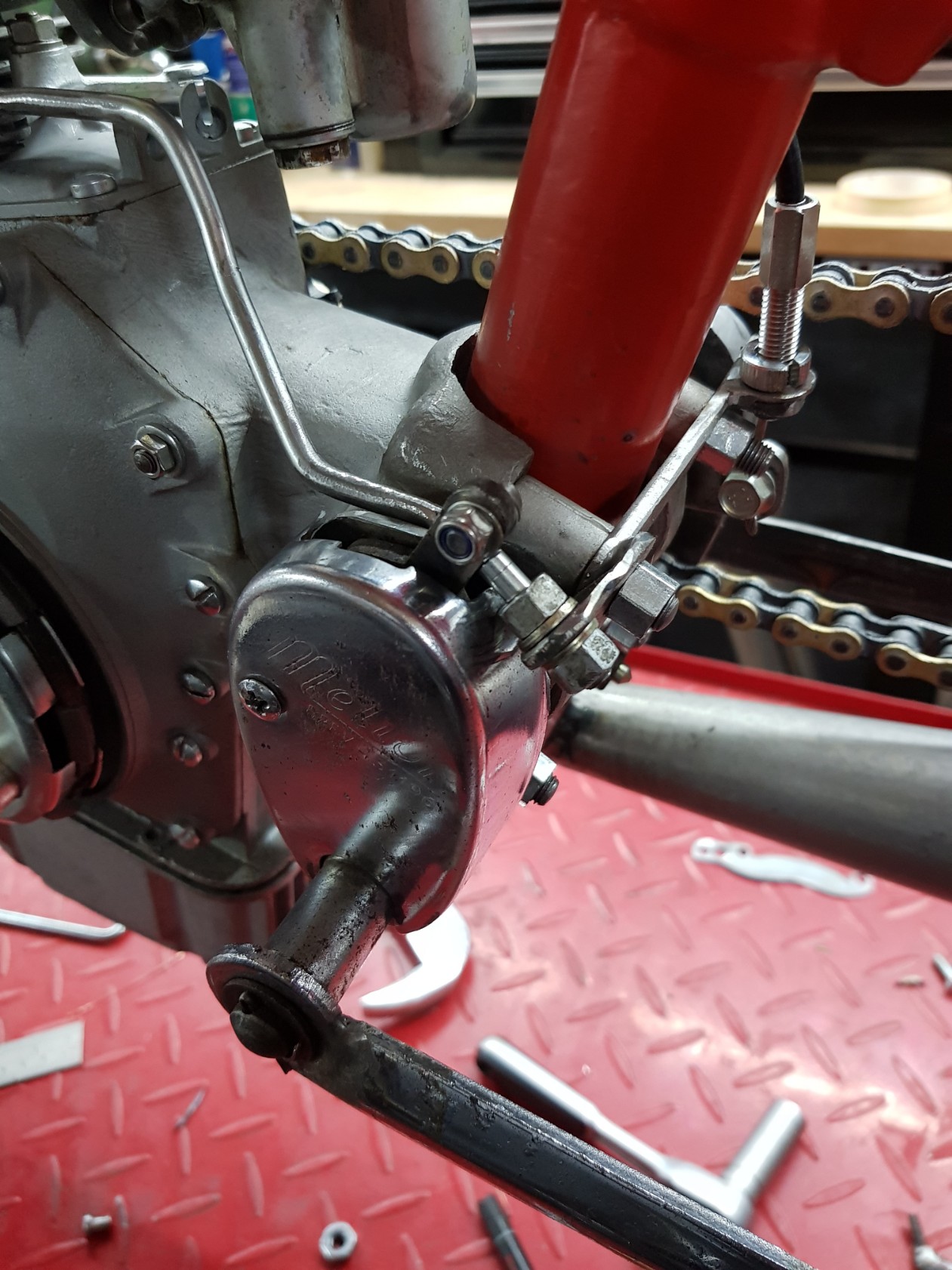

Is not looking that bad.
![](images/20200927_093743.jpg)
Tried another setup, but this time it is fully adjustable.
1) Arm length adjustable.
2) Arm width adjustment.
Hopefully I can set it correct now

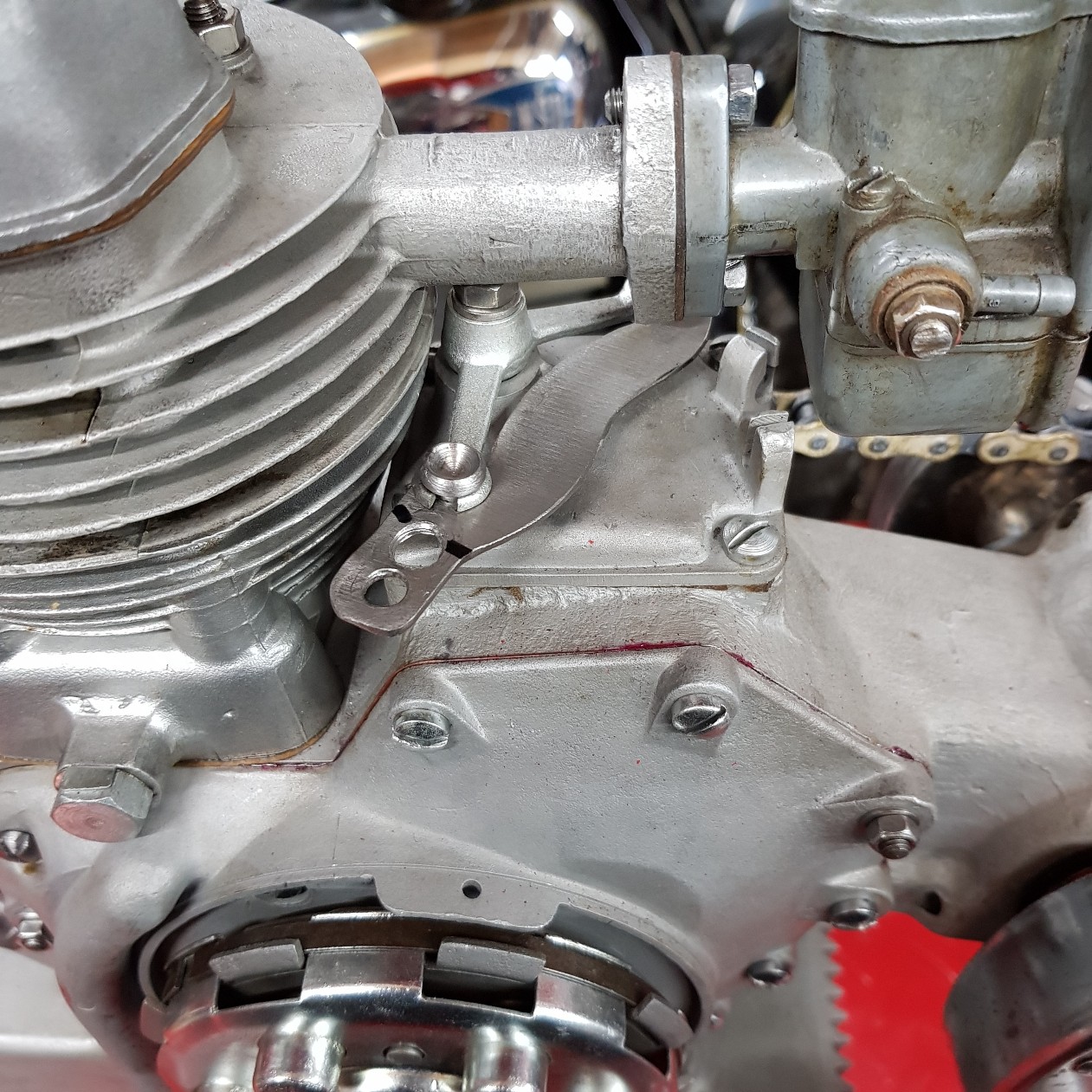

Cutting my holder.
![](images/20201205_151400.jpg)

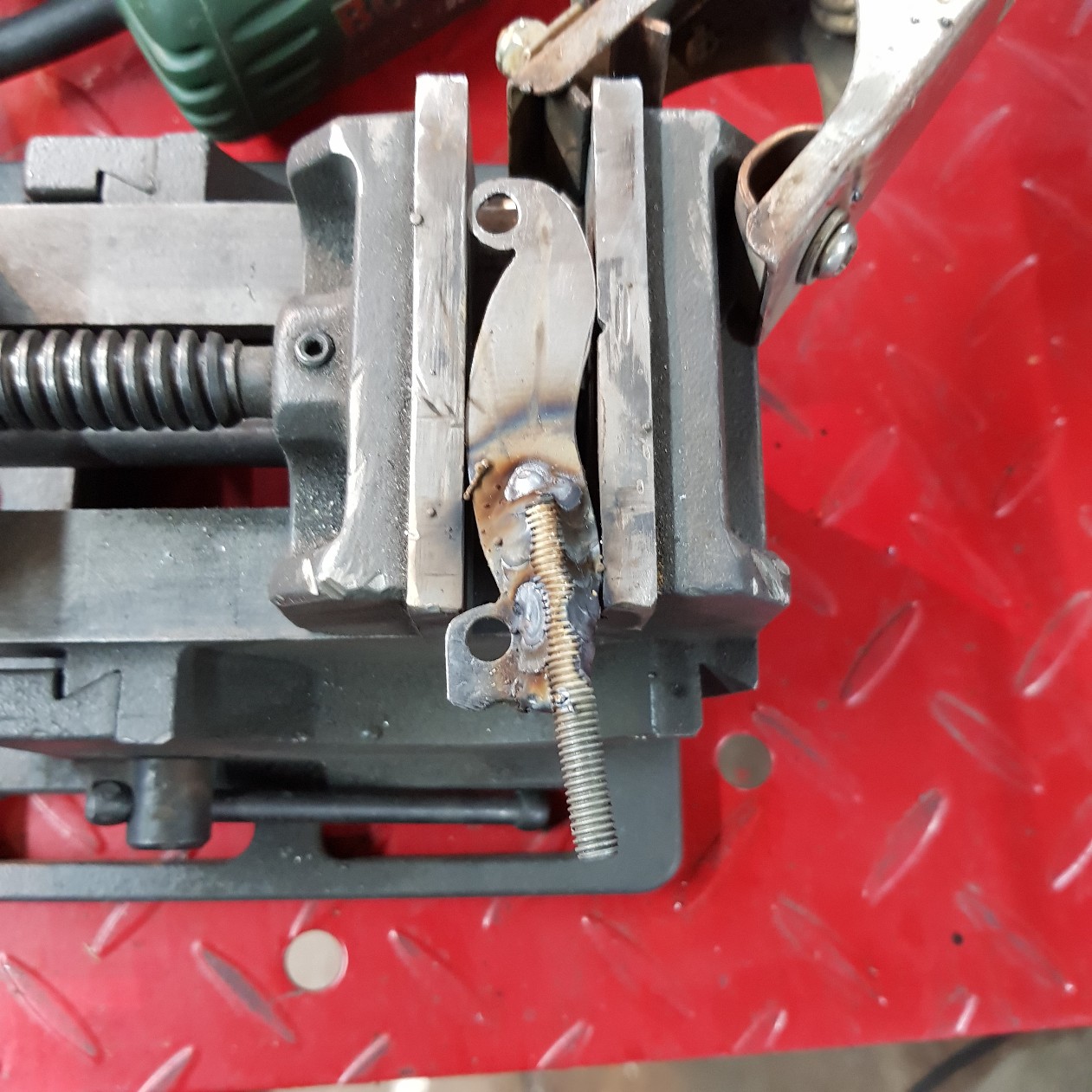

Welding on an M6 bold
![](images/20201205_152721.jpg)

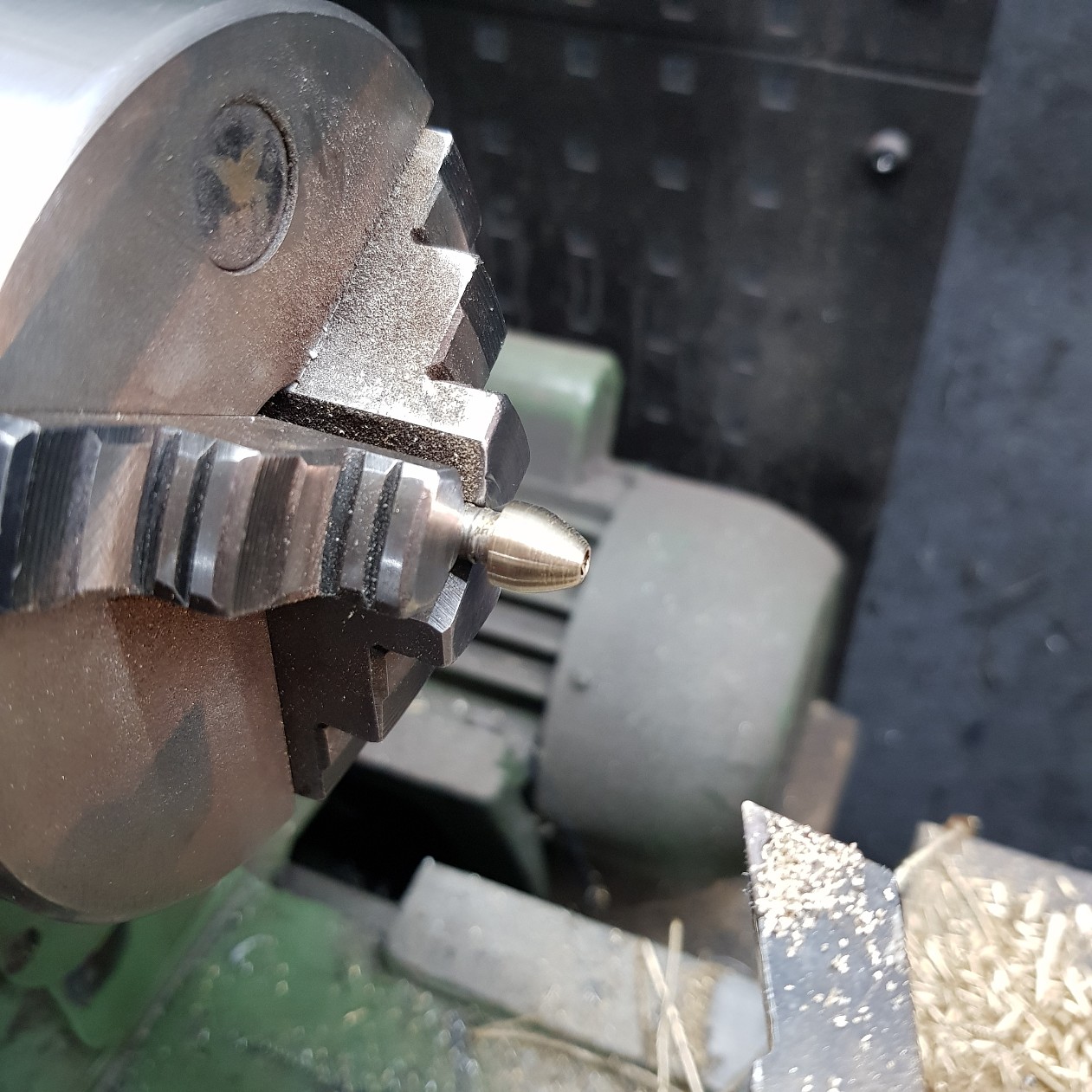

Constructing a clamp bush.
![](images/20201205_161349.jpg)

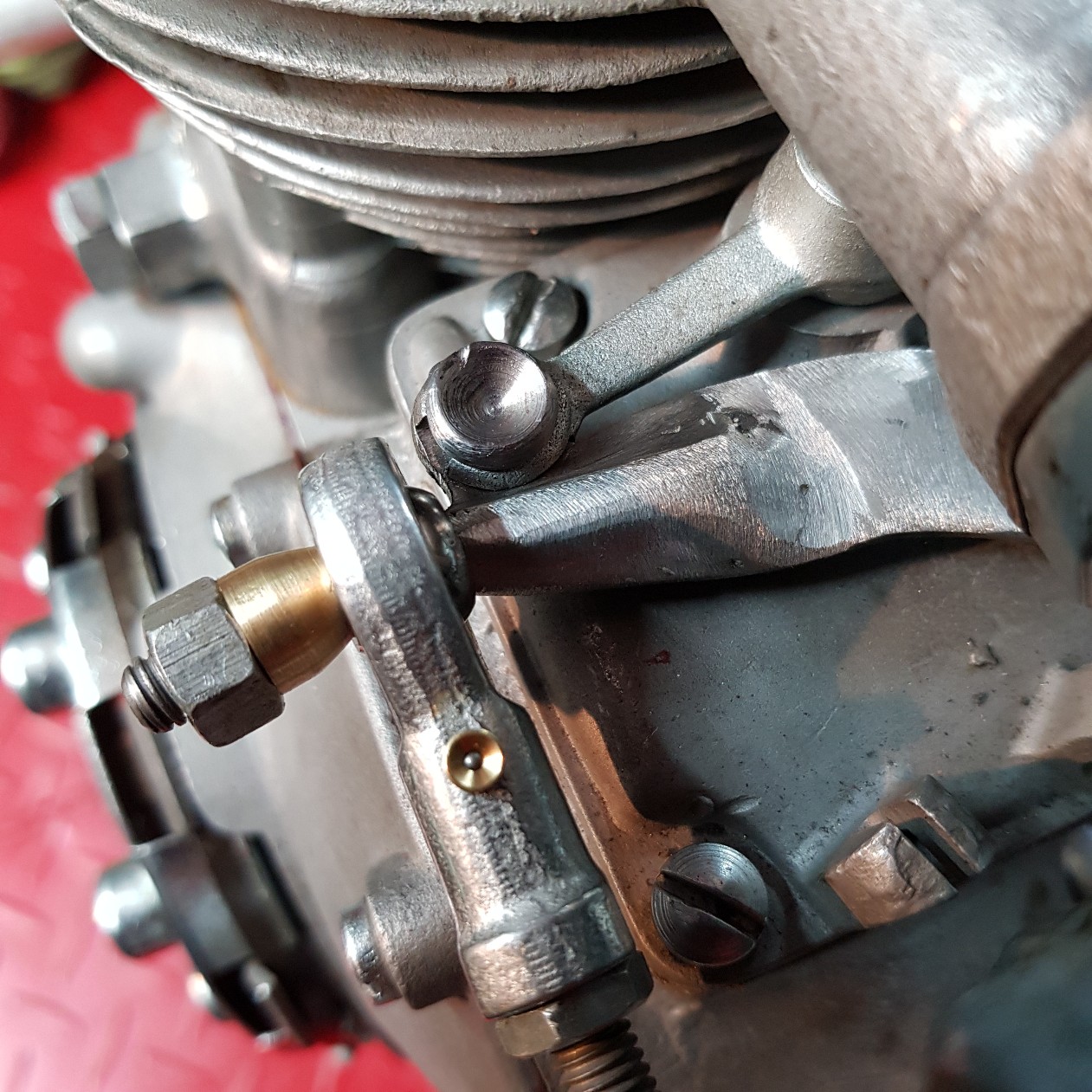

Until now, I can shift through all the gears.
![](images/20201205_175157.jpg)

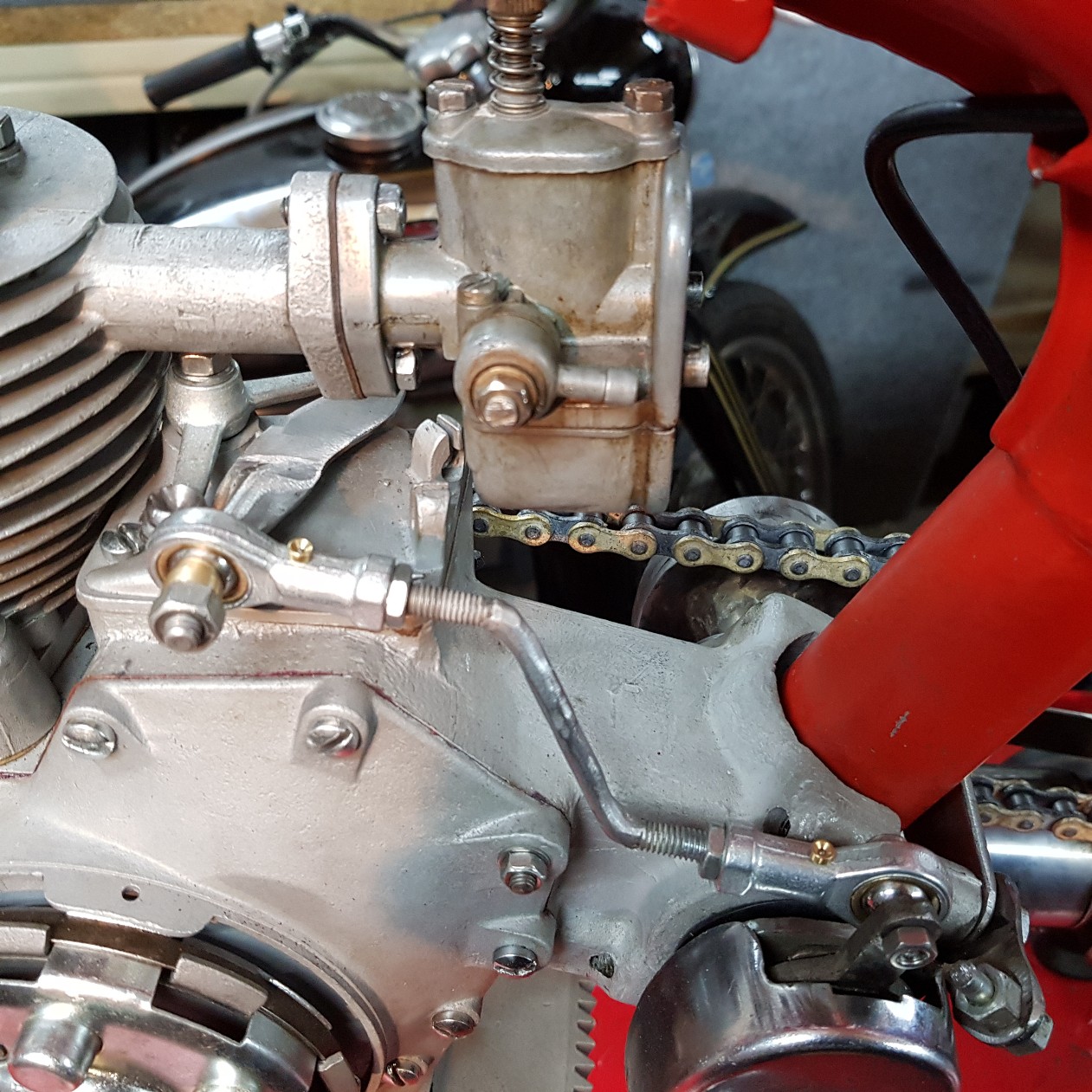

Width adjustable.
![](images/20201205_170617.jpg)

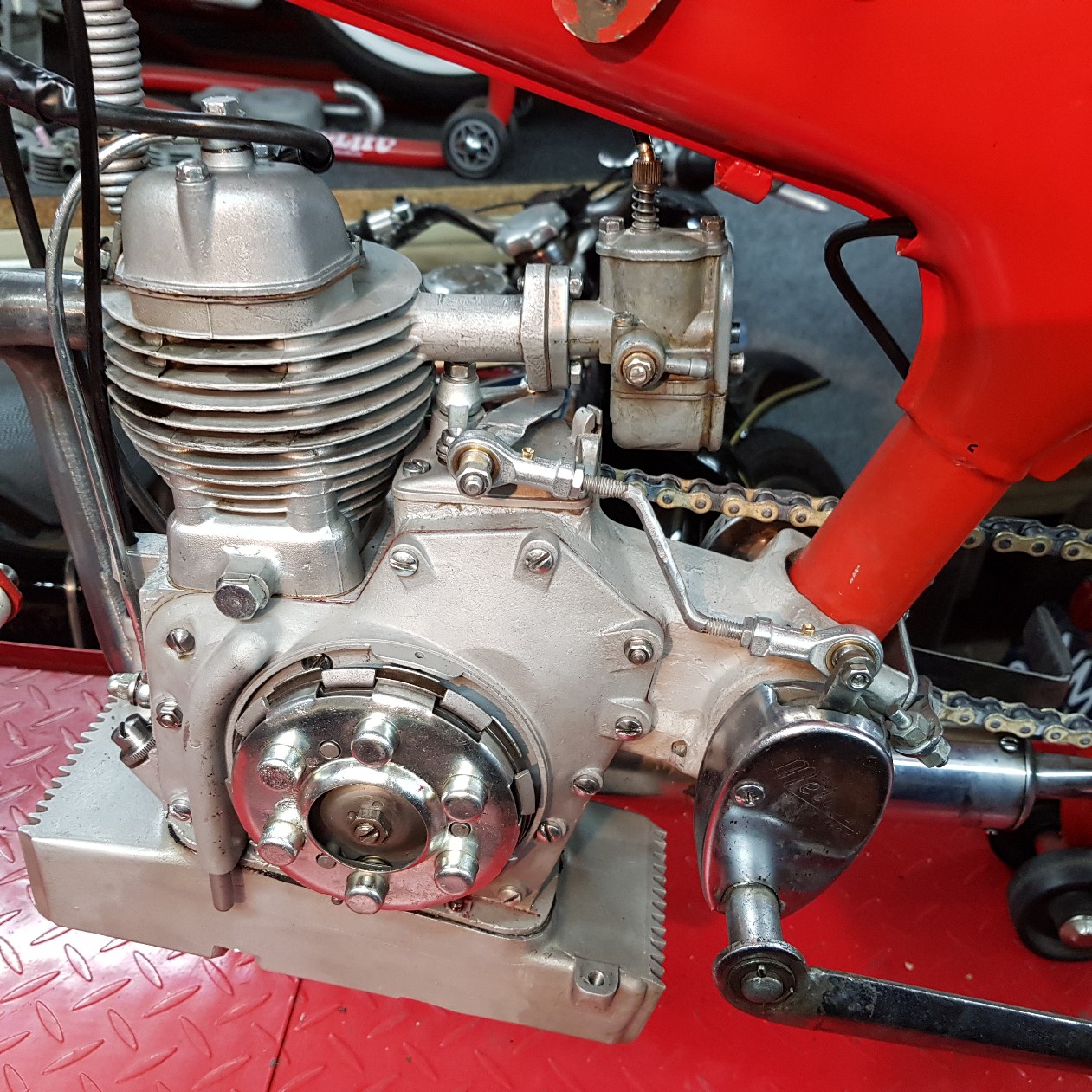

Need to grind it more clean, but the start is there.
![](images/20201205_170608.jpg)
